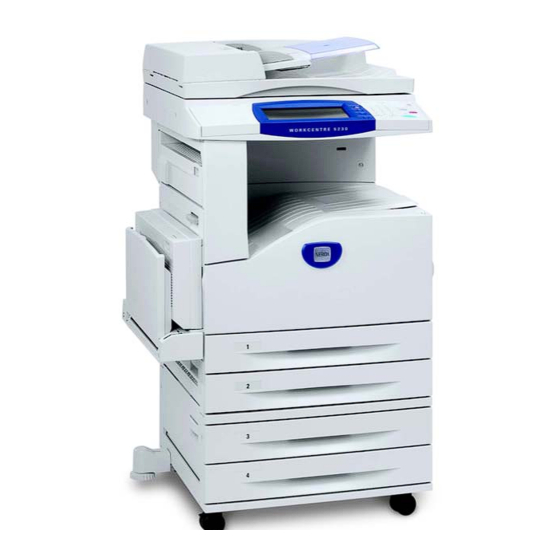

Xerox WorkCentre 5222 Quick Network Setup Manual

Quick Network Setup Guide
This guide includes instructions for:
Quick Network Setup (DHCP)
Quick Network Setup (Static IP)
Note
For more detailed instructions, see the System Administration Guide.
Quick Network Setup (DHCP)
The System Administration Guide contains detailed information about network setups.
Prerequisites for Quick Network Setup Using TCP/IP
1. Confirm that an existing operational network utilizing TCP/IP is available.
2. Confirm that the Ethernet cable is plugged into the multifunction machine and into an
operational Ethernet port on the network.
Note
The Ethernet cable is an RJ45 type and is not supplied by Xerox.
Configuring an IP Address via DHCP
On startup, the multifunction machine defaults to DHCP to obtain its network configurations.
A DHCP server delivers an IP address, as well as other configuration settings to the machine.
If you use a DHCP server to allocate an IP address to the machine, then proceed as follows:
Procedure for Quick Network Setup Using TCP/IP
1. Power on the machine.
2.
Wait a minute or so while the machine negotiates an IP address.
3.
Print the Configuration Report:
a. Press the <Machine Status> button on the machine.
b.
On the [Machine Information] screen, select [Print Reports].
c.
Select [Printer Reports].
d.
Select [Configuration Report].
e.
Press the <Start> button on the machine.
on page 1
