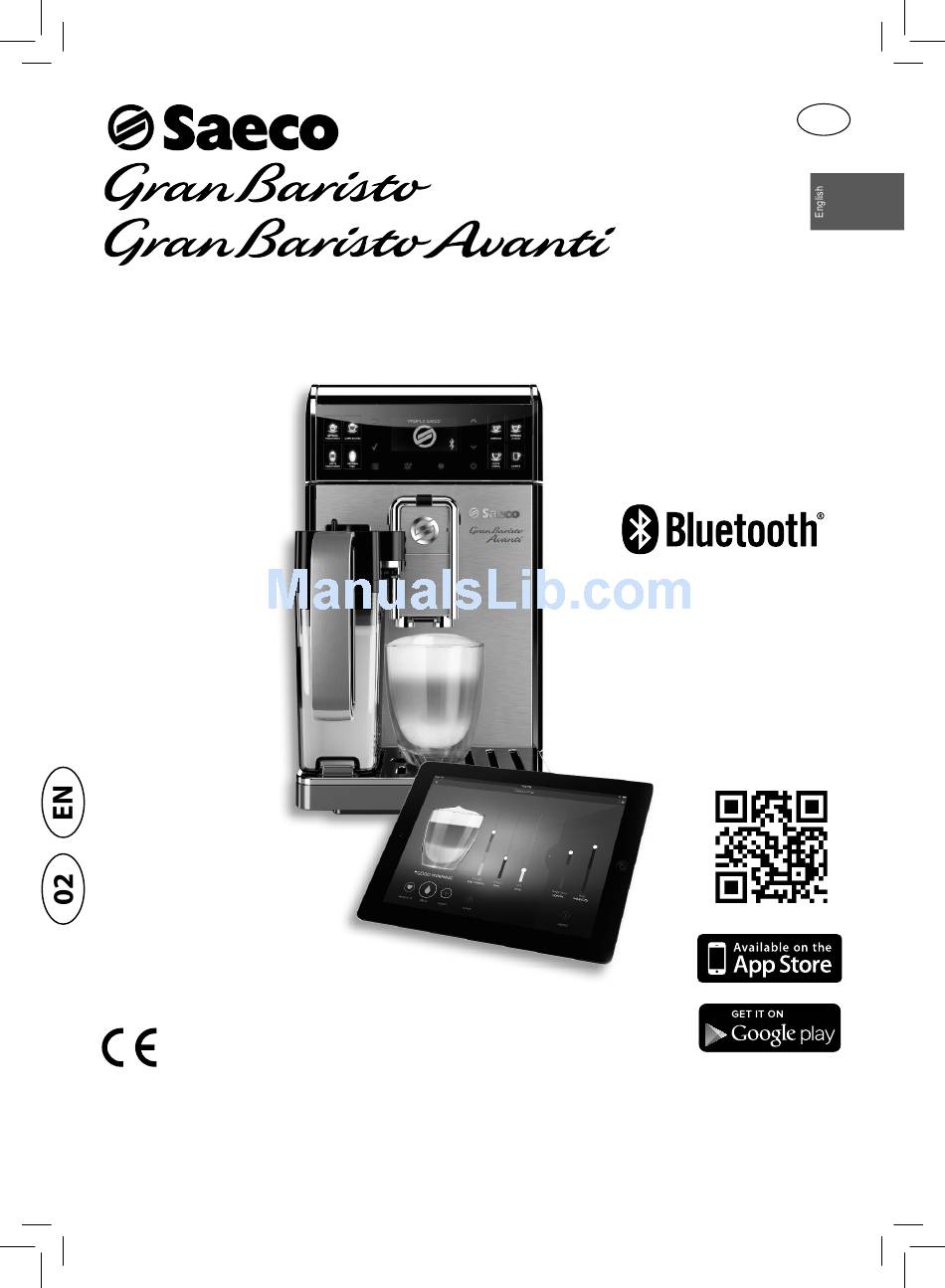

USER MANUAL

Type HD8969 - HD8975 - HD8977 - HD8978
Read carefully before using the machine.
0051
Register your product and get support at
www.saeco.com/welcome
Avanti App is compatible with iPad 3/4/Air/mini retina, running iOS7 and newer; with Samsung Galaxy Tab 3 (8.0'')/Tab 4 (10.1'')/Note pro LTE (12.2''),
Nexus 7 2013 (7''), Sony Xperia Z LTE (10.1''), running Android v.4.3 and newer, and Bluetooth version 4.0 and newer.
Tablet not included
Tablet not included
Tablet not included
Only for
Only for Types HD8969, HD8977 and HD8978
T
Saeco Avanti App
Saeco Avanti App
Saeco Avanti App
02

Advertisement

Table of Contents
loading

Related Manuals for Saeco Grand Baristo

Summary of Contents for Saeco Grand Baristo

  • Page 1: User Manual

    USER MANUAL Type HD8969 - HD8975 - HD8977 - HD8978 Read carefully before using the machine. Only for Types HD8969, HD8977 and HD8978 Only for Saeco Avanti App Tablet not included Tablet not included Tablet not included Saeco Avanti App...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs. 3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.
  • Page 3 CAUTION This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user.

  • Page 4: Table Of Contents

    Congratulations on your purchase of a Saeco GranBaristo Avanti fully automatic coff ee machine! To fully benefi t from the support that Saeco off ers, please register your product at www.saeco.com/welcome. This user manual applies to HD8969 - HD8975 - HD8977 - HD8978.
  • Page 5 ENGLISH BREWING COFFEE ...................41 Brewing Coff ee Using Coff ee Beans ....................41 Brewing Coff ee Using Pre-Ground Coff ee ...................42 MILK CARAFE....................44 Filling the Milk Carafe ........................44 Inserting the Milk Carafe ........................45 Removing the Milk Carafe ........................45 Emptying the Milk Carafe ........................46 DISPENSING MILK-BASED BEVERAGES .............47 Quick Carafe AUTO CLEAN Cycle ......................50 Adjusting Milk-Based Product Length ....................51...

  • Page 6: Important

    ENGLISH IMPORTANT Safety Instructions This machine is equipped with safety devices. Nevertheless, read and follow the safety instructions carefully and only use the machine properly as described in these instructions to avoid accidental injury or damage due to improper use of the machine.
  • Page 7 ENGLISH • Never immerse the machine, the mains plug or power cord in water: danger of electrical shock! • Do not pour liquids on the power cord connector. • Never direct the hot water jet towards body parts: danger of burning! •...

  • Page 8: Cautions

    ENGLISH • Keep the machine and its power cord out of reach of chil- dren under 8 years old. • The machine may be used by persons with reduced physi- cal, sensory or mental capabilities or lacking suffi cient experience and/or skills if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.

  • Page 9: Electromagnetic Fields

    ENGLISH • Never use warm or hot water to fi ll the water tank. Use only cold non-sparkling drinking water. • Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water. • Descale your machine regularly. Not doing this will make your appliance stop working properly.

  • Page 10: Disposal

    ENGLISH Disposal This symbol on a product indicates that the product is covered by EU Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Follow local regulations and do not dispose of the product as household waste. Appropriate disposal of old products helps prevent negative consequences for the environment and human health.

  • Page 11: Declaration Of Conformity

    ENGLISH Declaration of Conformity 1030 (Document No.) (Name and number) (place,date)

  • Page 12: Installation

    INSTALLATION Product Overview 10 11 36 37...

  • Page 13: General Description

    ENGLISH General Description 1. Coff ee bean hopper + lid 2. Cup-warming surface 3. Water tank + lid 4. AcquaClean fi lter (optional) 5. Pre-ground coff ee compartment 6. Service door button 7. Control panel 8. Removable coff ee dispensing spout 9.

  • Page 14: Preparing For Use

    ENGLISH PREPARING FOR USE Machine Packaging The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the packaging material for possible future transport. Machine Installation Remove the drip tray with grill and the carafe from the packaging. Remove the machine from the packaging.
  • Page 15 ENGLISH Remove the water tank by using the handle incorporated on the inner lid. Rinse the water tank with fresh water. Fill the water tank with fresh drinking water up to the MAX level and put it back into the machine. Make sure it is fully inserted. Caution: Never fi ll the water tank with warm, hot, sparkling water or any other liquid, as this may cause damage to the water tank and the machine.

  • Page 16: Demo Mode Function

    ENGLISH Insert the plug into the socket located on the back of the machine. Insert the plug on the other end of the power cord into a wall socket with suitable power voltage. Switch the power button on the back of the machine to “I” to turn on the machine.

  • Page 17: Using The Machine For The First Time

    ENGLISH USING THE MACHINE FOR THE FIRST TIME When using the machine for the fi rst time, the following activities need to happen: 1) You have to select the language. 2) The machine will perform an automatic rinse/cleaning cycle. 3) You need to perform a manual rinse cycle. Language Selection At fi rst start-up, the language must be selected.

  • Page 18: Automatic Rinse/Cleaning Cycle

    ENGLISH Automatic Rinse/Cleaning Cycle When warm-up has been completed, the machine automatically performs a rinse/self-cleaning cycle of the internal circuits with fresh water. This takes less than a minute. Place a container under the coff ee dispensing spout to catch the small amount of water which will be dispensed.

  • Page 19: Manual Rinse Cycle

    This takes a few minutes. Place a container under the coff ee dispensing spout. Check that the machine shows this display. PROFILE SAECO Press the “ ” button to access the aroma selection menu.
  • Page 20 Push the water dispensing spout towards the bottom while rotating it at the same time until it is locked into the machine as shown in the fi gure. Place an empty container under the hot water dispensing spout. Press the “ ” button. PROFILE SAECO...
  • Page 21 At the end, fi ll the water tank again up to the MAX level. Now the ma- chine is ready to brew coff ee. This icon will be displayed. PROFILE SAECO Note: When you have not used the machine for 2 or more weeks, the machine will automatically perform a rinse/self-cleaning cycle after you turn it on.

  • Page 22: Measuring And Programming Water Hardness

    4 = 4 (very hard water) The letters correspond to the references that are located at the base of the “AquaClean” water fi lter (see next chapter). Press the “ ” button to access the machine main menu. PROFILE SAECO...
  • Page 23 ” button to increase the value or the “ ” button to WATER HARDNESS decrease the value. Press the “ ” button to confi rm the setting. Press the “ ” button to exit the programming menu. Now the ma- chine is ready for brewing. PROFILE SAECO...

  • Page 24: Aquaclean Water Filter

    ENGLISH AQUACLEAN WATER FILTER The AquaClean fi lter is designed to reduce limescale build-up inside the machine and to provide fi ltered water in order to preserve the coff ee aroma and fl avour in each cup. By using the series of 8 AquaClean fi lters as indicated in this user manual, you will not need to descale the machine for 2 years or for the next 5000 cups (with 100-ml capacity).

  • Page 25: Activating The Aquaclean Filter

    Clean fi lter upon fi rst use, you can install it later by accessing the menu as described here below. Press the “ ” button to access the machine main menu. PROFILE SAECO Press the “ ” button to select “AQUACLEAN FILTER”. MENU...
  • Page 26 ENGLISH eighth fi lter (when the display shows 8/8), the machine will require a des- caling cycle to be performed when installing the next fi lter. The display is prompting you to insert the fi lter and to fi ll the water tank.

  • Page 27: Replacing The Aquaclean Filter

    AQUACLEAN 1/8 When the machine stops dispensing, remove and empty the container. The machine shows this display. PROFILE SAECO The icon shows the capacity of the AQUACLEAN fi lter that you have 100% just installed. The 100% AquaClean icon appears on the machine-ready screen to indicate that the fi lter has been activated.

  • Page 28: Information On Filter Capacity

    ENGLISH Information on Filter Capacity When installing a new fi lter, the status indication on top of the fi lter icon is 100%. PROFILE SAECO 100% This percentage gradually decreases from 100% to 20% with use. PROFILE SAECO When fi lter capacity drops below 10%, the fi lter icon fl ashes on and off for 2 seconds.

  • Page 29: How To Replace The Filter

    Press the “ ” button to access the machine main menu. Press the “ ” button to select “AQUACLEAN FILTER”. PROFILE SAECO Press “ ” to confi rm. The display shows the number of AquaClean fi lters previously installed, from 0 to 8.

  • Page 30: Replacing The Filter After Using 8 Filters

    Press the “ ” button to access the machine main menu. Press the “ ” button to select “AQUACLEAN FILTER”. PROFILE SAECO Press “ ” to confi rm. The display indicates that you need to descale the machine before activating a new fi lter. Press the “ ” button to start the descaling pro- AQUACLEAN 8/8 cedure.

  • Page 31: Bluetooth Connection Only For Hd8969, Hd8977 And Hd8978

    Download the application on your mobile device to access the machine functions. To connect GranBaristo Avanti with your mobile device, download the Saeco Avanti App available on the App Store and Google Play or scan the QR code on the cover with your mobile device. As an alternative, connect to the www.
  • Page 32 ENGLISH Press “ ” to confi rm. SETTINGS STAND-BY TIME BUTTON SOUND BLUETOOTH RESTORE TO DEFAULT The “BLUETOOTH” management menu is displayed. BLUETOOTH Press “ ” to enable the function in the machine and to set up a con- ENABLE BLUETOOTH nection with your mobile device.
  • Page 33 Warning: Use the Saeco Avanti App to control your Gran Baristo only when you can see the machine in order to avoid injury or damage! You cannot use the pre-ground coff ee function when operating the machine via the App.

  • Page 34: Coffee Profile

    6 diff erent profi les. The machine has 1 preset profi le indicated by the icon on the left. PROFILE SAECO You can create 5 additional profi les, which can be entirely customized. For a quick reference, users are represented by a unique icon, which has to be selected during programming.

  • Page 35: Profi Le Selection

    ENGLISH Press the “ ” button to select “ENABLE NEW PROFILE”. EDIT PROFILES PROFILE SAECO ENABLE NEW PROFILE Press “ ” to confi rm. EDIT PROFILES PROFILE SAECO ENABLE NEW PROFILE Press the “ ” button or the “ ” button to select the desired profi le, which will be represented by a unique icon.

  • Page 36: Disabling A User Profi Le

    The respective icon is now available again in the enabling options. To enable the profi le again, refer to the “Enabling a New Profi le” section. Press the “ ” button to access the machine main menu. PROFILE SAECO Press “ ” to confi rm. MENU...
  • Page 37 ENGLISH This display is shown. EDIT PROFILES PROFILE SAECO ENABLE NEW PROFILE Press the “ ” button to exit the programming menu. Now the ma- chine is ready for brewing. PROFILE SAECO...

  • Page 38: Adjustments

    The machine allows for certain adjustments so that you can brew the best tasting coff ee possible. Saeco Adapting System Coff ee is a natural product and its characteristics may change according to its origin, blend and roast. The machine is equipped with a self-adjusting system that allows you to use all types of coff ee beans available on the market except for caramelized and fl avoured coff ee beans.

  • Page 39: Adjusting The Aroma (Coff Ee Strength)

    ENGLISH The reference marks in the coff ee bean hopper compartment indicate the grind setting. There are 5 diff erent grind settings to choose from, from position 1 for coarse grind - lighter taste to position 2 for fi ne grind - stronger taste.

  • Page 40: Adjusting The Dispensing Spout

    ENGLISH Adjusting the Dispensing Spout The height of the coff ee dispensing spout can be adjusted to better fi t the dimensions of the cups that you wish to use. Manually move the coff ee dispensing spout up or down using its handle to adjust its height.
  • Page 41 ENGLISH For the use of glasses for Latte Macchiato. Note: This is possible by moving the dispensing spout towards the machine. Two cups can be placed under the coff ee dispensing spout to brew two coff ees at the same time.

  • Page 42: Adjusting The Coff Ee Quantity

    ENGLISH Adjusting the Coff ee Quantity The machine allows you to adjust the amount of brewed coff ee or milk ac- cording to your taste and the size of your cups. Each time the Espresso “ ”, the Long espresso “ ”, the Caff è...

  • Page 43: Brewing Coffee

    ENGLISH BREWING COFFEE Before brewing coff ee, make sure that there are no warnings shown on the display and that the water tank and the coff ee bean hopper are fi lled. Brewing Coff ee Using Coff ee Beans Place 1 or 2 cups under the coff ee dispensing spout. Press the “...

  • Page 44: Brewing Coff Ee Using Pre-Ground Coff Ee

    ENGLISH Brewing Coff ee Using Pre-Ground Coff ee This function allows you to use pre-ground and decaff einated coff ee. With the pre-ground coff ee function you can only brew one coff ee at a time. Place a cup under the coff ee dispensing spout. REGULAR Press the “...
  • Page 45 After brewing, the machine returns to the main menu. PROFILE SAECO Repeat the steps described above to brew more cups of coff ee using pre- ground coff ee.

  • Page 46: Milk Carafe

    ENGLISH MILK CARAFE This chapter explains how to use the milk carafe to prepare milk-based beverages. Note: Before using the milk carafe, clean it thoroughly as described in the “Clean- ing and Maintenance” chapter. We recommend fi lling it with cold milk (approx. 5°C). Warning: Fill the carafe with milk for beverages and with water for cleaning only.

  • Page 47: Inserting The Milk Carafe

    ENGLISH Inserting the Milk Carafe If installed, remove the water dispensing spout as shown in the fi gure: Press the two side buttons to unlock the dispensing spout and lift it slightly. Pull the hot water dispensing spout to remove it. Slightly tilt the milk carafe.

  • Page 48: Emptying The Milk Carafe

    ENGLISH Emptying the Milk Carafe Press one of the release buttons to remove the top of the carafe as shown in the fi gures (A or B). Lift the top of the carafe. Empty the milk carafe and clean it properly. Note: After each use, clean the milk carafe as described in the “Cleaning and Maintenance”...

  • Page 49: Dispensing Milk-Based Beverages

    ENGLISH DISPENSING MILK-BASED BEVERAGES Warning: Danger of burning! Dispensing may be preceded by jets of milk and steam. Wait until the end of the cycle before removing the milk carafe. The buttons to automatically prepare an Espresso Macchiato “ ”, a Cap- puccino “...
  • Page 50 ENGLISH When the carafe dispensing spout is correctly positioned you will hear a CLICK! Note: If the carafe dispensing spout has not been pulled all the way out, steam CLICK! may escape and milk may not be properly frothed. Place a cup under the carafe dispensing spout. Press the Cappuccino “...
  • Page 51 ENGLISH This screen is displayed during the preheating time required by the machine. CAPPUCCINO The machine starts dispensing milk. To stop dispensing, press the same selected beverage button that you pressed previously. Dispensing will CAPPUCCINO stop in a few seconds. Once frothed milk has been dispensed, the machine brews coff ee.

  • Page 52: Quick Carafe Auto Clean Cycle

    ENGLISH Quick Carafe AUTO CLEAN Cycle After one or more milk-based products have been dispensed, the machine allows for a quick cleaning of the carafe ducts. This screen is displayed for 20 seconds. Press the “ ” button to start the cycle.

  • Page 53: Adjusting Milk-Based Product Length

    ENGLISH Adjusting Milk-Based Product Length Every time the Espresso Macchiato “ ”, the Cappuccino “ ”, the Latte Macchiato “ ” and the Frothed Milk Frothed Milk “ ” buttons are pressed, the machine brews a preset amount of selected beverage into the cup. The machine allows you to adjust the amount of each beverage according to your taste and the size of your cups.
  • Page 54 ENGLISH This icon is displayed during the preheating time required by the machine. CAPPUCCINO When this icon is shown, the machine starts dispensing frothed milk into the cup. Once the desired amount of frothed milk is reached, MEMO press the same selected beverage button that you pressed previously. Dispensing will stop in a few seconds.

  • Page 55: Special Beverages

    The machine is designed to brew more products than those described so far. For this, follow the steps below: Press the “ ” button to access the “SPECIAL BEVERAGES” menu. PROFILE SAECO Select the beverage by pressing the “ ” button or the “ ” button.
  • Page 56 ENGLISH Push the water dispensing spout towards the bottom while rotating it at the same time until it is locked into the machine as shown in the fi gure. Place a container under the hot water dispensing spout. Press the “ ”...

  • Page 57: Adjusting Hot Water Dispensing

    ENGLISH Adjusting Hot Water Dispensing Warning: Danger of burning! Dispensing may be preceded by small jets of hot water and steam. Wait until the end of the cycle before removing the water dispensing spout. Make sure that the machine is ready for hot water dispensing. SPECIAL BEVERAGES HOT WATER RISTRETTO...

  • Page 58: Special Beverages Menu For Dispensing Other Beverages

    ENGLISH Special Beverages Menu for Dispensing Other Beverages The menu allows you to dispense other beverages according to your personal taste. The procedure for brewing a strong coff ee is shown as an example. Note: Follow the same steps to dispense the other beverages of the menu. Only when you are dispensing a “Flat white”...

  • Page 59: Adjusting The Quantity Of The Other Beverages For The "Special Beverages" Menu

    ENGLISH Adjusting the Quantity of the Other Beverages for the “Special Beverages” Menu This procedure allows you to adjust the quantity of the other beverages displayed on the menu according to personal taste. The procedure for brewing a strong coff ee is shown as an example. Note: Follow the same steps to dispense the other beverages of the menu.

  • Page 60: Beverage Programming

    The machine allows you to customize every beverage according to your personal taste and to save the preferences in your personal profi le. Press the “ ” button to access the machine main menu. PROFILE SAECO Press “ ” to confi rm. MENU...

  • Page 61: Strength

    ENGLISH The parameters to be adjusted are displayed. CAPPUCCINO To select them, press the “ ” or “ ” scrolling button. STRENGTH To access, press the “ ” button. COFFEE AMOUNT TEMPERATURE To go back to the previous screen, press the " "...

  • Page 62: Taste

    ENGLISH Taste This setting enables the prebrewing function. During prebrewing, the cof- TASTE fee is slightly dampened to bring out the aroma in full. DELICATE BALANCED DELICATE: the prebrewing function is not performed. FULL BODY BALANCED: the prebrewing function is enabled. FULL BODY: the prebrewing function lasts longer to enhance the coff ee taste.

  • Page 63: Restoring Beverage Parameters

    ENGLISH RESTORING BEVERAGE PARAMETERS The factory settings of every beverage can be restored for each profi le. Press the “ ” button to select “RESTORE TO DEFAULT”. Press “ ” twice to confi rm. All the parameters are restored to factory PROFILE 1 settings.

  • Page 64: Machine Programming

    The machine allows you to customize the operating settings. These set- tings are applied to all user profi les. Press the “ ” button to access the machine main menu. PROFILE SAECO Press the “ ” button to select “SETTINGS”. MENU...

  • Page 65: Water Settings

    ENGLISH Water Settings The WATER SETTINGS option allows you to adjust the water parameters SETTINGS for an optimal coff ee. WATER HARDNESS LANGUAGE STAND-BY TIME BUTTON SOUND Under WATER HARDNESS you can set the water hardness level. WATER HARDNESS For water hardness measuring, refer to the “Measuring and Programming Water Hardness”...

  • Page 66: Bluetooth Connection (Only For Hd8969, Hd8977 And Hd8978)

    ENGLISH Bluetooth Connection (only for HD8969, HD8977 and HD8978) The BLUETOOTH menu allows you to connect the machine to a mobile SETTINGS device compatible with this technology. STAND-BY TIME BUTTON SOUND BLUETOOTH RESTORE TO DEFAULT Under ENABLE BLUETOOTH you can fi nd the options to activate the func- BLUETOOTH tion.

  • Page 67: Statistics

    The machine allows you to see how many beverages have been brewed. This allows you to schedule the various maintenance operations indicated in the instruction manual. Press the “ ” button to access the machine main menu. PROFILE SAECO Press the “ ” button to select “STATISTICS”. MENU MAINTENANCE Press “...

  • Page 68: Maintenance

    In this menu you can manage all the automatic cycles necessary for the correct maintenance of the machine. Press the “ ” button to access the machine main menu. PROFILE SAECO Press the “ ” button to select “MAINTENANCE”. MENU...

  • Page 69: Brew Group Cleaning Cycle

    ENGLISH Brew Group Cleaning Cycle The BREW GROUP CLEANING function allows you to carry out the brew MAINTENANCE group monthly cleaning (see the “Monthly Cleaning of the Brew Group DESCALING with Coff ee Oil Remover” chapter). BREW GROUP CLEANING CARAFE CLEANING Carafe Cleaning The CARAFE CLEANING menu allows you to manage the carafe cleaning.

  • Page 70: Cleaning And Maintenance

    ENGLISH CLEANING AND MAINTENANCE Daily Cleaning of the Machine Caution: Timely cleaning and maintenance of your machine is very important as it prolongs the life of your machine. The machine is continuously exposed to humidity, coff ee and limescale! The activities you need to perform and their frequency are described in detail in this chapter.
  • Page 71 ENGLISH Empty the coff ee grounds drawer and wash it with fresh water. Empty the (internal) drip tray and the lid and wash them with fresh water. Correctly reinstall all the components. Insert the drip tray and the coff ee grounds drawer and close the ser- vice door.

  • Page 72: Daily Cleaning Of The Water Tank

    ENGLISH Note: Perform this operation also when the full drip tray indicator is raised. Daily Cleaning of the Water Tank Remove the small white fi lter or the AQUACLEAN water fi lter (if in- stalled) from the water tank and wash both with fresh water. Put the small white fi lter or the AQUACLEAN water fi lter (if installed) back in its housing by gently pressing and turning it at the same time.
  • Page 73 ENGLISH Remove the lid. Lift the carafe dispensing spout to remove it from the top of the carafe. Remove the suction tube with the fi tting (A) from the milk frother. Wash the suction tube with the fi tting thoroughly with fresh water. After installing the suction tube with the fi tting, insert the carafe dis- pensing spout on the top of the carafe.
  • Page 74 ENGLISH Note: If you cannot install the dispensing spout on the top of the carafe, the pin is in the wrong position (B). Before installing the dispensing spout, manu- ally push the pin to the (A) position. Insert the lid. Place the top of the carafe back in position.

  • Page 75: Weekly Cleaning Of The Milk Carafe

    ENGLISH Weekly Cleaning of the Milk Carafe The weekly cleaning is more thorough since all milk residues are removed from the dispensing spout. Press one of the release buttons to remove the top of the carafe as shown in the fi gures (A or B). Remove the lid.
  • Page 76 ENGLISH Remove the fi tting (B) from the suction tube. Detach the lid (C) from the milk carafe dispensing spout by slightly pressing on the sides while pushing downwards. Remove the milk frothing device (D) from the support (E). Remove the fi tting (F) from the milk frothing device by pulling it out- wards.
  • Page 77 ENGLISH Insert the fi tting (F) into the milk frothing device by pressing it up to its limit. Insert the milk frothing device (D) into the support (E). Attach the top (C) to the carafe dispensing spout. Insert the fi tting (B) into the suction tube. Insert the suction tube with the fi tting (A) into the milk frother.
  • Page 78 ENGLISH Insert the dispensing spout into the top part of the carafe. Note: If you cannot install the dispensing spout on the top of the carafe, the pin is in the wrong position (B). Before installing the dispensing spout, manu- ally push the pin to the (A) position.

  • Page 79: Weekly Cleaning Of The Brew Group

    ENGLISH Weekly Cleaning of the Brew Group The brew group should be cleaned every time the coff ee bean hopper is fi lled or at least once a week. Turn off the machine by pressing the “ ” button and remove the plug from the socket.
  • Page 80 ENGLISH Open the brew group unlocking lever. Seize the brew group handle and pull it outwards. While pulling the lever, remove the brew group. Thoroughly wash the brew group with lukewarm water and carefully clean the brew group fi lter. Caution: Do not use detergent or soap to clean the brew group.
  • Page 81 ENGLISH Thoroughly clean the upper screen using a non-abrasive cloth to remove any coff ee grounds. Warning: Danger of burning! The upper screen is a hot component. Make sure that the machine has cooled down before cleaning. Perform the op- eration when the machine has been turned off for at least one hour.
  • Page 82 ENGLISH Insert the brew group back into its seat by sliding it along the guides until it locks into place. Close the brew group locking lever to lock it into position. Insert the drip tray (internal) and coff ee grounds drawer. Close the service door.

  • Page 83: Monthly Cleaning Of The Milk Carafe

    Monthly Cleaning of the Milk Carafe For the monthly cleaning cycle, we recommend using the “Saeco Milk Circuit Cleaner” to keep the entire circuit clean of milk residues. The “Saeco Milk Circuit Cleaner” can be purchased separately. Please refer to the main- tenance products page for further details.
  • Page 84 ENGLISH Press “ ” to confi rm or “ ” to return to the previous menu. START FULL CLEAN START CARAFE FULL CLEAN? (~ 5 MINUTES) Fill the water tank with fresh water up to the MAX level. Press the “ ”...
  • Page 85 ENGLISH CARAFE CLEANING PLACE CONTAINER UNDER THE CARAFE DISPENSING SPOUT Place a large container (1.5 l) under the dispensing spout. Press the “ ” button to confi rm. The machine starts dispensing the solution through the milk dispensing spout. The following display shows the cycle progress. CARAFE CLEANING Warning: Never drink the solution dispensed during this step.
  • Page 86 ENGLISH CARAFE RINSING PLACE MILK CARAFE AND OPEN SPOUT Empty the container and place it back under the coff ee dispensing spout. Press the “ ” button to confi rm. Press “ ” to confi rm. CARAFE RINSING PLACE CONTAINER UNDER THE CARAFE DISPENSING SPOUT The machine will start dispensing water from the milk dispensing...

  • Page 87: Monthly Lubrication Of The Brew Group

    Lubricate the brew group after approximately 500 cups of coff ee or once a month. You can purchase the Saeco grease to lubricate the brew group separately. For further details, please refer to the maintenance products page in this user manual.

  • Page 88: Monthly Cleaning Of The Brew Group With "Coff Ee Oil Remover

    Please refer to the maintenance products page for further details. Caution: The “Coff ee Oil Remover” tablets are to be used for cleaning only and do not have a descaling function. For descaling, use the Saeco descal- ing solution and follow the procedure described in the “Descaling” chapter.
  • Page 89 ENGLISH Press the “ ” button to select “MAINTENANCE”. MENU EDIT PROFILES Press “ ” to confi rm. AQUACLEAN FILTER MAINTENANCE SETTINGS Press the " " button to select “BREW GROUP CLEANING’”. MAINTENANCE DESCALING Press “ ” to confi rm. BREW GROUP CLEANING CARAFE CLEANING Press “...
  • Page 90 ENGLISH BREW GROUP CLEANING PLACE A CONTAINER UNDER THE DISPENSING SPOUT Place a container (1.5 l) under the coff ee dispensing spout. Press the “ ” button to start the cleaning cycle. Warning: Never drink the solution dispensed during this step. This icon is displayed.

  • Page 91: Descaling

    In this case, repair is NOT covered by warranty. Warning: Use the Saeco descaling solution only. Its formula has been designed to ensure better machine performance. The use of other products may damage the machine and leave residues in the water.
  • Page 92 ENGLISH Press “ ” to confi rm the “DESCALING” selection. MAINTENANCE DESCALING BREW GROUP CLEANING Note: CARAFE CLEANING If the " "button is pressed by mistake, press the " " button to quit. Press the “ ” button to confi rm. DESCALING START DESCALING? (~ 30 MINUTES)
  • Page 93 AND WATER INTO THE TANK UP TO THE CALC-CLEAN LEVEL Pour in the entire content of the Saeco descaling solution. Fill the water tank with fresh water up to the CALC CLEAN level. Put the water tank back into the machine.
  • Page 94 ENGLISH The machine starts dispensing the descaling solution at regular inter- DESCALING vals. The display shows the cycle progress. DESCALING Note: To empty the container during the process and to pause the descaling cycle, press the “ ” button. To resume the cycle, press the “ ”...
  • Page 95 ENGLISH The rinse cycle starts. The bar shows the progress status of the process. RINSING RINSING Note: To empty the container during the process and to pause the rinse cycle, press the “ ” button. To resume the cycle, press the “ ”...

  • Page 96: Interruption Of The Descaling Cycle

    ENGLISH Interruption of the Descaling Cycle Once the descaling cycle has started, it must be completed; do not turn off the machine mid-cycle. If the machine stops, you can quit the cycle by pressing the on/off button. If this occurs, or in the event of power failure or accidental disconnection of the power cord, empty and rinse carefully the water tank, then fi ll it up to the CALC CLEAN level.

  • Page 97: Display Messages

    ENGLISH DISPLAY MESSAGES Displayed message Meaning of the message Fill the coff ee bean hopper. BEANS CONTAINER EMPTY ADD COFFEE BEANS The brew group must be inserted into the machine. INSERT BREW GROUP Insert the coff ee grounds drawer and the internal drip tray. INSERT COFFEE GROUNDS DRAWER Empty the coff ee grounds drawer.
  • Page 98 RESTART TO SOLVE procedure 2 or 3 times. If the machine does not start, contact the Philips SAECO hotline in your country and quote the code shown on the display. Contact details can be found in the warranty booklet packed separately or at www.philips.

  • Page 99: Troubleshooting

    If you are unable to solve the problem with the information below, visit www.saeco.com/support for a list of frequently asked questions or con- tact the Philips Saeco hotline in your country. Contact details can be found in the warranty booklet packed separately or at www.saeco.com/support.
  • Page 100 This might occur when the machine Brew some cups of coff ee as described in is automatically adjusting the dose. the “Saeco Adapting System” chapter. The dispensing spout is dirty. Clean the dispensing spout. The coff ee is too weak (see...
  • Page 101 These problems can be considered normal if the coff ee blend has been changed or if the machine has just been installed. In this case, wait until the machine performs a self-adjusting operation as described in the “Saeco Adapting System” chapter.

  • Page 102: Energy Saving

    ENGLISH ENERGY SAVING Stand-by The Saeco fully automatic espresso coff ee machine is designed for energy saving, as proven by the Class A energy label. After a certain time of inactivity that can be set by the user (see the “Machine Programming”...

  • Page 103: Technical Specifications

    ENGLISH TECHNICAL SPECIFICATIONS The manufacturer reserves the right to make changes to the technical specifi cations of the product. Nominal voltage - Power rating - See data plate on the appliance Power supply Housing material Thermoplastic material / Metal Size (w x h x d) 210 x 360 x 460 mm Weight 13 kg...

  • Page 104: Warranty And Service

    We want to ensure that you remain satisfi ed with your machine. If you have not already done so, please register your purchase at www. saeco.com/welcome. This will enable us to stay in contact with you and send you cleaning and descaling reminders.
  • Page 105 ENGLISH AquaClean fi lter CA6903 Grease HD5061 Coff ee Oil Remover CA6704 Milk Circuit Cleaner CA6705...
  • Page 106 ENGLISH Icon on the Name Coff ee quantity in cup (approx.) Milk dispensing time (approx.) display Standard amount: 50 ml Espresso Quantity variation: 30÷70 ml Standard amount: 70 ml Espresso Lungo Quantity variation: 40÷110 ml Standard amount: 125 ml Caff è crema Quantity variation: 70ml÷280 ml Standard amount: 110 ml Coff ee...
  • Page 107 ENGLISH Icon on the Name Coff ee quantity in cup (approx.) Milk dispensing time (approx.) display Standard amount: 30 ml Ristretto Quantity variation: 20÷40 ml Espresso Standard amount: 70 ml intenso Quantity variation: 40÷110 ml Espresso Standard amount: 40 ml mild Quantity variation: 30÷70 ml Energy...
  • Page 108 The manufacturer reserves the right to make changes without prior notice. www.philips.com/saeco...
