Note:
A restricted source can be a specific IP address (e.g. 10.10.10.1), or a subnet - represented as
IP/BITS (e.g. 10.10.10.0/24). If an IP Address of 0.0.0.0 is specified, the agent will accept all
requests under the corresponding community name.

6.9.2 Diagnostic

Choose menu "System Tools → Diagnostic", and then you can transact Ping or Traceroute
function to check connectivity of your network in the following screen.
Diagnostic Tool - Check the radio button to select one diagnostic tool.

Ping - This diagnostic tool troubleshoots connectivity, reachability, and name resolution to
•
a given host or gateway.
Traceroute - This diagnostic tool tests the performance of a connection.
•

Note:
You can use ping/traceroute to test both numeric IP address or domain name. If
pinging/tracerouting the IP address is successful, but pinging/tracerouting the domain name is not,
you might have a name resolution problem. In this case, ensure that the domain name you are
specifying can be resolved by using Domain Name System (DNS) queries.
IP Address/Domain Name - Type the destination IP address (e.g. 202.108.22.5) or Domain

name (e.g. http://www.tp-link.com).
TL-WR802N

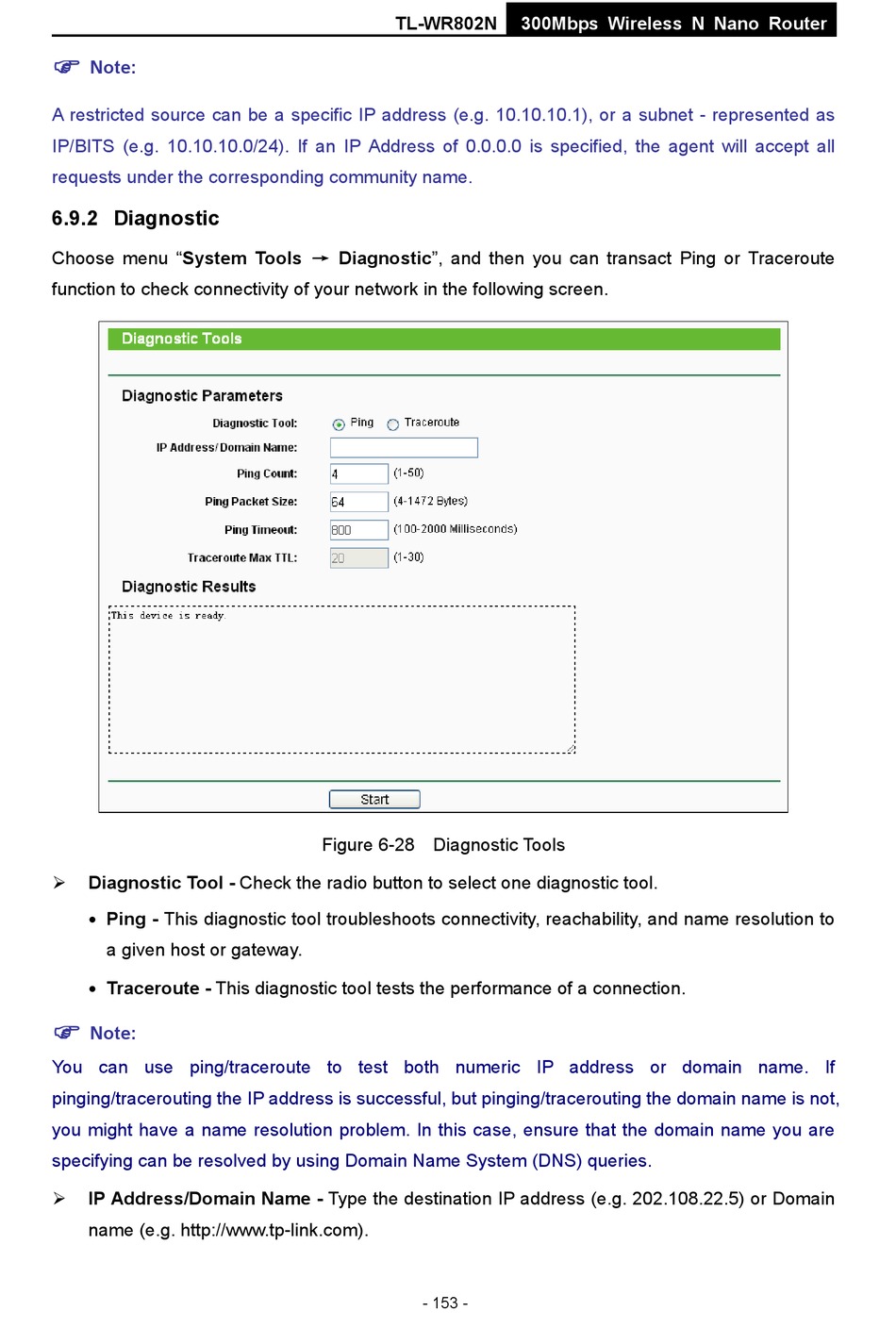

Figure 6-28 Diagnostic Tools
- 153 -
300Mbps Wireless N Nano Router
