6
SCOPE OPERATION

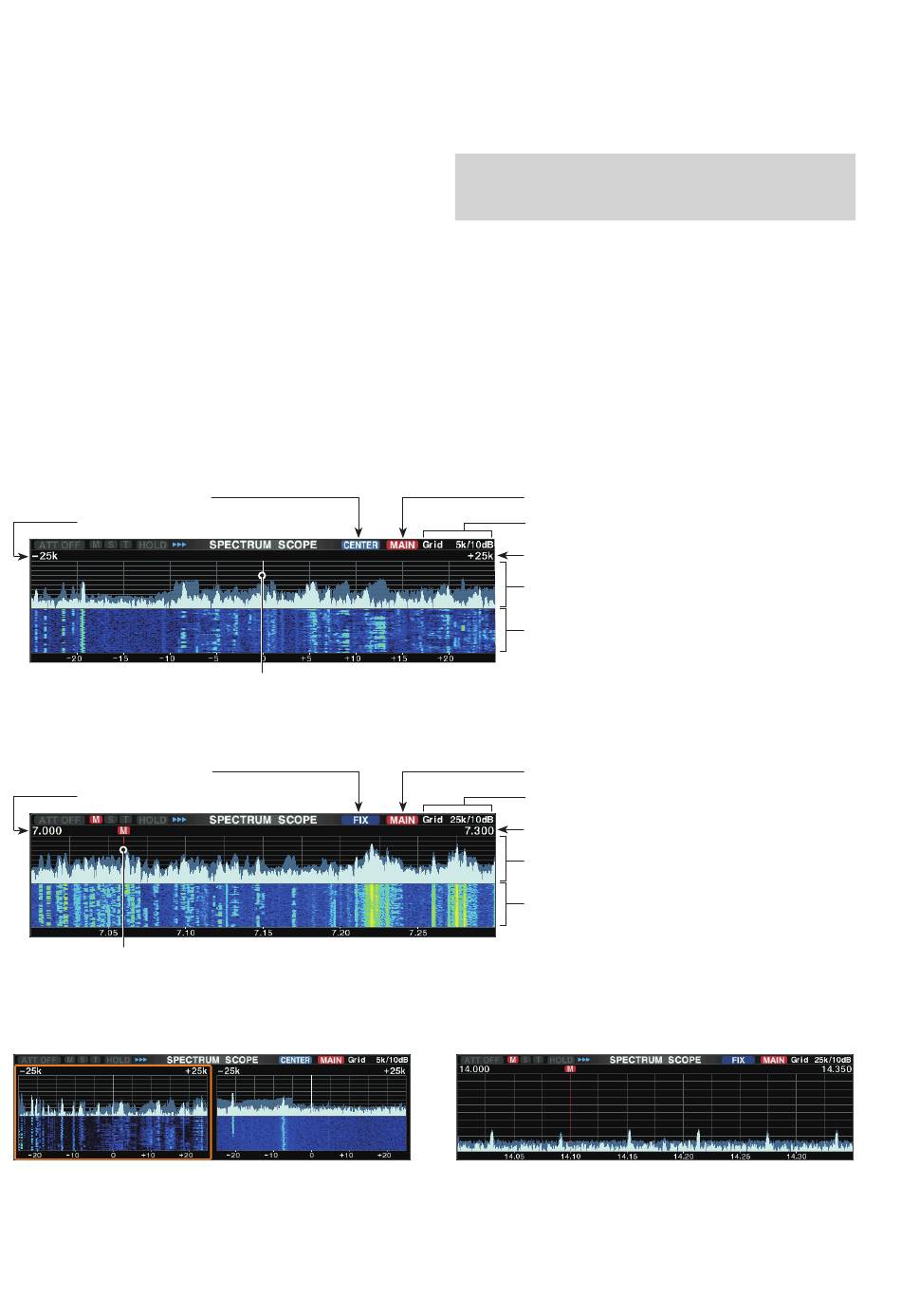

■ Spectrum scope screen

This DSP-based spectrum scope allows you to display
the activity on the selected band, as well as the relative
strengths of various signals.
The IC-7850 has two spectrum scope modes. One is
the Center mode, and another one is the Fixed mode.
You can also select Dual scope, Single scope, and
Waterfall display ON or OFF for your convenience.
In addition, there is a Mini scope screen to save screen
space.
• Center mode screen
Center/Fixed mode icon
Span (Display range)
• Fixed mode screen
Center/Fixed mode icon
Edge (Lower frequency)
Display frequency (moves)
• Center mode screen (Dual scope: Side by Side)
Display frequency (stays on Center)
NOTE: Spurious signal waveforms may be displayed.
They are generated in the internal scope circuit and
do not indicate a transceiver malfunction.
Main/Sub band icon
Grid (frequency/level)
Span (Display range)
FFT scope zone
(FFT: Fast Fourier Transform)
Waterfall zone
Main/Sub band icon
Grid (frequency/level)
Edge (Upper frequency)
FFT scope zone
Waterfall zone
• Fixed mode screen (Waterfall OFF)
6-2
