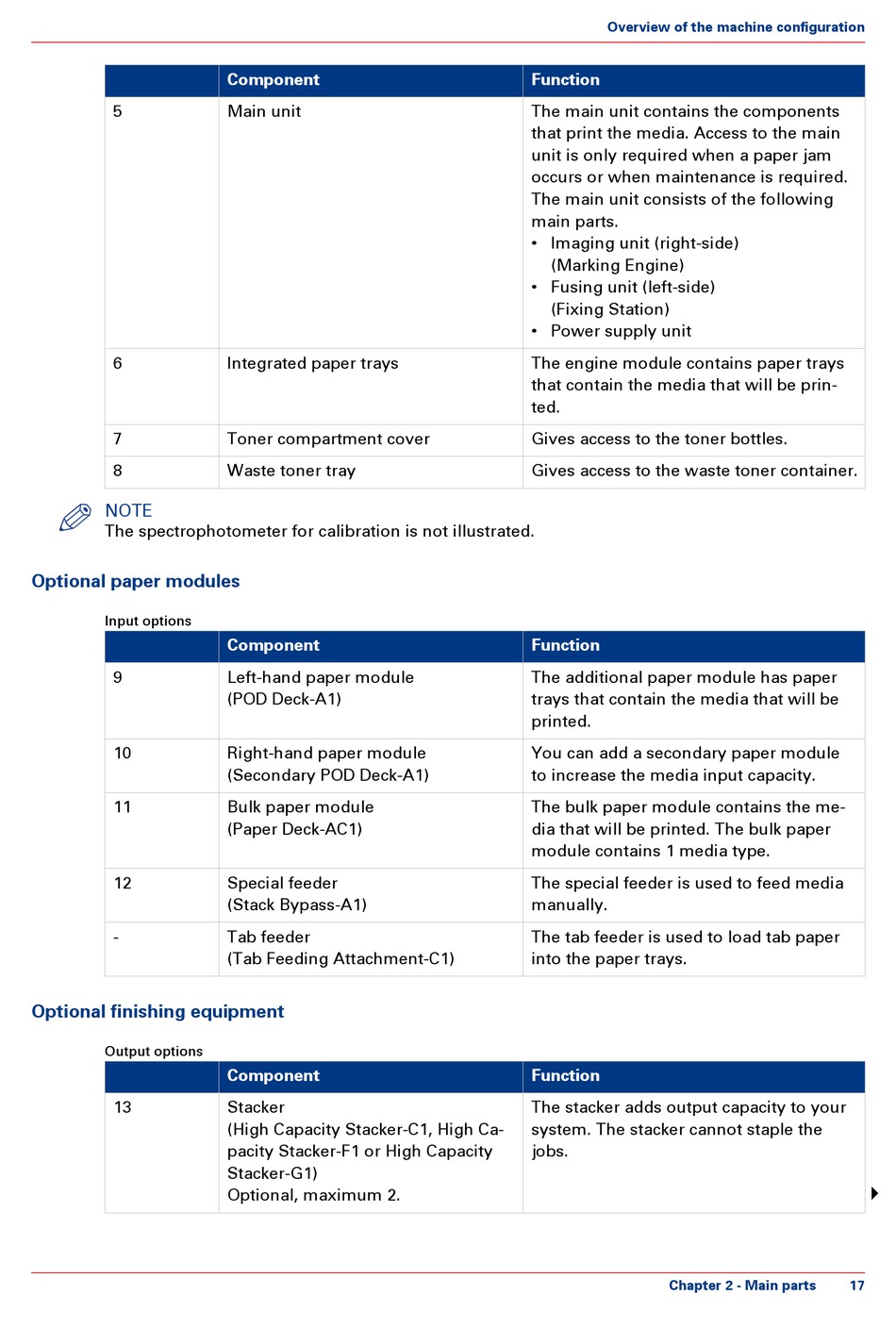

Canon IMAGEPRESS C7011VPS SERIES Operation Manual page 17

5
6
7
8
NOTE
The spectrophotometer for calibration is not illustrated.
Optional paper modules
Input options
9
10
11
12
-
Optional finishing equipment
Output options
13
Component
Main unit
Integrated paper trays
Toner compartment cover
Waste toner tray
Component
Left-hand paper module
(POD Deck-A1)
Right-hand paper module
(Secondary POD Deck-A1)
Bulk paper module
(Paper Deck-AC1)
Special feeder
(Stack Bypass-A1)
Tab feeder
(Tab Feeding Attachment-C1)
Component
Stacker
(High Capacity Stacker-C1, High Ca-
pacity Stacker-F1 or High Capacity
Stacker-G1)
Optional, maximum 2.
Overview of the machine configuration
Function
The main unit contains the components
that print the media. Access to the main
unit is only required when a paper jam
occurs or when maintenance is required.
The main unit consists of the following
main parts.
• Imaging unit (right-side)
(Marking Engine)
• Fusing unit (left-side)
(Fixing Station)
• Power supply unit
The engine module contains paper trays
that contain the media that will be prin-
ted.
Gives access to the toner bottles.
Gives access to the waste toner container.
Function
The additional paper module has paper
trays that contain the media that will be
printed.
You can add a secondary paper module
to increase the media input capacity.
The bulk paper module contains the me-
dia that will be printed. The bulk paper
module contains 1 media type.
The special feeder is used to feed media
manually.
The tab feeder is used to load tab paper
into the paper trays.
Function
The stacker adds output capacity to your
system. The stacker cannot staple the
jobs.
Chapter 2 - Main parts
4
17
