TPS (Throttle Position Sensor)
TPS Testing - Continued

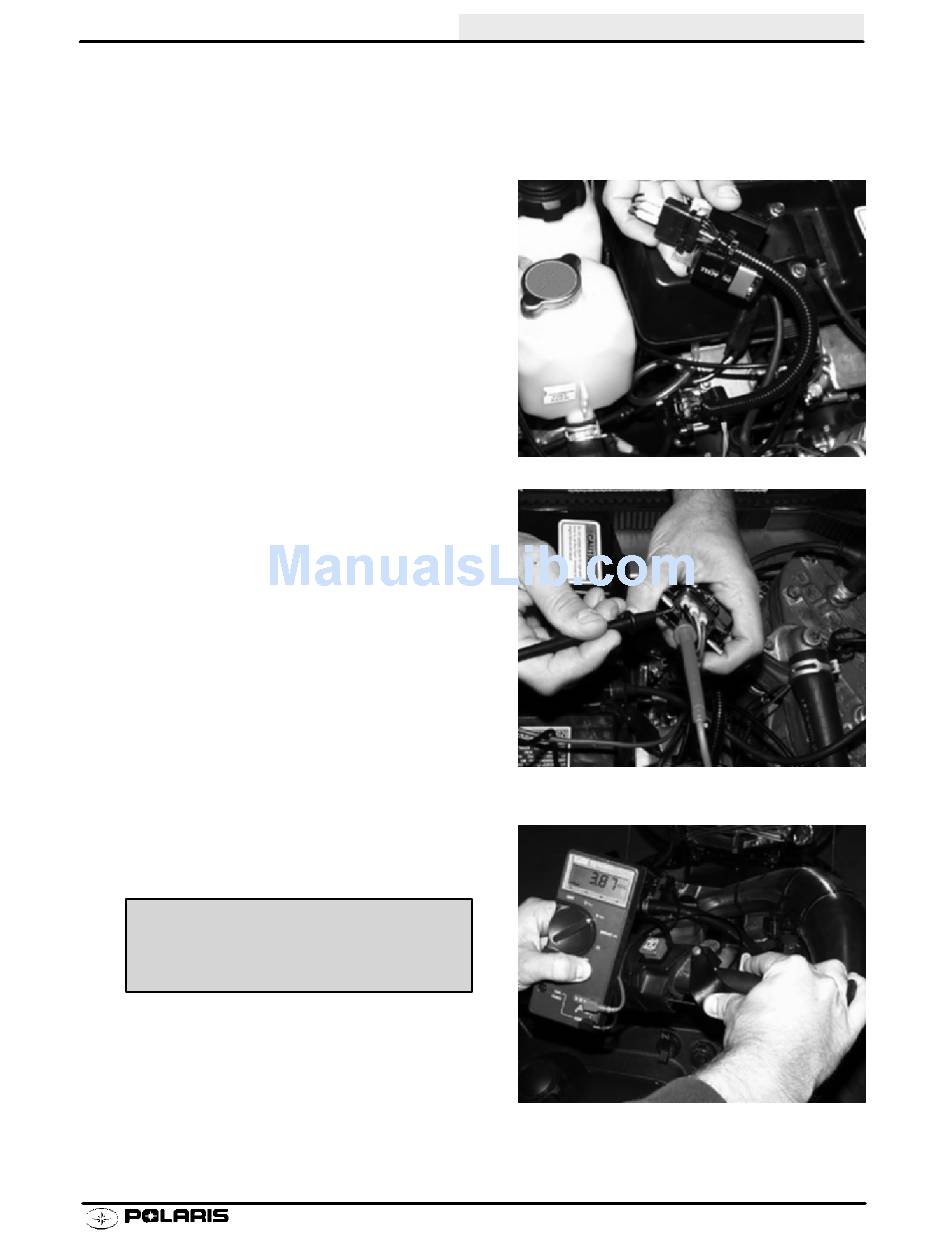

4. Install test harness connector on TPS.
5. Insert red voltmeter lead into yellow terminal, and
black lead to black terminal. Slowly open throttle
and check for smooth voltage change.
NOTE: The fluke meter will change scales and show
O.L. mometarily when throttle is opening.
6. Voltage at yellow terminal should be 4.0 volts at
Wide Open Throttle for domestic engines, If not,
the TPS must be adjusted.
TPS Volts at Wide Open Throttle -
Polaris Domestic Engines:
4.0 - - 4.2 Volts
