Pro-Form ReflexStep User Manual page 7

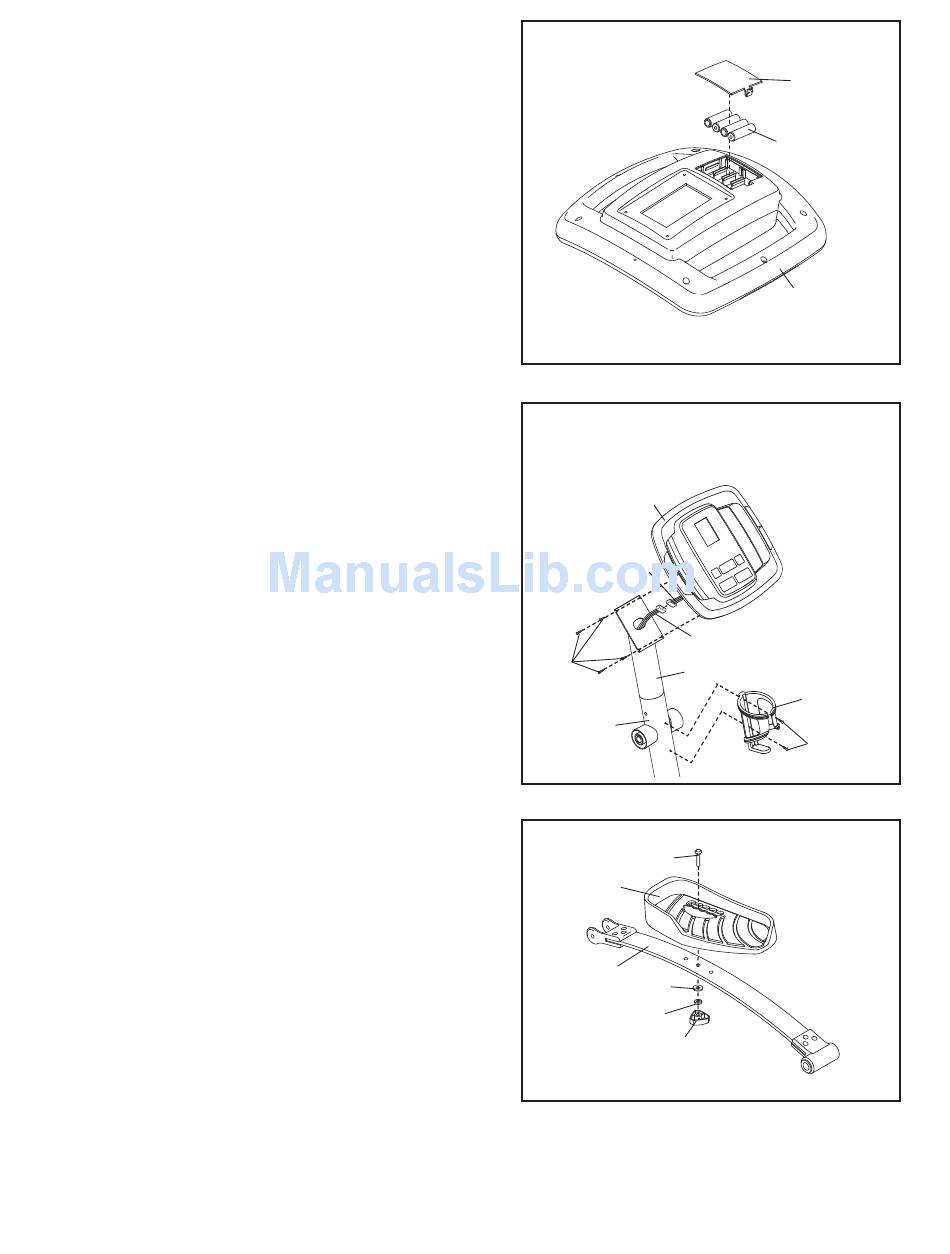

4. The Console (23) requires four "AA" batteries; alkaline
batteries are recommended. IMPORTANT: If the
elliptical exerciser has been exposed to cold tem-
peratures, allow it to warm to room temperature
before inserting batteries into the Console. If you
do not do this, the console displays or other elec-
tronic components may become damaged.
Remove the battery cover and insert four batteries
into the battery compartment; make sure that the
batteries are oriented as shown by the diagrams
inside the battery compartment. Then, reattach the
battery cover.
5. While another person holds the Console (23) near the
Upright Extension (73), connect the console wire har-
ness to the Extension Wire Harness (44). Insert the
excess wire harness into the Upright Extension.
Attach the Console (23) to the Upright Extension (73)
with four M4 x 16mm Screws (52). Be careful to
avoid pinching the wire harnesses.
Attach the Water Bottle Holder (65) to the Upright (2)
with two M4 x 19mm Screws (26).
6. Identify the left Pedal Spring (11), which is marked
with an "L" sticker. Attach the Left Pedal (13) to the
left Pedal Spring with an M10 x 30mm Carriage Bolt
(80), an M10 Washer (78), an M10 Split Washer (59),
and a Pedal Knob (81) as shown. Note: The Left
Pedal can be attached in several positions using the
five positions in the Left Pedal and the three holes in
the Pedal Spring.
Attach the Right Pedal (not shown) in the same
way.
Make sure that both Pedals are in the same hole
and in the same pedal position.
4
5
Avoid pinching the wire
harnesses during this step
23
Console
Wire Harness
52
2
6
13
11
59
7
Battery
Cover
Batteries
23
44
73
65
26
80
78
81
