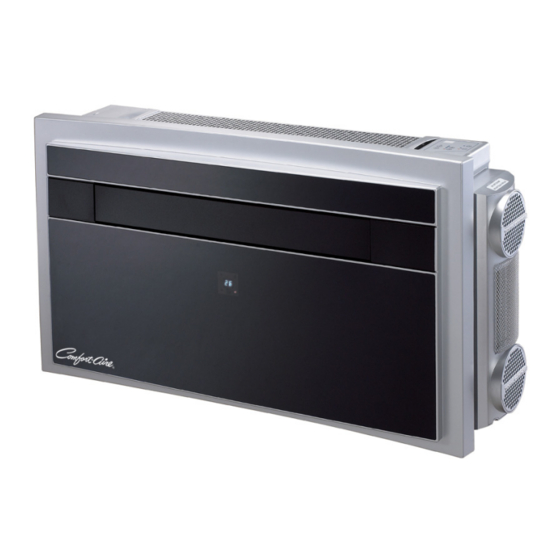

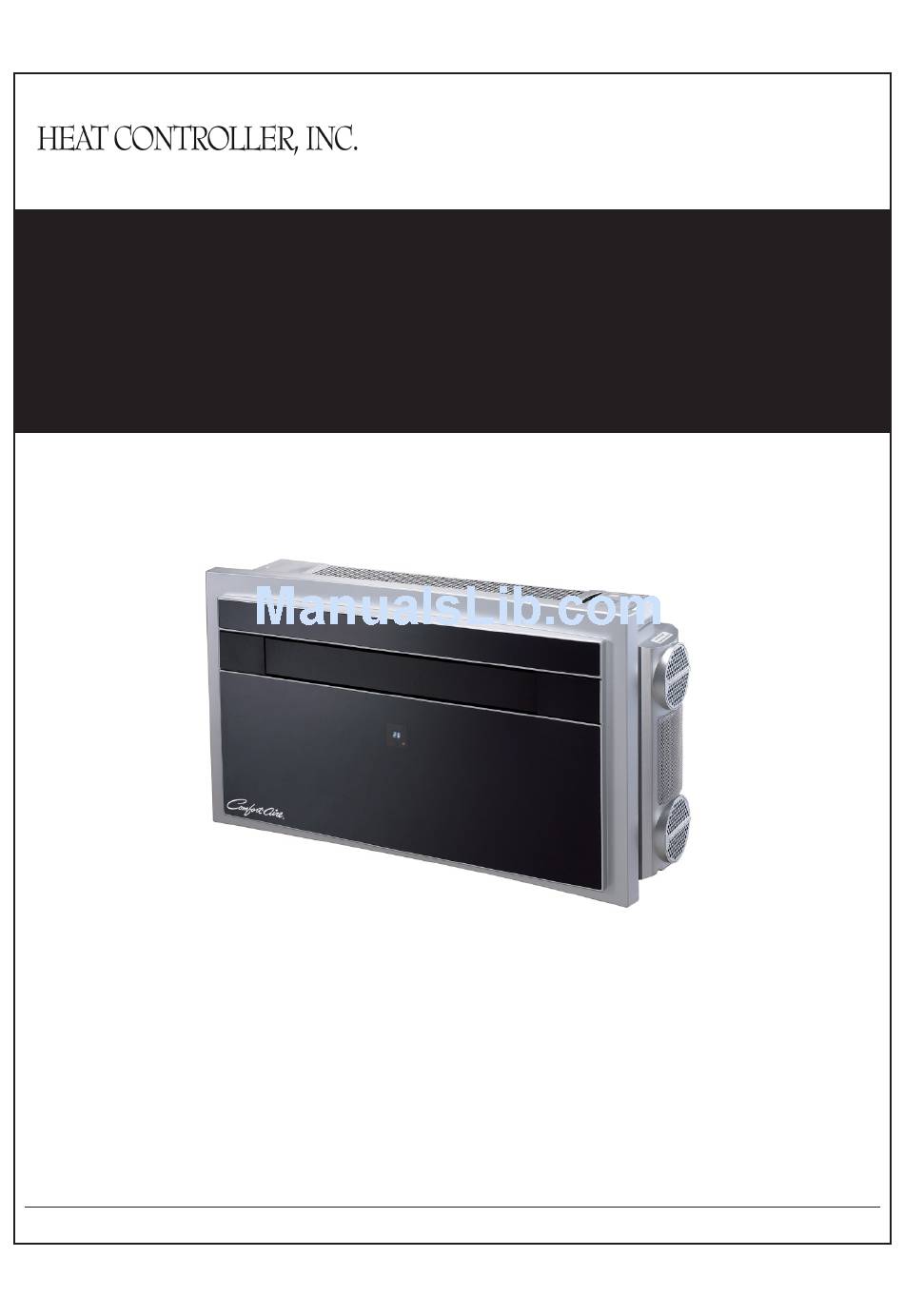

- Page 1 INSTALLATION & OPERATION MANUAL Packaged Thru-the-Wall Heat Pump RPHE-093G Series Heat Controller, Inc. • 1900 Wellworth Ave. • Jackson, MI 49203 • (517)787-2100 • www.heatcontroller.com...
- Page 2 OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump ALWAYS MAKE SURE THAT THIS MANUAL REMAINS WITH THE RPHE-093G PACKAGED THRU-THE-WALL HEAT PUMP OR OWNER OF THE PRODUCT. READ THIS MANUAL BEFORE INSTALLING, OPERATING, OR PERFORMING MAINTENANCE ON THE RPHE-093G PACKAGED ROOM AIR HEATPUMP UNIT.
-
Page 3: Table Of Contents
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. INDEX RPHE-093G PACKAGED THRU-THE-WALL HEAT PUMP UNIT PAGE INTRODUCTION SAFETY INSTRUCTIONS RECEIVING THE GOODS HANDLING LIST OF ACCESSORIES TECHNICAL FEATURES POSITIONING THE UNIT INSTALLATION TEMPLATE DRILLING THE WALL FASTENING THE BRACKET... -
Page 4: Introduction
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. GENERAL INFORMATION 1.1 INTRODUCTION Do not pull, remove or twist the power cord, Do not dispose of any packaging until even if disconnected from the main electrical installation of the unit is completed. -
Page 5: Receiving The Goods
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 1.3 RECEIVING THE GOODS 1. FASTENING BRACKET The unit is delivered in a protective packaging and 2. REMOTE CONTROL is accompanied by an instruction manual. This 3. REMOTE CONTROL HOLDER manual is an integral part of the unit and should 4. -
Page 6: Technical Features
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 1.6 TECHNICAL FEATURES (P1, P2) Model RPHE-093G Cooling capacity (Btu/h) 9300 Heating capacity (Btu/h) 9300 Electric heater capacity (Btu/h) 6800 Power input in cooling (W) Power input in heating (W) Power input for Electric heater (W) -
Page 7: Positioning The Unit
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump INSTALLATION 2.2 PAPER TEMPLATE (P4) 2.1 POSITIONING THE UNIT (P3) 6-1/2 ft. 6-1/2 ft. Fasten the template to the wall once the following guidelines have been checked. Do not drill any holes until you are... -
Page 8: Drilling The Wall
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. INSTALLATION DRAINAGE HOLE (P13) 2.3 DRILLING THE WALL (P5) INCLINE/SLOPE Please note: If you are drilling the hole above ground floor level, please ensure while the holes are drilled the outside area is supervised, until drilling has been completed. -
Page 9: Fastening The Bracket
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 2.5 INSTALLATION OF THE PIPES (P20) 2.4 FASTENING THE BRACKET (P6) Ø1-31/32” Drill holes for anchoring the bracket to the wall using the (6) holes shown in black on the paper template. -
Page 10: Fitting The Gratings
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 2.6 FITTING THE GRATINGS AND THE METAL 2.6 FITTING THE GRATINGS AND THE METAL GRILLE (P7, P8, P9, P10) – CONT’D GRILLE (P7, P8, P9, P10) If the external grating is accessible, to prevent its removal, it is recommended to fasten it to the wall with wall plugs and Ø1/4”... -
Page 11: Fitting The Unit On The Bracket
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 2. INSTALLATION 2.7 FITTING THE UNIT ON THE BRACKET (P11, P12) The unit shall not be installed inside a laundry room. The unit must be positioned so that the plug is accessible. -
Page 12: Introduction Of Lcd Icons
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3. USE AND MAINTENANCE 3.1 INTRODUCTION OF LCD ICONS Icons Meaning Icons Meaning Auto speed Airflow Cooling direction Timer off Timer on Heating Sleep Clock Not used Super Heating TEMP Mode 3.2 REMOTE CONTROL FUNCTIONS... - Page 13 OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 3. USE AND MAINTENANCE NOTE: Memory Mode is an automatic function of the unit that allows the unit to run in the last mode it operated in when it is turned back on after being off.
-
Page 14: Super Heating Mode
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3.4 Super heating mode: Allows the electric heater to run in addition to the heat pump when additional heat is Sequence of operation needed, particularly when outdoor temperatures are below 41°F. -
Page 15: Cooling Mode
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 3.5 Cooling mode Sequence of operation Press the MODE button “ ”, to select cool mode “ “. The unit will cool. Press UP ” “ or DOWN “ ” button,... -
Page 16: Dry Mode
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3. USE AND MAINTENANCE 3.6 Dry mode: Allows the unit to dehumidify and remove moisture in the air within the area the unit is installed. Sequence of operation Press the MODE button “... -
Page 17: Sleep Mode
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 3. USE AND MAINTENANCE 3.8 Sleep mode: The sleep mode changes the set temperature of the unit over time while you sleep to provide optimal comfort in an effort to match the body’s natural temperature changes during sleep. To activate sleep mode, simply press the sleep button. -
Page 18: Auto Mode
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3.9 Auto mode: The unit will automatically adjust its operation according to the room temperature. Sequence of operation Press the MODE button “ ”,to select auto mode “ “. The unit will run in auto mode. -
Page 19: Timer Off Function
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 3. USE AND MAINTENANCE Timers can be used to turn the unit off or on when not needed, such as when you are not at home. 3.10 Timer off function Sequence of operation The unit must be ON for the Timer off function. -
Page 20: On Board Control Function
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3. USE AND MAINTENANCE 3.12 On board control function 1) Running LED: When lit indicates that the compressor is running 2) On/Off button: Turns the unit on/off 3) Mode button: Allows you to select the desired mode – heating/cooling/dry/auto... -
Page 21: Standard Heating Mode
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump 3. USE AND MAINTENANCE 3.13 Heating Mode and Super Heating Mode This unit has an integrated heater with the ability to produce heat even at very low outdoor temperatures. There are two heating modes which should be used according to different outdoor temperatures: ... -
Page 22: Fresh Air System
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3. USE AND MAINTENANCE 3.14 Fresh air system Ø 50 There is fresh air system in the back of the unit. The air conditioner will change the room air automatically with air from outdoors entering the room. The filter should be clean regularly to maintain the fresh air flow. -
Page 23: Maintenance
OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump USE AND MAINTENANCE ACTIVATED CARBON FILTER (P19) 3.16 MAINTENANCE (P15, P16, P17, P18) The unit includes an activated carbon filter, which not only has the function of eliminating suspended particles the standard filter has, but also... -
Page 24: Trouble Shooting
OWNER’S MANUAL Packaged Thru-The-Wall Heat Pump Heat Controller, Inc. 3. USE AND MAINTENANCE 3.17 TROUBLESHOOTING POSSIBLE PROBLEMS The unit does not work. The unit does not heat or cool the room If the supply cord damaged, it must be replaced ... - Page 25 OWNER’S MANUAL Heat Controller, Inc. Packaged Thru-The-Wall Heat Pump ……………………………………………………………………………………………………………...
- Page 26 04/2011...
