ATS-6511A
ATS-6511B
ATS-6511C
Dual Fiber Input Distribution
Users Guide
Version 5.x
Release K
Sep 2013

Advertisement

Table of Contents
loading

Related Manuals for Symmetricom ATS-6511A

Summary of Contents for Symmetricom ATS-6511A

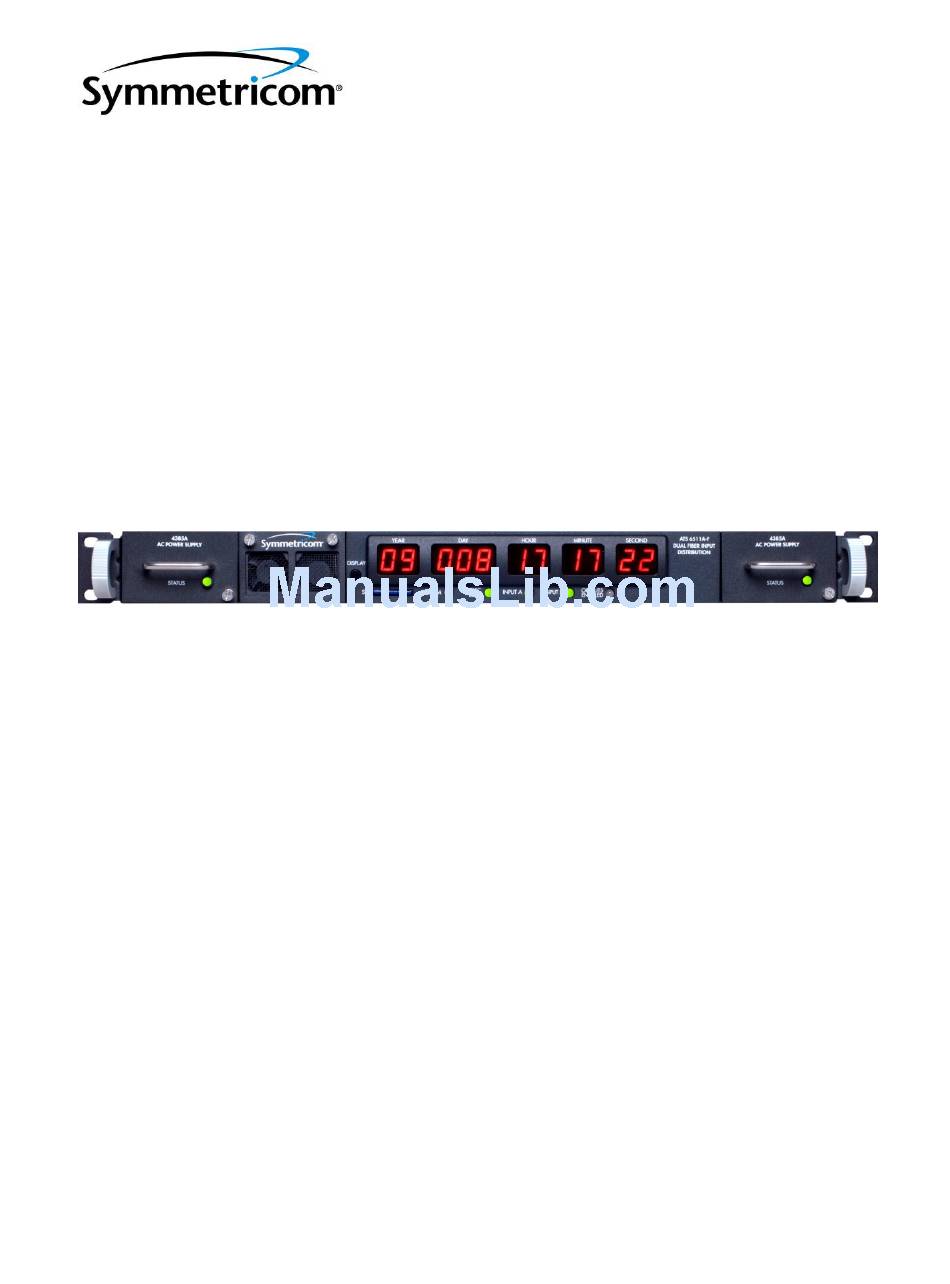

  • Page 1 ATS-6511A ATS-6511B ATS-6511C Dual Fiber Input Distribution Users Guide Version 5.x Release K Sep 2013...

  • Page 2: Revision History

    Revision History Revision Description Date Approved Added SNMP Functionality. 04/18/2012 WF Updated help menu Added configuration not readable alarm Changed to status reference:frequency:external Added model ATS-6511C, 02/18/2013 WF 4395B-(1,5,10) and 4385B Changed fiber alarm when in incorrect fiber_mode. Improved short term stability when locked to 6501 (version 4.3.5).

  • Page 3: Table Of Contents

    DOC 6511_Release K ATS-6511A/B/C Users Guide Table of Contents General Information ..................... 1 Introduction ......................1 Ordering Information ................... 1 Installation ......................3 Powering on the ATS-6511 .................. 3 Communicating with the ATS-6511 ..............4 2.2.1 DHCP ......................4 2.2.2 Static IP Addresses ..................
  • Page 4 DOC 6511_Release K ATS-6511A/B/C Users Guide 3.1.5. Fans ......................24 3.1.6. Flash Card ....................25 3.1.7. Display Button .................... 25 Rear Panel ......................25 Software ......................26 3.3.1 Current Version ................... 26 3.3.2 Software Updates ..................26 3.3.2.1 Flash Card Replacement ................27 3.3.2.2...
  • Page 5 Figure 4 External Frequency Reference ................20 Figure 5 ATS-6511 Front Panel ..................23 Figure 6 ATS-6511A Rear Panel ..................26 Figure 7 Rear Panel Fiber, LAN, and USB Connections ..........26 Figure 8 Front Panel Flash Card ..................27...

  • Page 7: General Information

    Ordering Information ATS-6511A: Standard dual fiber input time and frequency distribution chassis. Dual AC input supplies included. Requires an external fiber time and frequency reference and includes two 1 PPS/DC IRIG, one 10 MHz, and one AM IRIG output module.
  • Page 8 (ATS-6511B and ATS-6511C ONLY) Notes: The correct Symmetricom part number is constructed by appending the desired options to the base model in alphabetical order. None of the options are mutually exclusive so users can select as many options as desired.

  • Page 9: Installation

    DOC 6511_Release K ATS-6511A/B/C Users Guide 2 Installation The ATS-6511 provides a number of features which may require additional setup and this section provides a guideline for the basic setup. After completing this section, the ATS-6511 will produce timing outputs to the coarse calibration accuracies specified in Appendix A. The ATS- 6511 is designed to be quickly and easily integrated with other system components.

  • Page 10: Communicating With The Ats-6511

    DOC 6511_Release K ATS-6511A/B/C Users Guide Communicating with the ATS-6511 Operators are capable of communicating with the system through a LAN connection directly or via one of the USB Ports when using (ATS 94000-115200) USB to Serial cable to access the command port.

  • Page 11: Setting An Ip Address

    DOC 6511_Release K ATS-6511A/B/C Users Guide Note: Make sure the USB Console Cable (ATS 94000-115200) is installed in one of the two USB ports when the system is powered on. If not, power the system down, plug the cable in and re-apply power.

  • Page 12: Firewall Settings

    DOC 6511_Release K ATS-6511A/B/C Users Guide 2.2.4 Firewall Settings The system IP firewall has a default “allow all” policy. To enable the firewall, the customer needs to create a firewall rules file on the product file system named /mod/tsc/firewall.rules. There are example firewall rules files on the product in the directory /usr/tsc/site/firewall.

  • Page 13: Output Cards

    DOC 6511_Release K ATS-6511A/B/C Users Guide 2.4.2 Output Cards The ATS-6511 has the capability using six output cards in each unit. The cards slots are identified by number so the operator is capable of determining the slot of the card in the show command and identifying the cards physical location in the chassis.
  • Page 14 DOC 6511_Release K ATS-6511A/B/C Users Guide The following example sets the PPS on Slot 1, Port 2 to 1MPPS and the pulse width to 500nsec (1/2 the duty cycle). ATS-6511>pps 1 2 1e-6 5e-7 The following rules apply: 1. PERIOD - period of pulse in seconds(max of 1, min of 1e-7) 2.

  • Page 15: 4395A-10 / 4395B-10 (10Mhz)

    DOC 6511_Release K ATS-6511A/B/C Users Guide The system will generate an error message if the operator attempts to enter an unsupported or invalid code. To verify the settings use the settings hardware:slots:N command (N=Slot #) to obtain the current settings for a particular card.

  • Page 16: 4395A-5 / 4395B-5 (5Mhz)

    DOC 6511_Release K ATS-6511A/B/C Users Guide [status] good [status] good [status] good [status] good [power] enabled [type] 4395B-10 [OK] 2013-08-13T14:29:15Z 2.4.2.3 4395A-5 / 4395B-5 (5MHz) No programming is required for these modules. These modules will also work in any of the 6 card slots.

  • Page 17: 4387A (Modulated Irig/Nasa36)

    DOC 6511_Release K ATS-6511A/B/C Users Guide 2.4.2.5 4387A (Modulated IRIG/NASA36) This module provides four Amplitude Modulated (AM) IRIG Outputs or the NASA36 Serial Time Code. Valid AM IRIG Codes are A(130, 133, 137), B(120, 123, 127), E(111, 112, 121), G(141, 142, 147), and H(111, 112, 121, 122, 127). Default is B120.

  • Page 18: 4399A (L-Band Bpsk Module)

    DOC 6511_Release K ATS-6511A/B/C Users Guide The system will generate an error message if the operator attempts to enter an unsupported or invalid code. To verify the settings use the settings hardware:slots:N command (N=Slot #) to obtain the current settings for a particular card.
  • Page 19 DOC 6511_Release K ATS-6511A/B/C Users Guide 1.) Type “sendfile <ENTER>” at the terminal. The unit will then initiate erasure of the on-board flash. This erasure process will take approximately 1 minute. 2.) Once erasure is complete, the terminal will prompt “send file.” The device will then send an initiate character to the terminal once every 10 seconds until the file is sent.

  • Page 20: Fiber Optic Input Behavior

    If neither fiber input is available, the ATS-6511B or C will enter holdover mode using the internal Rubidium (ATS-6511B-FR or ATS-6511C-FR option) if available, the external reference input if available (ATS-6511B or C), or the internal OCXO (ATS-6511A, B or C). 2.5.1 Auto-Switching When enabled, one of the two fiber pairs (A or B) will be the primary source.

  • Page 21: Manual Switching

    Once the signals are restored the INPUT B indicator will flash Green indicating the source is available. When both fiber inputs are not available, the unit will enter holdover mode. In the ATS-6511A, the internal OCXO is the holdover reference. The ATS-6511B-R provides an internal Rubidium reference for holdover, or can use the 10 MHz provided to the rear panel as the holdover reference.

  • Page 22: Fiber Modes/Calibration

    DOC 6511_Release K ATS-6511A/B/C Users Guide The mode indicates the ATS-6511 is using the manual feature. In this case the Input A indicator will be On and Green to indicate the system is locked to the primary (master) source. The Input B indicator will flash RED (on 1 second/off three seconds) to indicate the source is available and the system is in the manual switching mode.

  • Page 23: Two Way Disabled (4372A-T Fiber Card)

    For system applications requiring the highest level of accuracy, the system should be calibrated at Symmetricom. This process involves installing the ATS-6501, user’s antenna and antenna cable, ATS-6511 and fiber optic cable(s) at the factory and comparing the PPS outputs to a system which has a known offset to UTC(USNO).

  • Page 24: Asymmetrical Fiber Paths To A Ats 6511 Input Channel

    DOC 6511_Release K ATS-6511A/B/C Users Guide The Index_of_refraction refers to the velocity of the fiber optic signal as it travels through the fiber. This information can be obtained from the manufacturer of the fiber. It is typically specified as the delay value based on a unit of measure. Use the value provided and if needed convert the fiber optic cable length to the correct unit of measurement and calculate the delay as shown in Equation 2-1.

  • Page 25: Setting The System On Time Point (Otp)

    ATS-6511A/B/C Users Guide NOTE: 4340As shipped after August 2011 will work with two way systems. If you have a 4340A shipped prior to August 2011, contact Symmetricom for information on upgrading the unit to work in two way systems. Setting the System On Time Point (OTP) The OTP of a system is defined as the point at which the timing signals coincide with UTC(USNO).

  • Page 26: Using An External Frequency Reference (Ats-6511B Or C)

    115200). These cables are NOT interchangeable. To set the type of reference use the reference_type command. If users are operating with a Symmetricom 5071A and they will set the system up so the ATS-6511B is communicating with the 5071A select hp5071A, if not select cesium.

  • Page 27: System Configuration Files (Syscfg)

    DOC 6511_Release K ATS-6511A/B/C Users Guide Caution: If the system is unable to communicate with the external reference and the reference_type is hp5071A the Alarm light will come on and the Osc Lock light will go out and remain this way after you switch to the external reference. Make sure you select the proper reference_type before switching to external.
  • Page 28 DOC 6511_Release K ATS-6511A/B/C Users Guide Users can export the file using the --export option, download it via FTP, and edit the file in an editor of their choice. A Linux editor is recommended to prevent the Carriage Returns/Linefeeds from becoming and issue. Once the file has been edited users can upload the new file and then use the --import option to bring in the new file.

  • Page 29: Operations

    DOC 6511_Release K ATS-6511A/B/C Users Guide Operations The ATS-6511 is used to extend the timing signals provided by the ATS-6501 over fiber optic cabling to accommodate transmission over long distance and improve signal integrity. Front Panel The ATS-6511 has several front panel indicators to provide the operator with the overall status of the unit and will provide a visual alarm indication if a problem with the hardware or the unit detects a condition that would cause the output signals to be outside of their timing specifications.

  • Page 30: Oscillator Locked (Osc Lock) Indicator

    DOC 6511_Release K ATS-6511A/B/C Users Guide 3.1.3 Oscillator Locked (Osc Lock) Indicator The Oscillator Locked indicator on the ATS-6511 indicates the current status of the internal or external references. During system start up this light can take up to 5 minutes before it comes on.

  • Page 31: Flash Card

    DOC 6511_Release K ATS-6511A/B/C Users Guide ATS-6511>status health:fan [active] false [occurrences] 0 [active] false [occurrences] 0 The active line will display false when the fans are functioning normally and true for one or both fans if they are not. If a fan is having issues you will see the number of occurrences increment up from 0 as each event occurs.

  • Page 32: Software

    3.3.2 Software Updates Upgrading the software can be accomplished via two methods. Note: When updating to versions newer than T-Flex-3-9-X or later from Version 3-7-2 or earlier it is recommended users obtain the software update via flash card from Symmetricom. There are...

  • Page 33: Flash Card Replacement

    DOC 6511_Release K ATS-6511A/B/C Users Guide significant software/firmware changes that necessitate this update be done by completely replacing the flash card. Please refer to the software release notes to accomplish this update. 3.3.2.1 Flash Card Replacement This requires removing the currently installed flash disk and installing a new one which has the updated software.
  • Page 34 ~2 minutes. Once the oscillator lock light is on it should take about 5 minutes to steer the OCXO on frequency and phase, and enable outputs. Note: Users can obtain the new software image and software release notes from Symmetricom ftp://ftp.timing.com/pub/ATS-6511. Refer to the software release notes for specific instructions related to a particular revision of software.

  • Page 35: Declassifying The System

    SD Card in the slot on the front panel. This will release the SD Card. Simply remove the flash disk from the front panel. The flash disk must be destroyed per the user’s standard security procedures. A new flash disk can be obtained from Symmetricom. User Interfaces Software interfaces on the ATS-6511 are limited in their ability to provide users with real-time control.
  • Page 36 DOC 6511_Release K ATS-6511A/B/C Users Guide Command Description Basic Commands help, h or ? Display help for a command or list all commands. Proper format is to <command> proceed the command with help, h, or ? help <command> quit Closes the command connection and terminates the telnet connection.

  • Page 37: Diagnostic Port (1800)

    DOC 6511_Release K ATS-6511A/B/C Users Guide Hardware Output Commands irig Allows the operator to set the IRIG codes on the 4394A (DC IRIG) and 4387A (AM IRIG) Cards. jam_sync Synchronizes the system 1 PPS to the reference input. Allows the operator to set the PPS parameters on the 4394A Card.

  • Page 38: Status Port (1900)

    DOC 6511_Release K ATS-6511A/B/C Users Guide Diagnostic messages are only displayed on the diagnostic port. If users wish to save the messages provided by the diagnostic port then the output of this port must be saved to a file. It is recommended that diagnostic messages be saved only to remote systems and not locally on the ATS-6511.

  • Page 39: Average Tic Data Port (2100)

    DOC 6511_Release K ATS-6511A/B/C Users Guide and/or alarms in real time are able to use the data provided by the status port to update their displays in real time. See Appendix C for an example of the data provided by the status port.

  • Page 40: File Transfer Protocol (Ftp)

    DOC 6511_Release K ATS-6511A/B/C Users Guide (NN event averaging): Should always display 1 event average. • NN.NNN ns: Measurement results. • XXXXXXXXXX S: The second (from 1 Jan 1970) when the average was computed. • NNNNNNN uS: The fractional second the average was computed. This value plus the •...

  • Page 41: Status Command

    DOC 6511_Release K ATS-6511A/B/C Users Guide Status Command The ATS-6511 provides overall system status, health, and measurement results via the status command available on the command port (1700). For more detailed information and a description of the fields refer to Appendix B.
  • Page 42 DOC 6511_Release K ATS-6511A/B/C Users Guide C. There should be no active alarms on the system. ATS-6511>status [alarm] no alarm D. Check the fiber status: [fiber] [chassis_delay] -7.000000000000000e-10 [clock_offset] 1.000000001666679e-10 [da4340delay] 0.000000000000000e+00 [fpga] [delay] 0.000000000000000e+00 [inputA] good [inputB] good [steer] -1.000000000100000e-12...
  • Page 43 DOC 6511_Release K ATS-6511A/B/C Users Guide [slots] [ports] [status] good [status] good [status] good [status] good [power] enabled [type] 4394A [2-4] Check status [type] empty Indicates the slot is not populated. [ports] [status] good [status] good [status] good [status] good...
  • Page 44 DOC 6511_Release K ATS-6511A/B/C Users Guide [fiber_signal_present] [active] false [cleared] [what] Fiber signal is present [when] 2011-06-09-21:26:38.331 [occurrences] 1 [set] [what] Fiber signal is missing Typical at start up. [when] 1998-01-01-00:02:31.457 [firmware_version_mismatch] [active] false [occurrences] 0 [hardware_internal] [active] false [occurrences] 0...
  • Page 45 DOC 6511_Release K ATS-6511A/B/C Users Guide [occurrences] 0 on the status report. [active] false [occurrences] 0 [active] false [occurrences] 0 [active] false [occurrences] 0 [outputs_disabled] [active] false [occurrences] 0 [over_temperature] [active] false [occurrences] 0 [power_supply] [active] false [occurrences] 0 [active] false...
  • Page 46 DOC 6511_Release K ATS-6511A/B/C Users Guide [active] false [occurrences] 0 J. The status of the input switch is reported. This can be manual or auto with input A or B. [input] [switch] Auto Switch:A K. Once the system obtains a sufficient amount of clock data the kas2 values will be available.
  • Page 47 DOC 6511_Release K ATS-6511A/B/C Users Guide N. The last set of data [unit] will display the system network information, serial number, the system startup time, the uptime since the last power cycle, the software version running on the system, and the time the status command was executed.
  • Page 48 DOC 6511_Release K ATS-6511A/B/C Users Guide [pps_width] 1.000000000000000e-04 [type] pps [pps_period] 1.000000000000000e+00 [pps_width] 1.000000000000000e-04 [type] pps [format] B [signal_word] 0 [type] irig [format] B [signal_word] 0 [type] irig [tsc4373] [ports] [pps_period] 1.000000000000000e+00 [pps_width] 1.000000000000000e-04 [type] pps [pps_period] 1.000000000000000e+00 [pps_width] 1.000000000000000e-04...
  • Page 49 DOC 6511_Release K ATS-6511A/B/C Users Guide [format] B [signal_word] 120 [type] irig [epoch_127] false [format] B [signal_word] 120 [type] irig [node] [maintenance_mode] [enable] false [system_autoswitching_participant] true [pps_adjust] [distribution_delay] 0.000000000000000e+00 [ptd_port] [averaging_interval] 10 [reference] [external] [type] cesium [source] ocxo [timescale] [smcp]...

  • Page 50: Theory Of Operations

    DOC 6511_Release K ATS-6511A/B/C Users Guide 4 Theory of Operations The ATS-6511’s function is the generation of timing signals extracted from the proprietary time code contained in the fiber cable connected to an upstream 4372A installed in an ATS-6501. Generation of Timing Signals An OCXO serves as the low noise disciplined reference for the ATS-6511.
  • Page 51 DOC 6511_Release K ATS-6511A/B/C Users Guide The fiber inputs A and B are monitored for signal presence and their time code, frequency and 1 PPS are extracted. If both signals are present, the unit will begin steering the OCXO to fiber input A’s frequency.

  • Page 52: Maintenance

    The recommended maintenance schedule for the ATS-6511 is outlined in Table 5-1. Although this schedule is sufficient for most applications, it may be necessary to increase the number of scheduled maintenance events for extremely dusty or dirty environments. Contact Symmetricom if there are questions about the scheduled maintenance cycle.

  • Page 53: Fan Filter

    DOC 6511_Release K ATS-6511A/B/C Users Guide Inspect the connectors. Verify that the cable connectors are not damaged at the connection to the ATS-6511, upstream 4372A/4372A-T (ATS-6501) or TSC-4340 (1U 1x8 Fiber Distribution Amplifier. 5.3 Fan Filter The fan filters helps protect the system from accumulating dust inside the unit as well and allows the fans to provide the proper level of cooling for the internal components.

  • Page 54: Troubleshooting

    DOC 6511_Release K ATS-6511A/B/C Users Guide Troubleshooting The following section provides some basic troubleshooting information to assist users in case they suspect there is an issue with the system. Front Panel Indications You can use the front panel indicators to assess the status and operation of the unit. Under...

  • Page 55: Fiber Inputs

    DOC 6511_Release K ATS-6511A/B/C Users Guide Power Source has failed; ensure the power source is available and connected to • the rear panel of the unit. Users can also check the current system using the status alarm and the status health:power_supply commands to check the system status.
  • Page 56 DOC 6511_Release K ATS-6511A/B/C Users Guide Users can check the current system status using the status fiber and command to check the fiber status. ATS-6511B>status fiber [chassis_delay] 0.000000000000000e+00 [clock_offset] -6.375066549999540e-11 [da4340delay] 0.000000000000000e+00 [fpga] [delay] 0.000000000000000e+00 [inputA] good [inputB] good [steer] 9.385092999624222e-14 [steer_before_sat_limit] -6.213664600386095e-13...

  • Page 57: Outputs Enabled

    DOC 6511_Release K ATS-6511A/B/C Users Guide [when] 2011-06-09-21:26:38.331 [occurrences] 1 [set] [what] Fiber signal is missing [when] 2012-01-01-00:02:31.457 [OK] 2013-08-13T18:52:15Z If the following alarm is active, use the settings fiber_mode command to verify the correct setting and change as necessary to match the configuration of the upstream 4372A module (the 4372A module requires ATS 6511 legacy mode, 4372A-T requires two-way or two-way disabled mode).

  • Page 58: Internal Clock

    DOC 6511_Release K ATS-6511A/B/C Users Guide [active] false [occurrences] 0 By unplugging the output modules, one at a time, to see which output module was at • fault. Note: If this does not work there may be more than one output module that failed. Pull them all and reinsert them one at time to see which one(s) cause a FAULT.

  • Page 59: Pps Outputs

    DOC 6511_Release K ATS-6511A/B/C Users Guide [OK] 2013-08-13T18:55:33Z Users can look to see if the unit had any temperature issues by using the status health:over_temperature command ATS-6511>status health:over_temperature [active] false [occurrences] 0 The ATS-6511 monitors the fans on the front panel to ensure they are operating, to check the current status of the fans use the status hardware:fan command.

  • Page 60: Irig Outputs

    DOC 6511_Release K ATS-6511A/B/C Users Guide [type] pps [format] B [signal_word] 0 [type] irig [format] B [signal_word] 0 [type] irig To check the status of the output card use the status hardware:outputs:slots:N command (N=Card Slot #) to verify the card status.

  • Page 61: Nasa36 Outputs

    DOC 6511_Release K ATS-6511A/B/C Users Guide To check the status of the output card use the status hardware:outputs:slots:N command (N=Card Slot #) to verify the card status. [ports] [status] good [status] good [status] good [status] good [power] enabled [type] 4387A 6.2.8 NASA36 Outputs...

  • Page 62: Configuration Not Readable

    DOC 6511_Release K ATS-6511A/B/C Users Guide [status] good [status] good [status] good [power] enabled [type] 4387A 6.2.9 Configuration Not Readable The internal bus used to communicate with the plug in modules and power supplies to determine their type and serial number is the I2C bus. If this alarm occurs the system should continue to operate correctly, but the unit should be power cycled at a convenient time to resolve this extremely rare condition.

  • Page 63: Syslog Command

    DOC 6511_Release K ATS-6511A/B/C Users Guide o Refer to the manual and set the system to 9600,N,8,1. Note: Communications are only used when the external frequency reference is a hp5071A. If you are using a different cesium clock use the reference_type cesium command to set the proper reference clock type.

  • Page 64: Troubleshooting Summary

    Check 5071A signal gain, if more than 95% replace the 5071A. leapseconds internal_error Leap seconds have not been determined properly, contact Symmetricom. unknown Leap seconds have not been determined properly, contact Symmetricom. ocxo_freq_control Internal OCXO control voltage is within 98% of maximum, replace ATS 6511 as soon as possible.
  • Page 65 DOC 6511_Release K ATS-6511A/B/C Users Guide indicates the OCXO is reaching the end of its control range. Replace the ATS 6511 as soon as reasonably possible. ref_unlocked -- cannot Check USB to serial cable and Null modem cable to ensure it is connected communicate with device to the ATS 6511B USB port and the 5071A Serial Port.

  • Page 66: Appendix A System Specifications

    DOC 6511_Release K ATS-6511A/B/C Users Guide Appendix A System Specifications Environmental Operating Temperature 0° - 50° C, 95% Humidity, non-condensing Storage Temperature -20° - 70°, 95% Humidity, non-condensing Physical Size 17”W x 19”D x 1.75”H. Weight 20 Lbs (9.1kg) - two power supplies & 4 plug-in modules.
  • Page 67 DOC 6511_Release K ATS-6511A/B/C Users Guide Raw TIC Data Port 2101 USB Command Port Cable (OP001) Connector to Computer DB9 (M) Communications Parameters 115200,N,8,1 Type USB External Reference Port Cable (OP002) (6511B Only) Connector DB9 (M) Communications Parameters 9600,N,8,1 Type...
  • Page 68 DOC 6511_Release K ATS-6511A/B/C Users Guide 1 MHz -150 dBc/Hz -150 dBc/Hz 10 MHz Module (4395B-10) This module provides four 10 MHz outputs. The module also monitors each output for levels below approximately 10 dBm, after which an alarm is raised.
  • Page 69 DOC 6511_Release K ATS-6511A/B/C Users Guide 5 MHz Module (4395B-5) This module provides four 5 MHz outputs. The module also monitors each output for levels below approximately 10 dBm, after which an alarm is raised. Characteristic Description Number of outputs...
  • Page 70 DOC 6511_Release K ATS-6511A/B/C Users Guide 1 MHz Module (4395B-1) This module provides four 1 MHz outputs. The module also monitors each output for levels below approximately 10 dBm, after which an alarm is raised. Characteristic Description Number of outputs...
  • Page 71 DOC 6511_Release K ATS-6511A/B/C Users Guide L-Band Output Module (4399A) Characteristic Description Number of outputs Four RF, One 1 PPS Output connectors SMA(F) Impedance RF Amplitude into 50 -20 dBm RF output frequency 900 MHz – 1175 MHz, 1225 MHz – 1575 MHz, and 1625 MHz – 1750 MHz...

  • Page 72: Appendix B Status Command Fields

    DOC 6511_Release K ATS-6511A/B/C Users Guide Appendix B Status Command Fields This section provides information on the results from the status command. ATS-6511B>status [alarm] no alarm Highest priority alarm. [fiber] Fiber Information [chassis_delay] -3.000000000000000e-10 Chassis Calibration Value [clock_offset] 9.497872340000000e-09 Current Clock offset from the source [da4340delay] 0.000000000000000e+00...
  • Page 73 DOC 6511_Release K ATS-6511A/B/C Users Guide [status] good [power] enabled [type] 4394A [2-4] Same as slot 1 for the card installed [type] empty Indicates a card is not installed. [type] empty [warmstartable] true Unit has enough data to warmstart [power]...
  • Page 74 DOC 6511_Release K ATS-6511A/B/C Users Guide [occurrences] 0 [hp5071] External Clock Issues [electron_multiplier_voltage] [active] false [occurrences] 0 [locked] [active] false [occurrences] 0 [oscillator_control] [active] false [occurrences] 0 [signal_gain] [active] false [occurrences] 0 [leapseconds] Leap Second Issues [internal_error] [active] false [occurrences] 0...
  • Page 75 DOC 6511_Release K ATS-6511A/B/C Users Guide [when] 1998-01-01-00:06:52.834 [remote_tdc_starvation] Issues with the data exchange over fiber [active] false [cleared] [what] Receiving remote TDCs [when] 2011-11-07-17:11:01.316 [occurrences] 1 [set] [what] Not receiving remote TDCs [when] 2011-11-07-17:10:39.722 [syscfg] [active] false [occurrences] 0...
  • Page 76 DOC 6511_Release K ATS-6511A/B/C Users Guide [when] 2009-01-26-22:18:48.141 [occurrences] 1 [set] [what] Clock wander exceeded 100.000000ns [when] 2009-01-26-22:18:35.922...

  • Page 77: Appendix C Status Port (1900) Example

    DOC 6511_Release K ATS-6511A/B/C Users Guide Appendix C Status Port (1900) Example The data in this first section (boot+) is provided each time the user connects to the status port. It allows users to obtain all of the system settings/config/status/network parameters each time they connect to the status port.
  • Page 78 DOC 6511_Release K ATS-6511A/B/C Users Guide boot+133sec settings:fiber:switching:min_valid_time=6.000000000000000e+01 boot+133sec settings:fiber:switching:mode=auto boot+133sec settings:hardware:enable_fp_button=1 boot+133sec settings:hardware:slots:1:tsc4373:ports:1:pps_period=1 boot+133sec settings:hardware:slots:1:tsc4373:ports:1:pps_width=1.000000000000000e-04 boot+133sec settings:hardware:slots:1:tsc4373:ports:1:type=pps boot+133sec settings:hardware:slots:1:tsc4373:ports:2:pps_period=1 boot+133sec settings:hardware:slots:1:tsc4373:ports:2:pps_width=1.000000000000000e-04 boot+133sec settings:hardware:slots:1:tsc4373:ports:2:type=pps boot+133sec settings:hardware:slots:1:tsc4373:ports:3:format=B boot+133sec settings:hardware:slots:1:tsc4373:ports:3:signal_word=0 boot+133sec settings:hardware:slots:1:tsc4373:ports:3:type=irig boot+133sec settings:hardware:slots:1:tsc4373:ports:4:format=B boot+133sec settings:hardware:slots:1:tsc4373:ports:4:signal_word=0 boot+133sec settings:hardware:slots:1:tsc4373:ports:4:type=irig boot+134sec settings:hardware:slots:2:tsc4373:ports:1:pps_period=1 boot+134sec settings:hardware:slots:2:tsc4373:ports:1:pps_width=1.000000000000000e-04...
  • Page 79 DOC 6511_Release K ATS-6511A/B/C Users Guide 2013-08-13-16:55:32.359 settings:fiber:delay:channelB=0.000000000000000e+00 2013-08-13-16:55:32.361 settings:fiber:delay_diff:channelA=0.000000000000000e+00 2013-08-13-16:55:32.364 settings:fiber:delay_diff:channelB=0.000000000000000e+00 2013-08-13-16:55:32.366 settings:fiber:mode=legacy 2013-08-13-16:55:32.369 settings:fiber:pll:proportional_gain=1.000000000000000e-02 2013-08-13-16:55:32.371 settings:fiber:switching:auto_rearm=1 2013-08-13-16:55:32.374 settings:fiber:switching:master=A 2013-08-13-16:55:32.376 settings:fiber:switching:min_valid_time=60 2013-08-13-16:55:32.378 settings:fiber:switching:mode=auto 2013-08-13-16:55:32.381 settings:hardware:enable_fp_button=1 2013-08-13-16:55:32.385 settings:hardware:slots:1:tsc4373:ports:1:pps_period=1.000000000000000e+00 2013-08-13-16:55:32.388 settings:hardware:slots:1:tsc4373:ports:1:pps_width=1.000000000000000e-04 2013-08-13-16:55:32.391 settings:hardware:slots:1:tsc4373:ports:1:type=pps 2013-08-13-16:55:32.395 settings:hardware:slots:1:tsc4373:ports:2:pps_period=1.000000000000000e+00 2013-08-13-16:55:32.398 settings:hardware:slots:1:tsc4373:ports:2:pps_width=1.000000000000000e-04 2013-08-13-16:55:32.401 settings:hardware:slots:1:tsc4373:ports:2:type=pps 2013-08-13-16:55:32.405 settings:hardware:slots:1:tsc4373:ports:3:format=B 2013-08-13-16:55:32.408 settings:hardware:slots:1:tsc4373:ports:3:signal_word=0...
  • Page 80 DOC 6511_Release K ATS-6511A/B/C Users Guide Status: If the system time is not set it will show boot + N seconds. 2013-08-12-21:11:28.925 status:alarm=no alarm boot+128sec status:fan:1=1 boot+128sec status:fan:2=1 boot+128sec status:fiber:chassis_delay=1.850000000000000e-08 boot+248sec status:fiber:clock_offset=9.070434782999997e-09 boot+128sec status:fiber:da4340delay=0.000000000000000e+00 boot+128sec status:fiber:fpga:delay=0.000000000000000e+00 2013-08-12-21:10:28.077 status:fiber:inputA=good 2013-08-12-21:10:32.014 status:fiber:inputB=good boot+128sec status:fiber:two_way:channelA:rxdelay=-4.628000000000000e-08...
  • Page 81 DOC 6511_Release K ATS-6511A/B/C Users Guide boot+133sec status:health:fan:1:active=0 boot+133sec status:health:fan:1:occurrences=0 boot+133sec status:health:fan:2:active=0 boot+133sec status:health:fan:2:occurrences=0 2013-08-12-21:10:19.388 status:health:fiber:A:active=0 2013-08-12-18:23:27.820 status:health:fiber:A:cleared:what=Fiber signal is present 2013-08-12-21:10:19.386 status:health:fiber:A:cleared:when=2013-08-12-21:10:19.363 2013-08-12-21:03:36.133 status:health:fiber:A:occurrences=2 2013-08-12-18:17:05.066 status:health:fiber:A:set:what=Fiber signal is missing 2013-08-12-21:03:36.136 status:health:fiber:A:set:when=2013-08-12-21:03:36.113 2013-08-12-21:10:23.531 status:health:fiber:B:active=0 2013-08-12-18:23:30.959 status:health:fiber:B:cleared:what=Fiber signal is present 2013-08-12-21:10:23.529 status:health:fiber:B:cleared:when=2013-08-12-21:10:23.504 2013-08-12-21:03:36.141 status:health:fiber:B:occurrences=2...
  • Page 82 DOC 6511_Release K ATS-6511A/B/C Users Guide boot+132sec status:tflex:network:MAC=00:30:96:00:01:EC 2013-08-12-18:14:31.948 status:tflex:network:broadcast=192.168.150.255 2013-08-12-18:14:31.951 status:tflex:network:default_gateway=192.168.150.1 2013-08-12-18:14:31.953 status:tflex:network:ip=192.168.150.81 2013-08-12-18:14:31.955 status:tflex:network:netmask=255.255.255.0 boot+128sec status:tflex:serial_number=154825 2013-08-12-18:14:31.020 status:tflex:start=2013-08-12-18:12 2013-08-12-22:52:11.165 status:tflex:uptime=4 hours, 39 minutes, 52 seconds boot+123sec status:tflex:ver=4.0.0 2013-08-12-22:52:11.161 status:time=2013-08-12-22:52:11 If the system time is set (i.e. warmstart) the system will report the actual time the value was set.
  • Page 83 DOC 6511_Release K ATS-6511A/B/C Users Guide 2013-08-13-16:55:40.382 status:hardware:power:supplies:1:type=4385A 2013-08-13-16:55:40.417 status:hardware:power:supplies:2:status=good 2013-08-13-16:55:40.411 status:hardware:power:supplies:2:type=4385A 2013-08-13-18:53:58.589 status:hardware:temperature=31 2013-08-13-16:55:48.004 status:health:clock_wander:active=0 2013-08-13-16:55:47.996 status:health:clock_wander:occurrences=0 2013-08-13-16:55:48.023 status:health:fan:1:active=0 2013-08-13-16:55:48.012 status:health:fan:1:occurrences=0 2013-08-13-16:55:48.045 status:health:fan:2:active=0 2013-08-13-16:55:48.038 status:health:fan:2:occurrences=0 2013-08-13-18:48:33.933 status:health:fiber_signal_present:active=0 2013-08-13-18:48:33.916 status:health:fiber_signal_present:cleared:what=Fiber signal is present 2013-08-13-18:48:33.909 status:health:fiber_signal_present:cleared:when=2013-08-13-18:48:33.857 2013-08-13-16:55:48.053 status:health:fiber_signal_present:occurrences=1 2013-08-13-16:55:48.077 status:health:fiber_signal_present:set:what=Fiber signal is missing 2013-08-13-16:55:48.063 status:health:fiber_signal_present:set:when=2013-08-13-16:55:47.819...
  • Page 84 DOC 6511_Release K ATS-6511A/B/C Users Guide 2013-08-13-16:55:58.608 status:health:output_modules:4:occurrences=0 2013-08-13-16:55:58.658 status:health:output_modules:4:ports:1:active=0 2013-08-13-16:55:58.644 status:health:output_modules:4:ports:1:occurrences=0 2013-08-13-16:55:58.687 status:health:output_modules:4:ports:2:active=0 2013-08-13-16:55:58.672 status:health:output_modules:4:ports:2:occurrences=0 2013-08-13-16:55:58.726 status:health:output_modules:4:ports:3:active=0 2013-08-13-16:55:58.703 status:health:output_modules:4:ports:3:occurrences=0 2013-08-13-16:55:58.757 status:health:output_modules:4:ports:4:active=0 2013-08-13-16:55:58.741 status:health:output_modules:4:ports:4:occurrences=0 2013-08-13-16:55:58.781 status:health:output_modules:6:active=0 2013-08-13-16:55:58.769 status:health:output_modules:6:occurrences=0 2013-08-13-16:55:58.814 status:health:output_modules:6:ports:1:active=0 2013-08-13-16:55:58.799 status:health:output_modules:6:ports:1:occurrences=0 2013-08-13-16:55:58.852 status:health:output_modules:6:ports:2:active=0 2013-08-13-16:55:58.837 status:health:output_modules:6:ports:2:occurrences=0 2013-08-13-16:55:58.880 status:health:output_modules:6:ports:3:active=0 2013-08-13-16:55:58.866 status:health:output_modules:6:ports:3:occurrences=0 2013-08-13-16:55:58.910 status:health:output_modules:6:ports:4:active=0...
  • Page 85 DOC 6511_Release K ATS-6511A/B/C Users Guide 2013-08-13-16:55:32.593 status:unit:network:broadcast=192.168.150.255 2013-08-13-16:55:32.596 status:unit:network:default_gateway=192.168.150.1 2013-08-13-16:55:32.598 status:unit:network:ip=192.168.150.74 2013-08-13-16:55:32.601 status:unit:network:netmask=255.255.255.0 2013-08-13-16:55:39.144 status:unit:serial_number=164227 2013-08-13-18:48:33.358 status:unit:start=2013-08-13-18:47 2013-08-13-18:58:29.219 status:unit:uptime=10 minutes, 56 seconds 2013-08-13-16:55:32.986 status:unit:ver=5.1.0 2013-08-13-18:58:30.799 status:time=2013-08-13-18:58:30 Events: As events occur and/or the system parameters change, these changes will be updated on the status port.

  • Page 86: Appendix D. Detailed Command Information

    DOC 6511_Release K ATS-6511A/B/C Users Guide Appendix D. Detailed Command Information The commands are listed alphabetically. Each command is listed with an explanation of what it does along with examples. All of the commands are case sensitive. The system will inform the operator that the commands were executed by returning an “OK”...
  • Page 87 DOC 6511_Release K ATS-6511A/B/C Users Guide temperatures within the instrument. The alarm itself will not clear until the operating temperature returns to normal conditions.. Syntax: alarm <-d MAX_DEPTH> <NODE> MAX_DEPTH limit display to MAX_DEPTH levels of data NODE specifies a node to display Command Examples: ATS-6511>alarm...
  • Page 88 DOC 6511_Release K ATS-6511A/B/C Users Guide State alarm: Used to indicate alarms that represent the current state of the • instrument. These alarms remain active until the issue is resolved and the instrument has returned to normal operating conditions. Such an alarm might be triggered by an over temperature event in which the unit has detected elevated temperatures within the instrument.
  • Page 89 DOC 6511_Release K ATS-6511A/B/C Users Guide Note: The user can delete the user “default” file by specifying that filename on the command line. If this occurs and the user does not save the system settings the system will use the factory default settings when restarted/rebooted/power cycled.
  • Page 90 DOC 6511_Release K ATS-6511A/B/C Users Guide Diag_port: Description: Switch to diagnostic port. Changes the current command port (1700) connection into a diagnostic port (1800) connection. Hitting the <return> key will switch the connection back into a command port connection Syntax: diag_port Command Example: ATS-6511>diag_port...
  • Page 91 DOC 6511_Release K ATS-6511A/B/C Users Guide [OK] 2011-06-10T17:01:35Z ATS-6511B> Distribution Delay (dist_delay): Description: Distribution delay is a critical factor in ensuring that the system is providing accurate timing outputs at the on-time point (OTP) of the system. The OTP is normally defined by the system designer and may not be the back panel of the ATS 6511.
  • Page 92 ATS 6511 to the ATS 6501 minus the fiber delay from the ATS 6501 to the ATS 6511. Contact Symmetricom if you need help with setting up a system which has differences in fiber lengths for a channel.
  • Page 93 DOC 6511_Release K ATS-6511A/B/C Users Guide The default mode is two-way. Syntax: fiber_mode (two_way | two_way_disabled) See also: fiber_delay, fiber_delay_diff, fiber_switching Command Example: ATS-6511>fiber_mode two_way Use with an ATS-6501 with the 4372A-T card. ATS-6511>fiber_mode two_way_disabled Use with an ATS-6501 with the 4372A-T card and two-way operations are not desired.
  • Page 94 DOC 6511_Release K ATS-6511A/B/C Users Guide Command Example: ATS-6511>frontpanel_button 0 Query: settings hardware ATS-6511> [enable_fp_button] false true=enabled, false=disabled. See also: network, network_config Help: Description: Displays the entire command list or will provide details on the specified command <command>. Acceptable shortcuts are h or a ‘?’.
  • Page 95 DOC 6511_Release K ATS-6511A/B/C Users Guide Configuring a port to generate the IRIG timecode is accomplished using the irig command. Multiple IRIG types are supported including IRIG-A, IRIG-B, and IRIG-G. The IRIG code format is specified as a 3-digit number following the code type and is required in order to set the output to the proper format.
  • Page 96 DOC 6511_Release K ATS-6511A/B/C Users Guide Jam_sync Description: Synchronizes the system 1 PPS to the reference input. Synchronizes the system 1 PPS to the GPS 1 PPS in a ATS 6501 or to the fiber 1 PPS in a ATS 6511. This command may result in a phase jump of the 1 PPS outputs depending on the state of the unit.
  • Page 97 DOC 6511_Release K ATS-6511A/B/C Users Guide The load command will only change those settings that are found in the specified file. If the file contains only a subset of the settings tree than only those settings will be affected. Also, if a user wishes to only load a subset of the settings within the file they can specify the specific node within the file that should be loaded.
  • Page 98 DOC 6511_Release K ATS-6511A/B/C Users Guide Configuring a port to generate the NASA-36 timecode is accomplished using the nasa36 command. NASA-36 can only be generated by a 4387A output module since it is a modulated timecode. Configuration of a specific output is stored on the system itself so that replacement modules will automatically be configured with the correct output format.
  • Page 99 DOC 6511_Release K ATS-6511A/B/C Users Guide Note: These settings are not necessarily what the system is currently using unless the system has static IP Address assigned. If the system is using DHCP the current IP settings being used by the system will be displayed using the status unit:network command.
  • Page 100 DOC 6511_Release K ATS-6511A/B/C Users Guide --mask Set the netmask of the system to NETMASK --broadcast Set the broadcast of the system BROADCAST --gateway Set the default router for the system to ROUTER Command Example: ATS-6511> network_config --mode static --ip 192.168.1.50 --mask 255.255.255.0 --broadcast 192.168.1.255 --gateway 192.168.1.1...
  • Page 101 DOC 6511_Release K ATS-6511A/B/C Users Guide pulse width has a minimum value of 5e-8 seconds and must not exceed half the value given for the period (i.e. < 50% duty cycle). Configuration of a specific output is stored on the system itself so that replacement modules will automatically be configured with the correct output format.
  • Page 102 DOC 6511_Release K ATS-6511A/B/C Users Guide enable 1 displays the prompt; 0 hides the prompt default Change the prompt for all future sessions Command Example: This command changes it for the current session. ATS-6511>prompt –text Test Test> Changes the prompt immediately, only in effect for the current telnet session.
  • Page 103 DOC 6511_Release K ATS-6511A/B/C Users Guide PTDavg_port: Description: Switch to averaged PTD port. Changes the current command port (1700) connection into a ptdavg port (2100) connection. Hitting the <return> key will switch the connection back into a command port connection.
  • Page 104 DOC 6511_Release K ATS-6511A/B/C Users Guide Thus, if the PPS input is provided on input 3 of the 4393A card installed in slot 4 it will be identified as 'Ch43' on the ptdraw port. Syntax: ptdraw_port Command Example: ATS-6511>ptdraw_port To end this session and return to the command port type quit and press enter.
  • Page 105 DOC 6511_Release K ATS-6511A/B/C Users Guide Command Example: ATS-6511>reference external Query: ATS-6511>settings reference:source external Warning: Prior to setting the reference to external, make sure the 10MHz signal from the external reference is plugged in to the 10MHz IN connector on the rear of the ATS-6511B.
  • Page 106 DOC 6511_Release K ATS-6511A/B/C Users Guide Restart: Description: Restart this application. By default the system will perform a warm restart in which the outputs of the system and current settings will be preserved during the restart process. Specifying a cold restart will reset the system settings to their saved values and perform a complete reset of the hardware which will result is a loss of output signals.
  • Page 107 DOC 6511_Release K ATS-6511A/B/C Users Guide ATS-6511>save test Query: ATS-6511>list default test See Also: load, list, show, settings Settings: Description: Show unit settings. The settings command displays all the settings variables for the system. Settings variables are values that are settable by the user. They are not automatically saved however so the user must use the save command in order to preserve the settings across a power cycle.
  • Page 108 Description: Execute software update. The software can be upgraded remotely using this command. The tflex-*.iso image must be obtained from the Symmetricom ftp site ftp.timing.com/pub/ATS-6511. Use binary transfer mode for all file transfers. Upload the image to the unit using ftp with username and password 'update'.
  • Page 109 DOC 6511_Release K ATS-6511A/B/C Users Guide Command Example: ATS-6511>software_update tflex-4-2-2.iso Note: If the iso image is not on the system the command will attempt to execute, display a line feed and the system will return to the command prompt. If this occurs the iso file must be uploaded to the system before the software can be updated.
  • Page 110 DOC 6511_Release K ATS-6511A/B/C Users Guide The variables are organized into a hierarchy that groups related variables together. This enables displaying only the subset of variables that a user may be interested in by specifying the desired node within the hierarchy. For instance, status_port status:gps will display only the GPS status variables instead of all the variable.

  • Page 111: Appendix E System Configuration (Syscfg)

    DOC 6511_Release K ATS-6511A/B/C Users Guide Appendix E System Configuration (syscfg) This system configuration (syscfg) is a method of documenting the system (ATS-65XX) series devices and having the unit alert the operator when the system settings differ from the configuration file either by card or by port settings. Once set up and enabled the system will alert the operator if someone puts a card in the wrong slot, installs a card that does not belong in the chassis and if a port setting is incorrect (i.e PPS and IRIG).
  • Page 112 DOC 6511_Release K ATS-6511A/B/C Users Guide Port Settings: These are examples of the types of monitoring that can be done on the output cards. The PPS/IRIG values can be well defined where as the 4395 Series cards can simply be monitored to ensure all of outputs are on.
  • Page 113 DOC 6511_Release K ATS-6511A/B/C Users Guide "expectedValue": "1", "errorMsg": "Incorrect enabled in slot 3 port 1" # the address in tree "address": "settings:hardware:slots:4:tsc4395:ports:2:enabled", "expectedValue": "1", "errorMsg": "Incorrect enabled in slot 3 port 2" # the address in tree "address": "settings:hardware:slots:4:tsc4395:ports:3:enabled", "expectedValue": "1",...

  • Page 114: Appendix F Julian Date Calendars

    DOC 6511_Release K ATS-6511A/B/C Users Guide Appendix F Julian Date Calendars JULIAN DATE CALENDER (NON LEAP YEARS)
  • Page 115 DOC 6511_Release K ATS-6511A/B/C Users Guide JULIAN DATE CALENDAR (LEAP YEARS ONLY)
