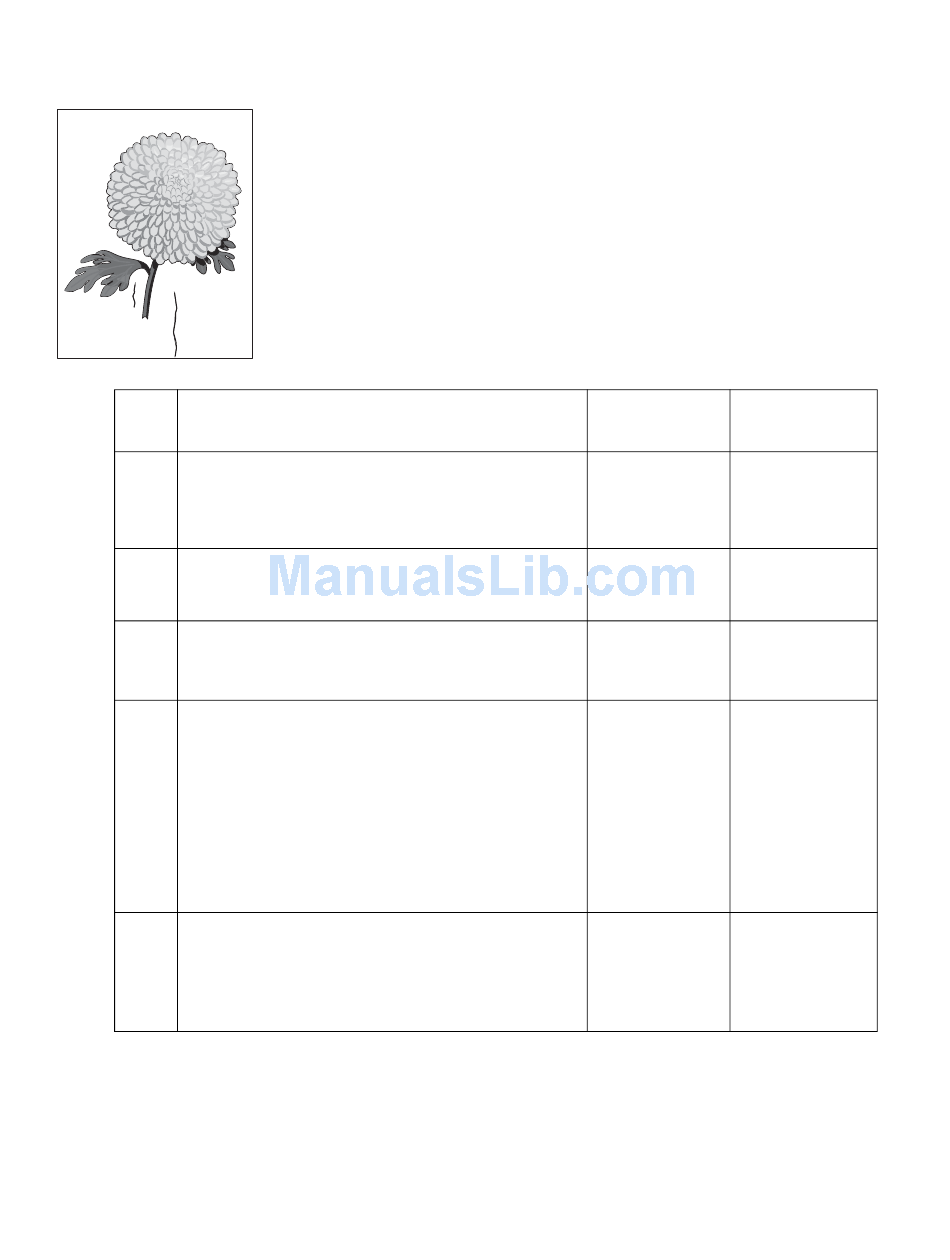

Media damage (using ADF)

Leading edge
Trailing edge
Step
1
Properly load document into the ADF unit assembly and
ensure all guides are set correctly.
Re-print the defective image.
Does the error continue?
2
Check for obstructions in the area of the media feed
path in the ADF.
Is the media feed path free from any obstructions?
3
Is the ADF left cover assembly properly and evenly
closed.
4 Check the ADF/pick roll assembly for damage and
wear.
Is the ADF feed/pick roll assembly free from damage
and wear?
5 Check the ADF separator roll.
Is the separator roll free from damage and wear?
2-190
Service Manual
Check Yes
Go to step 2. Problem solved.
Go to step 3. Remove
obstructions.
Go to step 4. Open then
properly close
the ADF left
cover assembly.
Go to step 5. Replace the ADF
feed/pick roll
assembly.
Go to
/ pick roll
assembly
removal
(models X651,
X652, X654,
X656, and
X658)" on
page
Go to step 6. Replace the
separator roll.
Go to
separator roll
removal" on
page
No
"ADF feed
4-59.
"ADF
4-60.
