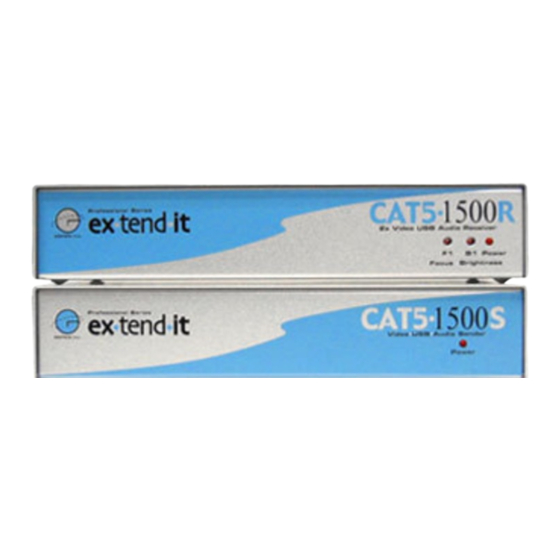

Computer Extension : the CAT5-1000/CAT5-1500
Operate Your Computer Equipment Far Away From The Computer
Long Distance CAT5 Cabling Connects Remote Keyboard/Video/Mouse to
the Computer
This, our flagship KVM extender, comes in two high-performance versions that
each extend a computer's analog video, audio and control signals any distance
up to 330-feet (100-meters) from the computer. What differentiates the two is
the video extension technique used and the amount of cabling needed for
extension.
CAT5-1000
– Simple and Effective
The CAT5-1000 requires just one CAT5 cable to transmit video, audio and
control signals to the remote workstation. It essentially bundles the signals
together before, during and after transmission so that cabling is reduced while
reliable signal transmission is achieved. This is the ideal solution for anyone
who desires an effective method to extend their workstation anywhere within
330-feet from the computer.
CAT5-1500 – Additional Video Refinement
The CAT5-1500 works just like the CAT5-1000, but it uses two CAT5 cables to
transmit its signals to the remote workstation because the video is sent
separately from the control and audio signals. The key benefit here is that the
video can be tweaked or refined on the receiving end. Another benefit is that
the video can actually be extended a few hundred feet further (up to 600-feet) if
needed. The CAT5-1500 is perfect for anyone who needs to extend the
computer workstation and has more demanding video requirements.
Compatibility:
The CAT5-1000 and the CAT5-1500 work with all CRT and LCD computer
monitors as well as USB-equipped keyboards and mice (Mac or PC).
How it Works:
Both the CAT5-1000 and the CAT5-1500 utilize a sender and receiver
methodology to connect the extended workstation to the computer. Simply
connect the sender unit to your computer using the cables provided. Then
connect the receiver unit to the computer's keyboard, monitor and mouse at the
remote location. CAT5 cable(s), sold separately, then connect the sender unit
Advertisement
Table of Contents
Related Manuals for Gefen ex-tend-it CAT5-1500
Summary of Contents for Gefen ex-tend-it CAT5-1500
- Page 1 Computer Extension : the CAT5-1000/CAT5-1500 Operate Your Computer Equipment Far Away From The Computer Long Distance CAT5 Cabling Connects Remote Keyboard/Video/Mouse to the Computer This, our flagship KVM extender, comes in two high-performance versions that each extend a computer’s analog video, audio and control signals any distance up to 330-feet (100-meters) from the computer.
- Page 2 to the receiver unit. Both the sender and the receiver units must be connected to a power supply. When fully powered and operational, the units efficiently extend video, audio and control signals. Each Package Includes: Sender Unit Receiver Unit One 6ft VGA cable (PC/Black) One 6ft USB cable One 6ft Audio cable Two 5VDC Transformer...
