Summary of Contents for TRENDnet TE100-S16R

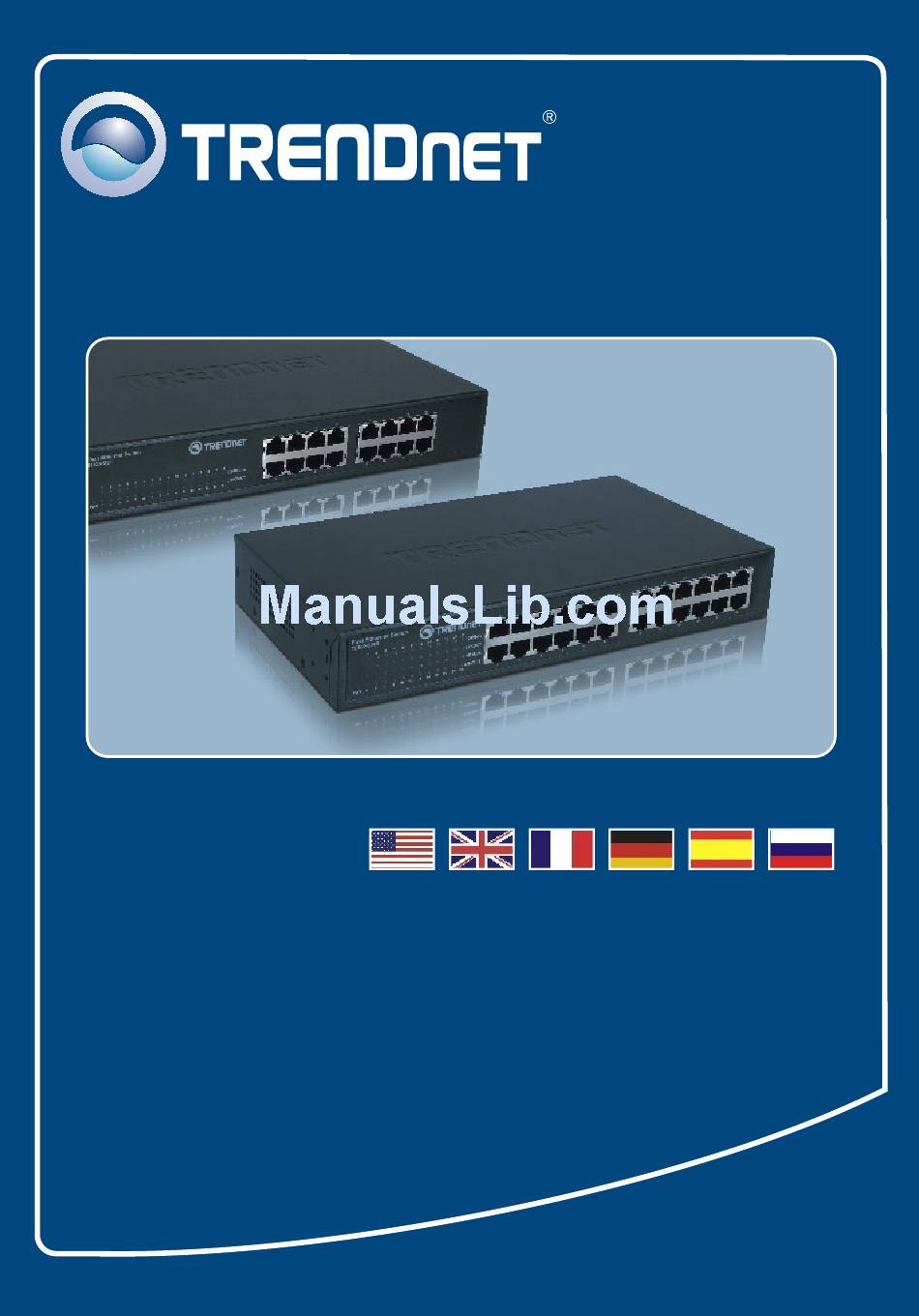

  • Page 1 Quick Installation Guide TE100-S16R TE100-S24R...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents Deutsch ..................... 1. Bevor Sie anfangen ................2. Installation der Hardware ..............Technical Specifications ................Troubleshooting ..................Version 01.24.2007...
  • Page 3: Deutsch

    Legen Sie keine schweren Gegenstände auf das Gerät 19-Zoll-Gestell nach EIA-Standard oder feste, ebene Oberfläche, die das Gewicht des Gehäuses tragen kann Anwendung 16/24 Ports 10/100Mbps Fast Ethernet Switch (TE100-S16R or TE100-S24R) 10/100Mbps Multi-Port Print Server (TE100-P21) Internet Laptop with PC Card...
  • Page 4: Installation Der Hardware

    2. Installation der Hardware 1. Schließen Sie das Stromkabel an der Rückseite des TE100-S16R/ TE100-S24R an und stecken Sie es in eine Steckdose. 2. Verbinden Sie den Computer über ein Kat.5 RJ-45-Netzwerkkabel mit einem freien Ethernet-Port des TE100-S16R/TE100-S24R Deutsch...
  • Page 5 Montage in Gestell Das Gehäuse lässt sich in ein standardmäßiges 19’’-EIA-Gestell einbauen, das seinerseits gemeinsam mit anderen Geräten in einen Kabelschrank montiert werden kann. 1. Bringen Sie die Befestigungsbügel mit den mitgelieferten Schrauben an beiden Seiten des Chassis an. 2. Setzen Sie das Gehäuse sorgfältig in das Gestell ein.
  • Page 6: Technical Specifications

    100Mbps (Half-Duplex), 200Mbps (Full-Duplex) Topology Star Ethernet: UTP/STP CAT-3, 4, 5 Network Cables Fast Ethernet: UTP/STP CAT-5, 5e , 6 TE100-S16R: 16 x 10/100Mbps Auto-negotiation, Auto-MDIX ports Number of Ports TE100-S24R: 24 x 10/100Mbps Auto-negotiation, Auto-MDIX ports LEDs Power, Link/Activity, 100Mbps...
  • Page 7 Physical and Environmental Power 100-240VAC. 50/60Hz. Internal Power Supply TE100-S16R: 5.9Watts (Max) Power Consumption TE100-S24R: 7.5Watts (Max) Temperature Operating: 0 ~ 50 C, Storage: -20 ~ 70 C ° ° ° ° Humidity Operating: 10% ~ 90%, Storage:5% ~ 90%...
  • Page 8: Troubleshooting

    After connecting the Switch to a power outlet, the LEDs do not turn Check the connection of the external power adapter to the TE100-S16R/TE100-S24R and the power outlet. Also check that the power outlet is receiving power. When I connect a computer to the Switch's port, the LNK/ACT LED turns on, but the 100Mbps LED remains off.
  • Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
  • Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
  • Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am - 8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
