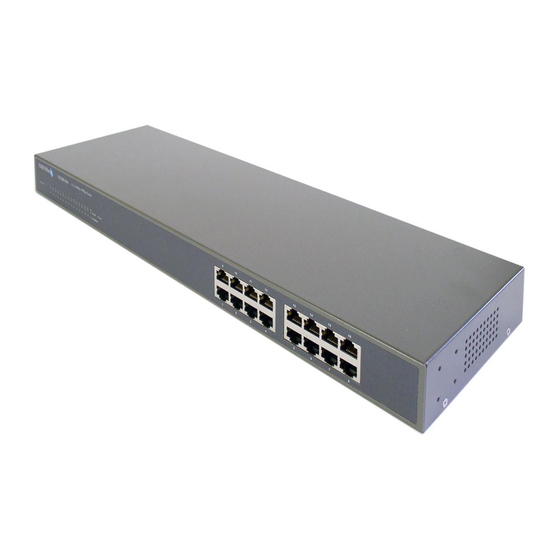

TRENDnet TE100-S16 User Manual

16-port 10/100mbps fast ethernet switch
Hide thumbs Also See for TE100-S16:
Table of Contents

Advertisement

Quick Links

TE100-S16
16-Port 10/100Mbps
Fast Ethernet Switch
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TE100-S16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TRENDnet TE100-S16

Summary of Contents for TRENDnet TE100-S16

  • Page 1 TE100-S16 16-Port 10/100Mbps Fast Ethernet Switch User’s Guide...

  • Page 2: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 b) Reduced Air Flow- Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised. c) Mechanical Loading-Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

  • Page 4: Table Of Contents

    ABLE OF ONTENTS About This Guide..........1 .....................1 URPOSE ..................1 ERMS SAGE ’ ............1 VERVIEW OF THIS UIDE Introduction............2 ............2 THERNET ECHNOLOGY ..............3 WITCHING ECHNOLOGY ....................4 EATURES Unpacking and Installation.........6 ....................6 NPACKING ..................6 NSTALLATION ..................7 OUNTING Identifying External Components.......8 ...................8 RONT ANEL .....................9 ANEL...

  • Page 5: About This Guide

    BOUT UIDE Congratulations on y our purchase of the 16-port 10/100Mbps Auto-negotiation Fast Ethernet Switch. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package. Purpose This guide discusses how to install your 16-port 10/100Mbps Fast Ethernet Switch.

  • Page 6: Introduction

    NTRODUCTION This chapter describes the features of the Switch and some background information about Ethernet/Fast Ethernet switching technology. Fast Ethernet Technology The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks.

  • Page 7: Switching Technology

    Switching Technology Another approach to pushing beyond the limits of Ethernet technology is the development of switching technology. A switch bridge Ethernet packets at the MAC address level of the Ethernet protocol transmitting among connected Ethernet or Fast Ethernet LAN segments. Switching is a cost-effective way of increasing the total network capacity available to users on a local area network.

  • Page 8: Features

    solution to most kinds of local area network congestion problems. Features The Switch were designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously. The Switch with its standard EIA-19 rack-mountable size is specifically designed for middle to large workgroups.
  • Page 9 loss. The Switch is an unmanaged 10/100 Fast Ethernet Switch that offers solutions in accelerating Ethernet Workgroup’s bandwidth. Other key features are: 16-port 10/100BASE Ethernet Switch with RJ-45 connectors Support Auto-negotiation for speed and duplex modes for each port Supports Auto-MDI-II/MDI-X for each port Wire speed reception and transmission Store -and-Forward switching method Integrated address Look-Up Engine, supports 8K...

  • Page 10: Unpacking And Installation

    NPACKING AND NSTALLATION This chapter provides unpacking and setup information for the Switch. Unpacking Open the shipping carton of the Switch and carefully unpacks its contents. The carton should contain the following items: One the 16-port 10/100Mbps Fast Ethernet Switch One AC power cord, suitable for your area’s electrical power connections Four rubber feet for shock cushioning...

  • Page 11: Rack Mounting

    Install the Switch on a sturdy, leveled surface that can support its weight, or in an EIA standard-size equipment rack. For information on rack installation, see the next section, Rack Mounting. When installing the Switch on a level surface, attach the rubber feet on the corners at the bottom of the Switch.

  • Page 12: Identifying External Components

    DENTIFYING XTERNAL OMPONENTS This section identifies all the major external components of the switch. Front Panel The figure below shows the front panels of the switch. Power L I N K 100Mbps 16-port 10/100Mbps Fast Ethernet Switch LED Indicator Panel Refer to the detailed information about each of the switch’s LED indicators.

  • Page 13: Rear Panel

    connection is 10Mbps or there is no connection. Twisted-Pair Ports These ports supports automatic MDI-II/MDI-X crossover detection function gives true “plug-and-play” capability without the need of confusing crossover cables or crossover uplink ports. With the Auto-MDI function, you just need to connect the network cable to the Switch;...

  • Page 14: Technical Specification

    ECHNICAL PECIFICATION General IEEE 802.3 10BASE-T Ethernet Standards IEEE 802.3u 100BASE -TX Fast Ethernet Protocol CSMA/CD Data Transfer Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex) Rate Fast Ethernet: 100Mbps (half duplex), 200Mbps (full- duplex) Topology Star 10BASET: 2-pair UTP Cat. 3,4,5, EIA/TIA- 568 100-ohm STP Network Cables 100BASE-TX: 2-pair UTP Cat.
  • Page 15 Performance Transmits Store-and-forward Method: RAM Buffer: 512KBytes per device Filtering 8K entries per device Address Table: Packet 10Mbps Ethernet: 14,880/pps Filtering/Forwar 100Mbps Fast Ethernet: 148,800/pps ding Rate: MAC Address Automatic update Learning:...
