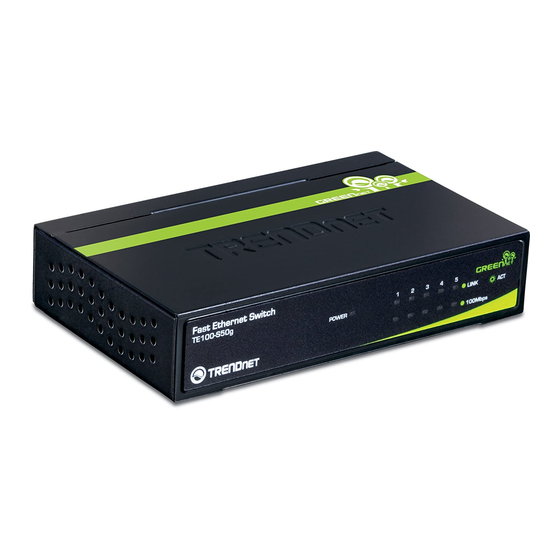

TRENDnet TE100-S50G Quick Installation Manual
Trendnet te100-s50g: install guide
Hide thumbs
Also See for TE100-S50G:
- Quick installation manual (18 pages) ,
- Specifications (2 pages) ,
- Quick installation manual (6 pages)
Advertisement
Advertisement
Related Manuals for TRENDnet TE100-S50G
Summary of Contents for TRENDnet TE100-S50G

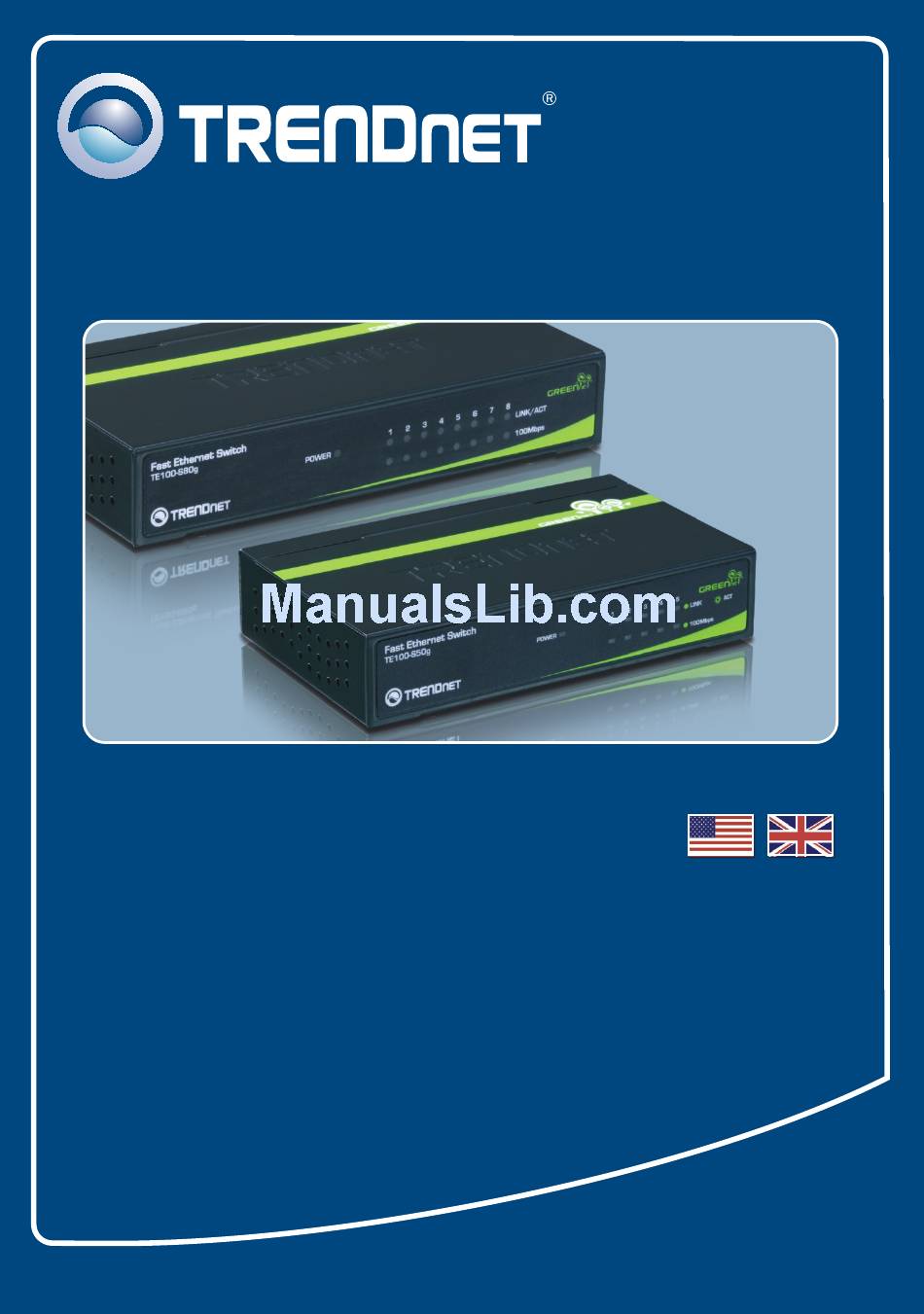

- Page 1 Quick Installation Guide TE100-S50g TE100-S80g H/W: V1...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. Hardware Installation ... 3. LEDs ... Technical Specifications ... Troubleshooting ... Version 04.01.2009... -
Page 3: English
CAT-5, CAT-5e or CAT-6 Network Cable The surface must support at least 1.5 Kg for the Switch The power outlet should be within 1.82 meters (6 feet) of the switch Visually inspect the DC power jack to make sure that it is securely... - Page 4 Delivers less power when devices are off Delivers less power with shorter cable lengths *Max power savings compared with standard TRENDnet switches. Delivers less power to unused ports Delivers less power when devices are off Delivers less power...
-
Page 5: Hardware Installation
2. Hardware Installation 1. Connect the AC Power Adapter to the TE100-S50g/TE100-S80g and then to a power outlet. 2. Connect a CAT-5, CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port on the TE100-S50g/ TE100-S80g. English... -
Page 6: Leds
Not Illuminated: Nothing is detected on the port. 100Mbps Green: Connection for the port is 100 (Full/Half) Not Illuminated: Connection for the port is 10(Full/Half) or nothing is detected on the port. Register Your Product www.trendnet.com/register Thank you for choosing TRENDnet English... -
Page 7: Technical Specifications
TE100-S80g: 2.5W (max) Power, Link/ACT, 100Mbps 7.5V DC, 1A External Power Adapter TE100-S50g: 116 x 25 x 70 mm (4.57 x .98 x 2.76 in.) TE100-S80g: 136 x 25 x 70 mm (5.35 x .98 x 2.76 in.) TE100-S50g: 225g... - Page 8 Temperature Humidity Certification Hardware Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F) Operating: 10% ~ 90% Storage: 5% ~ 90% CE, FCC...
-
Page 9: Troubleshooting
Where is the uplink port located on the switch? Since all the ports on the switch are Auto-MDIX, any of the ports can be used as an uplink port. If you still encounter problems or have any questions regarding the TE100-S50g/ TE100-S80g please contact Trendnet's Technical Support Department. - Page 10 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 11 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 12 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 13 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
