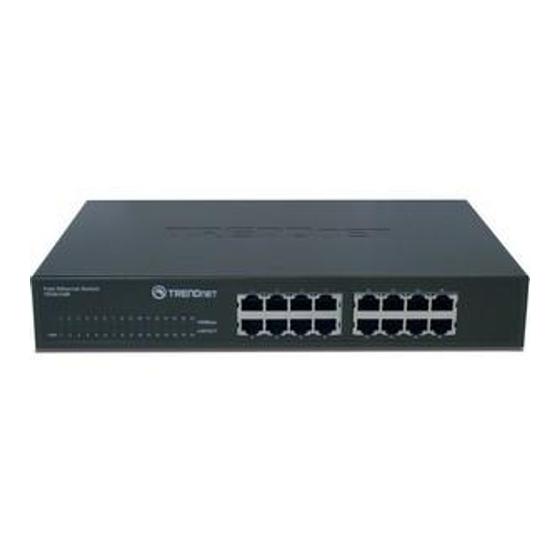

- Page 1 Quick Installation Guide TE100-S16R TE100-S24R...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Español ....................... 1. Antes de iniciar ................... 2. Instalación del Hardware ..............Technical Specifications ................Troubleshooting ..................Version 01.24.2007... -
Page 3: Español
No coloque objetos pesados encima del conmutador Estructura de nivel y bastidor de 19 pulgadas estándar EIA o robusto que pueda soportar el peso del chasis Aplicación 16/24 Ports 10/100Mbps Fast Ethernet Switch (TE100-S16R or TE100-S24R) 10/100Mbps Multi-Port Print Server (TE100-P21) Internet... -
Page 4: Instalación Del Hardware
2. Instalación del Hardware 1. Conecte el Power Cord (Cable de alimentación) en la parte trasera del TE100-S16R/ TE100-S24R y después a la toma corriente. 2. Conecte un cable de red RJ-45 CAT-5 del PC a un puerto Ethernet disponible en el TE100-S16R/ TE100-S24R Español... - Page 5 Para montaje en bastidor El chasis puede montarse sobre un bastidor de 19 pulgadas tamaño estándar EIA, que puede colocarse en un armario de empalmes junto con otros equipos. 1. Fije las abrazaderas de sujeción a ambos lados del chasis y asegúrelas con los tornillos suministrados.
-
Page 6: Technical Specifications
100Mbps (Half-Duplex), 200Mbps (Full-Duplex) Topology Star Ethernet: UTP/STP CAT-3, 4, 5 Network Cables Fast Ethernet: UTP/STP CAT-5, 5e , 6 TE100-S16R: 16 x 10/100Mbps Auto-negotiation, Auto-MDIX ports Number of Ports TE100-S24R: 24 x 10/100Mbps Auto-negotiation, Auto-MDIX ports LEDs Power, Link/Activity, 100Mbps... - Page 7 Physical and Environmental Power 100-240VAC. 50/60Hz. Internal Power Supply TE100-S16R: 5.9Watts (Max) Power Consumption TE100-S24R: 7.5Watts (Max) Temperature Operating: 0 ~ 50 C, Storage: -20 ~ 70 C ° ° ° ° Humidity Operating: 10% ~ 90%, Storage:5% ~ 90%...
-
Page 8: Troubleshooting
After connecting the Switch to a power outlet, the LEDs do not turn Check the connection of the external power adapter to the TE100-S16R/TE100-S24R and the power outlet. Also check that the power outlet is receiving power. When I connect a computer to the Switch's port, the LNK/ACT LED turns on, but the 100Mbps LED remains off. - Page 9 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 10 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 English/Espanol - 24/7 Francais/Deutsch - 11am - 8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
