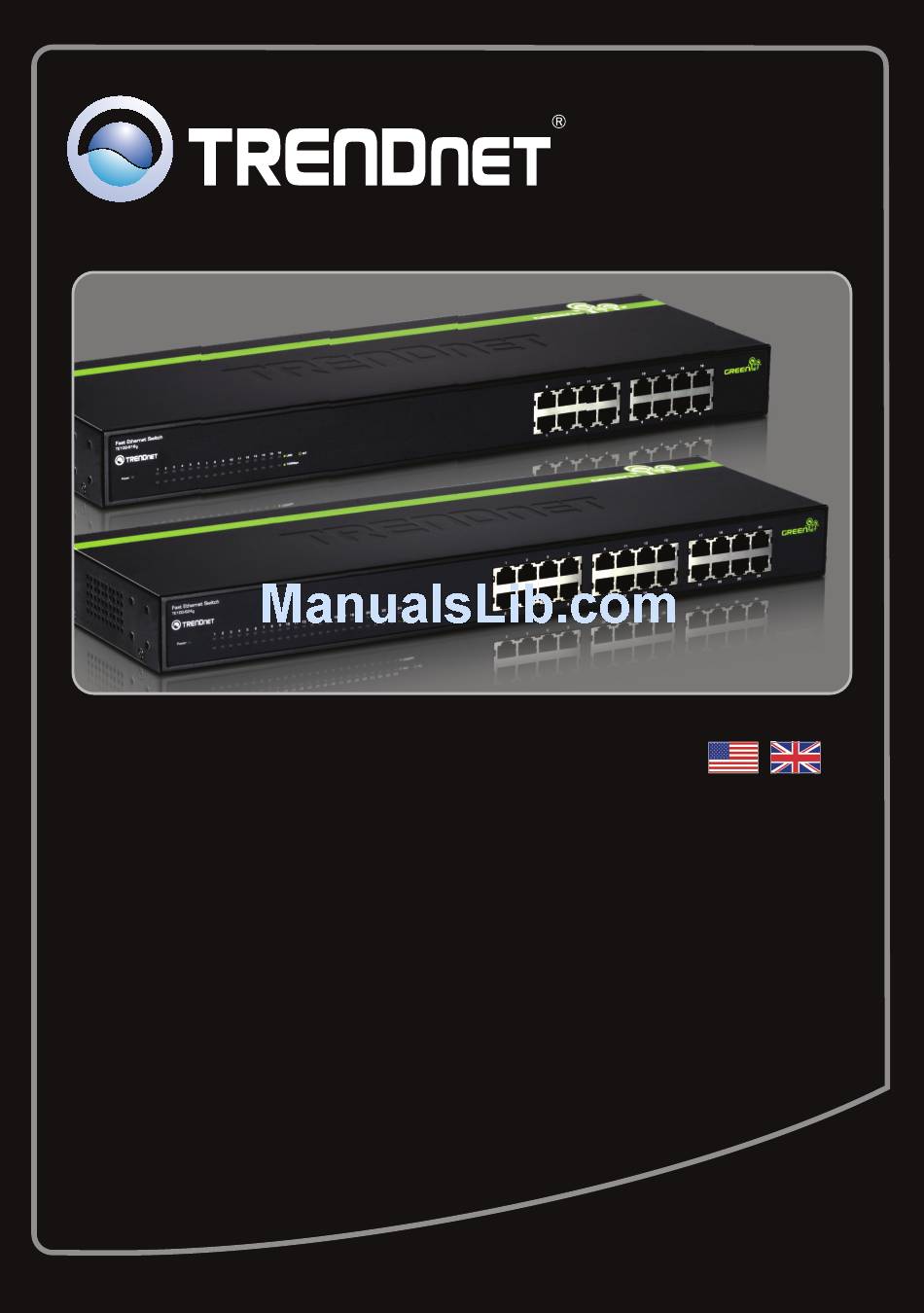

- Page 1 Quick Installation Guide TE100-S16g TE100-S24g 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation LEDs Technical Specifications Troubleshooting Version 11.23.2009... -
Page 3: English
The surface must support at least 1.5 Kg for the Switch The power outlet should be within 1.82 meters (6 feet) of the switch Visually inspect the DC power jack to make sure that it is securely connected to the... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the Power Cord to the TE100-S16g/TE100-S24g and then to a power outlet. 2. Connect a CAT-5, CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port on the TE100-S16g/TE100-S24g. -
Page 5: Rack Mount
Rack Mount The switch can be mounted in an EIA standard-size, 19-inch rack, which can be placed in a wiring closet with other equipment. 1. Attach the mounting brackets to both sides of the switch and secure them with the provided screws. -
Page 6: Leds
3. LEDs Power Green: Power is on Not Illuminated: Power is off Link/ACT Green (Solid): Link to another device Green (Blinking): Activity is occurring from the link Not Illuminated: Nothing is detected on the port 100Mbps Green: Connection for the port is 100Mbps (Full/Half) Not Illuminated: Connection for the port is 10Mbps... -
Page 7: Technical Specifications
Fast Ethernet: 2-Pair UTP/STP CAT-5, -5e , -6 Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex) Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex) CSMA/CD / Star TE100-S16g: 16 x 10/100/1000 Auto-MDIX RJ-45 ports TE100-S24g: 24 x 10/100/1000 Auto-MDIX RJ-45 ports TE100-S16g: 1.25Kbits per device TE100-S24g: 1.25Mbits per device... -
Page 8: Troubleshooting
Internet router such as the TW100-S4W1CA. Where is the uplink port located on the Switch? Since all the ports on the Switch are Auto-MDIX, any of the ports can be used as an uplink port. If you still encounter problems or have any questions regarding the TE100-S16g/ TE100-S24g... - Page 9 TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment.
- Page 10 Go to http://www.trendnet.com/gpl the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to http://www.gnu.org/licenses/gpl.txt...
- Page 11 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 12 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register Copyright ©2009. All Rights Reserved. TRENDnet.
