- Page 1 Quick Start Guide 4-Port 4Kx2K HDMI Switch with Remote GHDSW4K4 PART NO. Q1326 www.iogear.com...

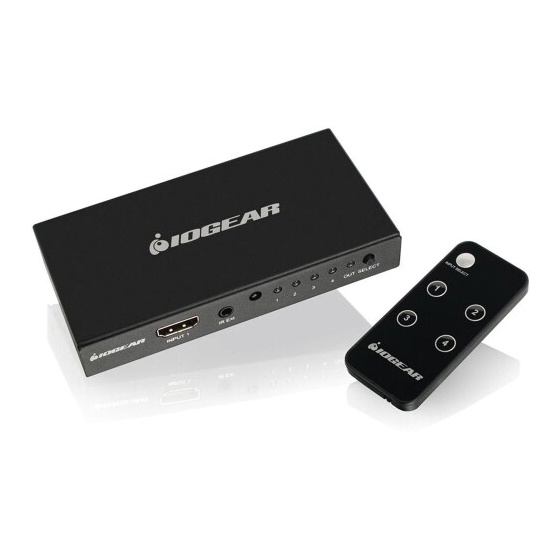

- Page 2 Package Contents 1 x GHDSW4K4 4-Port HDMI Switch 1 x IR Remote 1 x Quick Start Guide 1 x Warranty Card Requirements Display: HDMI HDTV, Display or Projector Source: Media source with HDMI Out Overview Remote: 1. Select Next Port 2.
- Page 3 Switch: 1. Input Port 1 5. Port 2 LED 2. External IR 6. Port 3 LED Receiver Port (Optional) 7. Port 4 LED 3. IR Receiver 8. Output Port LED 4. Port 1 LED 9. Port Selection Button SELECT INPUT 1 IR Ext FRONT VIEW 10.
- Page 4 Installation STEP 1 Connect an HDMI cable from the output port of the switch to any available HDMI input on your HDTV, HD projector or HDMI display. INPUT 2 INPUT 3 INPUT 4 OUTPUT 5V/1A STEP 2 Connect any HDMI media devices to the input ports of the HDMI switch.
- Page 5 STEP 3 Use the remote control or front panel selection button to switch to the desired port, then power on your HDTV or HD display and media source. Compliance Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 6 Limited Warranty WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information. 2. Visit www.iogear.com/support for live help and product support. Warranty Information This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://www.iogear.com/support/warranty.
