Note:
If you do not have a FTP server running contact your local
administrator or use other method to retrieve your scanned
document(s). (i.e. Scan Driver or Web Browser)

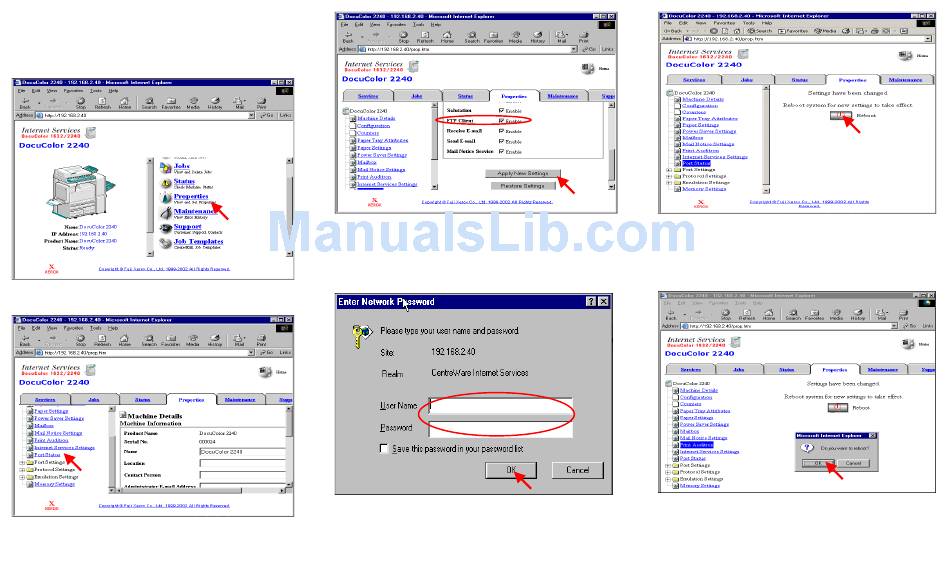

Fig. 1
Click Properties.
Fig. 2
Click
Port
Status.
Fig. 3
Place a check mark in the "Enable" box next to
Apply New
Settings.
*If a check mark already appears in the "Enable" box next to
Client
skip the remaining steps in this pamphlet and continue to Scan
Using FTP Server Part 2 of 3.
Fig. 4
Enter the User Name and Password. Click OK. (See Machine
Administration User Guide for default password)
*This screen might not appear if the username and password have
already been entered.
Scan Using FTP Server - 1 of 6
Fig. 5
FTP
Client. Select
The "Settings have been changed" confirmation screen appears. Click
Reboot.
FTP
Fig. 6
Click OK. (The DC 1632/2240 will take approximately 2 minutes to
reboot.)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Xerox DocuColor 2240
Summary of Contents for Xerox DocuColor 2240
- Page 1 Note: If you do not have a FTP server running contact your local administrator or use other method to retrieve your scanned document(s). (i.e. Scan Driver or Web Browser) Fig. 3 Fig. 5 Place a check mark in the “Enable” box next to Client.
-
Page 2: Quick Start Guide
Quick Start Guide Fig. 7 If the message “Your request was successfully processed” is not isplayed, repeat the steps in this pamphlet. Continue with Scan Using FTP Server Part 2 of 3. Scan Using FTP Server - 2 of 6... - Page 3 Fig. 1 Fig. 3 Fig. 5 Select Template. Select OK. Enter the User Name and Password. Click OK. (See Machine Administration User Guide for default password) *This screen might not appear if the username and password have already been entered. Fig.
- Page 4 Quick Start Guide Fig. 7 Fig. 9 Click Repository. You are ready to scan. Click Close Window Note: If you click on “Back” you will return to the previous window seeing in Fig. 8 and the values will be blank. This is normal. Continue with Scan Using FTP Server Part 3 of 3.
- Page 5 Fig. 4 Fig. 7 Select Template. The document is being scanned. Fig. 1 Place document(s) on the Document Feeder or Document Glass. Fig. 5 Fig. 8 Select template. The document is being transferred Fig. 2 Select Menu. Fig. 9 The scanned document is completed. Fig.
- Page 6 Quick Start Guide Scan Using FTP Server - 6 of 6...
