Summary of Contents for Audio Technica AT2020USBi

  • Page 1: Table Of Contents

    AT2020USBi Instruction Manual AT2020USBi Cardioid Condenser USB Microphone Contents Introduction & features Setting up your microphone with pivot mount & desk stand Preliminary setup with Mac OS X Preliminary setup with Windows 8 Selecting software Setting your software levels Positioning your microphone...
  • Page 2 Compliance with FCC rules (USA only) This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
  • Page 3 The AT2020USBi features a microphone gain control that allows you to adjust the input level directly on the microphone itself. The microphone’s cardioid pickup pattern delivers excellent off-axis rejection, while its A/D converter with a 24-bit, up to 96 kHz sampling rate ensures extremely articulate sound reproduction.
  • Page 4: Setting Up Your Microphone With Pivot Mount & Desk Stand

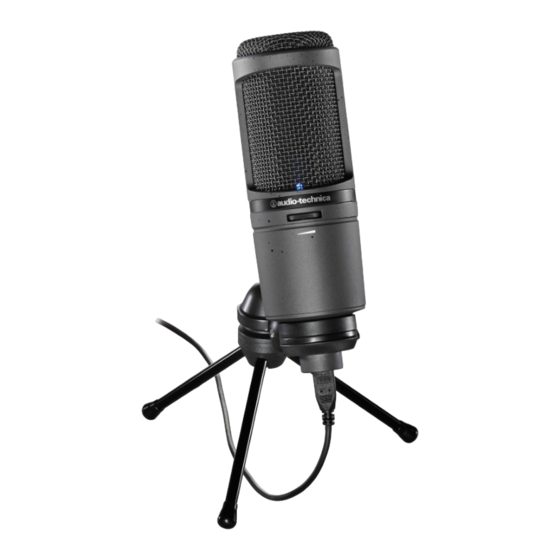

    Blue LED — Blue light shows microphone is receiving USB power Mic Gain Control — Dial controls input level Metal Construction — Tough, durable, resilient design Digital Output Connector — Use the included USB or Lightning cable to connect AT2020USBi to your Mac, PC, iPad or iPhone USB Cable...
  • Page 5: Preliminary Setup With Mac Os X

    AT2020USBi Your preferences are now set to use the AT2020USBi on your Mac with GarageBand or another recording program of your choice. Note: Use the Lightning cable to connect the AT2020USBi to an iPhone or iPad. No setup is required.
  • Page 6: Preliminary Setup With Windows 8

    2. In the lower right portion of your screen you may get a message that new hardware was found; or you may see a driver software installation notice. Start menu > Control Panel > Sound To select the AT2020USBi as your default recording device, begin at your Start menu. Select Control...
  • Page 7 Preliminary setup with Windows 8 (continued) 4. Select Sound. 5. The following screen will pop up:...
  • Page 8 Properties. That way any adjustments needed during recording can be easily performed from the microphone itself. Your preferences are now set to use the AT2020USBi with Windows 8 and the recording program of your choice.
  • Page 9: Selecting Software

    Additional Information Selecting software You have many choices in recording software. Audacity, available for free online at http://audacity.sourceforge.net/, is a widely used software program that provides basic recording software. Setting your software levels Correct adjustment of microphone level is important for optimum performance. Ideally, the microphone level should be as high as possible without overloading the input of your computer.
  • Page 10: Specifications

    AT2020USBi Specifications † Element: Fixed-charge back plate, permanently polarized condenser Polar Pattern: Cardioid Frequency Response: 20 – 20,000 Hz Power Requirements: USB (5V DC); Lightning (3.3V DC) Bit Depth: 24-bit Sample Rate: Up to 96 kHz Controls: Mic gain control Weight: 350 g (12.3 oz)
  • Page 11 AT2020USBi To reduce the environmental impact of a multi-language printed document, product information is available online at www.audio-technica.com in a selection of languages. Afin de réduire l’impact sur l’environnement de l’impression de plusieurs, les informations concernant les produits sont disponibles sur le site www.audio-technica.com dans une large sélection de langue.
  • Page 12 AT2020USBi Audio-Technica Corporation audio-technica.com ©2015 Audio-Technica P52558-01...
