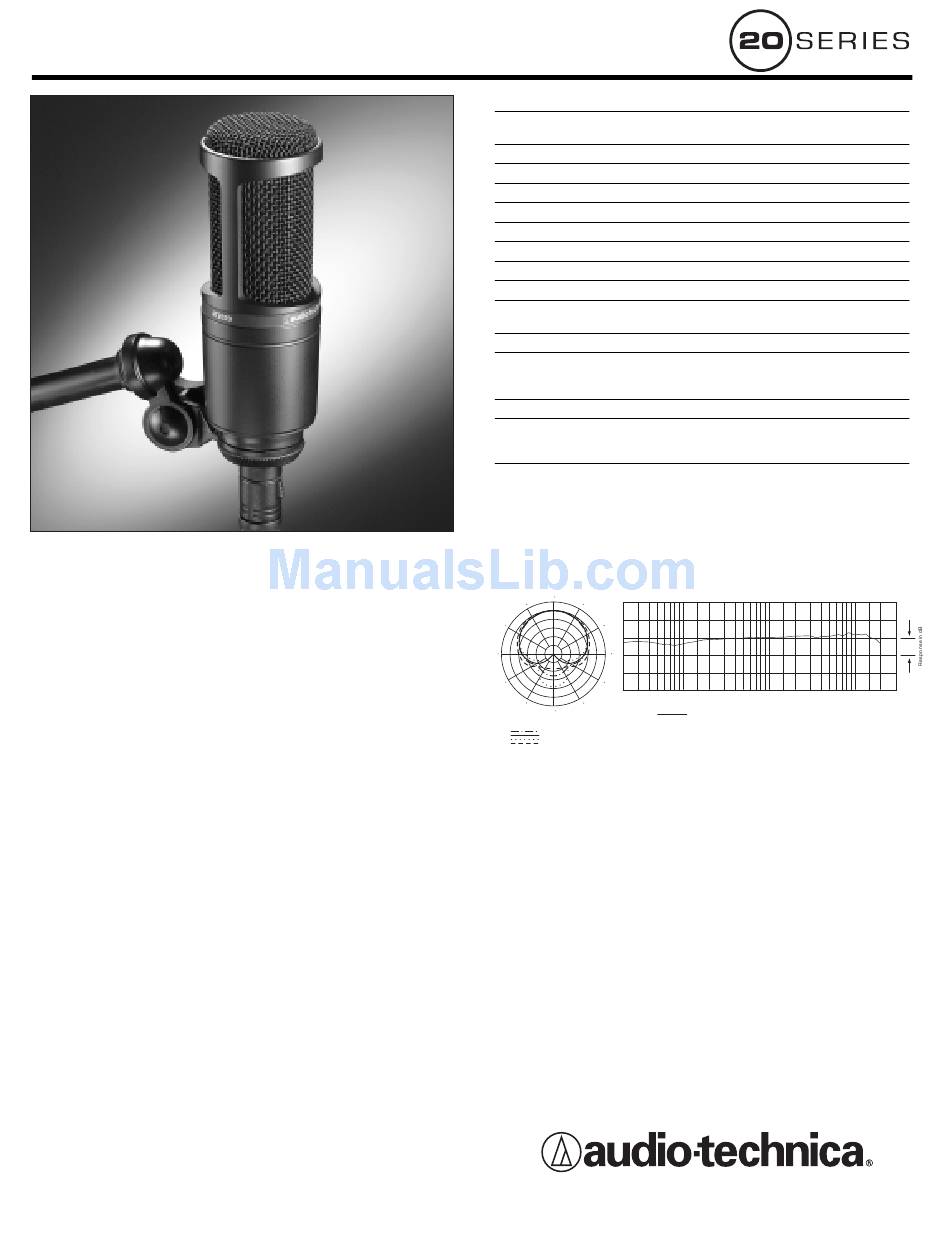

Audio Technica AT2020 Specifications

AT2020

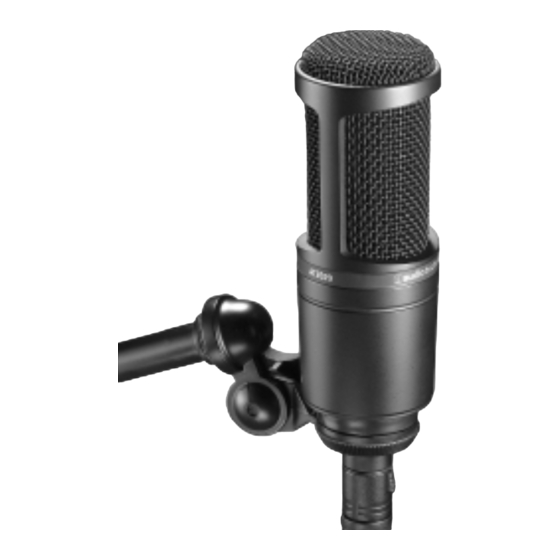

CARDIOID CONDENSER MICROPHONE
• The price/performance standard in side-address studio
condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched
versatility
• Custom-engineered 16 mm low-mass diaphragm provides
extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides
and rear, improving isolation of desired sound source
• Pivoting, threaded stand mount attaches securely for easy and
precise placement of the microphone
The AT2020 is intended for use in applications where remote power
is available. It requires 48V DC phantom power, which may be
provided by a mixer or console, or by a separate, in-line source
such as the Audio-Technica AT8801 single-channel and CP8506
four-channel phantom power supplies.
Output from the microphone's XLRM-type connector is low
impedance (Lo-Z) balanced. The signal appears across Pins 2 and
3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" – positive
acoustic pressure produces positive voltage at Pin 2.
To avoid phase cancellation and poor sound, all mic cables must be
wired consistently: Pin 1-to-Pin 1, etc.
Avoid leaving the microphone in the open sun or in areas where
temperatures exceed 110° F (43° C) for extended periods.
Extremely high humidity should also be avoided.
AT2020 SPECIFICATIONS †
ELEMENT
POLAR PATTERN
FREQUENCY RESPONSE
OPEN CIRCUIT SENSITIVITY
IMPEDANCE
MAXIMUM INPUT SOUND LEVEL
NOISE 1
DYNAMIC RANGE (typical)
SIGNAL-TO-NOISE RATIO 1
PHANTOM POWER
REQUIREMENTS
WEIGHT (less accessories)
DIMENSIONS
OUTPUT CONNECTOR
ACCESSORIES FURNISHED
† In the interest of standards development, A.T .U.S. offers full details on its test
methods to other industry professionals on request.
*1 Pascal = 10 dynes /cm 2 = 10 microbars = 94 dB SPL
1 Typical, A-weighted, using Audio Precision System One.
Specifications are subject to change without notice.
Polar Pattern
0
330
30
300
60
270 90
240 120
50
210 150
180
LEGEND
SCALE IS 5 DECIBELS PER DIVISION
LEGEND
200 Hz
1 kHz
5 kHz
8 kHz
Audio-Technica U.S., Inc., 1221 Commerce Drive, Stow, Ohio 44224
Audio-Technica Limited, Old Lane, Leeds LS11 8AG England
www.audio-technica.com
P#1423-10500 P51722-EN
Fixed-charge back plate
permanently polarized condenser
Cardioid
20-20,000 Hz
–37 dB (14.1 mV) re 1V at 1 Pa*
100 ohms
144 dB SPL, 1 kHz at 1% T.H.D.
20 dB SPL
124 dB, 1 kHz at Max SPL
74 dB, 1 kHz at 1 Pa*
48V DC, 2 mA typical
12.1 oz (345 g)
6.38" (162.0 mm) long,
2.05" (52.0 mm) maximum body
diameter
Integral 3-pin XLRM-type
Stand mount for 5 / "-27 threaded
8
stands; 5 / "-27 to 3 / "-16 threaded
8 8
adapter; soft protective pouch
Frequency Response
100 200 500 1k 2k 5k 10k
Frequency in Hertz
12" or more on axis
©2004 Audio-Technica U.S., Inc. Printed in China
