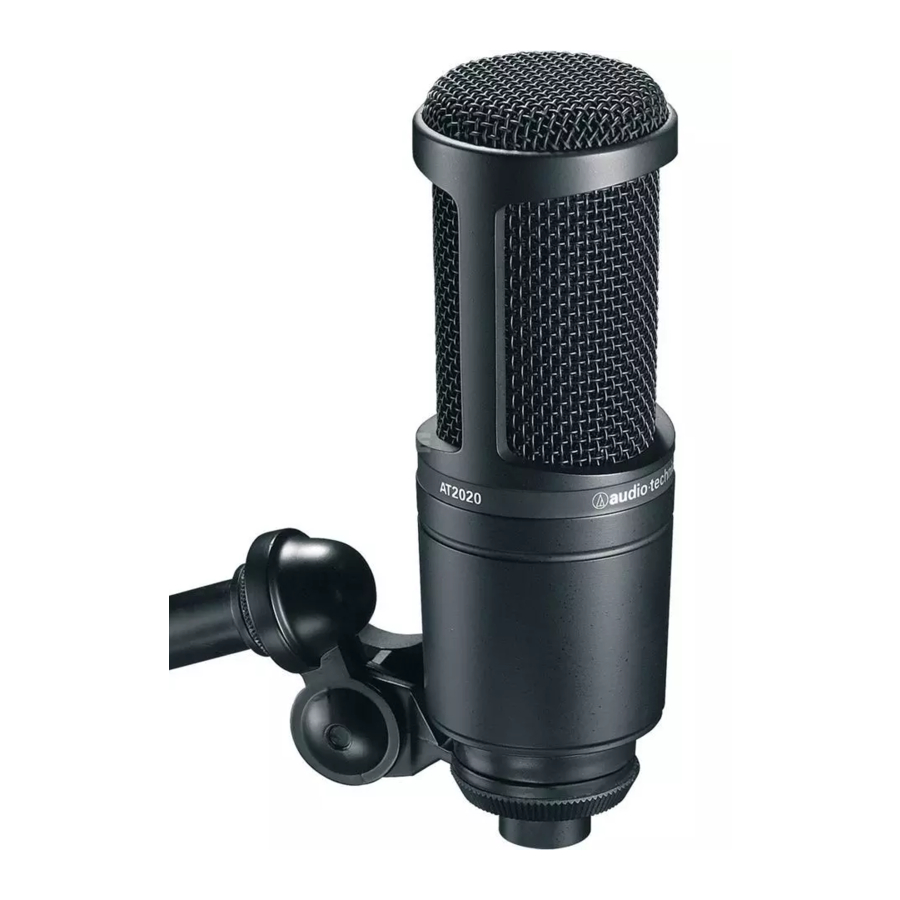

Audio-Technica AT2020 - Cardioid Condenser Microphone Manual

Polar pattern


LEGEND Scale is 5 decibels per devision
200 Hz
1 kHz
5 kHz
8 kHz

Frequency response


Frequency in Hertz

LEGEND
0°, 50 cm

Dimensions


Unit: mm

Included accessories

Features

  • The price/performance standard in side-address studio condenser microphone technology.
  • Ideal for project/home-studio applications.
  • High SPL handling and wide dynamic range provide unmatched versatility.
  • Custom-engineered 16 mm low-mass diaphragm provides extended frequency response and superior transient response.
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source.
  • Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone.

Safety precaution

Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, observe all warnings and cautions while using the product.

Cautions for the product

  • Do not subject the product to strong impact to avoid malfunction.
  • Do not disassemble, modify or attempt to repair the product.
  • Do not handle the product with wet hands to avoid electric shock or injury.
  • Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place.
  • Do not place the product on an unstable surface to avoid injury or malfunction due to falling or the like.

Notes on use

  • Be sure to read the connected device's user manual before use.
  • When the product is used for a long time, the product may become discolored due to ultraviolet light (especially direct sunlight) and wear.
  • Make sure to hold the plug when connecting and disconnecting the cable. The cable may become severed or an accident may occur if you pull on the cable itself.
  • When using the cable, be careful not to twist it to prevent damage to the cable.
  • Do not wind the cable at the base of the plug to prevent a disconnection.
  • When plugging the cable into the microphone and the connected device, check that the connector is facing in the correct direction before inserting it straight. Inserting the connector or plug diagonally may cause a malfunction.
  • Turn off the phantom power of the connected device before connecting or disconnecting a cable.
  • For important recordings, perform a trial recording beforehand to make sure that the sound is recorded correctly.
  • Audio-Technica will not be liable in any way for any loss or damage to software or data connected to the product.

Using the product

  1. Connect the product to a device that has a microphone input (balanced input) compatible with a phantom power supply.
  2. Use the product, positioning the Audio-Technica logo on the front of the microphone toward the sound source.

Output terminals

The output connector is an XLR-M type with polarity as shown in the figure below.

Output Terminals - Output Connector
Output terminals

Specifications

Element Fixed-charge back plate, permanently polarized condenser
Polar pattern Cardioid
Frequency response 20-20,000 Hz
Open circuit sensitivity -37 dB (14.1 mV) (0 dB=1 V/Pa, 1 kHz)
Impedance 100 ohms
Maximum input sound level 144 dB SPL (1 kHz at 1% THD)
Noise 20 dB SPL (A-weighted)
Dynamic range 124 dB (1 kHz at Max SPL)
Signal-to-noise ratio 74 dB (1 kHz at 1 Pa, A-weighted)
Phantom power requirements 48V DC, 2 mA
Weight 345 g (12.1 oz)
Dimensions 160 mm (6.3") long, 52 mm (2.05") maximum body diameter
Output connector Integral 3-pin XLR-M type
Included accessories AT8466 stand mount for 5/8"-27 threaded stands,
5/8"-27 to 3/8"-16 threaded adapter, Pouch
  • 1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL

For product improvement, the product is subject to modification without notice.
