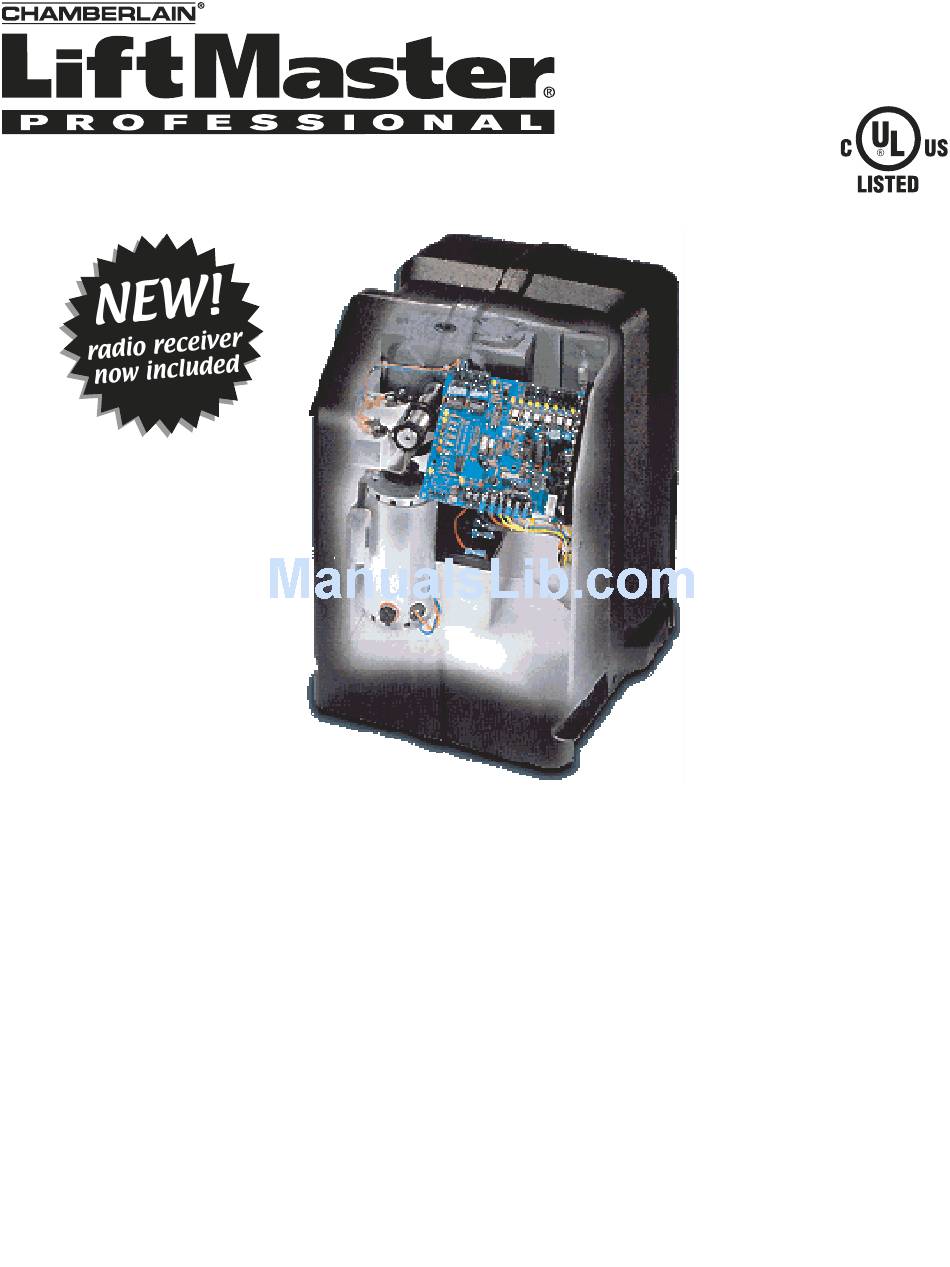

Model MSLDCBB
(MEGA SLIDE UL)
1/2 HP COMMERCIAL DUTY SLIDE GATE OPERATOR
INSTALLATION AND SERVICE MANUAL
THIS UNIT IS A CLASS 1, 2, 3, OR 4 SLIDE GATE OPERATOR FOR USE IN SLIDE GATE APPLICATIONS
This unit must only be installed by an experienced technician
Disconnect AC power and batteries before servicing
IMPORTANT: Read and understand Warranty Page first.
Batteries (not included) MUST be connected for proper operation of unit.
Use (2) LiftMaster sealed 12VDC 7AH (Part # MBAT).
Advertisement
Table of Contents
Related Manuals for Chamberlain LIFTMASTER PROFESSIONAL MSLDCBB
Summary of Contents for Chamberlain LIFTMASTER PROFESSIONAL MSLDCBB
- Page 1 The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196 www.liftmaster.com Model MSLDCBB (MEGA SLIDE UL) 1/2 HP COMMERCIAL DUTY SLIDE GATE OPERATOR INSTALLATION AND SERVICE MANUAL THIS UNIT IS A CLASS 1, 2, 3, OR 4 SLIDE GATE OPERATOR FOR USE IN SLIDE GATE APPLICATIONS...
-
Page 2: Table Of Contents
T A B L E O F C O N T E N T S I N T R O D U C T I O N INTRODUCTION IMPORTANT SAFETY INSTRUCTIONS Installation Check Off List ......3 WARNING - To reduce the risk of SERIOUS INJURY or DEATH: What to Expect and Gate Operator Classes . -
Page 3: Installation Check Off List
INSTALLATION CHECK OFF LIST This Slide Gate operator is installed for use in a Class _____ installation. Each item on this installation check off list should be verified by the installer. ______ Two warning signs securely installed on each side of gate panel (required). ______ 1 or 2 safety photo beams installed, one across each side of gate opening (required). -
Page 4: What To Expect And Gate Operator Classes
WHAT TO EXPECT FROM A CLASS 1, 2, 3 OR 4 OPERATOR UL-325 DEFINITION OF GATE OPERATOR CLASSES SAFETY INSTRUCTIONS REGARDING PRIMARY & SECONDARY Residential Vehicular Gate Operator - Class I: ENTRAPMENT PROTECTION. A vehicular gate operator/system intended for use in a home of one-to four single family dwelling, or garage or parking area This unit is provided with two means of entrapment protection associated therewith. -
Page 5: Recommended Site Layout
RECOMMENDED SITE LAYOUT EXAMPLE Please use all safety devices that may apply to your installation to achieve the safest operation. (This is a view from above gate.) Safety Photo Beam (NOTE-2) Stop Photo Beam (NOTE-1) Stop Edge (NOTE-2) Stop Edge (NOTE-2) Gate Stops Here Stop Edge (NOTE-2) Edge Sensor (NOTE-2,3) -
Page 6: Safety Recommendations
SAFETY RECOMMENDATIONS Automatic gate operators can produce high levels of force, therefore it is very important that all gate operator system installers and designers are fully aware of potential hazards that exist with an incorrectly installed or designed system. The internal safety capabilities of a gate operator system are not enough to reduce the risk of injury. -
Page 7: Unit Overview
UNIT OVERVIEW PRE-INSTALLATION NOTES The LiftMaster model MEGA SLIDE UL slide gate operator is NOTE: Before attempting any part of the installation, you must unique in the industry. Setting the MEGA SLIDE UL apart are read the entire instruction manual first and agree to the many features that make it the front runner in its class. -
Page 8: Installation
I N S T A L L A T I O N CONCRETE PAD SAFETY EDGE INSTALLATION See safety page in front of manual The concrete pad for operator mounting should be approximately 24" x 24" x 24" in order to provide adequate weight and structure It is highly recommended that a pressure sensing edge (safety to insure proper and stable operation. -
Page 9: Wiring And Hookup
W I R I N G A N D H O O K U P 120 VAC POWER (Wiring and hookup only by a qualified electrician/installer!) 120 VAC POWER CONNECTION NOTES: Maximum ambient temperature for installation, 104 F. Duplex Connect 120 VAC to the 3 wires Outlet Box For automotive use only, no motorcycles, bicycles or pedestrians. -
Page 10: Accessory And Relay Connections
ACCESSORY CONNECTIONS These terminals will provide battery backed power to 24 VDC devices and are located at the bottom of the electronic control board at J4 terminals 1 and 2. Terminal 1 is 24 VDC (+) and FIGURE 1 number 2 is 0 VDC (-). Peripheral CLASS 2 low voltage devices Black Lead that require 24 VDC power maybe connected here (500 ma. -
Page 11: T I M E R S A N D M O D E S E L E C T I O N S S 1 & S 2
T I M E R S A N D M O D E S E L E C T I O N S S 1 & S 2 FULL SPEED RUN TIMER - SWITCH PACK S1 (1-5) To change the FAST SPEED run timer, set the dip switches to add up to the number of feet, minus one foot, for the total feet of travel across roadway. -
Page 12: Adjustments
A D J U S T M E N T S RIGHT OR LEFT HAND OPERATION RIGHT HAND OPERATION NOTE: Unit ships out as a right hand (default wiring setup). UNIT SHIPS AS RIGHT-HAND Gate Method 1: No longer used as of August 16, 2003. The S1-7 Righthand operation is switch will be redefined. -
Page 13: Install The Receiver
I N S T A L L I N G T H E R E C E I V E R WARNING NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of WARNING this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. -
Page 14: Operation
O P E R A T I O N M A I N T E N A N C E MANUAL OPERATION GENERAL SERVICE To operate gate manually, turn off the MOTOR BREAKER switch 1) Belt loose or needs replacement, adjust with 4 bolts that located on the right side of the gate operator frame. -
Page 15: Suggested Entrapment Protection Device Locations
S U G G E S T E D E N T R A P M E N T P R O T E C T I O N D E V I C E LO C AT I O N S FREE EXIT ON VEHICLE APPROACH Gate will open when sensed by open loop and then close once all FIGURE 1... -
Page 16: Control Board Layout
C O N T R O L B O A R D L A Y O U T OPEN GATE INPUTS-READER, PUSH BUTTON AUX OPEN / RESET (PULSE OPEN/CLOSE) SAFETY LOOP INPUT CLOSE GATE INPUT-CLOSE LOOP BACK AWAY-FREE EXIT LOOP SHADOW LOOP EXTERNAL OBSTRUCTION SIGNAL... -
Page 17: Mega Slide Ul Parts List
M E G A S L I D E U L P A R T S L I S T INSIDE VIEW REAR VIEW 1/2 HP PART NUMBERS AND DESCRIPTIONS ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION MS001 Controller - CPU MS014 Siren (100 db) MS002... -
Page 18: Operator Notes
O P E R AT O R N O T E S... -
Page 19: Warranty
L I M I T E D W A R R A N T Y (You must read, understand and agree with all items in the limited warranty) Installation check off list must be completed. Any required contact edges and photo beams must be installed. LiftMaster warrants the MEGA SLIDE UL to be free of defects in workmanship and materials for a period of 2 years for electronics and mechanical components and includes a 10 year corrosion perforation warranty on the cover and chassis (Cosmetic appearance is not included). -
Page 20: Repair Parts And Service
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION: • PART NUMBER • PART NAME • MODEL NUMBER ADDRESS ORDERS TO: THE CHAMBERLAIN GROUP, INC. Technical Support Group 6020 S. Country Club Road Tucson, Arizona 85706 © 2005, The Chamberlain Group, Inc. 01-60134 All Rights Reserved...
