Functional parts, Component data

4.1

„KITE" Input electronic

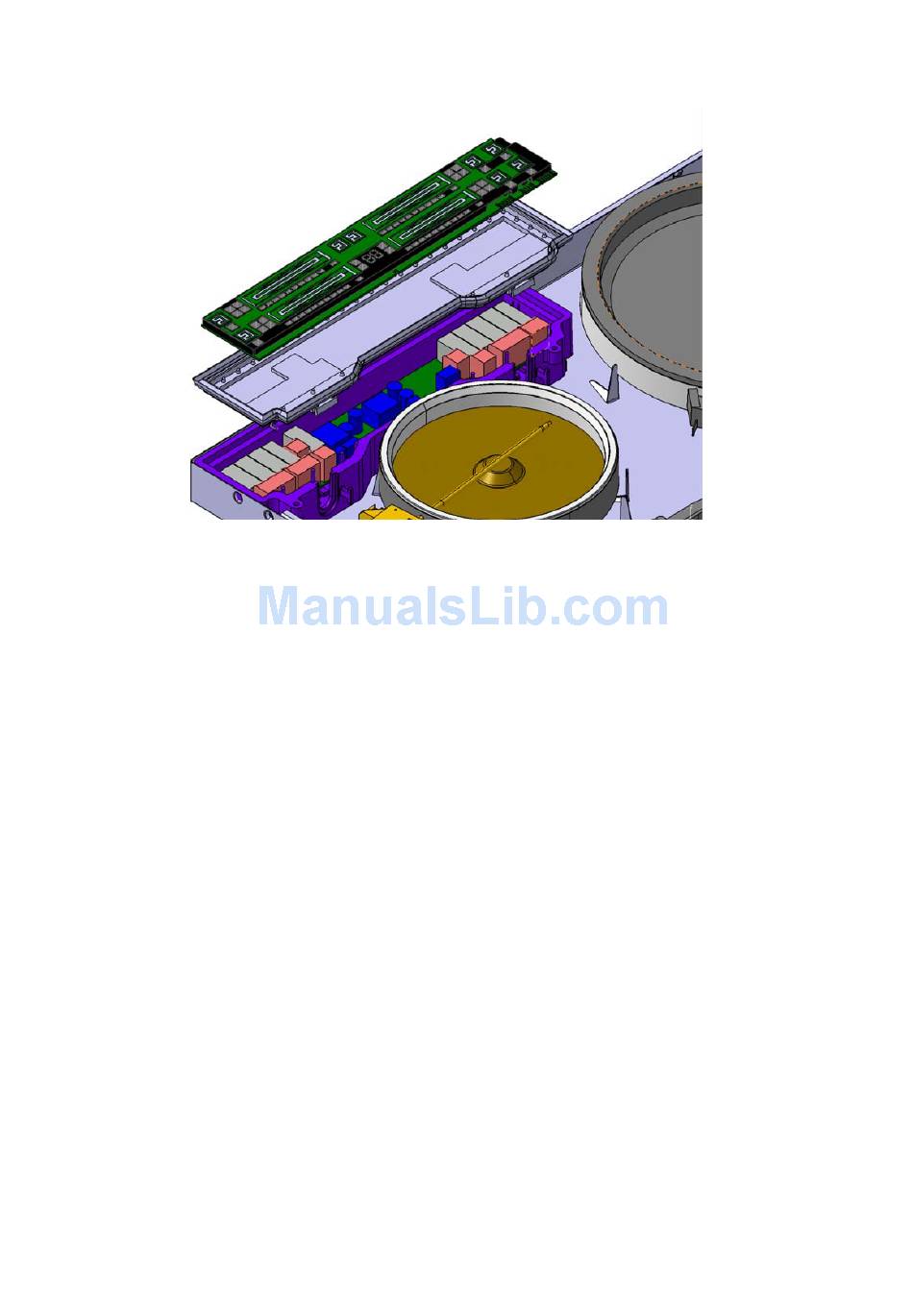

Fig.: „KITE" Bar graph Variante
Depending on the "KITE" type, "KITE" input electronic mainly comprises one or more LED
displays, 4 "sliders" (touch control operating strips), capacitive sensor buttons and a
microprocessor in addition to diverse semiconductor modules.
"KITE" controls both radiation-heated hobs with HOC power electronic and hobs with induction
heating.
DGS-TDS-N 12.07 U. H. / A. B. © Electrolux
- 9 -
599 531 461 EN
