2.2

Button / and display layouts

2.2.1

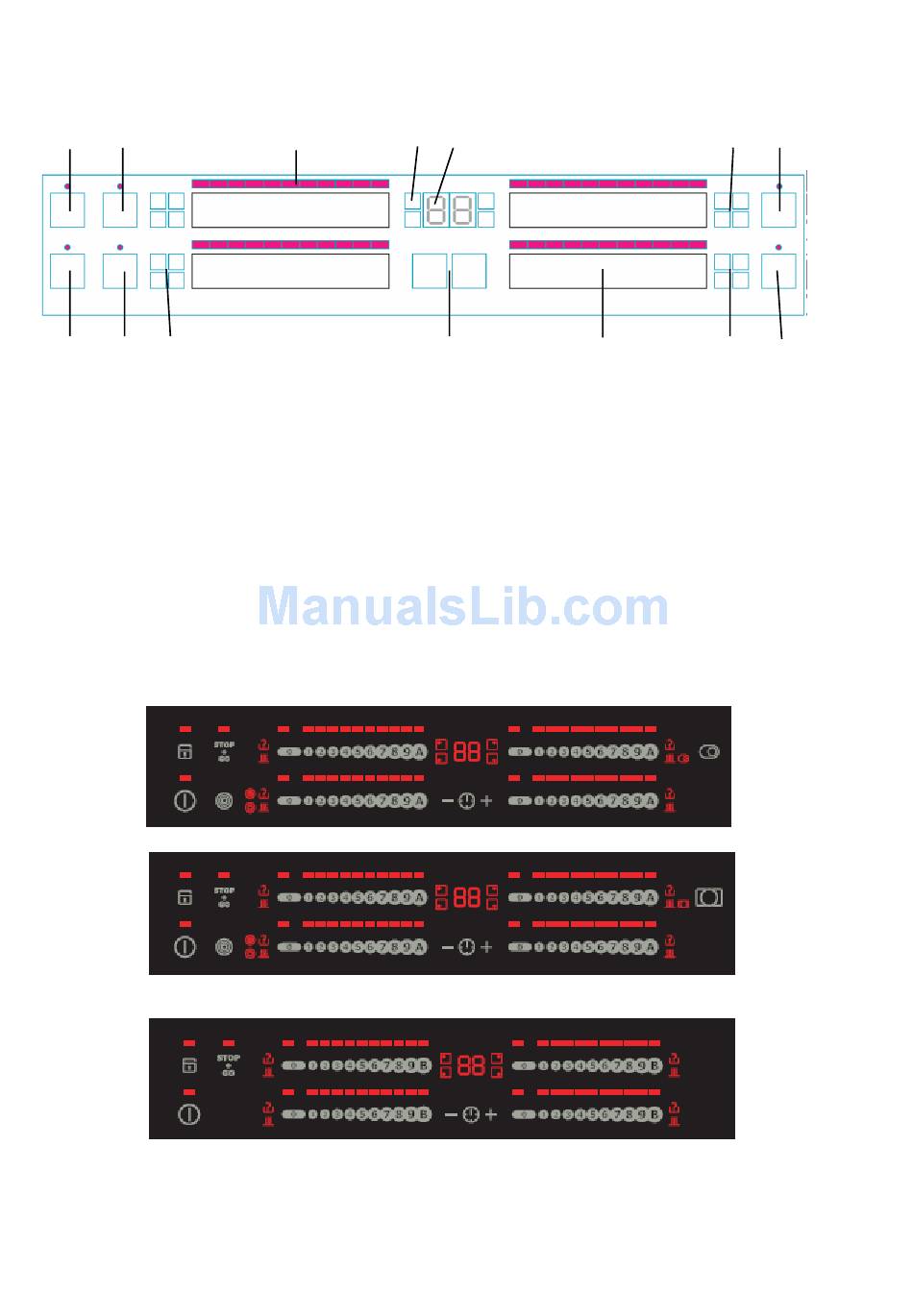

„KITE" Bar graph Variante

1
2
7
6
2
7
1
Locking/child safety lock with display
2
Additional multizone or additional connection of special functions with LED, depending on
appliance class/make
3
Light elements for the cooking stage display
4
Cooking zone displays (LED) timer function
5
Timer display, 2x 7 segment displays
6
On/Off with display
7
Cooking zones status displays (LED) depending on appliance class/make
- Pot recognition
- Automatic deactivation
- Residual heat ...
8
Timer operation
9
Cooking stage selection
Sample Illustration
DGS-TDS-N 12.07 U. H. / A. B. © Electrolux
3
4
5
