DAY & NIGHT
D&N MODE
AUTO / In AUTO mode, the camera switches between day and night automatically depending
COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode.
B&W If B&W is selected, camera always stays in night/B&W mode. If AUTO is selected,
please define the following settings:

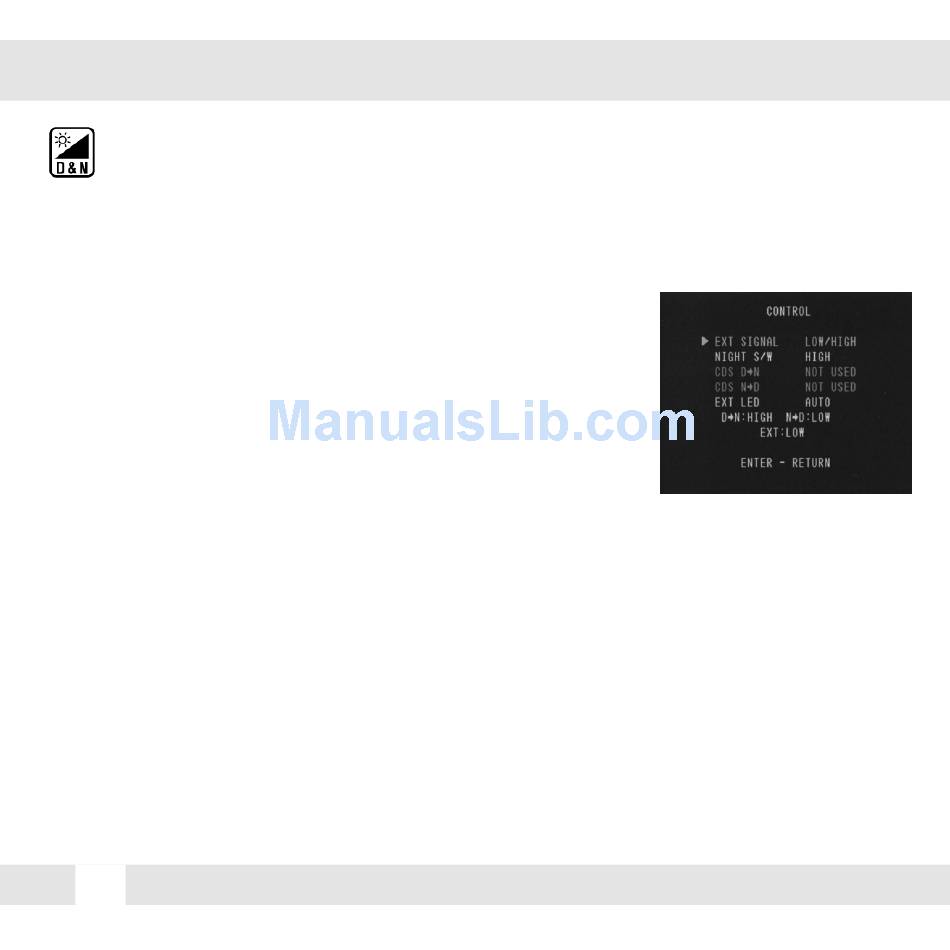

CONTROL: AUTO/EXT. If using IR LEDs built into the camera, select
AUTO. If using external IR LEDs separately, select EXT.
Adjust the following submenu options:
* EXT SIGNAL: Select from CDS or LOW/HIGH.
If CDS is selected: Day & Night will work by CDS signal level.
If LOW/ HIGH is set for EXT SIGNAL: Day & Night will work by
CDS's Low/High signal.
- CDS D>N : Set D>N level from 0 ~ 40. Adjusts the light level at
which the camera switches from day to night. Higher values, the lower the light level.
- CDS N>D : Set N>D level from 0 ~ 20. Adjusts the light level at which the camera
switches from night to day. This should be lower than the value of D>N above.
- NIGHT S/W : Decide the Low/High signal of CDS.
*EXT LED: If you want to turn off the external LED, you can change the value from AUTO to OFF.
DELAY
Time interval delay before switching from day mode to night mode.
0 ~ 15 Sec.
B/W BURST
If ON is selected, the camera provides a color burst signal in night mode.
OFF / ON
SMART IR - ANTI-SAT: Select level value from 1 ~ 20.
- SAT. AREA : Set SMART IR area from 0 ~ 20.
