Summary of Contents for DW DWC-V6763TIR

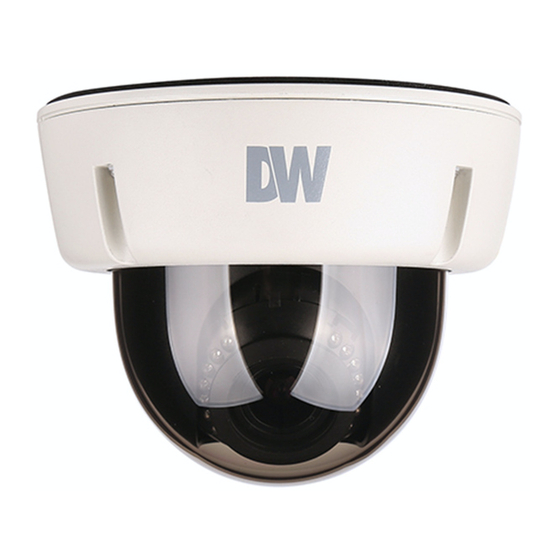

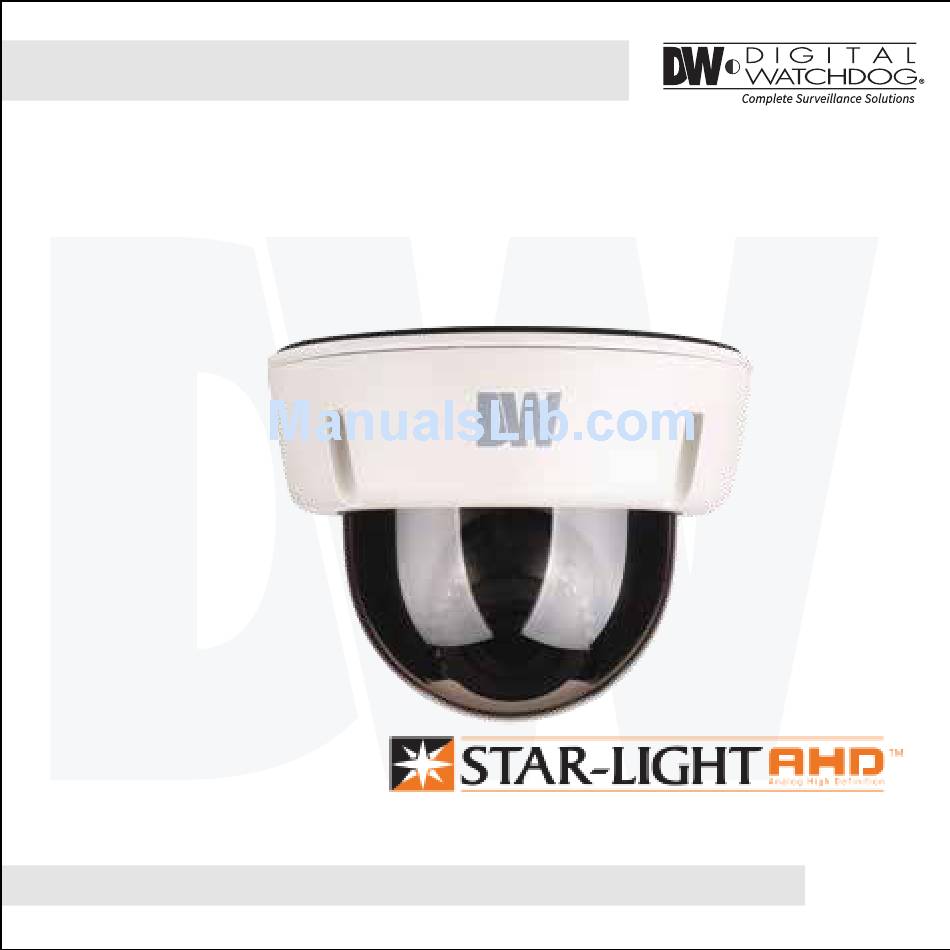

- Page 1 Analog High Definition Outdoor Dome Camera DWC-V6763TIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 10/08...
- Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Surface Mount Installation instructions Junction Box Installation Instructions Wall Mount Installation Instructions Pendant Mount Installation Instructions Corner Mount Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Angle Adjusting the Camera Axis Module OSD Menu... -
Page 4: Features
FEATURES* Analog High Definition (AHD) HD over Coax Technology STAR-LIGHT™ Super Low Light Technology 1/2.7” CMOS Sensor 1080P Resolution at 30fps Varifocal P-Iris Lens 2.8~12mm Smart IR™ with Intelligent Camera Sync. 100ft Range Smart DNR™ 3D Digital Noise Reduction Highlight Masking Exposure (HME) True Day/Night Mechanical IR Cut Filter Secondary Video-BNC Output (While UTP in use) Programmable Privacy Zones... -
Page 5: Parts And Descriptions
PARTS & DESCRIPTION* Bottom Case Camera Gimbal Upper Case Dome Cover Cover Screws (x4) Side Port for Cabling BNC Cable DC12V Cable... -
Page 6: Dimensions
DIMENSIONS IN MILLIMETERS (IN)* 144.0 5.7 145.0 5.7... -
Page 7: Inside The Box
INSIDE THE BOX* Included with Camera: User Manual Secondary Video-BNC Cable Mounting Template L-Key 4 Machine Screws and 4 Dry Wall Anchors Analog High Definition Outdoor Dome Camera DWC-V6763WTIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. -
Page 8: Surface Mount Installation Instructions
SURFACE MOUNT INSTALLATION INSTRUCTIONS* 1. Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling. 2. Pull wires through and make connections. 3. Using the four (4) included screws, mount and secure the camera to the wall or ceiling. -
Page 9: Junction Box Installation Instructions
JUNCTION BOX INSTALLATION INSTRUCTIONS* Use the dry wall anchors and Check to see all parts are in Insert wires through the the box. machine screws to mount the wall and make the junction box and rubber appropriate connections. gasket to the wall. Attach the camera to the Attach the camera housing junction box using the... -
Page 10: Wall Mount Installation Instructions
WALL MOUNT INSTALLATION INSTRUCTIONS* Insert the wires from the Check to see all parts are in Attach the camera to the box. camera through the wall the wall mount housing. mount housing. Use the mounting template to Attach the camera housing make pilot holes. -
Page 11: Pendant Mount Installation Instructions
PENDANT MOUNT INSTALLATION INSTRUCTIONS* Attach the top shield to the Check to see all parts are in Slide the wires from the the box. pendant mount. camera through the pendant mount. Attach the camera to the Attach the camera housing to Use the mounting template to pendant mount using the the fixture. -
Page 12: Corner Mount Installation Instructions
CORNER MOUNT INSTALLATION INSTRUCTIONS* Check to see all parts are in the box. Attach the two compression fittings to the corner bracket. Attach the wall mount to the corner bracket Attach the assembly to a wall corner with dry with the 4 machine screws. wall anchors and machine screws. -
Page 13: Connecting To Monitors
CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC CCTV Monitor Second Vvideo Output Monitor Power Connection - 12VDC All cameras are equipped with a second video output for on-site configuration. -
Page 14: Control Board
CONTROL BOARD* Remove the camera’s cover dome to access the OSD joystick controller. Use the Joystick to control the camera’s OSD options. -
Page 15: Adjusting The Camera Lens
ADJUSTING THE CAMERA LENS* Follow the instructions provided below to make any lens adjustments. ZOOM FOCUS Zoom: Wide Tele Focus: Near To adjust the field of view, use the L-Key to turn the zoom screw (located on the bottom of the camera) counter-clockwise to zoom in, or clockwise to zoom out. - Page 16 ADJUSTING THE CAMERA GIMBAL* Rotation 360º Panning 360º Tilting 70º IR LED...
-
Page 17: Module Osd Menu
MODULE OSD MENU* LENS EXPOSURE BACKLIGHT WHITE BALANCE P-IRIS SHUTTER MANUAL / AUTO AUTO / 1/30~1/50000 / PUSH MANUAL X2~X30 LEVEL / AREA / DEFAULT / RETURN MANUAL 0 ~ 15 INDOOR / OUTDOOR STAR-LIGHT BLUE(0~100) / RED(0~100) AREA / DISPLAY / BLACK MASK / LEVEL / MODE / DEFAULT / RETURN OFF / AUTO X2 ~ X30 BRIGHTNESS... - Page 18 LENS Manual mode supports the fixed board lens or the manual iris lens. MANUAL If the camera includes a P-Iris lens, you can select this option to adjust the lens and iris P-IRIS settings. If P-Iris is selected, adjust the following: MODE: Select from AUTO or MANUAL.
- Page 19 EXPOSURE SHUTTER Set the camera’s shutter speed from the available options (AUTO/1/30~1/50000/x2~x30/FLK) If Iris is set to AUTO in the lens menu, the camera’s shutter will be set automatically and the values in this menu will not be adjustable. If Iris is set to AUTO in the lens menu, the camera’s shutter speed will be deactivated.
- Page 20 EXPOSURE (CONT.) DYNAMIC RANGE COMPRESSOR DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image. Select from: OFF / ON / AUTO. If ON is selected, adjust the DRC value from 0 ~ 8. NOTE: If DEFOG is enabled, DRC settings are set automatically and will not be available for adjustment.
-
Page 21: Backlight Compensation
BACKLIGHT COMPENSATION BACK LIGHT COMPENSATION If BLC is selected, adjust the size and position of the mask: - Level: Set the BLC levels LOW / MIDDLE / HIGH - AREA: Use the joystick controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joystick controller to adjust the zone’s size. -
Page 22: White Balance
WHITE BALANCE Auto Tracking White Balance Control mode compensates for color temperature changes between 2400K and 11000K PUSH Push fixes the white balance based on the current lighting automatically. To use this function, press the ENTER key for five (5) seconds. MANUAL Control the white balance manually by changing RED and BLUE. - Page 23 DAY & NIGHT AUTO / Day/ Night switch is based on the CDS levels (IR models) or AGC levels (non-IR models). COLOR / The camera always stays in day/color mode. B&W/ The camera always stays in night/B&W mode. The camera’s Day & Night settings are set according to an external IR LED board. AUTO For cameras with no IR LED Built-in: - D ->...
- Page 24 DAY & NIGHT (CONT.) COLOR If COLOR mode is selected, the camera’s display will always appear in color, regardless of the lighting condition. - BURST: Select to enable or disable color burst when the camera switches from color to B/W. - IR SMART (0~15): Enable Smart IR and set the level.
- Page 25 Smart DNR 3D DIGITAL NOISE REDUCTION 3D-DNR reduces the noise on the screen in low light conditions and allows for clearer images, even at night. 2DNR Set the Digital Noise Reduction values for general illumination. Select from LOW / MIDDLE / HIGH. If the 2DNR settings are set to HIGH, image sharpness may be affected.
- Page 26 SPECIAL CAM. TITLE Add a name to the camera. Set the title by using the OSD joystick. D-EFFECT FREEZE Freeze image from the camera at the selected moment. MIRROR Reflects the camera: OFF / MIRROR / V-FLIP / ROTATE NEG. IMAGE Display the camera’s view in negative colors.
- Page 27 SPECIAL (CONT.) MOTION - ALARM: VIEW TYPE: When motion is detected, select from the following display options: 1. OFF - do not display motion alarm 2. ALL - Show all motion zones when motion alarm is detected. 3. BLOCK - show the area where motion is detected as a solid block. 4.
- Page 28 SPECIAL (CONT.) PRIVACY - SELECT: The camera supports up to 4 separate privacy zones. Select which one to adjust. - DISPLAY: There are three types of privacy masks you can apply. Select from MOSAIC, INV., or COLOR. - MOSAIC: The privacy mask will appear as a mosaic over the camera’s image. - INV.: The privacy mask will appear as a negative of the image behind it, reversing the colors and brightness.
- Page 29 SPECIAL (CONT.) LANGUAGE Select from the available options: English, Chinese 1, Chinese 2, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Korean, Japanese, Arabic, or Hebrew. DEFECT - LIVE DPC: - AGC LEVEL: Set the AGC levels for the Live DPC.
- Page 30 SPECIAL (CONT.) DEFECT (CONT.) - WHITE DPC - POS / SIZE: Set the DPC Zone. Use the joystick’ controller on the camera’s board to adjust the zone’s position. Press the enter key and use the joystick controller to adjust the zone’s size. - START: Press START to begin the DPC test.
-
Page 31: Video Out
ADJUST SHARPNESS Set the sharpness of the image. The Sharpness values can be increased or lowered according to the AGC levels in the camera’s view. If AUTO is selected, adjust the following values: - LEVEL: Set the sharpness level. The higher the number, the sharper the image will appear. - START AGC: Select the AGC value where the image’s sharp lines may start to appear smeared in low light. - Page 32 ADJUST (CONT.) COMET When the camera is connected to the VMAX AHD DVR series, enabling the COMET feature enhances the camera’s CVBS signal. The COMET function reduces the noise at high frequency as well as provide high resolution clear image quality. If the camera is connected to a non-AHD DVR, enabling the COMET function will only turn the camera’s image to B/W.
- Page 33 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
-
Page 34: Warranty Information
WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warranter”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warranter will repair or replace the unit with a new or refurbished product at its option at no charge. - Page 35 LIMITS & EXCLUSIONS* There are no express warranties except as listed. The warranter will not be liable for incidental or consequential damages (including damage to recording media without limitation) resulting from the use of these products or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.
-
Page 36: Specifications
SPECIFICATIONS* VIDEO Image Sensor 1/2.7” CMOS Sensor Active Pixels 1920(H) x 1080(V) Scanning System Progressive scan Frequency 60Hz/50Hz Signal Technology 2.0 Megapixel AHD Synchronization Internal Resolution 1920x1080 (1080p) Minimum Scene Illumination F1.4 (30IRE): 0.5Lux [Color] F1.4 (30IRE): 0 Lux [B&W] S/N Ratio 55dB Video Output... - Page 37 SPECIFICATIONS* OPERATIONAL (CONT.) Digital Noise Reduction Off, Low, Middle, High White Balance Auto / Push / Manual / AWB Day and Night Auto / Color / B/W / EXT Auto Gain Control 0 ~ 15 Motion Detection Privacy Zones 4 Privacy Zones Sharpness 0 ~ 10 Gamma...
- Page 38 MEMO*...
- Page 39 MEMO*...
- Page 40 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST...
