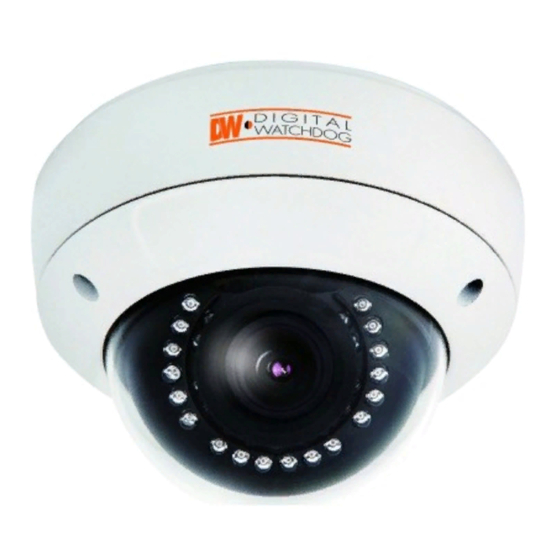

    960H Vandal Dome Camera DWC-V562D DWC-V562DIR User Manual Value ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 11192012...
  • Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenance and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.

  • Page 3: Table Of Contents

    Table of Contents Introduction Features Parts and Descriptions Dimensions Installation Included Accessories Base Installation Connecting to Monitors Adjusting the Camera Adjusting the 3-Axis Gimbal Camera OSD Menu and Glossary 12-23 Troubleshooting Warranty Information 25-26 Specifications 27-28...
  • Page 4 FEATURES* DWC-V562D / DWC-V562DIR 1/3” 960H High Resolution CCD 700 TV Lines 2.8 ~ 11mm Varifocal Auto Iris Lens Electronic Day and Night HME (Highlight Masking Exposure) AGC / SMART BLC / AWB Night-Up Mirror Image Control Programmable Privacy Zones (8) & Motion Detection...
  • Page 5 PARTS & DESCRIPTIONS* Lens Power Input Connector 12VDC/24VAC Dual Voltage Video Output Connector - BNC Upper Case Dome Cover Dome Cover Rubber NO IR Mounting Plate Upper Ring Assembly Screws Camera Base Control Board Joystick Power Board Mounting Screws...

  • Page 6: Dimensions

    DIMENSIONS IN MILLIMETERS (INCHES)* See below for diagrams of the exact dimensions for Surface Mount Housing. 3- Ø 4.5 (3- Ø 0.18”) Ø149.9 (Ø5.9”) Ø115.0 (Ø4.53”) Ø5.0 (Ø0.2”) Ø149.9(Ø5.9”)
  • Page 7 INSTALLATION* Included with Value Line Vandal Dome Camera 1. User Manual 2. Mounting Template 3. Second Video Jack 4. Three (3) Screws and Three (3) Dry Wall Anchors 5. L-Wrench Mounting Template VD101...

  • Page 8: Base Installation

    BASE INSTALLATION* 1. Pull wires through and make connections. 2. Adjust the camera’s 3-Axis Gimbal, zoom, Refer to page 9. Use mounting template to and focus. See pages 10-11 for details. mount camera with dry wall mounts and wood screws. 3.

  • Page 9: Connecting To Monitors

    CONNECTING TO MONITORS* 12VDC/24VAC CCTV Monitor NO IR Right Down Left 2nd Video Output Monitor 11.8in Power connection - 12VDC/24VAC Dual Voltage. (Auto polarity detection and protection.) All cameras are equipped with a second video output on the camera’s Control Board for easy on-site configuration.

  • Page 10: Adjusting The Camera

    ADJUSTING THE CAMERA* ZOOM FOCUS Zoom: Tele Wide NO IR Focus: Near Loosen the zoom and focus handles by rotating them counter-clockwise. Adjust the field of view by moving the handle to the RIGHT (tele) to zoom in, or to the LEFT (wide) to zoom out.

  • Page 11: Adjusting The 3-Axis Gimbal

    ADJUSTING THE 3-AXIS GIMBAL* The Gimbal mechanism yields maximum rotation and placement as shown below. Rotation 360º Tilting 60º Panning 360º...

  • Page 12: Module Osd Menu

    MODULE OSD MENU* EXPOSURE COLOR DAY NIGHT LENS WB MODE DAY & NIGHT MANUAL, DC AWC / ATW / MANUAL / PUSH AUTO / COLOR / B&W BACKLIGHT RED GAIN NIGHT C. OFF / BLC / HME /D-WDR 0~255 0~100 BLUE GAIN NIGHT A.
  • Page 13 EXPOSURE LENS MANUAL mode supports the fixed board lens MANUAL or the manual iris lens. DC mode supports the auto-iris varifocal lens. Note: Both MANUAL and DC mode have FOCUS TARGET. You can adjust the focus by finding the highest number on the FOCUS TARGET.
  • Page 14 EXPOSURE BACKLIGHT BACKLIGHT COMPENSATION Select MANUAL or SMART. SMART is recommended. If MANUAL is selected, you can adjust the BLC levels in four areas of the scene (Top, Bottom, Left, Right). Increase the BLC levels to make the image brighter. If SMART is selected, the camera will automatically adjust the BLC zone.
  • Page 15 EXPOSURE AGC (Auto Gain Control) OFF/ LOW / MID / HIGH / AGC enhances the picture brightness in low light conditions. A higher level AGC setting makes the images HIGHEST brighter; however, it could increase the amount of noise. 2D-DNR (Digital Noise Reduction) OFF/ LOW / MIDDLE / HIGH 2D-DNR reduces the noise on the screen in low light conditions and...

  • Page 16: Color Mode

    COLOR WB MODE Auto White Balance Control mode compensates for color temperature changes between 2000K and 18000K. Auto Tracking White Balance Control mode compensates for color temperature changes between 2500K and 9500K. MANUAL Users can control the white balance manually by changing RED GAIN and BLUE GAIN (see below).
  • Page 17 DAY & NIGHT D&N MODE AUTO Camera switches between day and night automatically depending on light level. Camera will stay in color mode when there is enough light. Camera will switch to B&W at night or other low light environments. COLOR Camera always stays in day/color mode.
  • Page 18 FUNCTION MIRROR MIRROR Flips the image horizontally. SHARPNESS 0~30 Sets the image sharpness. The higher the number, the sharper the image. GAMMA Controls the output signal level. The higher the 0.45/ 0.6/ 1.0 setting, the darker the dark colors will be. / MANUAL 0.45 is default.
  • Page 19 The camera can detect the movement and display MOTION an alarm on the screen when movement is detected. AREA SET AREA 1,2,3,4 OFF/ON If ON, motion areas can be selected and moved accordingly. Select Areas 1-4 and adjust using controls for TOP, BOTTOM, LEFT, or RIGHT. SENSITIV.
  • Page 20 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. MASK 1~ MASK 8 Select ON or OFF for each mask OFF / ON (MASKS 1-8). If ON is selected, you can set the area to be masked and the shape and color of the mask.
  • Page 21 SET-UP TITLE If ON is selected, you can display the camera title on the screen. *CLR: Clear the title. *POS: Position the title on the screen. DPC (Dead Pixel Cancellation) Dead Pixel Cancellation automatically removes defective pixels in real time. AUTO If AUTO is selected, you can define the following: *WHITE THR.: Cancels the white defective pixels.

  • Page 22: Factory Set

    SET-UP MONITOR MODE 1 / MODE 2 MODE 1 is the default. If the displayed image is not good enough, try MODE 2. LANGUAGE Total of 10 different languages are supported - ENGLISH, MANDARIN (CHINESE 1), CANTONESE (CHINESE 2), JAPANESE, DEUTCH, FRENCH, ITALIAN, RUSSIAN, SPANISH, AND DUTCH. OSD COLOR Total of 8 different OSD Menu Color available - BLUE, GREEN, CYAN, RED, MAGENTA, YELLOW, PURPLE and GRAY.
  • Page 23 EXIT EXIT SAVE & EXIT Exit the OSD after saving the current settings. EXIT Exit the OSD without saving.

  • Page 24: Troubleshooting

    TROUBLESHOOTING Before sending your camera for repair, check the following or contact one of our technical specialists. No VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment on the menu setup of the camera. Check the power supply and make sure the camera has the proper voltage and current.

  • Page 25: Warranty Information

    WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR : For the initial two (2) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
  • Page 26 LIMITS AND EXCLUSIONS* There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation or damage to recording media), resulting from the use of these products or arising out of any breach of the warranty.

  • Page 27: Specifications

    SPECIFICATIONS* VIDEO Image Sensor 960H Sharp CCD Total Pixels 1020 (H) x 507 (V), 520K Pixels Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal Horizontal Resolution 650 TV Lines [Color], 700 TV Lines [B/W] Minimum Illumination F1.2 (30IRE): 0.3 Lux [Color] F1.2 (30IRE): 0.0 Lux [B/W] S/N Ratio...
  • Page 28 OPERATIONAL Sharpness 0-30 Gamma MANUAL, 0.45, 0.60, 1.00 Side Light Compensation OFF, ON (0-30) Night Up OFF, ON Motion Detection OFF, ON (4 Programmable Zones) Privacy Zones OFF, ON (8 Programmable Zones) Title OFF, ON (Up to 16 Characters) Dead Pixel Cancellation OFF, AUTO Communication Protocol PELCO-D...
