2 Adapter Description

The sections below briefly describe the PAP2 device.
2.1

PAP2 Overview

The PAP2 is a 2-port FXS phone adapter, which allows you to connect two (2) analog
phones.
2.2

Connectors and Pinouts

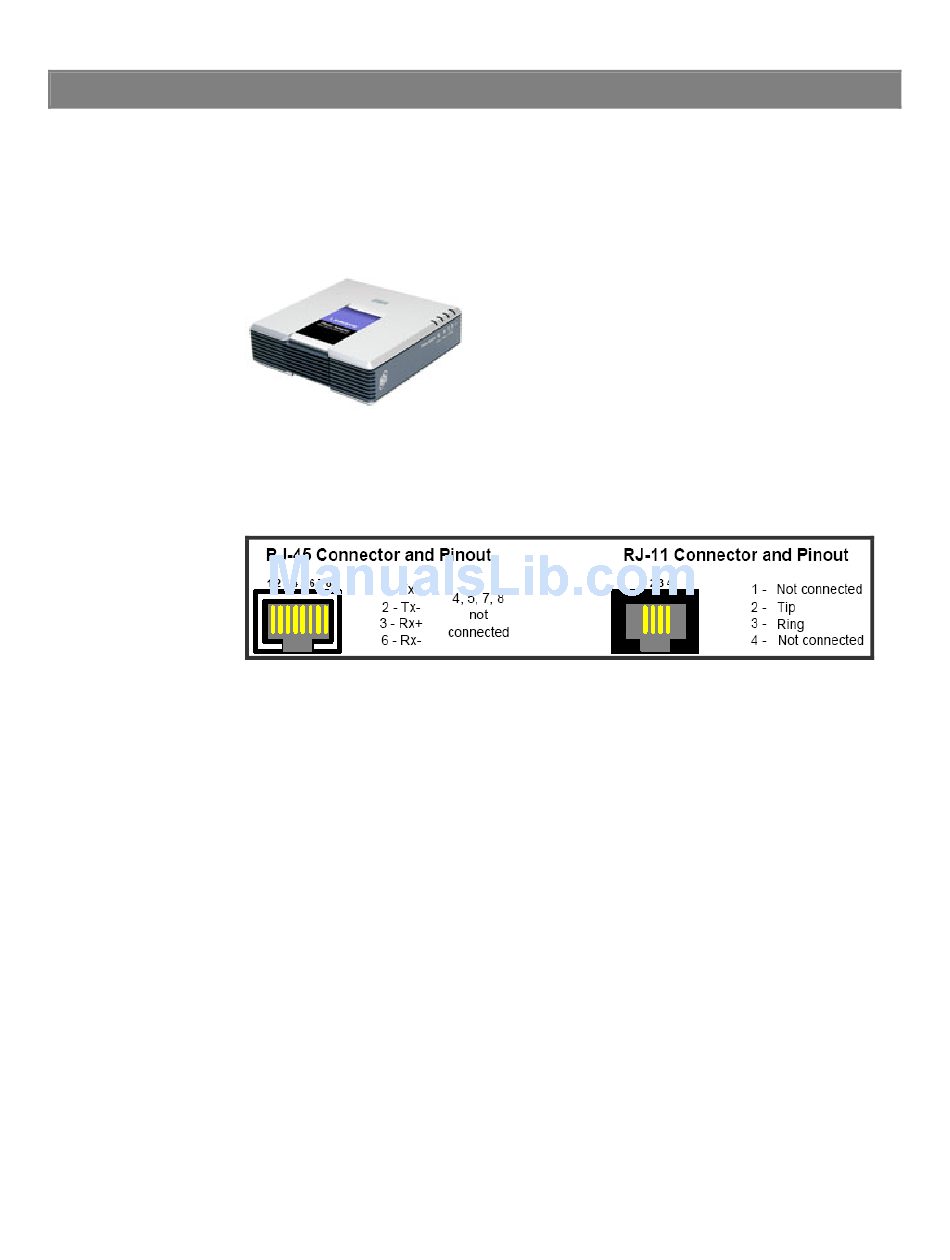

The image below displays the Ethernet (RJ-45) and analog (RJ-11) line pin-outs.
2.3

Accessing the PAP2

1. Connect an analog phone to the RJ-45 connector on the PAP2.
2. Using the telephone keypad, press the star key (*) four (4) times:
3. Enter the appropriate code, followed by the pound (#) key. Refer to the PAP2
PAP2 2-Port FXS Phone Adapter
Ethernet (RJ-45) and Analog (RJ-11) Line Pin-Outs
You will be prompted to enter a code.
Menu Options table on the following page for codes.
