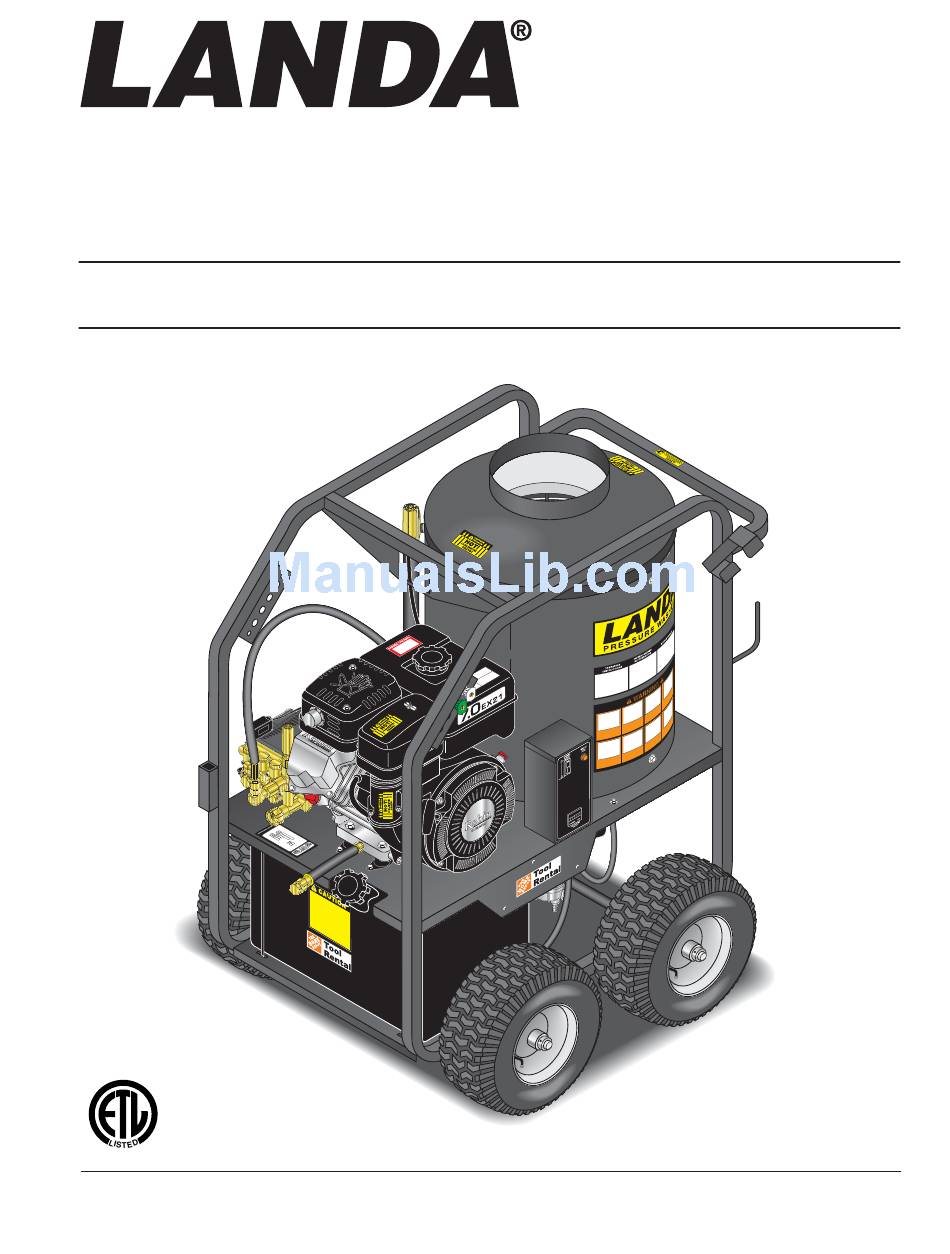

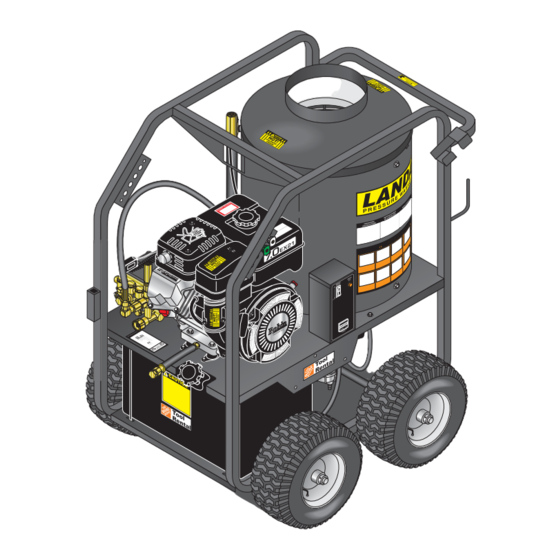

- Page 1 OPERATOR’S MANUAL ■ SGP-302214S ® For Home Depot Tool Rental Support consult, our web page at www.hdtr.landa.com 8.913-917.0...
-
Page 2: Table Of Contents
CONTENTS Introduction & Important Safety Instructions ......... 4-5 Component Identifi cation ..............6 Assembly Instructions ..............7 Operating Instructions ..............8-9 Detergents and Cleaning Tips ............10 Shut-Down and Clean Up .............. 11 Storage ................... 11 Maintenance................12-14 Troubleshooting ................. 15-17 Maintenance &... -
Page 3: Important Safety Information
INTRODUCTION & IMPORTANT SAFETY INFORMATION Thank you for purchasing this Pressure Washer. WARNING: This machine exceeds WARNING We reserve the right to make changes at any time 85 db appropriate ear protection without incurring any obligation. must be worn. Owner/User Responsibility: The owner and/or user must have an understanding of the manufacturer’s operating instructions and warnings before using this pressure washer. -
Page 4: Introduction & Important Safety Instructions
IMPORTANT SAFETY INFORMATION 7. Allow engine to cool for 1-2 minutes before refueling. If 13. To reduce the risk of injury, close supervision is any fuel is spilled, make sure the area is dry before necessary when a machine is used near children. testing the spark plug or starting the engine. - Page 5 IMPORTANT SAFETY INFORMATION WARNING: Be extremely careful WARNING when using a ladder, scaffolding or any other relatively unstable location. The cleaning area should have adequate slopes and drainage to reduce the pos- sibility of a fall due to slippery RISK OF INJURY surfaces.
-
Page 6: Component Identifi Cation
COMPONENT IDENTIFICATION Detergent Injector Discharge Nipple Quick Coupler Collar Gasoline Tank Pump Starter Grip Water Supply Hose (not included) Unloader Wand Coupler Nozzle Quick Spray Coupler Trigger Brass Variable Pressure Soap Control wand Nozzle Control Wand Handle High Pressure Hose Pump —... -
Page 7: Assembly Instructions
ASSEMBLY INSTRUCTIONS Pressure Spray Pressure Nozzle Nozzle Wand Coupler Safety Wand Latch Coupler Wand Collar High Pressure Hose STEP 1: Attach the high pres- STEP 2: Pull the spring-load ed col lar STEP 3: Release the coupler col lar sure hose to the spray gun of the wand coupler back to in sert your and push the nozzle until the collar using teflon tape on hose... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Oil Dipstick Tank STEP 1: Check engine oil level. Oil level should be level with the bottom STEP 2: Fill gas tank with un lead ed of the oil fi ller neck. Be sure the ma chine is level when checking the oil gasoline. - Page 9 OPERATING INSTRUCTIONS Throttle STEP 7: Turn the engine to "Run" position. STEP 8: Pull the starter grip. If the engine fails to start after 2 pulls, squeeze the trigger gun to release pres sure and repeat step. Return start er gently. After the en gine warms up enough to run smoothly, move choke to run position and throt tle to fast position.
-
Page 10: Detergents And Cleaning Tips
DETERGENTS AND CLEANING TIPS WARNING: Some de ter gents THERMAL PUMP PROTECTION WARNING may be harm ful if in haled or in- If you run the engine on your pres sure wash er for 3-5 gest ed, caus ing severe nau sea, min utes with out pressing the trig ger on the spray gun, fainting or poi son ing. -
Page 11: Shut-Down And Clean Up
SHUTTING DOWN AND CLEAN-UP On-Off Switch STEP 1: Re move detergent suc tion STEP 2: Turn off the engine. STEP 3: Tur n off water tube from container and insert into supply. 1 gallon of fresh water. Turn vari able pressure wand handle for low pres- sure. -
Page 12: Maintenance
MAINTENANCE During winter months, when tem per a tures drop below PREVENTATIVE MAINTENANCE 32°F, protecting your machine against freezing is nec es- sary. Store the machine in a heated room. If this is not 1. Check to see that the water pump is properly lu bri- pos si ble then mix a 50/50 solution of anti-freeze/water cat ed. - Page 13 MAINTENANCE Fuel: Use clean fuel oil that is not contaminated with water Burner Nozzle: and debris. Replace fuel fi lter and drain tank every 100 Keep the tip free of surface deposits by wiping it with a hours of operation. clean, solvent-saturated cloth, being careful not to plug Use No.
- Page 14 MAINTENANCE as can be obtained, then repeat the above procedure Removal of Soot and Heating Coil: on the air band setting. In the heating process, fuel residue in the form of soot de pos its may develop on the heating coil and block air Fuel Pressure Adjustment: fl...
-
Page 15: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION LOW OPERATING Water supply is insufficient Use larger supply hose; clean filter at water inlet. PRESSURE Spray nozzle is old, worn or Match the nozzle number to the machine incorrect and/or replace with new nozzle. Belt slips Tighten or replace belt;... - Page 16 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION BURNER WILL Burner nozzle is clogged Clean as required. NOT LIGHT Thermostat has malfunctioned Test and replace if needed. (continued from previous page) Fuel solenoid has malfunctioned Test and replace if needed. MACHINE Fuel is improper or water is in fuel Drain tank and replace contaminated fuel.
-
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION DETERGENT NOT Air is leaking Tighten all clamps. Check detergent lines for holes. DRAWING Injector head may be blocked, Clean and make sure ball and spring behind dirty or damaged detergent hose barb or injector body are working properly. -
Page 18: Maintenance & Oil Change Charts
MAINTENANCE CHARTS PREVENTATIVE MAINTENANCE This pressure washer was produced with the best available materials and quality craftsmanship. However, you as the owner have certain responsibilities for the correct care of the equipment. Attention to regular preventative main te nance procedures will assist in preserving the performance of your equipment. Contact your dealer for main te nance. -
Page 19: Exploded View & Parts Lists
EXPLODED VIEW Reversed View of Label s or tion h def birt s Equ s che s Aro tion t con tain tion rt Fire 8.917 -015 s or .” t Can uire “Th ifor y be uire Fire tion A Spa t Loc g to... - Page 20 Washer, 5/8", Flat, SAE 9.802-904.0 Insulation, Tank Head 9.802-314.0 Engine, Robin, 211cc, 200W 1 8.900-809.0 Label, Home Depot 8.904-895.0 Pump, Landa LG 3030G 9.802-793.0 Nut, Cage, 1/4" x 16 Gauge 4 8.918-427.0 Hose, 3/8" X 36",2 Wire, 9.800-021.0 Label, Hot Water Outlet Pressure 8.706-941.0...
-
Page 21: Exploded View & Parts Lists
EXPLODED VIEWS PARTS LIST ITEM PART NO. DESCRIPTION 9.800-002.0 Label, Use Only Kerosene 9.802-141.0 Hose Barb, 1/4" Barb x 3/8", 1 Double 9.802-053.0 Bushing, Rubber Nitrile 9.804-022.0 Cap, Valve 22mm, W/1/4" Gauge 9.802-802.0 Washer, 1/4", Flat, SAE 8.706-803.0 Nipple, 1/4" x 2 1/2", Brass 9.802-997.0 Linkage, Brake 8.725-306.0... -
Page 22: Control Panel & Parts List
CONTROL PANEL EXPLODED VIEW Reversed View CONTROL PANEL PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-528.0 Capacitor 9.802-752.0 Screw, 1/4" x 1-1/4" Hex, Whiz 9.802-531.0 Regulator, Voltage, 15 Volt 9.802-754.0 Screw, 1/4" x 1/2" HH NC, 9.803-036.0 Box, Electrical Whiz Loc ▲... -
Page 23: Hose & Spray Gun Assembly
HOSE & SPRAY GUN ASSEMBLY Pressure Nozzle HOSE & SPRAY GUN PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.802-170.0 Nipple 3/8" x 3/8" 9.802-165.0 Coupler, 1/4" Male ▲ Quick Coupler O-Ring NPT ST Fem 9.802-096.0 Small 8.916-739.0 Hose, 3/8"... -
Page 24: Downstream Injector Assembly
DOWNSTREAM INJECTOR ASSEMBLY DOWNSTREAM INJECTOR PARTS LIST ITEM PART NO. DESCRIPTION 9.802-215.0 Injector, Detergent, Non-Adjusting #2 6.390-126.0 Clamp, Hose, UNI .46 - .54 9.802-251.0 Tube, 1/4" x 1/2", Clear Vinyl 6 ft. 8.707-057.0 Strainer, Plastic, 1/4" Hose Barb HOME DEPOT SGP • 8.913-917.0 • Rev. 08/13... -
Page 25: Hose Reel Option
HOSE REEL OPTION HOSE REEL PARTS LIST ITEM PART NO. DESCRIPTION 9.802-166.0 Coupler, 3/8", Female, Brass 1 9.802-244.0 Hose, 3/8", 2 Wire Pressure 1 Loop 9.804-067.0 Hose Reel, 100' Non-Pivot, E-ZEE w/Pin Lock 9.802-767.0 Screw, 3/" x 3/4" HH NC, Whiz Loc 9.802-781.0 Nut, 3/8"... -
Page 26: Uu1 Unloader Exploded View And Parts List
UU1 UNLOADER EXPLODED VIEW 9.175-018.0 UU1 3500PSI, UNIVERSAL UNLOADER (SPARE) UU1 UNLOADER EXPLODED VIEW PARTS LIST ITEM PART # DESCRIPTION KIT QTY ITEM PART # DESCRIPTION KIT QTY 8.751-394.0 Piston Housing 9.149-006.0 Sliding Connector Guide Piston C, D O-Ring Backup A, D 6 x 1.45 x 1.68 Piston O-Ring Back Up... -
Page 27: Lg Series Pump Exploded View And Parts List
LG.1 SERIES PUMP EXPLODED VIEW 8.904-893.0 LG2530G.1 8.904-895.0 LG3030G.1 TORQUE SPECS Item # Ft.-lbs LG.1 SERIES PUMP EXPLODED VIEW PARTS LIST ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 9.803-938.0 Crankcase 9.803-952.0 Manifold Stud Bolt See Kit Below Plunger Oil Seal 9.802-884.0 Washer See Kit Below... - Page 28 LG.1 SERIES PUMP EXPLODED VIEW PARTS LIST (CONT) ITEM PART NO. DESCRIPTION 9.804-585.0 Crankshaft Seal See Kit Below Plunger Nut See Kit Below Copper Spacer See Kit Below Plunger, 15mm See Kit Below Copper Spacer See Kit Below O-Ring Ø1.78x5.28 See Kit Below Tefl...
-
Page 29: Burner Specifi Cations
Replacement Parts For best performance specify genuine KNA replacement parts HOME DEPOT SGP • 8.913-917.0 • Rev. 08/13... - Page 30 Replacement Parts For best performance specify genuine KNA replacement parts HOME DEPOT SGP • 8.913-917.0 • Rev. 08/13...
-
Page 31: Specifications
SPECIFICATIONS BECKETT BURNER SPECIFICATIONS Fuel Pump/ Fuel Pump/ Model # Burner Assy # Fuel Nozzle Transformer Burner Motor Solenoid Cord Solenoid Coil Electrode 3022145 9.802-554.0 8.717-348.0 7-515242 7-21699 9.802-562.0 7-21754U 9.802-670.0 HOME DEPOT SGP • 8.913-917.0 • Rev. 08/13... - Page 32 Authorized LANDA Dealer of the defect. Your Authorized LANDA Dealer will file a claim with Landa, who must subsequently verify the defect. In most cases, the part must be returned to LANDA freight prepaid with the claim. For warranty service on components warranted by other manufacturer’s, your Authorized LANDA Dealer can help you obtain warranty service through these manufacturers’...
- Page 33 Form #8.913-917.0 • Revised 08/13 • Printed in U.S.A or México...
