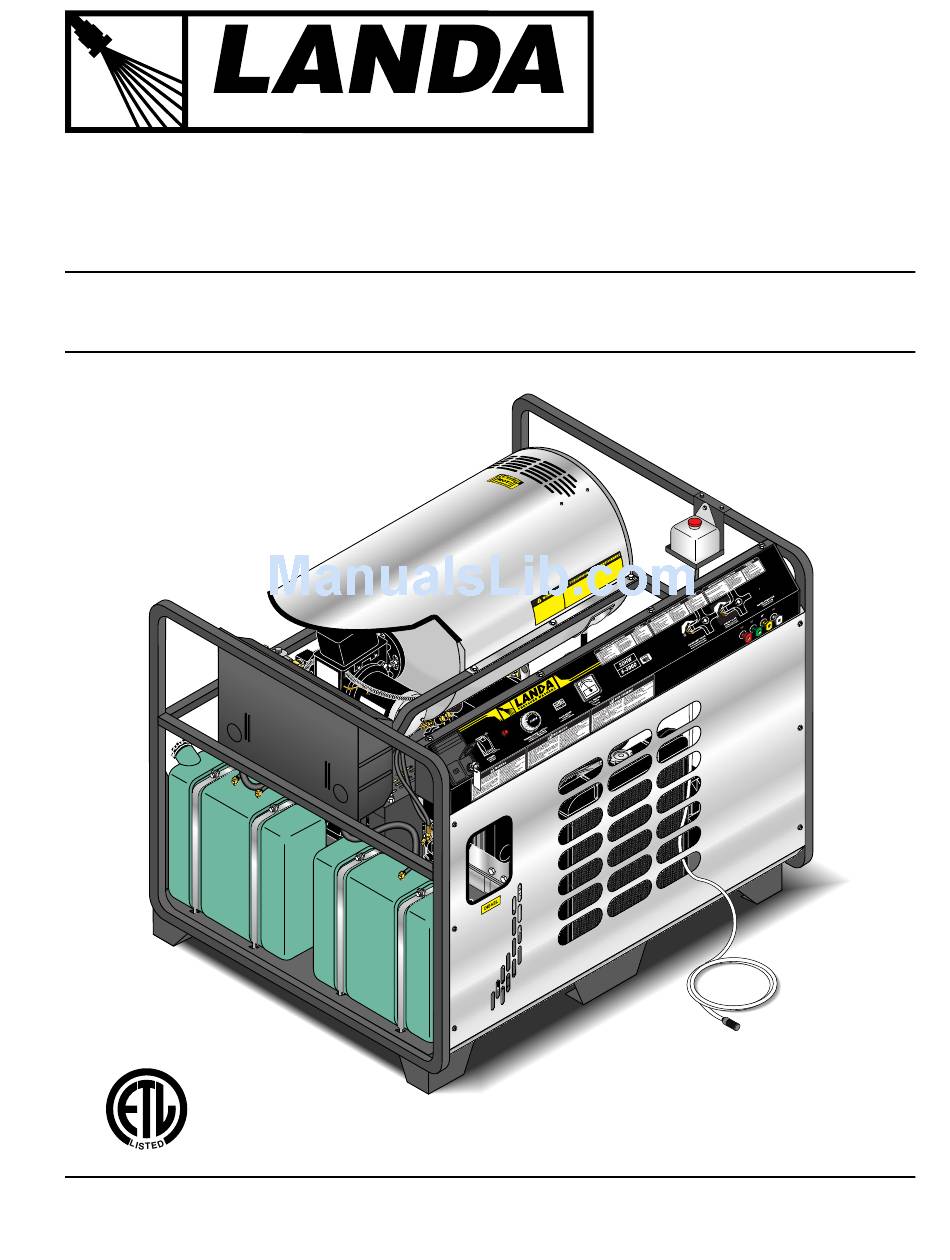

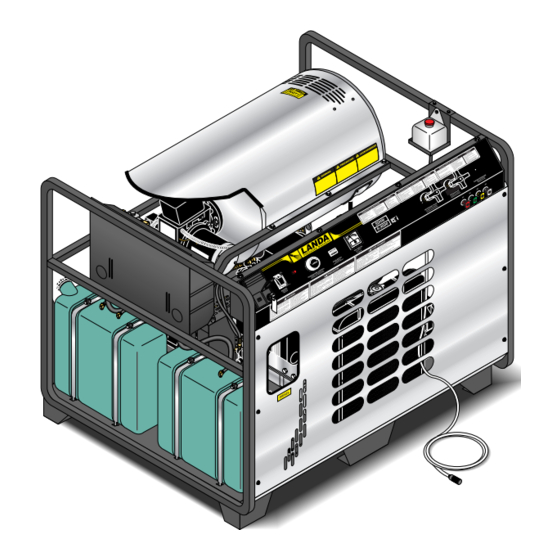

SDHW
®
P R E S S U R E WA S H E R S
OPERATOR'S MANUAL
I
I
SDHW5-3000
SDHW6-3500
®
I
I
I
LANDA, INC.
4275 N.W. Pacific Rim Blvd.
Camas, WA 98607
USA
For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100
or consult our web page at www.landa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDHW5-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Landa SDHW5-3000

Summary of Contents for Landa SDHW5-3000

  • Page 1 P R E S S U R E WA S H E R S OPERATOR’S MANUAL SDHW5-3000 SDHW6-3500 ® LANDA, INC. 4275 N.W. Pacific Rim Blvd. Camas, WA 98607 For technical assistance or the Landa Dealer nearest you, call 800-LANDA-4-U (800-526-3248) or (360) 833-9100 or consult our web page at www.landa.com...

  • Page 2: Table Of Contents

    CONTENTS Introduction ...........................4 Important Safety Information ..................... 4, 6 Component Identification ......................5 Pre-Operation Check ........................6 Set-Up Procedures ........................6 Operating Instructions ........................7 General Washing Techniques ......................7 Shut Down Procedures .........................7 How to Use the Optional Detergent Injector .................. 8 Preventative Maintenance......................
  • Page 3 CONTENTS Exploded View ........................12 - 13 Parts Breakdowns ........................ 14 - 15 Control Panel ........................16 - 17 Float Tank Assembly ......................18 - 19 Hose and Spray Gun Assembly ....................20 Burner Specifications ........................21 Pump Specifications ......................22 - 23 Troubleshooting ........................

  • Page 4: Introduction

    Exhaust contains poison- Landa, Inc. reserves the right to make changes at any ous carbon monoxide gas; ex- RISK OF time without incurring any obligation.

  • Page 5: Component Identification

    Quick Coupler Discharge Nipple Thermostat Knob Water Supply Hose Pressure (not included) Nozzles Detergent Pick-up Tube Fuel Tanks High Pressure Nozzle Detergent Bucket (not included) Variable Spray Pressure Wand High Pressure Trigger Hose Swivel Connector LANDA SDHW • REV. 12/02...

  • Page 6: Pre-Operation Check

    18. Landa will not be liable for any changes made to our 5. Check oil level on sight glass on side of pump. Oil standard machines, or any components not pur- should be visible half way up sight glass (SAE 30W chased from Landa.

  • Page 7: Operating Instructions

    Wipe off any oil spills and keep this equipment clean and dry. SHUTDOWN PROCEDURES The area around the Landa washer should be kept clean and free of combustible materials, gasoline and other 1. Rinse all lines with clean water, to remove any soap flammable vapors and liquids.

  • Page 8: How To Use The Optional Detergent Injector

    SOME DETERGENTS The machine can siphon and mix 6. Open spray gun. Water detergent ratio is approxi- MAY BE HARMFUL IF detergents with the use of Landa's INHALED OR mately 15 to 1. INGESTED detergent injector kit (see page 5).

  • Page 9: Preventative Maintenance

    In areas where alkaline water is an extreme prob- gun, the flow of water through the flow switch stops, turn- lem, periodic use of Landa Deliming Powder (Landa Part ing off the electrical current to the fuel solenoid. #9-028008) will remove lime and other deposits before the coil becomes plugged.

  • Page 10: Fuel Pressure Adjustment

    AIR SHUTTER Adapter Top View Side View AIR BAND Periodically check wiring connections. If necessary to adjust electrodes, use diagram. Electrode Setting: Beckett 5/32" Gap Electrode AIR BAND AIR SHUTTER LOCKING SCREW LOCKING SCREW 7/16" Nozzle 1/16" LANDA SDHW • REV.12/02...

  • Page 11: Coil Removal & Reinstallation

    5. Remove the three 3/8" bolts from each side of coil Coil Reinstallation and tank assembly (these bolts are used to fasten Reinstall new or cleaned coil by reversing Steps 9 through tank to chassis). 10 above. LANDA SDHW • REV. 12/02...
  • Page 12 SDHW SERIES PRESSURE WASHER OPERATOR’S MANUAL SDHW EXPLODED VIEW LEFT SIDE 77, 78, 109 Fuel Lines 77, 78 to Engine LANDA SDHW • REV.12/02...
  • Page 13 SDHW SERIES PRESSURE WASHER OPERATOR’S MANUAL SDHW EXPLODED VIEW RIGHT SIDE To Control Panel 117, 95 For Detail See Float Box Illus. For Detail See Control Panel Illus. LANDA SDHW • REV. 12/02...

  • Page 14: Parts Breakdowns

    4-05088 Thermostat, General, 302° Bushing, See Spec's Page 22-23 4-02047716 Hose, 16" x 3/8", 100R2, Pulley, Generator, See Spec's Page 22-23 Pres Loop Belt, Generator, See Spec's Page 22-23 2-00241 Coupling, 1/2" x 3/8" Reducing 1 LANDA SDHW • REV.12/02...
  • Page 15 L Bushing, Rubber, Nitrile 2-011981 Washer, Snubbing 2-010061 90-4001 Washer, 5/16" Flat 2-010068 Elbow, Fuel Tank L Bushing, Rubber 2-010066 Elbow, Fuel Tank 2-010061 L Bushing, Rubber 2-010061 2-9000 Clamp, Screw, #4 L Not Shown LANDA SDHW • REV. 12/02...

  • Page 16: Control Panel

    SDHW SERIES PRESSURE WASHER OPERATOR’S MANUAL SDHW CONTROL PANEL LANDA SDHW • REV.12/02...
  • Page 17 4-12805025 Nozzle, SAQCMEG 2505, L Screw, 10/32" x 1-1/4" 90-1994 Green (5-3000) (Ground) 4-12805040 Nozzle, SAQCMEG 4005, L Nut, 10/32" 90-017 White (5-3000) L Label, Ground 11-1042 4-0507 Voltmeter, 120V (All models) L Not Shown LANDA SDHW • REV. 12/02...

  • Page 18: Float Tank Assembly

    SDHW SERIES PRESSURE WASHER OPERATOR’S MANUAL FLOAT TANK ASSEMBLY EXPLODED VIEW To Pump Outlet LANDA SDHW • REV.12/02...
  • Page 19 Swivel, 3/4" JIC Fem, Push-On 4-02100030 Inlet Hose, 30", Supply Water 2-10942 Swivel, 1/2" MP x 3/4" GHF w/Strainer 2-10712 Tee, 1/2" x 1/2" JIC 4-02100045 Inlet Hose, 45" Supply Water 10-99057 Label, Float Tank LANDA SDHW • REV. 12/02...

  • Page 20: Hose And Spray Gun Assembly

    VP Wand, Only, AR SS (AL344), SS L Repair Kit, AR Wand 83-SSVPKIT L Soap Nozzle, 1/8" Brass 4-06540 L Quick Coupler, 1/4" Male 2-2001 L Quick Coupler O-ring, 1/4" Replacement Only 2-0119 L Not Shown LANDA SDHW • REV.12/02...

  • Page 21: Burner Specifications

    Solenoid Coil Electrode SDHW5-30821E 7-00034 7-0128 7-20358 7-0005 7-0009 7-0009611 7-13286 SDHW5-30824E 7-00034 7-0128 7-20358 7-0005 7-0009 7-0009611 7-13286 SDHW6-35821E 7-00034 7-0128 7-20358 7-0005 7-0009 7-0009611 7-13286 SDHW6-35824E 7-00034 7-0128 7-20358 7-0005 7-0009 7-0009611 7-13286 LANDA SDHW • REV. 12/02...

  • Page 22: Pump Specifications

    SDHW SERIES PRESSURE WASHER OPERATOR’S MANUAL PARTS SPECIFICATIONS: LANDA PUMP PUMP Machine Pump Pulley Bushing Belt Belt Model Nozzle Model Part # Pulley Part # Bushing Part # Size/Qty Part # Size T ype Part # Pulley 5-35324E 25mm 5-512501...
  • Page 23 Part # Bushing Part # Pulley Part # Bushing Part # Size/Qty Part # 5-30821E 5-407034 P2x1-1/2" 5-531114 BK32H 5-40503201 5/8" 5-511063 BX22 (1) 5-604022 6-35821E 5-407040 P2x1-1/2" 5-531114 BK30H 5-40503001 5/8" 5-511063 BX22 (1) 5-604022 LANDA SDHW • REV. 12/02...

  • Page 24: Troubleshooting

    Check and reset according to diagram in Operator's Manual. Fuel not reaching combustion Check fuel pump for proper flow. Check chamber solenoid flow switch on machines with spray gun control, for proper on-off fuel flow control. Clogged burner nozzle Clean as required. LANDA SDHW • REV.12/02...
  • Page 25 Defective high limit switch Replace. Incorrect fuel nozzle size See breakdown for model. Insufficient water supplied Check water G.P.M. to machine. Restricted water flow Check serial plate for proper size. (For parts and information call your Landa Dealer) LANDA SDHW • REV. 12/02...
  • Page 26 High viscosity of detergent Dilute detergent to specifications. Hole in detergent line(s) Repair hole. Add detergent if needed. Low detergent level RELIEF VALVE LEAKS Relief valve defective Replace or repair. WATER (For parts and information call your Landa Dealer) LANDA SDHW • REV.12/02...

  • Page 27: Preventative Maintenance

    Attention to regular preventative mainte- nance procedures will assist in preserving the performance of your equipment. Contact your Landa, Inc. dealer for maintenance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform maintenance more often under severe conditions.

  • Page 28: Warranty

    TICULAR PURPOSE. LANDA does not authorize any other party, including authorized LANDA Dealers, to make any represen- tation or promise on behalf of LANDA, or to modify the terms, conditions, or limitations in any way. It is the buyer’s responsibility to ensure that the installation and use of LANDA products conforms to local codes.
  • Page 30 ® WATER CLEANING SYSTEMS 4275 NW Pacific Rim Blvd. • Camas, WA 98607 USA Form #96-6033 • Revised 12/02 • Printed in U.S.A. by Landa, Inc., Camas, WA 98607...
