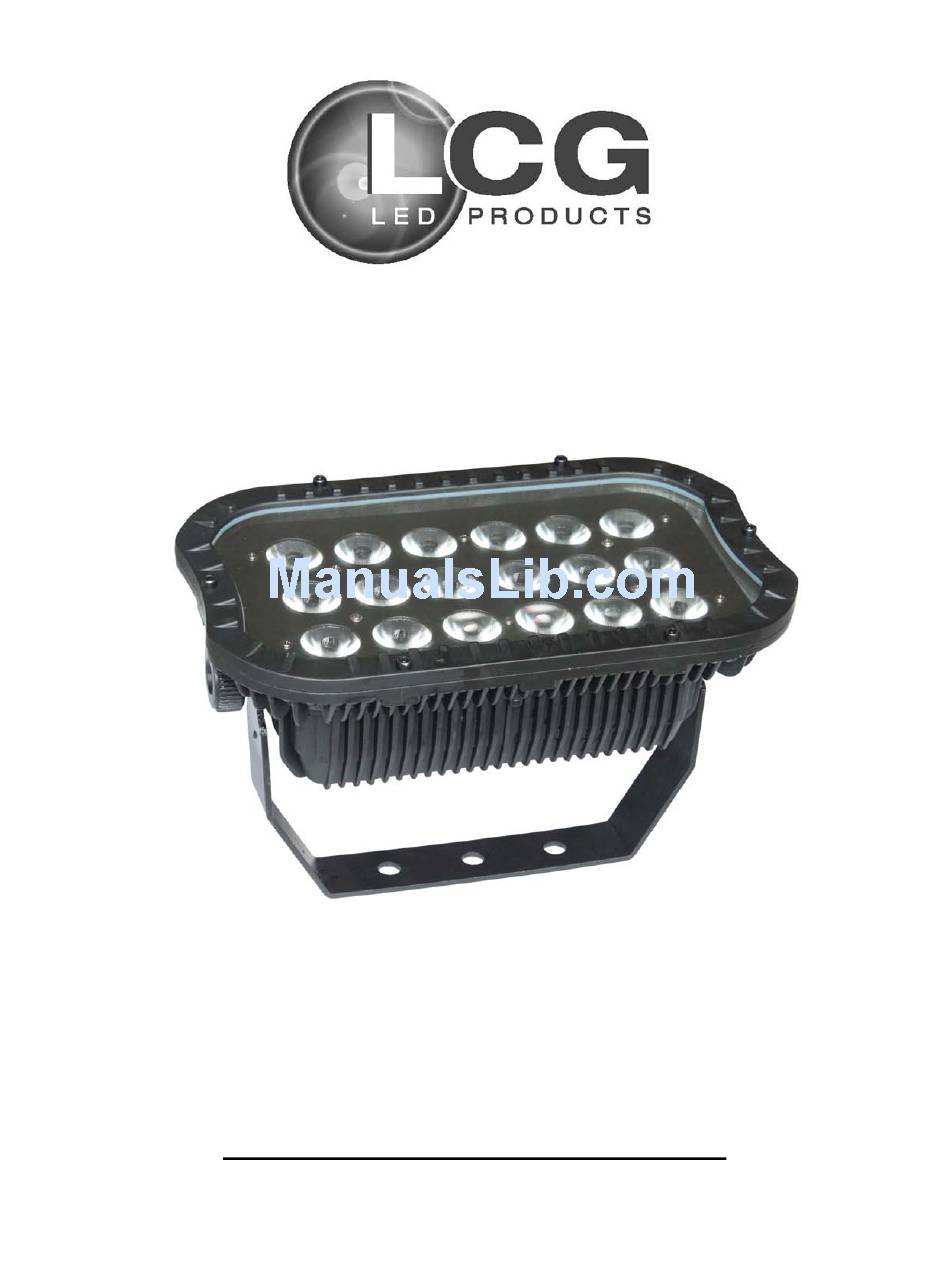

- Page 1 LED WALL TRI LCG-027A User Manual Please read the instructions carefully before use...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS: • Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the fixture. -
Page 3: Technicals Specifications

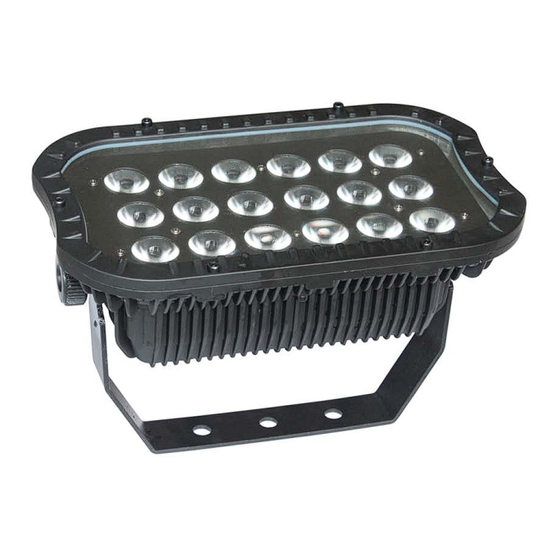

3. TECHNICALS SPECIFICATIONS • Led: 18 x 3W TRI RGB • Beam angle: 40° • Black Housing • Dual yoke for floor mounting • Led display • Power In & Out, DMX In & Out • IP rate: IP65 • Operations Modes: Built-in Program / Auto Run / DMX / Master Slave / Static Colors •... -
Page 4: Dmx Value
“FSXX”, press the “UP” or “DOWN” to adjust the speed for the strobe FS00~FS99. When LED display show Pr.02-Pr.1, first time press “SETUP”, it will show “SP.XX”, then you can set up the speed for the program through pressing “UP” or “DOWN”, SP01~SP100(FL); second time to press the “SETUP”, it will shows “FSXX”, then you can adjust the strobe speed through pressing the “UP”... - Page 5 207-229 Pale Green 230-252 White 253-255 Warm White DMX MODE 2: 3CHANNELS ( 3C ) CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE DMX MODE 3: 4 CHANNELS ( 4C-1 ) CHANNEL VALUE FUNCTION 0-255 Master Dimmer 0-255 0-255 Green 0-255 Blue DMX MODE 4: 4 CHANNELS ( 4C-2 )
- Page 6 channel is 0-25) 36-44 R200 G255 45-53 R100 G255 54-62 R40 G255 63-71 G255 72-80 G255 B50 81-89 G255 B150 90-98 G255 B255 99-107 G150 B255 108-116 G50 B255 117-125 B255 126-134 R50 B255 135-143 R150 B250 144-152 R255 B255 153-161 R220 B50 162-170...
-
Page 7: Master/Slave Mode
104-129 Pr05 (3 color status step) 130-155 Pr06 (dream 1) 156-181 Pr07 (dream 2) 182-207 Pr08 (red gradual change) 208-233 Pro9 (green gradual change) 234-255 Pr10 (blue gradual change) 4. MASTER/SLAVE MODE Press MODE button, enter slave mode “SLAV” The effect program of the master light on Built-in program or auto run mode is the same with the slave light. -
Page 8: Troubleshooting
Termination reduces signal errors and to avoid signal transmission problems and interference. It is always advisable to connect a DMX terminal. (resistance 120ohm 1/4W ) between pin2 (DNX-) and pin3 (DMX+) of the last fixture. 1. Connect the fixture together in a “daisy chain” by XLR plug cable from the output of the fixture to the input of the next fixture. -
Page 9: Fixture Cleaning
• No response to the sound: 1. Make sure the fixture does not receive DMX signal 2. Check microphone to see if it is good by tapping the microphone. • One of the channels is not working well: 1. The stepper motor might be damaged or the cable connected to the PCB is broken 2.
