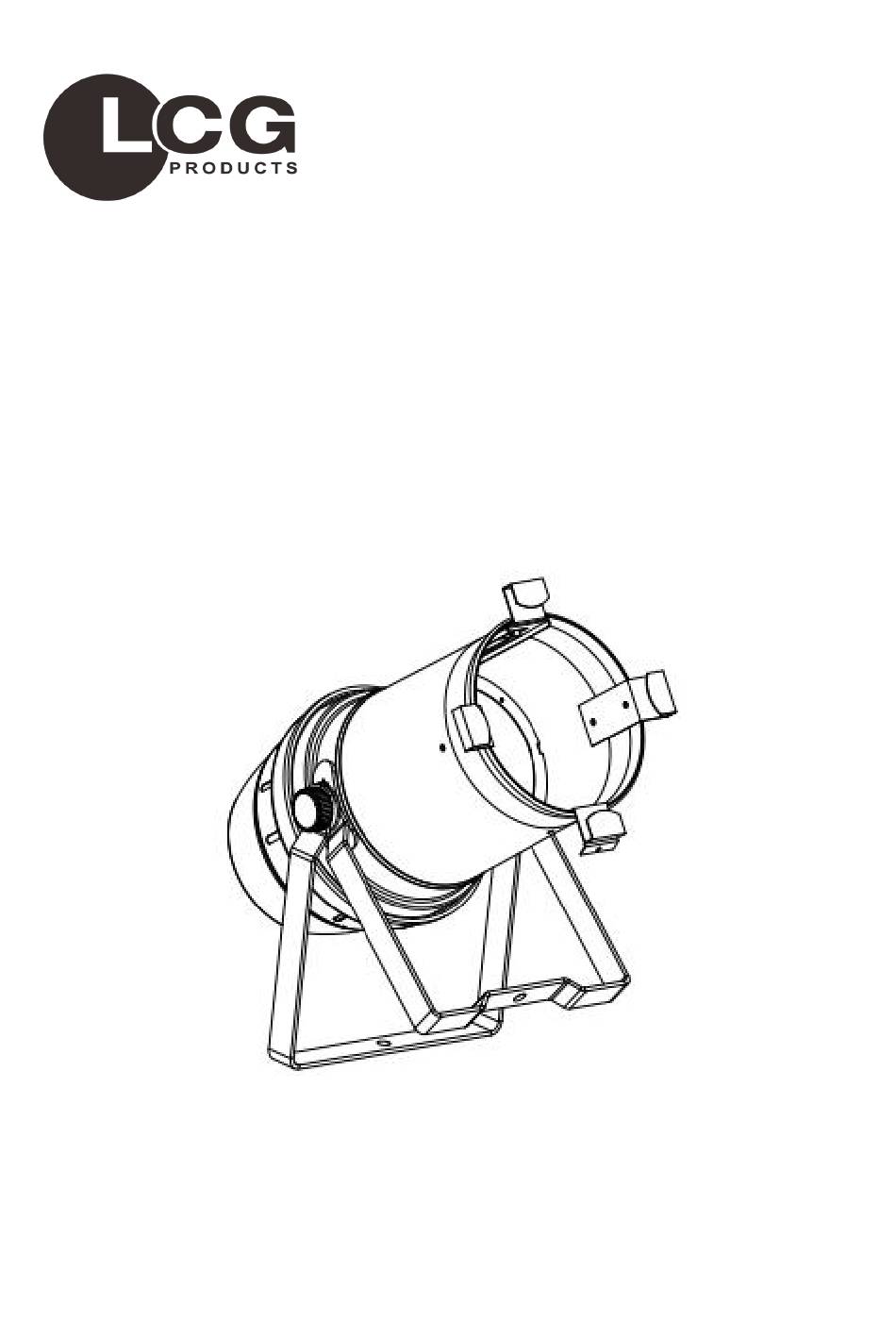

- Page 1 LED PAR 64 ZOOM-RGBW User Manual LCG-PL64Z Please read this manual carefully before use! - 1 -...
-
Page 2: Safety Instructions
Thank you for purchasing our 120W COB RGBW LED PAR64. Please read user guide for safety and operations before using. Keep this manual for future reference. 1. Safety Instructions Please keep this User Manual for future consultation. If you sell the fixture to another user, be sure that they also receive this intruction booklet. -
Page 3: Checking Parts
Weight(N.W)： 3.3Kgs 3. Checking Parts Please check if the following parts are included: 1pc x 120W COB RGBW LED PAR64) 1pc x Power cable 1pc x User manual 1pc x Gel frame 2pcs x Bracket 4. Installation and Connection The unit should be mounted via its screw holes on the bracket. -
Page 4: Main Function
POWER Power On DMX input present Button: MENU To select the programming functions DOWN To go forward in the selected functions To go backward in the selected functions ENTER To confirm the selected functions Main input/output: PowerCon: link 8 units at 230/240V & 4 units at 110/120V DMX input/output: For DMX512 link, use 3-pin XLR plug cable to input DMX signal, and to link the next unit. - Page 5 The main function are shown below: Addr(set address) enter +/- set address（001-512） Chnd enter (channel option) 10Ch stda (standard scene) stge(stage scene) Dind enter tv (TV scene) (Dimmer scene) aral(building scene) thal(theatre scene) Linn(linner dimmer) Inue(exponential dimmer curve) DinC( set dimmer curve) enter +/- Suar(logarithmic dimmer curve) Press...
-
Page 6: Dmx 512 Configuration
is lost) Hold(keep last scene) Auto(run auto) Soun (sound mode) Sens(sound sensitivity) enter +/- S000-S099 CCT (CCT marco, CCT1-CCT9) Manu enter +/- Color preset Clor Tenp ( enter 00C-90C TEMPERATURE) Led (set backlight） enter disp (display reverse) enter Fhrs (working hours) enter total working hour Ver (software version) enter... - Page 7 138-149 Pink 150-161 Warm white 162-173 white 174-185 Cold white 186-220 Color jumping from slow to fast 221-255 Color fading from slow to fast 000-035 No function 036-055 CCT: 2800K 056-075 CCT: 3000K 076-095 CCT:3200K 096-115 CCT:3500K 116-135 CCT:4000K CCT Macro 136-155 CCT:4500K 156-175...
- Page 8 5 Channel Mode Channel Function Value Details Master dimmer 000-255 0-100% dimming Red Dimmer 000-255 0-100% dimming Green Dimmer 000-255 0-100% dimming Blue Dimmer 000-255 0-100% dimming White Dimmer 000-255 0-100% dimming 6 Channel Mode Channel Value Function master dimming 000-255 Master Dimming 0-100% 000-015 No Function (open)
-
Page 9: Troubleshooting
054-065 Green 066-077 Turquoise 078-089 Cyan 090-101 Blue 102-113 Lavender 114-125 Mauve 126-137 Magenta 138-149 Pink 150-161 Warm White 162-173 White 174-185 Cold White 186-220 Color Jumping Slow->Fast 221-255 Color Fading Slow->Fast 000-035 No Function 036-055 CCT:2800K 056-075 CCT:3000K 076-095 CCT:3200K 096-115 CCT:3500K... -
Page 10: Fixture Cleaning
B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity.
