MOLEFAY 4A
WARM COOL WHITE
LED BLINDER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOLEFAY 4A and is the answer not in the manual?

Questions and answers

Related Manuals for LCG MOLEFAY 4A

Summary of Contents for LCG MOLEFAY 4A

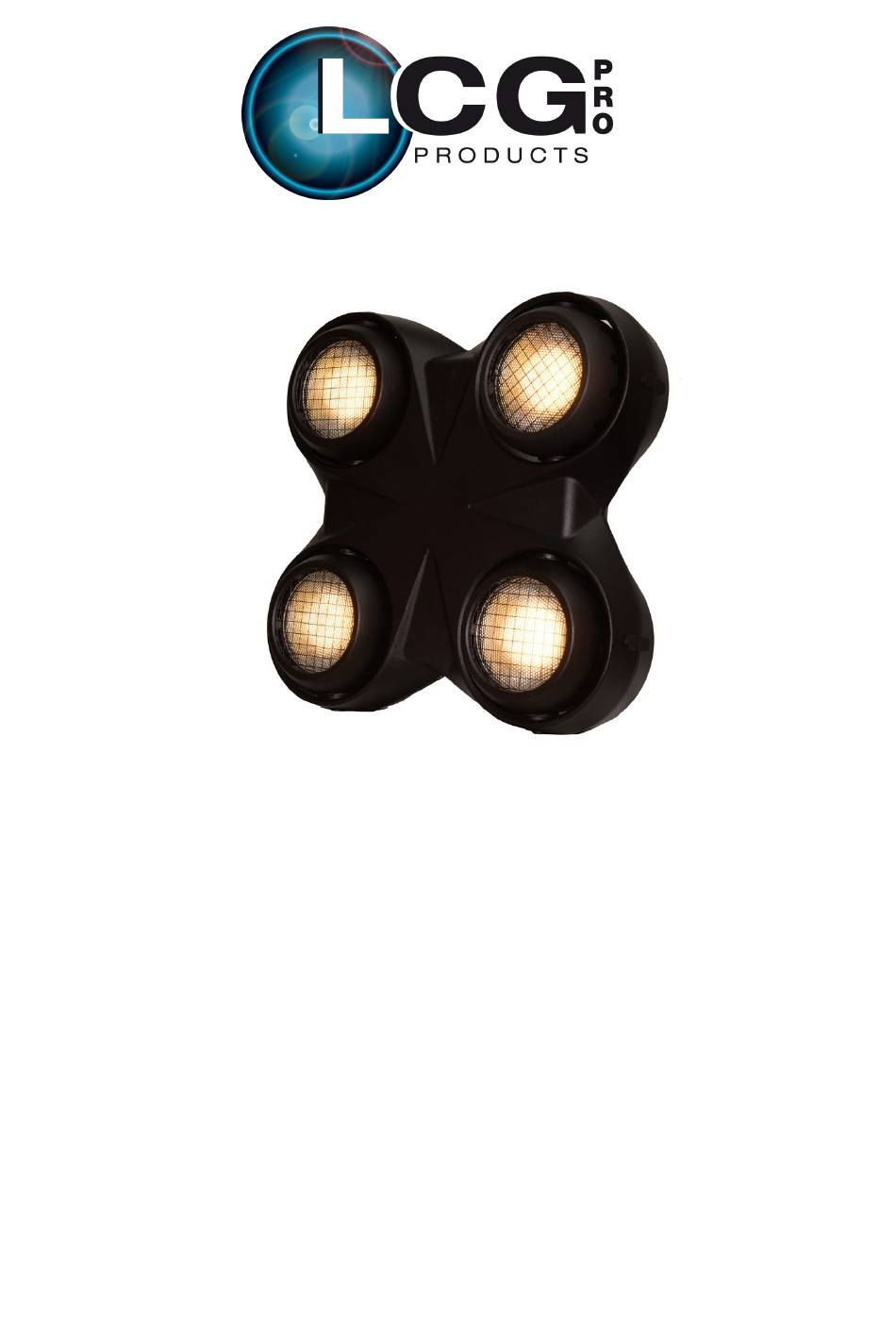

  • Page 1 MOLEFAY 4A WARM COOL WHITE LED BLINDER USER MANUAL...

  • Page 2: Safety Instructions

    INTRODUCTION Thank you for having chosen our LED lighting. Unpack the device, inside the box you should find: The fixture device; One power cable; One XLR connection cable; This manual. Please check carefully that there is no damage caused by transportation.

  • Page 3: Dmx-512 Control Connection

    If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer, his service agent or a similar qualified person in order to avoid a hazard. Make sure that the available voltage is not higher than stated at the end of this manual.

  • Page 4: Display Menu

    output XLR socket of the last fixture in the chain. Display Menu Display Menu Defaut Main menu Sub-menu Values Address DMX address setting 1 - 512 Channel 1Ch Channel 3Ch Channel Channel mode Channel 8Ch 13Ch Channel 13Ch Channel 14Ch Config.

  • Page 5: Main Functions

    Strobe Main functions 1. Address: current DMX address A. Setting DMX address by button press [ENTER] button when show the address menu, then adjust the DMX address by pressing [UP] or [DOWN] button Press [ENTER] to confirm or pressing [ESC] to return to main menu.

  • Page 6: Dmx Functions And Values

    6. set the value of channel 5-8 out of the value range shown on the step 1, and the device will exit the setting address mode. 2. config. Setting DMX mode press [ENTER] button when shown the channel menu, then select the DMX mode by pressing [UP] and [DOWN] buttons.
  • Page 7 Function Value Description Remark Dimmer 000-255 0-100% 3CH Mode Function Value Description Remark Master dimmer 000-255 0-100% Fine master dimmer 000-255 0-100% 000-015 No function Strobe 016-255 Strobe Slow to fast 4CH Mode Function Value Description Remark Head 1 000-255 0-100% Head 2 000-255...
  • Page 8 White 3 000-255 0-100% White 4 000-255 0-100% 000-035 No function 036-071 Round up Round 072-107 down Round up 108-143 Auto Mode down 144-179 SIN up 4-LEDs 180-215 standard 4-LEDs 216-255 random 000-063 Linear 064-127 Square Dimmer mode Inverted 128-191 square 191-255 S-curve...

  • Page 9: Cleaning And Maintenance

    White 4 000-255 0-100% 000-035 No function 036-071 Round up Round 072-107 down Round up 108-143 Auto Mode down 144-179 SIN up 4-LEDs 180-215 standard 4-LEDs 216-255 random 000-063 Linear 064-127 Square Dimmer mode Inverted 128-191 square 191-255 S-curve 000-254 tungsten effect Dimmer speed...

  • Page 10: Installation

    authorized dealers. If you need any spare parts, please use genuine parts. If the power supply cable of this device becomes damaged, it has to be replaced by authorized dealers only in order to avoid hazards. If you have further questions, please contact your dealer.
