Summary of Contents for LCG LEAD PACK 14

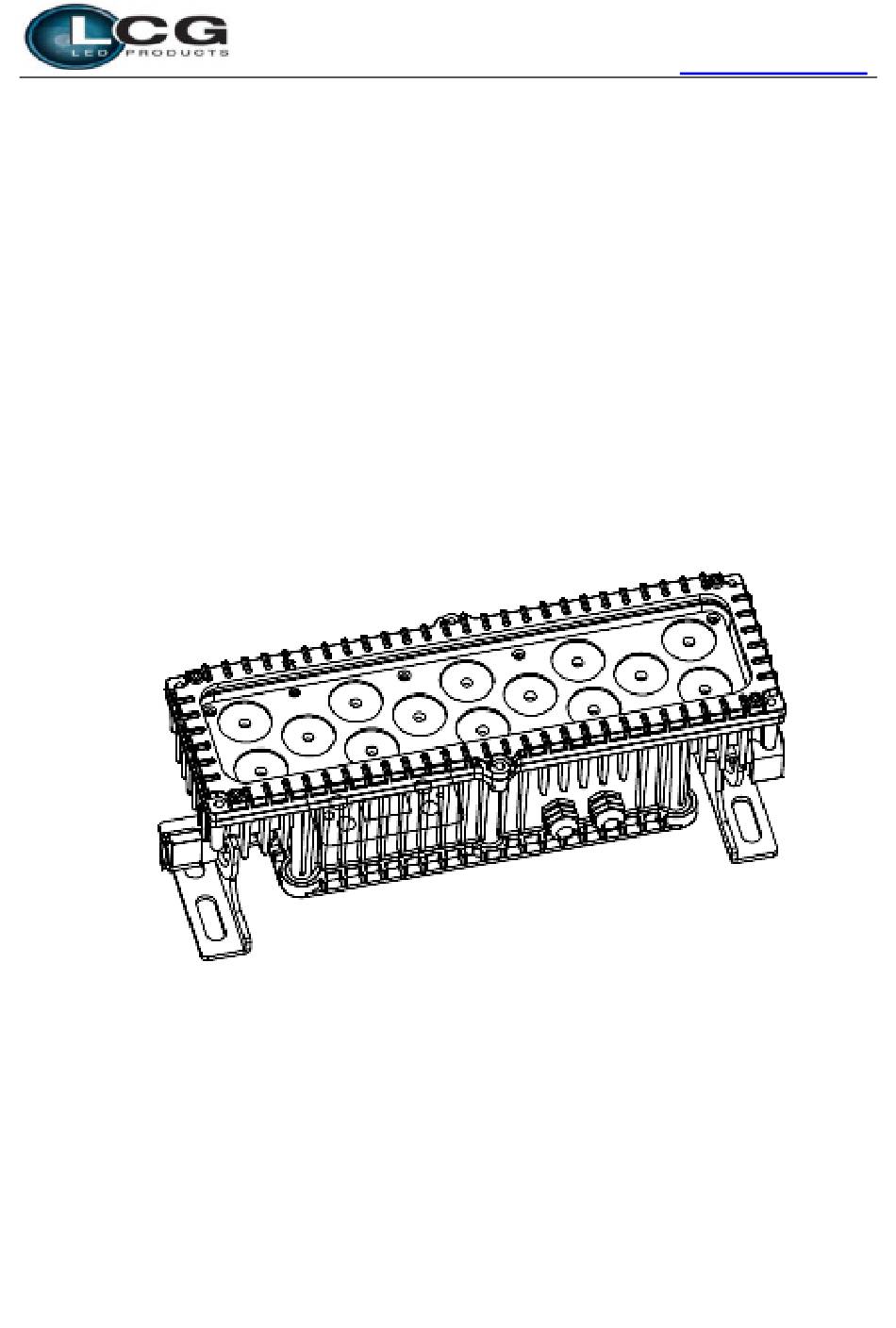

- Page 1 USER MANUAL LEAD PACK 14 LCG-B314IP (14x3W RGB 3-in-1)
-
Page 2: Table Of Contents
www.lc-group.ca Catalogue 1. Summary ........................ 3 2. Safety Instruction ....................4 3. Outside Size Picture ....................5 4. Main Function ......................6 5. DMX Control Function .................... 7 6. Display Operation instruction ................8 7. Infrared keyboard operation ................13 8. -
Page 3: Summary
Summary Summary Thank you for purchasing our LEAD PACK 14. Please read these instructions carefully before begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by misusage Product introduction... -
Page 4: Safety Instruction
LEAD PACK 14(LCG-B314IP)-User Manual 2. Safety Instruction Safety Notes ! Enquire the skilled people before any repair; ! Always make sure disconnect from the power source before setting up, serving and moving;. ! Avoid direct eye exposure to the fixture when it is on;... -
Page 5: Outside Size Picture
LEAD PACK 14(LCG-B314IP)-User Manual 3. Outside Size Picture... -
Page 6: Main Function
LEAD PACK 14(LCG-B314IP)-User Manual 4. Main Function Input voltage: AC 100V-264V/47-63HZ Power Consumption：50W Maximum Power: 50W Lamp Type：3W LED 3-in-1 R、G、B (14PCS) Life span: 50000~100000hours PWM Dimmer：1500HZ(16666 grades) Control Signal：DMX512 Control mode：stand alone/ Master/Slaver ... -
Page 7: Dmx Control Function
LEAD PACK 14(LCG-B314IP)-User Manual 5. DMX Control Function DMX Channels Value Function 0-255 Dim all 0-255 0-255 0-255 0-29 No effect 30-59 AUTO 1(R,G,B,RG,RB,GB) 60-89 AUTO 2(R↑,R↓,G↑,G↓,B↑,B↓) 90-119 AUTO 3(R↑G↑,R↓G↓,R↑B↑,R↓B↓,B↑G↑,B↓G↓) 120-149 AUTO 4(R↑G↑B↑,R↓G↓B↓) AUTO 5(Rainbow effect: B,BG↑,BG,B↓G,G,GR↑,GR,G↓ 150-179 R,R,RB↑,RB,R↓B) -
Page 8: Display Operation Instruction
LEAD PACK 14(LCG-B314IP)-User Manual 6. Display Operation instruction MENU : access the menu or return to a previous menu option ENTER: select the current menu option UP: menu selection or parameter increments DOWN: menu selection or parameters decrease... - Page 9 LEAD PACK 14(LCG-B314IP)-User Manual LOCK YES/NO AUTO(Auto) AT01 RUN.. * RUN.. * RUN.. * RUN.. * AT05 RUN.. * ATSP(Auto speed) 0-255(S) CHS1（Chase 1） RUN.. * CHS2（Chase 2） RUN.. * PROG（Program） CHS1（Chase 1） SC01（Scene 1） 0-255 0-255 0-255 SHUT 0-255...
- Page 10 LEAD PACK 14(LCG-B314IP)-User Manual 3) Press the【ENTER】button to escape and save. 6.2 STATIC SETTING 1) Press the【ENTER】button in 【STAT】menu, then enter to the static setting. 2) Press the【UP/DOWN】 button to select 【RED】，【GREEN】，【BLUE】and【SHUT】. 3) Press the【UP/DOWN】button to set up the【0-255】numerical value.
- Page 11 LEAD PACK 14(LCG-B314IP)-User Manual 6.6 AUTO LOCK KEY SETTING 1) Press the【ENTER】button in【LOCK】menu, then enter auto lock key setting. 2) Press the【UP/DOWN】button to select【YES】,【NO】 3) Press the【ENTER】button to escape and save. Instructions: When set to [YES], it will lock automatically after two minutes to prevent accidental triggering flood flushing.
- Page 12 LEAD PACK 14(LCG-B314IP)-User Manual 6.9 CHECK THE LIGHTING INFORMATION 1) Press the【ENTER】button in【INFO】menu, then enter to the checking the lighting information. 2) 【SOFT】button is for software version information. 3) 【POW】button is for the current information of power reduction. 4) 【TEM】is the current temperature of lamp.
-
Page 13: Infrared Keyboard Operation
LEAD PACK 14(LCG-B314IP)-User Manual 7. Infrared keyboard operation 【MENU】, 【UP】, 【DOWN】, 【ENTER】is same as the keys on the fixture. 【R1】...【B1】，【SHUT】is shortcut for 【STAT】. 【AT01】,【CHS01】, 【ATSP】 is correspond to the positon of 【AT01】,【CHS01】 in the MENU. 【CLEAR】is clear the value of 【R1】, 【G1】... 【SHUT】 then save and reset。... -
Page 14: Operating Control Instruction
LEAD PACK 14(LCG-B314IP)-User Manual 8. Operating Control Instruction Master/Slave When the fixtures work in master mode it will send out the signal for the slave synchronous with it. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. -
Page 15: Trouble Shooting
LEAD PACK 14(LCG-B314IP)-User Manual 10. Trouble Shooting PROBLEM REASON AND ACTION Check the power connection is correct or not. Please detect the voltage. Power supply is damaged or incorrect connected. Call a The lighting can’t be started normally qualified personnel to fix it.
