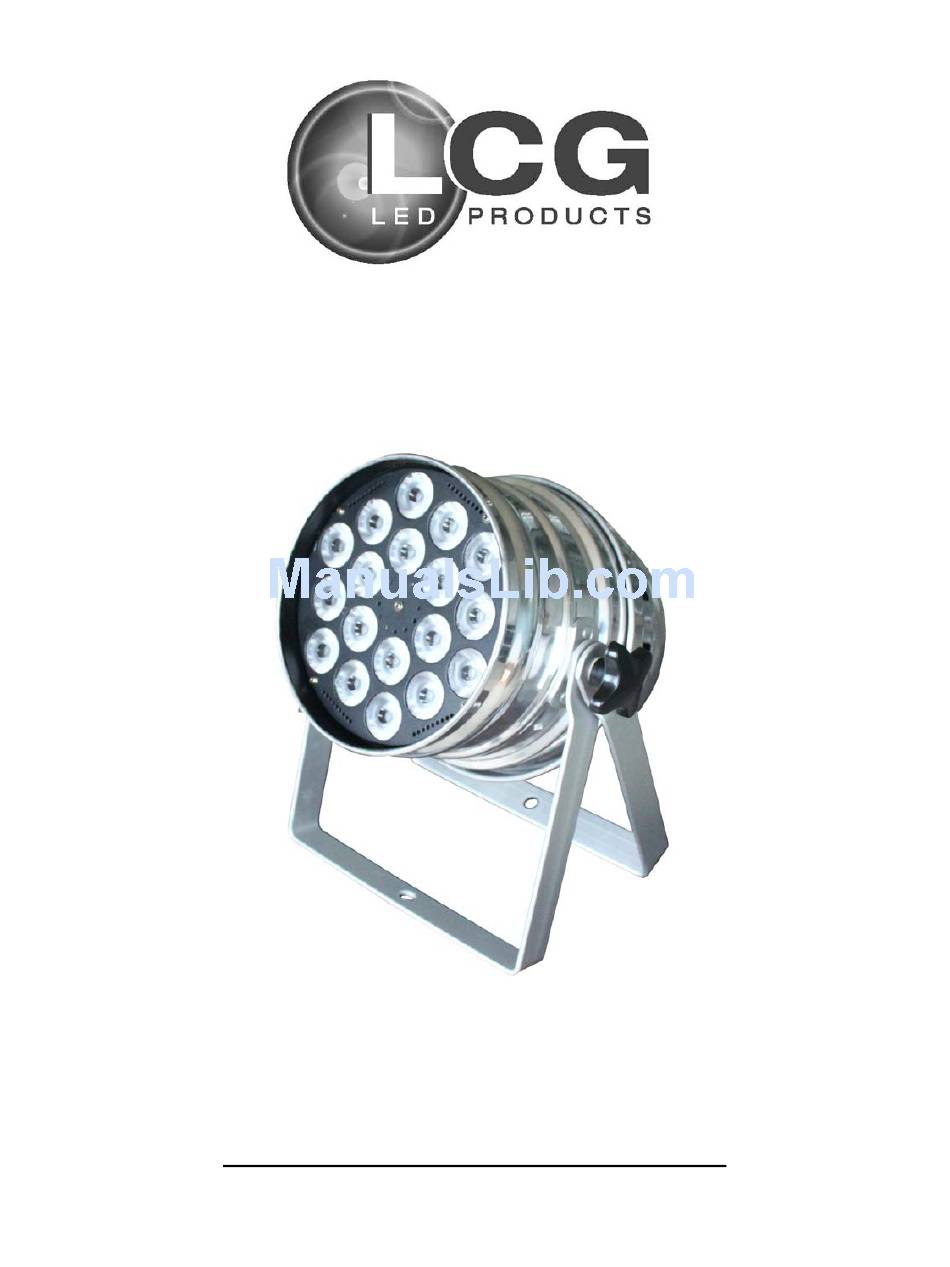

- Page 1 LED PAR 64-18-QUAD-COLOR LCG-079 User Manual Please read the instructions carefully before use...
-
Page 2: Safety Instructions
1. SAFETY INSTRUCTIONS: • Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. • Unpack and check carefully there is no transportation damage before using the fixture. -
Page 3: Technicals Specifications
3. TECHNICALS SPECIFICATIONS • Led: 18 x 8W QUAD RGBW • Each Led is 8W ( each color is 2W ) • Beam angle: 40° • Black and short housing • Dual yoke for floor mounting • Led display • 3 Pin XLR In and Out •... - Page 4 a. Press MODE button, Pr b. Press UP or DOWN button, select the effect program Pr-01-Pr.11. When LED display show Pr.01, press SETUP button enter edit the static color, press UP or DOWN button , can select 14 kinds of static colors built-in program (1.-r ;...
- Page 5 253-255 Warm White DMX MODE 2: 4 CHANNELS (4C-1) CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE 0-255 DIMMER DMX MODE 3: 4 CHANNELS (4C-2) CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE...
- Page 6 DMX MODE 4: 4 CHANNELS (4C-3) CHANNEL VALUE FUNCTION 0-255 DIMMER 0-255 0-255 GREEN 0-255 BLUE DMX MODE 5: 5 CHANNELS (5C-1) CHANNEL VALUE FUNCTION 0-255 0-255 GREEN 0-255 BLUE 0-255 WHITE 0-255 DIMMER DMX MODE 6: 5 CHANNELS (5C-2) CHANNEL VALUE FUNCTION...
-
Page 7: Master/Slave Mode
When CH7 is between 253- 255, it can ajust Adjust the sound sensitivity the sound 0-255 sensitivity 0-255 Green color dimming 0-255 0-255 Blue color dimming 0-255 Cool white color dimming 0- 0-255 NO FUNCTION 10-255 STROBE ( slow-fats) In CH2 can choose 43 kinds of 1-22 static color 23-45... -
Page 8: Sound Activated Mode
The effect program of the master light on Built-in program, auto run or sound active mode is the same with the slave light. 6. SOUND ACTIVATED MODE: A. Press MODE button ,enter sound active mode “SU.xx”. B. Press UP or DOWN button, setup the value sensitivity of sound active SU.00-SU.31... - Page 9 7. DMX512 CONNECTIONS: The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels. DMX 512 120 OHM 1/4W COMMON • 1 • 1 DMX + • • OUTPUT INPUT • 2 • 2 DMX - Termination reduces signal errors and to avoid signal transmission problems and interference.
-
Page 10: Troubleshooting
5. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+). Notice: A. If no any touch the button within 20 seconds, the LED display will be close, if touch any button at this time, the LED display will be recover the original status. All the button will be recover the function, B. - Page 11 • Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days.
