USA:
Mexico:
Manufactured under license by:
En Mexico Importado por:
Amax Incorporated
Stanley Bostitch
East Greenwich, RI 02818
S.A. de C.V. , Av. de los Angelos No. 303, Local 1-C
800.343.9329
Col. San Martin Xochinahuac, Delegacion Azcapotzalco, Mexico
D.F. CP 02120, R.F.C. SBO-861201-7Z5
Contenido 1 pieza
55.8563.8530
Stanley® is a registered trademark of The Stanley Works or its affiliates and used under license.
Bostitch® is a registered trademark of The Stanley Works or its affiliates and used under license.

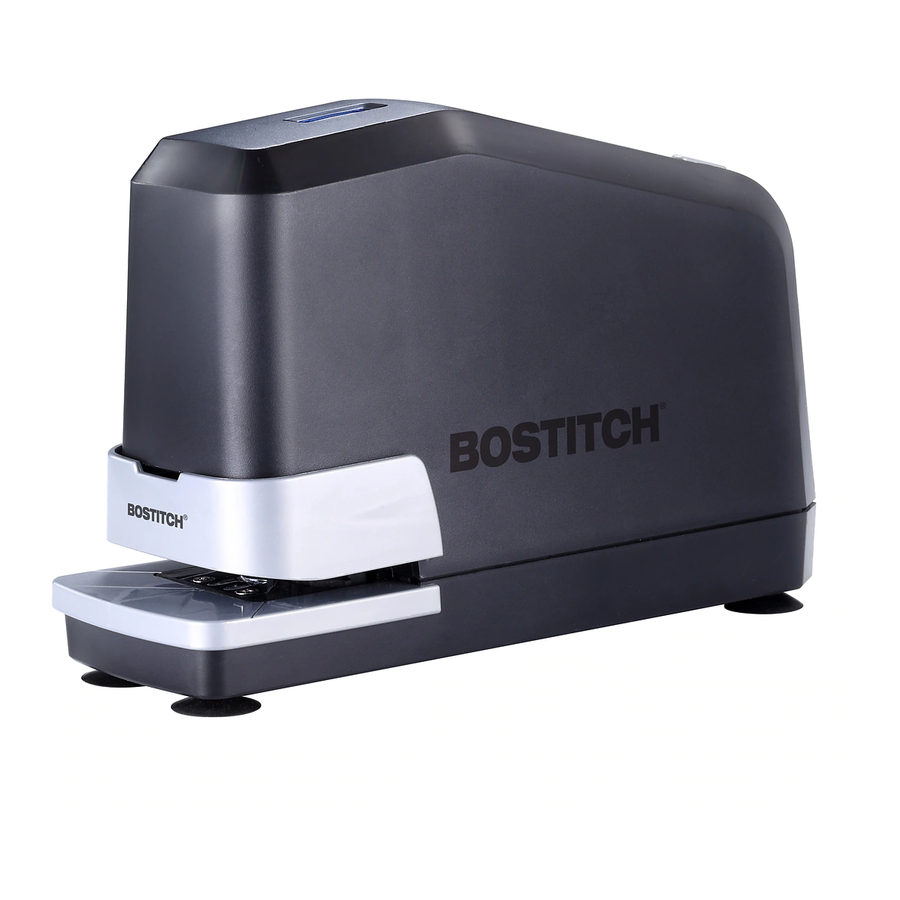

B8 Electric
Desktop
Stapler
Model B8E
UPC 0 77914 02953 3
Congratulations on
your purchase of this
premium quality
Electric Stapler.
With proper use and
care, this stapler will
serve you well for
many years.
IMPORTANT:
Please read these instructions
completely and carefully
before operating your new
electric stapler. Keep this
instruction sheet for future
reference.
Canada:
The Stanley Works
1170 Invicta Drive
Oakville, Ontario L6H 6G1
800.567.7705
BOSTITCH
Features:
• Low staple supply indicator light
to let you know when it is time to
reload staples.
• Super-sensitive optical trip for
sure fire accuracy
• High impact plastic housing.
• Easy push-button staple loading.
• Loads a full strip of 210
B8 staples. (STCRP2115 1/4 or
STCR2115 3/8)
• Maximum capacity 45 sheets
of 20 lb. bond paper.
Low Staple Supply Indicator Light
Magazine Release Button
Housing
Clincher
Spacer Bar
Staple Magazine/Magazine Extension
Specifications:
• Operating Voltage - 230V AC 50 Hz
• Operating Current - 2.0 AMPS
• Staple Size - B8 1/4", B8 3/8"
• Magazine Capacity - 220 Staples
• Stapling Capacity - 2 to 45 sheets
of 20 lb. bond paper
• Maximum Stapling Speed - 1 per
second
• Operation stapling rate-20 staples
per minute, operation continuity
after 30 minutes shall have 10
minutes rest, but not recommended
for daily continuous use in a
manufacturing or production
environment.
• Dimensions -
2-1/8"W x 4-7/8"H x 7-5/8"L
• Weight - 1lb. 8oz.
• Throat Depth - 1/2"
Important Note Before
Beginning:
This unit is to be used on 230V AC
outlets only.
Always unplug your stapler before
cleaning or attempting to clear a
staple jam.
The stapling capacity has been
designed to staple a maximum of
45 sheets of standard bond paper.
The optical sensor firing
mechanism may not actuate
when in direct sunlight.
Low Staple Supply
Indicator Light
This stapler is designed to indicate
when staple supply is low. (A red light
will come on at the top of the stapler
and will remain on until staples are
inserted and magazine is closes.)
Low Staple Supply Indicator Light
General Safety
Precautions for
Electric Stapler
• Do not operate electric stapler with
a damaged cord or plug, after
stapler malfunctions, or has been
damaged in any manner.
• Unplug unit from outlet before
cleaning or removing a staple jam.
Grasp plug, not the cord, when
disconnecting stapler from outlet.
• Do not allow electrical components
to get wet.
• Keep fingers, hair, jewelry, and
foreign objects, etc. away from
3. If staple magazine does not eject,
stapler opening.
check to insure driving element is
• Do not disassemble the stapler.
not down in magazine. If so, use
Should your stapler require
pen or similar object to disengage
servicing at any time, refer to
the driving element from magazine.
warranty.
4. Press magazine release button.
• This stapler is not intended for
Magazine should now eject.
heavy commercial use. Do not use
the stapler for stapling hard
materials like cardboard or heavy
plastic.
• This stapler will not operate with
transparent materials.
• Continues using 4 hours, the unit
needs to stop using 60 minutes.
• Please follow the safety precautions
7 Year Limited Warranty
for operation. Circumstances
U.S.A. and Canada Only
against safety precautions might
affect stapling function.
Do not operate stapler without
Effective December 1, 2005
inserting paper, and refrain from
Bostitch
®
L.P . warrants to the original
double stapling (stapling over a
retail purchaser that the product
staple).
purchased is free from defects in
material and workmanship, and
Stapling
agrees to repair or replace, at
Bostitch's option, any defective
1. Insert paper directly under
Stanley Bostitch
®
branded office
magazine.
product (7) years from date of
2. Be sure to cover staple clincher.
purchase. Warranty is not
3. When stapling 2-20 sheets of
transferable. Proof of purchase date
20 lb. Bond paper, keep dark gray
required. This warranty covers only
damage resulting from defects in
spacer bar in place.
material or workmanship; it does not
4. When stapling 20-45 sheets of
cover conditions or malfunctions
20 lb. Bond paper, remove spacer
resulting from normal wear, neglect,
bar from the magazine extension.
abuse, accident or repairs attempted
Spacer bar can be stored
or made by other than our national
under the B8E by
repair center or authorized warranty
snapping it into place
service centers. Driver blades,
on the hook
sharpener cutters, punch heads, and
in front of the
cutting discs are considered
UL label
normally wearing parts. You are
responsible for the costs of shipping
the defective product to Stanley
How to Load Staples:
Bostitch
®
or its designated repair
center. For optimal performance of
For best performance use Stanley-
your Stanley Bostitch
®
products,
Bostitch staples, model STCRP21151/4
always use genuine Stanley
®
or STCR21153/8
Bostitch
staples and replacement
parts.
1. Press the magazine release button.
The magazine extension will eject
outward.
NOTE: DO NOT press release
button with your face directly in
front of the stapler. It may result
THIS WARRANTY IS THE EXLCUSIVE
in injury.
WARRANTY OF BOSTITCH
AND IS IN LIEU OF ALL OTHER
EXPRESS WARRANTIES INCLUDING,
BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF
MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
2. Grasp the magazine extension
BOSTITCH
®
L.P . SHALL NOT BE
and pull forward to insure a full
strip of staples can be inserted.
LIABLE FOR ANY DIRECT, INDIRECT,
CAUTION: There may be staples
INCIDENTAL OR CONSEQUENTIAL
in magazine. Be sure they are in
DAMAGES.
position before adding new strip of
staples. Make sure staple strip is
Some states and countries do not
correctly inserted and properly
allow the exclusion or limitation of
seated before closing.
incidental or consequential
damages, so the above limitations or
Magazine
exclusions may not apply to you.
Extension
This warranty gives you specific legal
rights, and you may also have other
rights which vary from state to state
Magazine
and country to country.
3. Push the magazine back into the
housing until it is firmly locked in
For information on our warranty
position.
claim procedure please visit us at
NOTE: To prevent damage to the
www.BostitchOffice.com or contact
driver element, the magazine must
us at 1-800-343-9329.
be completely pushed back and
In Canada, please contact us
locked before stapling.
at 1-800-567-7705.
If Stapler Jams
All staplers can jam from time to time.
To clear a jam, follow these 4 easy
steps:
1. Remove AC plug from the outlet
before removing jammed staples.
2. Press magazine release button.
Magazine should eject.
®
L.P .,
