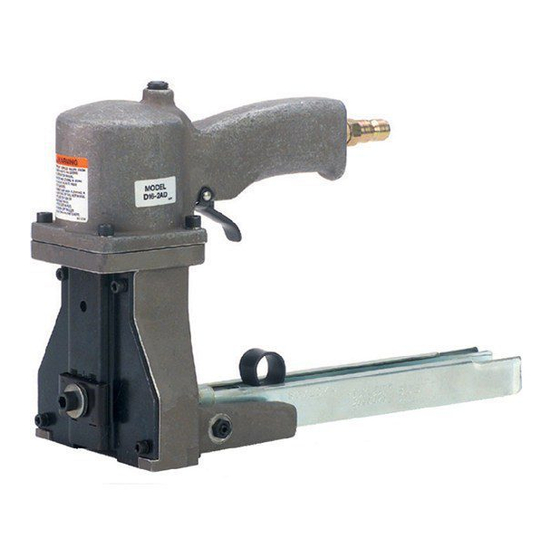

Bostitch D16-2AD Operation And Maintenance Manual

Bostitch D16-2AD Operation And Maintenance Manual

Boxlok stapler, staple sizes: sw7437 7/16, sw7437 5/8, sw7437 3/4, sw9040 5/8, sw9040 3/4, sw9040 7/8

Advertisement

Quick Links

STAPLE SIZES:
OPERATION and MAINTENANCE MANUAL
BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO UNDERSTAND
AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH
THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR BOSTITCH
REPRESENTATIVE OR DISTRIBUTOR.
DO NOT USE SUPPLY SOURCES WHICH CAN POTENTIALLY EXCEED 80 PSIG (5.7 KG/CM2) AS TOOL
MAY BURST, POSSIBLY CAUSING INJURY.
WHEN AIR SUPPLY .IS CONNECTED KEEP HANDS AND BODY AWAY FROM STAPLE DISCHARGE AREA
AT ALL TIMES. DO NOT FIRE THE TOOL WITHOUT STAPLING INTO MATERIAL.
THE CONNECTOR ON THE TOOL MUST NOT HOLD PRESSURE WHEN AIR SUPPLY IS
DISCONNECTED. IF A WRONG FITTING IS USED, THE TOOL CAN REMAIN CHARGED WITH AIR
AFTER DISCONNECTING AND THUS WILL BE ABLE TO DRIVE A STAPLE EVEN AFTER THE AIR LINE
IS DISCONNECTED POSSIBLY CAUSING INJURY.
DO NOT PULL TRIGGER OR DEPRESS CONTACT ARM WHILE CONNECTED TO THE AIR SUPPLY AS
THE TOOL MAY CYCLE, POSSIBLY CAUSING INJURY.
DO NOT USE OXYGEN, COMBUSTIBLE GASES, OR BOTTLED GASES AS A POWER SOURCE FOR THIS
TOOL AS TOOL MAY EXPLODE, POSSIBLY CAUSING INJURY.
FAILURE TO OBSERVE ANY OF THESE WARNINGS MAY RESULT IN INJURY.
BSA981SREVE 9/03
D16-2AD
BOXLOK STAPLER
SW7437 7/16
SW9040 5/8
Stanley Fastening Systems
SW7437 5/8
SW9040 3/4
SW7437 3/4
SW9040 7/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D16-2AD and is the answer not in the manual?

Questions and answers

Summary of Contents for Bostitch D16-2AD

  • Page 1 BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR BOSTITCH REPRESENTATIVE OR DISTRIBUTOR. DO NOT USE SUPPLY SOURCES WHICH CAN POTENTIALLY EXCEED 80 PSIG (5.7 KG/CM2) AS TOOL MAY BURST, POSSIBLY CAUSING INJURY.
  • Page 2 AIR SUPPLY AND CONNECTION Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury. Do not use supply sources which can potentially exceed 80 P.S.I.G. (5.6 kg/cm ) as tool may burst, possibly causing injury.
  • Page 3 Frequent, but not excessive, lubrication is required for best performance. Oil added through the air line connection will lubricate the internal parts. Use BOSTITCH Air Tool Lubricant, Mobil Velocite #10, or equivalent. Do not use detergent oil or additives as these lubricants will cause accelerated wear to the seals and bumpers in the tool, resulting in poor tool performance and frequent tool maintenance.
  • Page 4 1. Apply LOCTITE 242 to screw thread before assembling hanger to tool. 2. Use a swivel type hook on the counterbalance used to suspend this tool. VALVE ASSEMBLY D60064A SEE VIEW “A” VIEW “A” ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 121830 Cylinder...
  • Page 5 PREVENT DAMAGE MERCHANDISE. D16124 CLINCHERS MAY ALSO NOTE: The D16-2AD is equipped with a driver to BE USED FOR STAPLING THROUGH SINGLE countersink the crown of the staple below the surface of WALL BOARD PROVIDED A FILLER IS USED TO the box.
  • Page 6: Driver Replacement

    CLINCHER REPLACEMENT: Always disconnect air supply: 1.) Before making adjustments; 2.) When servicing the tool; 3.) When clearing a jam; 4.) When tool is not in use; 5.) When moving to a different work area, as accidental actuation may occur, possibly causing injury.
