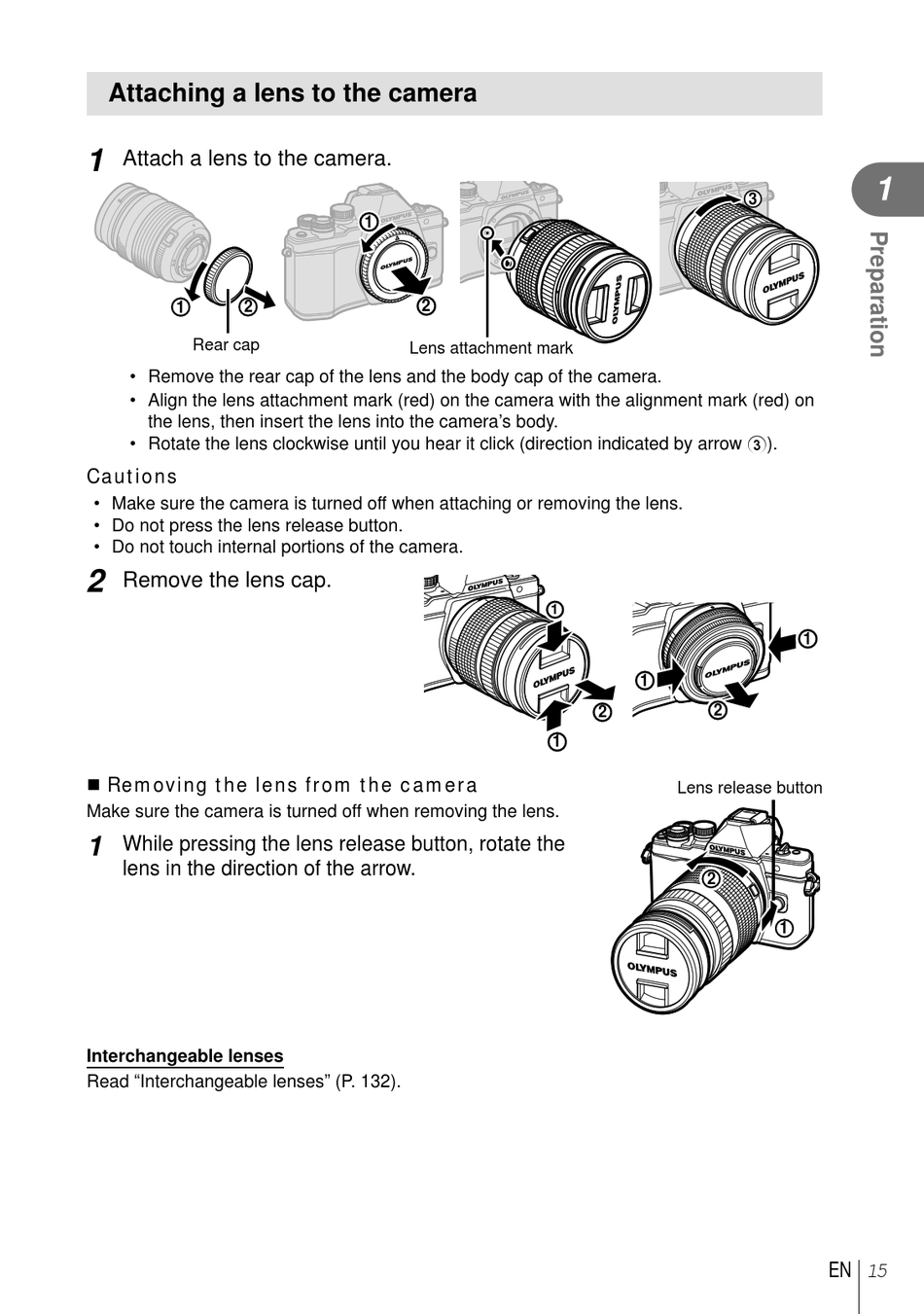

Attaching a lens to the camera

1
Attach a lens to the camera.
2
1
Rear cap
• Remove the rear cap of the lens and the body cap of the camera.
• Align the lens attachment mark (red) on the camera with the alignment mark (red) on
the lens, then insert the lens into the camera's body.
• Rotate the lens clockwise until you hear it click (direction indicated by arrow 3 ).
Cautions
• Make sure the camera is turned off when attaching or removing the lens.
• Do not press the lens release button.
• Do not touch internal portions of the camera.
2
Remove the lens cap.
  Removing the lens from the camera
Make sure the camera is turned off when removing the lens.
1
While pressing the lens release button, rotate the
lens in the direction of the arrow.
Interchangeable lenses
Read "Interchangeable lenses" (P. 132) .
1
2
Lens attachment mark
1
1
2
2
1
Lens release button
2
1
3
1
1
EN 15
