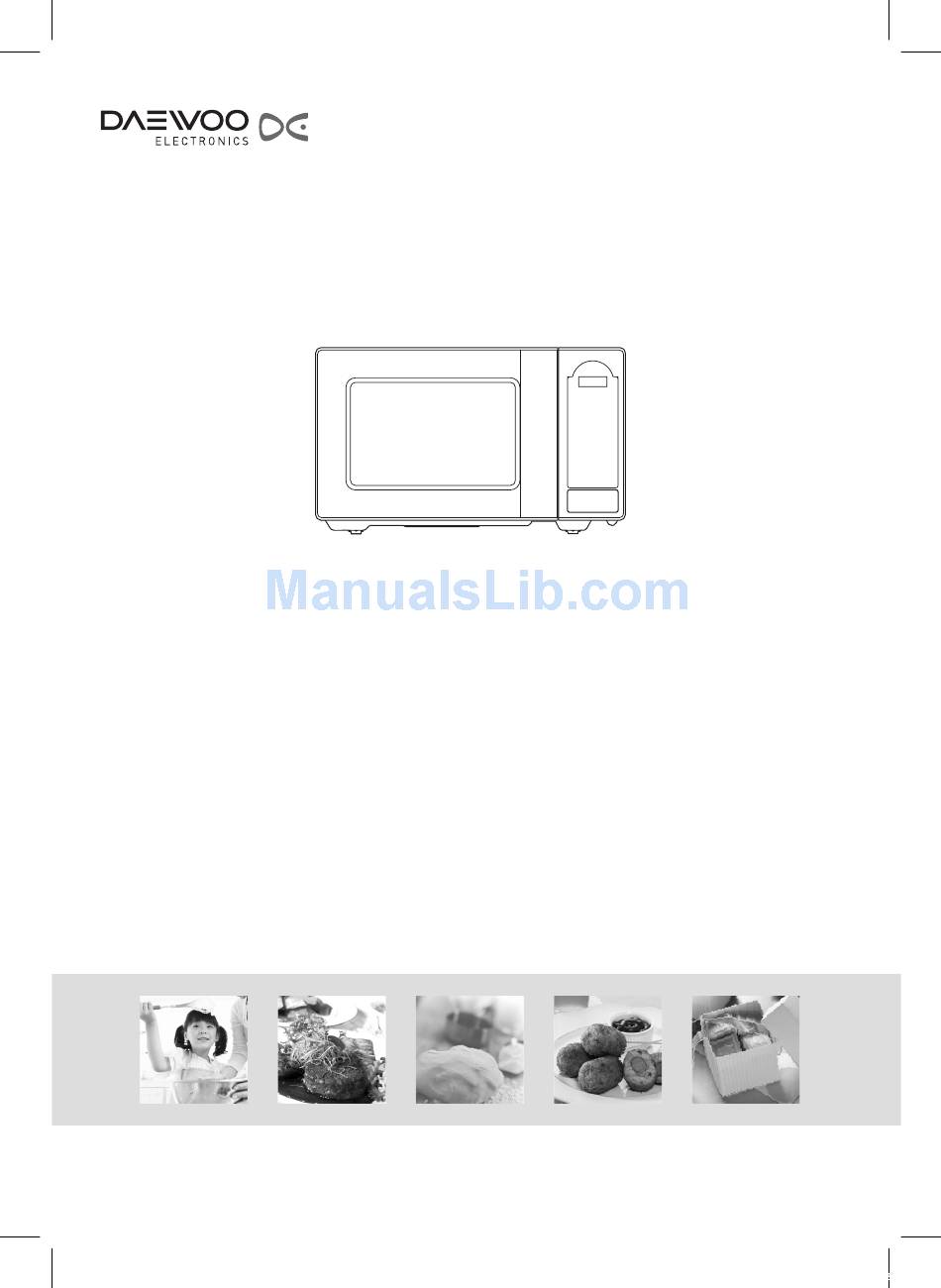

Page 1: Microwave Oven
MODEL NO. KOG-6L7B MICROWAVE OVEN USER MANUAL DESUK_KOG-6L7B_KQG-6L7B5S(영).indd 2 15. 3. 17. 오후 4:22... - Page 2 How to unbox / install / maintain microwave - http://www.youtube.com/watch?v=UdbpMO7VG0w Customer Helpline Number : 0844 887 2525 Spare Parts : 0844 557 0270 or www.4daewoo.co.uk / DAEWOO ELECTRONICS Web Site www.daewooelectronics.co.uk DESUK_KOG-6L7B_KQG-6L7B5S(영).indd 3 15. 3. 17. 오후 4:22...
-
Page 3: Table Of Contents
Table of contents About your microwave Introduction ..........................03 Before first use ........................04 Features diagram ........................05 Control panel ..........................06 Operation procedure before operation ................07 Controls Setting the clock ........................08 Weight defrosting ........................09 Time defrosting ........................09 Cooking in one stage ......................10 Cooking in two stage ......................10 Grill cooking ..........................11 Combi cooking ........................11 +30 Sec ............................12... -
Page 4: About Your Microwave
About Your Microwave » I NTRODUCTION You have chosen a Daewoo Microwave Oven. Daewoo offers a variety of quality products that would make your life more comfortable. This microwave oven combines the properties of a microwave with those of a traditional oven. -
Page 5: Before First Use
About Your Microwave »B efore first use • Put the microwave on a solid, flat surface. • Ensure that there is adequate ventilation around the microwave. Keep 30 cm of space free at the top. At the back and sides, keep at least 7.5 cm free. -
Page 6: Features Diagram
About Your Microwave »F eatures diagram 1. Door latch - If the door is opened while the oven is operating, the magnetron will automatically shut off. 2. Door seal - The door seal surfaces prevent microwaves escaping from the oven cavity. 3. -
Page 7: Control Panel
About Your Microwave »C ontrol panel 1 Display - Cooking time, power level, indicators and the current time are displayed. 2 Auto Cook - Used to cook or reheat many of favorite food. 3 Grill - Use to cook Grill. 4 Combi - Use to cook Combi. -
Page 8: Operation Procedure Before Operation
»O peration procedure This section includes useful information about oven operation. a. Plug power supply cord into a 230V 50Hz power outlet. b. After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray and roller guide must always be in place during cooking. -
Page 9: Controls
CONTROLS »S etting the clock When the oven is first plugged in, the display will flash “:0”. If the AC power ever goes off, the display shows “:0” when the power comes back on. 1. Touch the CLOCK pad. This is a 12 hour clock system. 2. -
Page 10: Weight Defrosting
»W eight defrosting When DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating defrost and stand times by cycling on and off. 1. Touch the DEFROST pad. This is the The display will show you " 0" . weight defrosting mode. -
Page 11: Cooking In One Stage
CONTROLS »C ooking in one stage The display will show what you touched 1. Touch the POWER pad. (Select the desired power level.) The display will show what you touched 2. Touch the TIME SET pads for the cooking time. 3. -
Page 12: Grill Cooking
»G rill Cooking This function allows you to brown food quickly. The heating element is located in the top of the oven. There is no pre-heating the oven for grill cooking. Place food inside the oven when setting the controls. 1. -
Page 13: 30 Sec
CONTROLS »+ 30 sec +30 sec allows you to reheat for 30 seconds at 100% (full power) by simply touching the +30 sec pad. By repeatedly touching the +30 sec pad, you can also extend reheating time to 5 minutes by 30 second increments. 1. -
Page 14: One Touch Cooking
»O ne touch cooking One touch cooking allows you to cook or reheat many of your favorite foods by touching just one pad. To increase quantity, touch the chosen pad until the number in the display is same as desired quantity to cook. 1. -
Page 15: Child Safety Lock
CONTROLS »C hild safety lock The safety lock prevents unwanted oven operation such as by small children. To set, touch and hold the STOP/CLEAR pad for 3 seconds. To cancel, touch and hold the STOP/CLEAR pad for 3 seconds. »H ow to stop the oven while the oven is operating 1. -
Page 16: Operation
OPERATION »C are of your microwave oven The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. - Page 17 OPERATION »B efore you call for service Refer to following checklist, you may prevent an unnecessary service call. * The oven doesn't work : 1. Check that the power cord is securely plugged in. 2. Check that the door is firmly closed. 3.
- Page 18 »C ooking instructions Utensil Guide Only use utensils that are suitable for use in microwave ovens. To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the utensil is marked microwave-safe, you do not need to worry.
- Page 19 OPERATION »M ICROWAVING PRINCIPLES Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources. Manmade sources include radar, radio, television, telecommunication links and car phones.
- Page 20 »C OOKING TECHNIQUES STANDING TIME STARTING TEMPERATURE Dense foods e.g. meat, jacket potatoes and cakes, require standing The colder the food, the longer it takes to heat up. Food from a fridge time(inside or outside of the oven) after cooking, to allow heat to takes longer to reheat than food at room temperature.
- Page 21 OPERATION »D EFROSTING GUIDE ▶ Do not defrost covered meat. Covering might allow cooking to ▶ When defrosted, food should be cool, but softened in all areas. If take place. Always remove outer wrap and tray. Use only still slightly icy, return to microwave oven very briefly, or let stand containers that are microwave-safe.
- Page 22 »D EFROSTING GUIDE Cooking chart Cooking Time Per Item Power Level Special Instruction lb./450g MEAT - Chilled meat and poultry should be Beef joint -Rare P-80 8-10 min. removed from the refrigerator at least -Medium P-80 9-11min. 30 minutes before cooking. - Always let the meat and poultry stand, -well done P-80...
- Page 23 OPERATION »C OOKING & REHEATING CHART Reheating chart • Baby food particularly needs to be checked carefully before serving to prevent burns. • When heating pre-packaged ready-cooked foods, always follow the pack instructions carefully. • If you freeze foods which were bought from the fresh or chilled counters, remember that they should be thoroughly thawed before following the heating instructions on the packet.
- Page 24 »V EGETABLE CHART Use a suitable glass pyrex bowl with lid. Add 30-45ml cold water(2-3 tbsp.) for every 250g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.
-
Page 25: Safety
SAFETY »U SE YOUR MICROWAVE OVEN SAFELY General Use • Do not attempt to defeat or tamper with safety interlocks. • Do not place any object between the oven front frame and the door or allow residue to build up on sealing surfaces. Wipe with a mild detergent, rinse and dry. - Page 26 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. WARNING : To prevent fire, burns, electric shock and other warnings: Listed below are, as with all appliances, certain rules to follow and safeguards to assure high performance from this oven: 1.
- Page 27 Safety 13. The contents of feeding bottles and To reduce the risk of injury to persons: baby food jars shall be stirred or shaken a) Do not overheat the liquid. and the temperature checked before b) Stir the liquid both before and halfway consumption, in order to avoid burns.
- Page 28 »E lectrical Connection WARNING-THIS APPLIANCE MUST BE EARTHED. REFER TO RATING PLATE FOR VOLTAGE AND CHECK THAT If you do not make the proper electrical connections you will THE APPLIANCE VOLTAGE CORRESPONDS WITH THE SUPPLY damage your microwave oven and possibly injure yourself. VOLTAGE IN YOUR HOME.
- Page 29 Cleaning • The oven must always be clean. Residue rub down with a damp cloth. of food from spillovers or spatters will • Check the door closure and the door attract microwave energy causing it to rubber regularly for damage. Do not use burn on.
- Page 30 Trouble Shooting If you are uncertain about whether your appliance is working properly, this does ▶ not automatically mean there is a defect. Try to deal with the problem yourself first by checking the points mentioned below: If the recommendations below do not solve your problem, call our customer service department.
-
Page 31: Question And Answer
Question And Answer Q: Can I run the microwave empty? Q : Why is standing time recommended after the A: No. Do not operate the microwave empty. This will damage cooking operation has been completed? it. If the microwave is operated empty, the excess energy A : Standing time is very important. -
Page 32: Technical Data
Technical Data »S pecifications Power supply 230V AC, 50Hz SINGLE PHASE WITH EARTHING INPUT POWER 1200 W Microwave ENERGY OUTPUT 800 W FREQUENCY 2,450MHz OUTSIDE DIMENSIONS (W x H x D) 446 x 270 x 319 mm CAVITY DIMENSIONS (W x H x D) 295 x 210 x 303 mm NET WEIGHT APPROX. -
Page 33: Environmental Information
Environmental Information »D isposal of used electrical & electronic equipment The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical &... -
Page 34: Recipe
Daewoo Electronics Guarantee Conditions Daewoo Electronics products are guaranteed for 12 or 24 months from the date of original purchase as follows:- American style side by side fridge freezer 24 months* Combination frost free fridge freezer 24 months* Undercounter and tabletop fridges and freezers...
