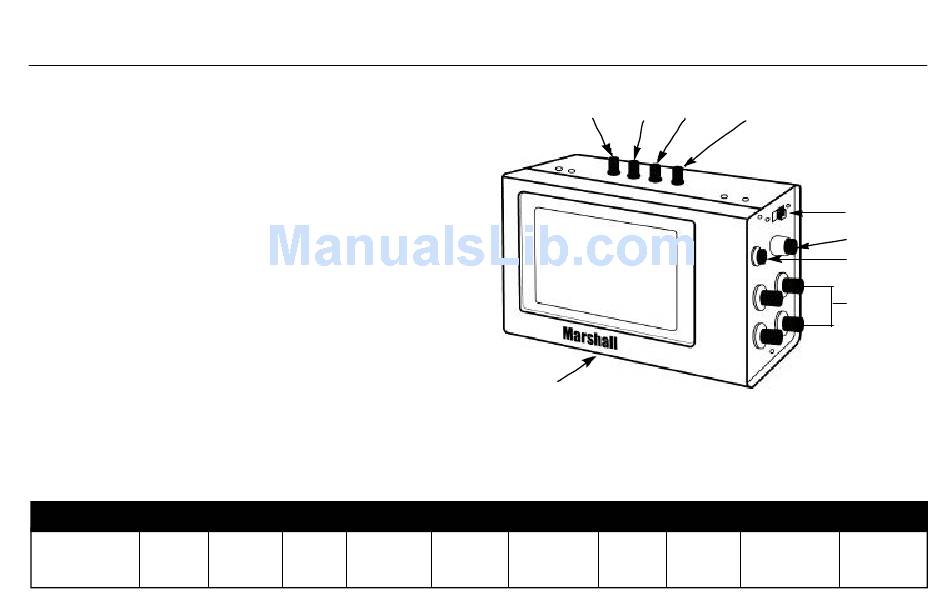

Marshall Amplification Monitor V-LCD4-PRO-L Specification

Marshall
To operate unit, insert the power plug (Marshall V-
PS12-500) into the power jack (center pin is +12VDC)
located on the side of the monitor. Turn the unit on by
pushing the power button in. The unit is turned off by
depressing the power button. The unit is equipped with
NTSC/PAL auto recognition logic. Simply supply a
NTSC or PAL composite video signal to either of the
two video BNC connectors labeled 'IN'. Select the
active BNC input by using the selector switch. Adjust
the picture by using the control knobs on the top of the
unit.
The V-LCD4-PRO-L is equipped with an active loop-
through circuit. This loop-through will only work
when power is supplied to the monitor. The monitor also has a 1/4-20 mount located on the
bottom of the unit. This is useful when mounting the monitor on the top of a camera by using a
hot shoe mount (Marshall part# V-LCD-MT) or other mounting devices.
Part No. Display
4" LCD
V-LCD4-PRO-L Active
Matrix
Input Color Picture
Full
2 NTSC/PAL
480H x
Inputs with
Color
234V
Loopthrough
Contrast
1/4" 20 mount
Pitch Controls Back
0.171W x Power On/Off,
300 nits
Color,Brightness
0.264H
Tint, Contrast
V-LCD4-PRO-L
Tint Color Brightness
Supply Connectors
Video BNC,
12 VDC,
5.5mm DC
500mA
power jack
Selector Switch
Power On/Off
Power In 12VDC
BNC Inputs and
Outputs
Size
5.51W x
3.62"H x
1.81"D
