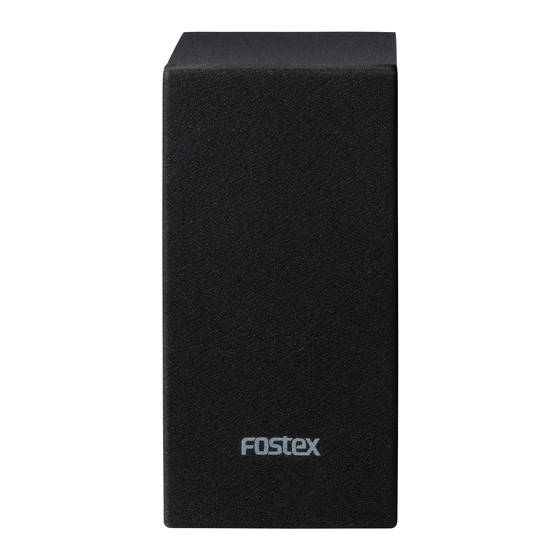

Personal Active Speaker System
PM0.1
Owner's Manual
Thank you very much for purchasing a Fostex
product.
This manual provides instructions for basic use
of the unit.
Read this before using the unit for the fi rst time.
„ Features of the PM0.1
„
• Easy-to-carry lightweight and compact design
• Comfortable desktop listening environment through appropriate inclination
• Natural sound space reproduced by wooden cabinets
• Excellent reproduction by full-range speakers
• Firm bass sound enabled by boost magnets even at low volume
• Stand-by function to reduce unnecessary power consumption
„ Specifi cations
„
Speakers
Rated output
Audio inputs
Frequency response
S/N ratio
External dimensions
Weight
Power consumption
AC adapter
Accessories
5.5 cm (2.2 inch) full-range unit 8 Ω
5 W + 5 W
RCA pin jack × 2
80 Hz - 35 kHz
78 dB A–Weighted
86 mm (W) × 175 mm (H) × 120 mm (D)
approx. 1.7 kg
5 W
Input: 100 V to 240 V, 50 Hz/60 Hz
Output: DC 12.0 V, 1.5 A
Owner's Manual (this book) × 1
Safety information sheet × 1
AC adapter × 1
Speaker cable (mini plug - mini plug) × 1
Audio cable (RCA × 2 – stereo mini plug) × 1
© FOSTEX COMPANY All Right Reserved
8588127001
(590303)
Advertisement
Related Manuals for Fostex PM0.1
Summary of Contents for Fostex PM0.1
-
Page 1: Specifi Cations
8588127001 (590303) Personal Active Speaker System PM0.1 Owner's Manual Thank you very much for purchasing a Fostex product. This manual provides instructions for basic use of the unit. Read this before using the unit for the fi rst time. © FOSTEX COMPANY All Right Reserved „... -
Page 2: Warnings And Precautions
„ WARNINGS and PRECAUTIONS „ • • CAUTION: TO•PREVENT•ELECTRIC•SHOCK,•MATCH•WIDE•BLADE•OF•PLUG•TO• • • WARNING: Do•not•install•this•equipment•in•a•confined•space•such•as•a•book• WIDE•SLOT,•FULLY•INSERT. case•or•similar•unit. ATTENTION: POUR•PREVENIR•LES•CHOCS•ELECTRIQUES,•APAR•DE•LA•FENTE• AVIS: Ne•pas•installer•cet•équipement•dans•un•espace•confiné•comme•une• LARGE,•FOND. bibliothèque•ou•une•unité•similaire. • • WARNING:•To•reduce•the•risk•of•fire•or•electric•shock,•do•not•expose•this• • • WARNING: Mains•plug•is•used•as•disconnect•device•and•it•should•remain• apparatus•to•rain•or•moisture. readily•operable•during•intended•use.•In•order•to•disconnect•the•apparatus• AVIS: Pour•réduire•le•risque•d’incendie•ou•de•choc•électrique,•ne•pas•exposer• from•the•mains•completely,•the•mains•plug•should•be•disconnected•from•the• cet•appareil•sous•la•pluie•et•l’humidité. mains•socket•outlet•completely. • • CAUTION: Use•of•any•controls•or•adjustments•or•performance•of•procedures• AVIS: La•prise•du•secteur•est•utilisé•pour•déconnecter•le•système.•La•prise•du• other•than•those•herein•specified•may•result•in•hazardous•radiation•exposure. - Page 3 • The power must be off when you make connections. Headphone output or line output of your computer Active speaker Passive speaker Audio cable (supplied) PM0.1 Personal Active Speaker System VOLUME Headphone output of your portable audio MAX. player INPUT...
-
Page 4: Declaration Of Ec Directive
In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by generation of noise in some cases. FOSTEX DISTRIBUTORS LIST IN EUROPE * Including non-EU countries (as of Jan. 2014) Austria...
