Summary of Contents for Fostex PM-2 MKII

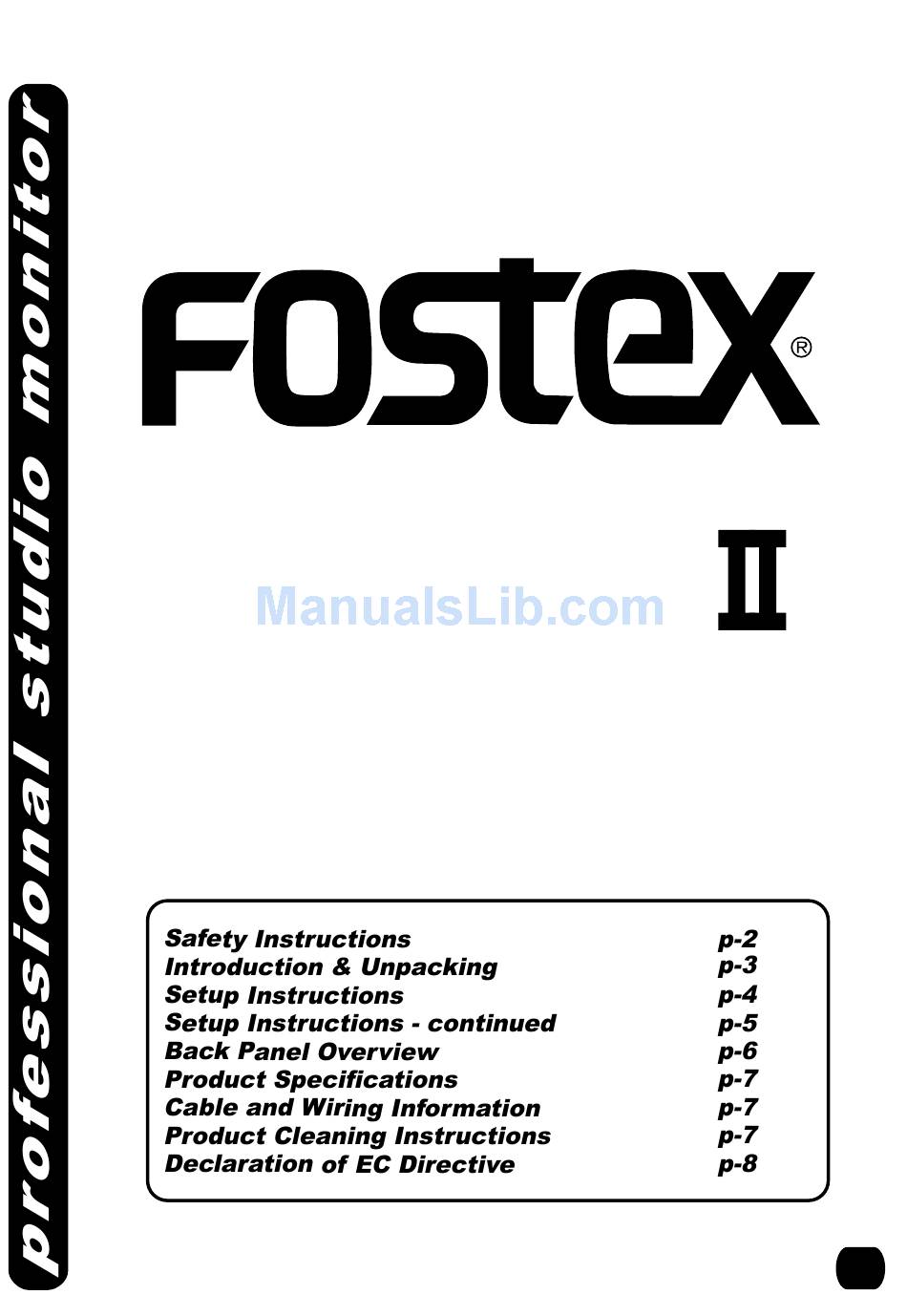

- Page 1 PM-2MK - Reference Manual -...
-
Page 2: Safety Instructions
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "WARNING" "TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE,"... - Page 3 Once it has been determined that the packing material has not been compromised, carefully unpack the PM-2 MK damage. Fostex takes great care in designing packing materials that will survive most expected impacts during shipping. If any damage is discovered during the inspection process, contact your Fostex dealer so that this issue can immediately be addressed.
-
Page 4: Setup Instructions
If it is not possible to mount the monitors vertically, then the monitors should be placed with the woofers inside and the monitors "toed-in"... - Page 5 Setup Instructions continued Once the studio monitors have been placed in their final location, it is time to proceed to connecting your PM-2 MKⅡ studio monitors to the mixing console or digital workstation. Connection to the PM-2 MKⅡ can be made using XLR or TRS connectors. The gain control on the back of the monitor allows continuously variable adjustments to match most input types from -10dBV to +4dBu.
-

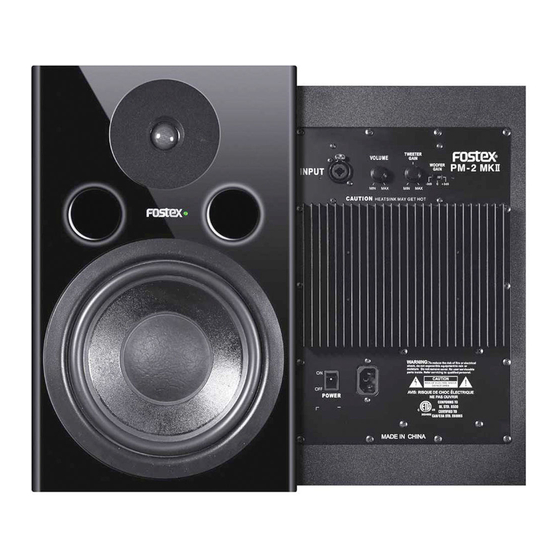

Page 6: Back Panel Overview
1. XLR & TRS Combination Input This input is an electronically balanced input and is compatible with both -10dBV and +4dBu signals. 2. Continuously variable gain control This control adjusts the input level to the internal amplifiers. 3. Heatsink The heatsink dissipates heat from the amplifier. It is important the heatsink receives proper ventilation and is not placed near any sources of heat. -
Page 7: Product Specifications
Cabinet Dimensions 254mm (W) × 411mm (H) × 300mm (D) includes heatsink 271mm (D) cabinet only - no heatsink 10" (W) × 16 1/8" (H) × 11 4/5" (D) includes heatsink 10 3/5" (D) cabinet only - no heatsink Net Weight 14 Kg 32.4 Pounds Gross Weight Per pair (includes all packing material) -
Page 8: Declaration Of Ec Directive
In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by generation of noise in some cases. FOSTEX DISTRIBUTORS LIST IN EUROPE <AUSTRIA> NAME: ATEC Audio-u.Videogeraete VertriebsgesmbH.
