Page 1: User Manual
USER MANUAL B SERIES File: R-B-043-04-09 B42_0 GB... -
Page 2: Table Of Contents
USER MANUAL _____________________________________________________________________________________________________________________ Contents: 1. General description....................... 3 2. Completeness ....................... 3 3. Technical data....................... 4 4. Keys and indicators....................... 5 5. Security rules ........................ 6 6. Environment protection ....................6 7. Preparation ........................7 8. Start-up ......................... 8 9. General rules ........................ 9 Balance checking .................... -
Page 3: General Description
B series platform scales are destined for general use. All scales are metrologically tested - calibration or legal verification on demand. B series scales are made in two main versions: with LED display (basic) and with LCD display (option). Standard indicator may be changed by indicator with additional keys – see appendix B. -
Page 4: Technical Data
USER MANUAL _____________________________________________________________________________________________________________________ 3. Technical data Scale type B15W B120 B150 B200 B300 Maximum loading 15kg 30kg 60kg 120kg 150kg 200kg 300kg Minimum loading 100g 200g 400g Reading unit (d) 100g *10g *10g *10g *10g *10g Verification unit (e) 100g Accuracy class Working temperature -10 ÷... -

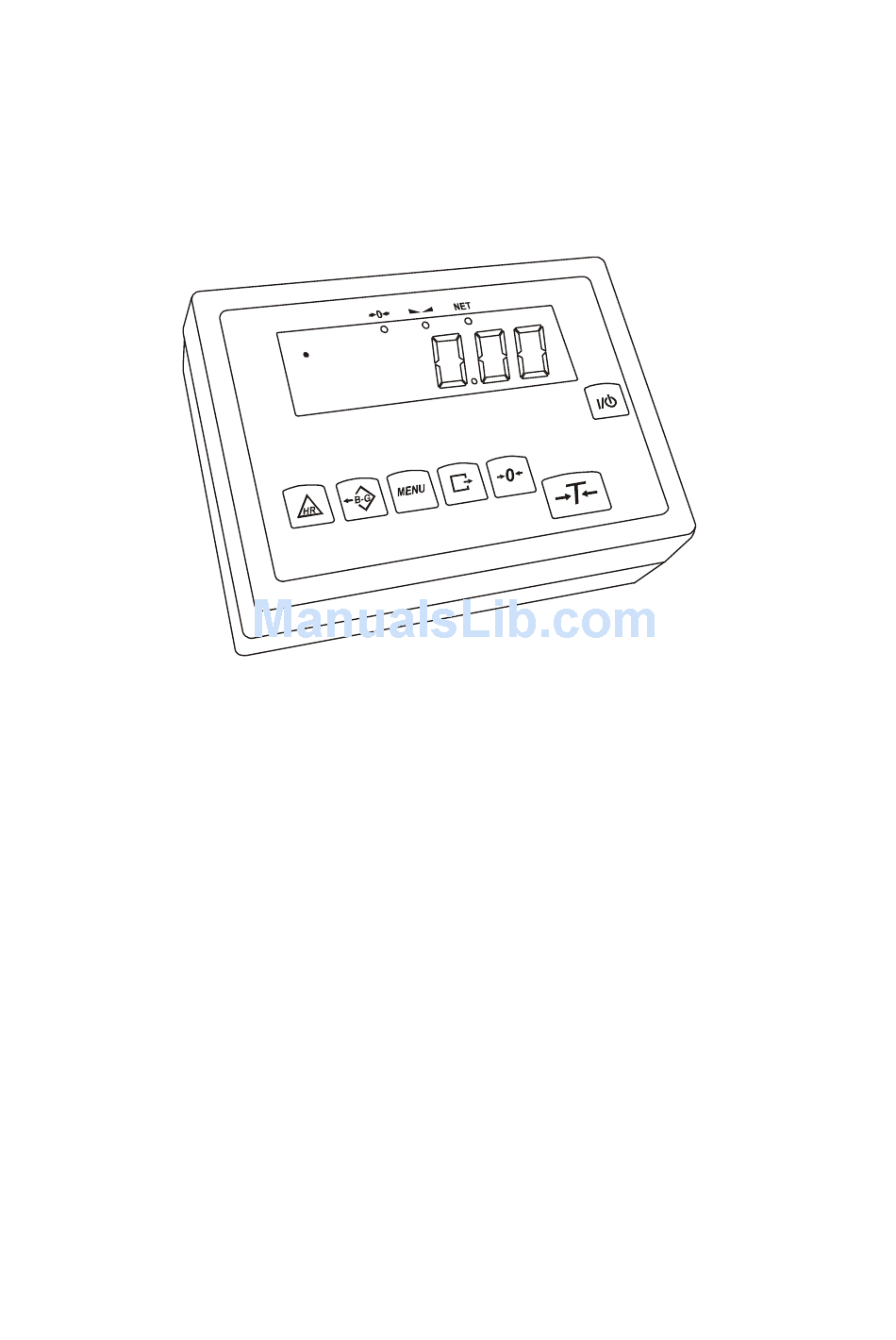

Page 5: Keys And Indicators
USER MANUAL _____________________________________________________________________________________________________________________ 4. Keys and indicators metrological data - switch-on / switch-off (standby), - tare (subtract package weight from weighed mass), → ← - zeroing (when the platform is empty), → ← - result printout, MENU - special function menu, - gross, - high resolution, indicator... -
Page 6: Security Rules
USER MANUAL _____________________________________________________________________________________________________________________ 5. Security rules To avoid electrical shock or damage of the scale or connected peripheral devices, it is necessary to follow the security rules below. • All repairs and necessary regulations can be made by authorised personnel only. -
Page 7: Preparation
USER MANUAL _____________________________________________________________________________________________________________________ 7. Preparation 1. Take the scale out of the package removing protective foils. 2. Take a pan off and remove protective elements from below the pan. 3. Place the scale on a stable ground not affected by mechanical vibrations and airflows. -
Page 8: Start-Up
USER MANUAL _____________________________________________________________________________________________________________________ 8. Start-up Leave the pan empty, plug a scale to the mains with a ground contact The scale proceeds with following start-up actions: Display test. Basic electronic components tests: C1, C-2, ... C-6. Program version. The scale is now ready to work. -
Page 9: General Rules
USER MANUAL _____________________________________________________________________________________________________________________ 9. General rules 1. Before each measurement make sure that zero indicator is displayed. If zero indicator does not displayed or “----“ communicate appears, press →0← key and wait until zero indication and zero indicator appears. 2. The scale is equipped with a tare equal to its range. To tare the scale press →T←... - Page 10 USER MANUAL _____________________________________________________________________________________________________________________ After discharge signalising appears an accumulator should be charged as quickly as possible by connecting external feeder. Charging is more effective when scale is turned off with I/ key, then charging time is about 10 hours. It is also possible to connect accumulator directly to PA6V charger leaving accumulator in a scale or take it out if needed.
-
Page 11: Balance Checking
(optional) used for example for Input continuous weighing result transmission to an additional, external display. Output When cooperating with scale, Case a computer should be equipped with a program which enables processing data from the scale – available in AXIS with extra charge. - Page 12 USER MANUAL _____________________________________________________________________________________________________________________ Computer cooperation protocol: A scale sends data with following settings: Communication parameters: 8 bits, 1 stop bit, no parity, baud rate 4800bps. Available orders and scale responses: initialising signal (data send order): Computer→Scale: S I CR LF (53h 49h 0Dh 0Ah), Scale→Computer: scale response according to description below (16 bytes), Description of response bytes: Byte...
- Page 13 USER MANUAL _____________________________________________________________________________________________________________________ scale display, Scale →Computer: without response, Example: ⋅ in order to set low threshold 1000g in scale B1.5 (d=0.5g) the following order should be sent: S L 1 0 0 0 . 0 CR LF (53h 4Ch 31h 30h 30h 30h 2Eh 30h 0Dh 0Ah), ⋅...
-
Page 14: Special Functions Description
USER MANUAL _____________________________________________________________________________________________________________________ 13. Special functions description All scales, beside basic functions like weighing and tare, are equipped with the set of additional functions. Basic set of user special functions consists of: - autozero (AUt), - pieces counting (PCS), - constant tare (tAr), - serial port working mode setting (LPt), - serial port parameters setting (rS), - menu customisation (ACt). -
Page 15: Normal Weighing
USER MANUAL _____________________________________________________________________________________________________________________ 14. Normal weighing →0← key, which zeros the scale, 0.00 operates only when the pan is empty. Weighing result should be read when the indicator " " lights. 2.30 15. Weighing with tare The scale is equipped with tare equal to its range. -
Page 16: Autozero (F
USER MANUAL _____________________________________________________________________________________________________________________ 17. Autozero (F..-AUt) When F..-Aut function is activated, the scale automatically ensures stable 0.01 zero indication if the pan is empty or if zero indication was acquired by pressing → ← key. F .. -AUT To leave the function press MENU →... -
Page 17: Funkcja Liczenia Sztuk (F
USER MANUAL _____________________________________________________________________________________________________________________ 18. Pieces counting (F..-PCS) This function enables to count identical pieces, e.g. turnbuckles or 0.00 buttons. A measurement is performed in two phases: - first phase - single piece weight calculation on the basis of defined 23.40 pieces amount (5, 10, 20, 50, 100, 200 or 500 pieces), - second phase –... -
Page 18: Printer Cooperation Settings (F
USER MANUAL _____________________________________________________________________________________________________________________ 19. Printer cooperation settings (F..-LPt) Activate the function for automatic 0.00 serial port working mode (cooperation with a printer). After activation the scale prints a header. Weighing result with F .. -LPt a successive measurement number is printed automatically after result stabilisation (without using key). -
Page 19: Serial Port Parameters Setting (F
USER MANUAL _____________________________________________________________________________________________________________________ 20. Serial port parameters setting (F..-rS) 0.00 The function enables to set the following transmission parameters (standard parameters underlined): F .. -rS - transmission speed (bAud: 1200, 4800, 9600), - the number of bits in a byte (bit: 7, F .. -
Page 20: Constant Tare (F
USER MANUAL _____________________________________________________________________________________________________________________ 21. Constant tare (F..-tAr) This function enables to measure gross weight of a sample placed in a container of a known weigh value (stored in the memory) and to display calculated net weight of the sample. Tare value is recalled from the memory with →... - Page 21 USER MANUAL _____________________________________________________________________________________________________________________ Weighing with constant tare: When tAr function is activated, press -1.70 → ← key to zero the indication and to recall tare value from the memory. Tare value is displayed with ”-” sign. enables instant 10.00 switching between net and gross weight.
-
Page 22: Function Menu Customisation (F
USER MANUAL _____________________________________________________________________________________________________________________ 22. Function Menu customisation (F..-ACt) This function enables to select special 0.00 functions that will be displayed after pressing MENU key. Easy access to the most useful functions will shorten F .. -ACt operation time and make work more comfortable. -
Page 23: Maintenance And Repairs Of Small Defects
USER MANUAL _____________________________________________________________________________________________________________________ 23. Maintenance and repairs of small defects 1. The scale should be kept clean. 2. Take care that no dirt gets between the platform and the scale base. If found any, remove the pan (lift it up), remove dirt and then replace the pan. 3. -
Page 24: Declaration Of Conformity
USER MANUAL _____________________________________________________________________________________________________________________ Declaration of Conformity AXIS Spółka z o.o. 80-125 Gdańsk, ul. Kartuska 375B confirm with all responsibility that scales: B15W, B30, B60, B120, B150, B200 i B300 oraz B33, B63, B151, B152, B301 marked with CE mark comply with the following: 1.
