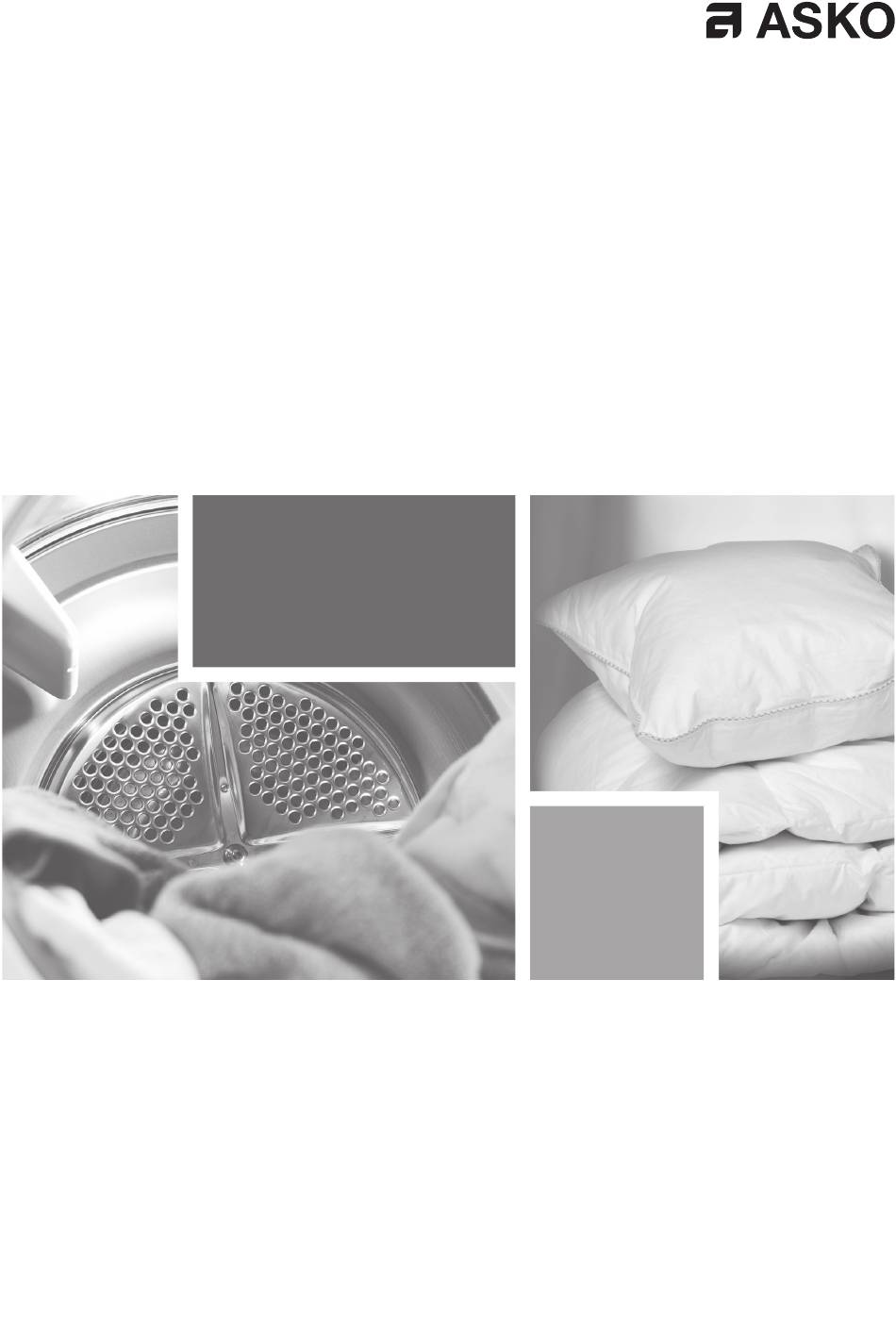

Dear Customer,
Thank you for choosing this quality product from ASKO.
We hope it will meet your expectations and fulfi ll your needs for many years
to come. Scandinavian design combines clean lines, everyday functionality,
and high quality. These are key characteristics of all our products and the
reason they are greatly appreciated throughout the world.
To ensure that you get the most out of your new machine, we recommend
that you read the operating instructions before using the machine. The
operating instructions also contain information on how to avoid damaging
the environment.

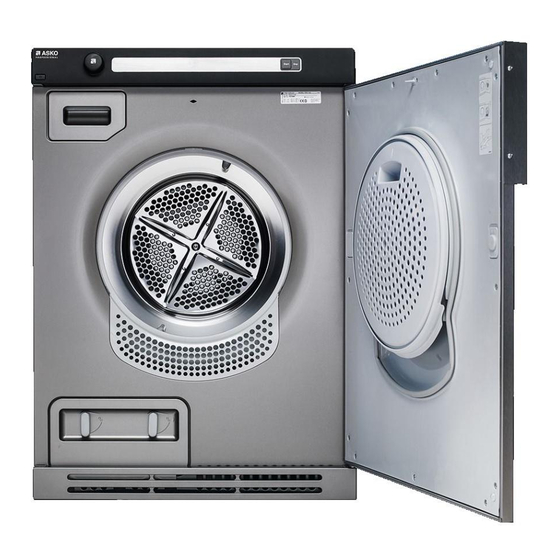

Operating Instructions
Tumble dryer
PROFESSIONAL TDC112CS
WARNING: Read the instructions before using the machine.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Asko PROFESSIONAL TDC112CS
Summary of Contents for Asko PROFESSIONAL TDC112CS
- Page 1 Dear Customer, Thank you for choosing this quality product from ASKO. We hope it will meet your expectations and fulfi ll your needs for many years to come. Scandinavian design combines clean lines, everyday functionality, and high quality. These are key characteristics of all our products and the reason they are greatly appreciated throughout the world.
-
Page 2: Table Of Contents
Contents Before using your machine for the fi rst time 3 Settings Language selection You can carry out the following settings How to choose the settings: Safety instructions Audible Volume Safety Language Transport/Winter storage Child-safe Packing material Heater 2 Recycling Care and cleaning Child safety Cleaning the lint fi... -
Page 3: Before Using Your Machine For The Fi Rst Time
Before using your machine for the fi rst time Language selection You will be prompted to select the display language when you have connected your machine and start it for the fi rst time. Do as follows: 1. Turn the programme selector to choose from: US English, English, Svenska, Dansk, Norsk, Suomi, Français, Deutsch, Italiano, Espanol, Русский, Nederlands. -
Page 4: Safety Instructions
Safety instructions Read the operating instructions and • The machine is not designed to be keep them in a safe place! used by persons (even children) that are physically or mentally handicapped or lack experience and knowledge. Such persons must receive instruction in how to use the machine from the person responsible for their safety. -
Page 5: Transport/Winter Storage
Safety instructions Installation See the section Installation. Transport/Winter storage If you need to move your machine or store it over the winter in unheated premises, make sure that you drain the condensed water container beforehand. Packing material Please sort waste materials in accordance with local guidelines. -
Page 6: Child Safety
Child safety General Activating/deactivating Child-safe start. WARNING! Do as follows to open the settings menu: 1. Turn off the machine using the main Do not allow children to play with the power switch. tumble dryer. 2. Press the Stop button and switch •... -
Page 7: Description Of The Tumble Dryer
Description of the tumble dryer 1. Main power switch 5. Lint fi lter 2. Condensed water container 6. Outer door 3. Panel 7. Condenser 4. Type plate... -
Page 8: Advice And Tips Before You Tumble-Dry
Advice and tips before you tumble-dry Static electricity Here are some tips that may help you before you begin tumble-drying. To reduce the risk of static electricity in the laundry after tumble drying you can: Have the clothes been spun? •... -
Page 9: Tumble Drying
Tumble drying Below are step-by-step instructions to help you achieve the best possible tumble-drying results. Sort your fabrics You will achieve the most uniform drying results if the items are made of the same type of material. Do up zips and buttons, fasten belts, sort the items and adjust the load and temperature. -
Page 10: Select The Programme
Tumble drying Select the programme Programme selector Programme name Start Stop Select a programme by turning the programme selector. The selected programme is shown in the display window. Guidelines as to what specifi c programmes can be used for: Auto extra dry (low temperature) The Auto extra dry, Auto dry and Auto normal This programme is for items that are particularly... - Page 11 Tumble drying Programme chart Here we present the energy and time consumption of a few diff erent programmes. The table shows the eff ect of using diff erent spin speeds when washing the load. Consumption can vary depending on room temperature, humidity, load, variations in the power supply and selected options. For the consumption values given below, the requirements are as follows: Temperature of intake air: 23 °C...
-
Page 12: Press The Start Button
Tumble drying Press the Start button Drying programme fi nished Remaining drying time The text Done appears on the display An estimate of the remaining drying time when the programme is fi nished. will be shown on the display a few minutes after Backlighting the drying programme starts. -
Page 13: Settings
Settings You can carry out the following Child-safe settings You can activate the Child-safe start option to • Audible Volume prevent children from starting the machine. • Language 1. Turn the programme selector and choose • Child-safe Child-safe On or Child-safe Off . •... -
Page 14: Care And Cleaning
Care and cleaning Cleaning the lint fi lter 3. Use your hand or a soft cloth to remove the The lint fi lter must be cleaned after each load. lint from all sides of the fi lter. If necessary, 1. Grasp the fi lter holder handle and pull it use a damp sponge and a small amount of towards you to open the lint fi... -
Page 15: Emptying The Condensed Water Container
Care and cleaning Emptying the condensed water container If you have not connected the machine to a separate drain the condensed water container must be emptied after each load. Remove the condensed water container, empty out the water and replace the container. If the condensed water container becomes full to overfl... -
Page 16: Cleaning The Condenser
Care and cleaning Cleaning the condenser The condenser should be cleaned at least three NOTE! times a year. If you have pets, the condenser must be cleaned more frequently. Do not clean the condenser in a dishwasher. 1. Turn off the tumble dryer with the main power 5. -
Page 17: Cleaning The Outside Of The Machine
Care and cleaning Cleaning the outside of the machine NOTE! Clean the outside of the machine and the programme panel with a mild cleaner. Do Clean the fi lters after each drying. not use solvents, as these can damage the Do not replace the fi... -
Page 18: Troubleshooting
Troubleshooting The machine will not start Drying takes too long Check • Check that the lint fi lter is not blocked. See • that the door is properly closed. the Care and cleaning chapter. • that the main power switch is on. •... -
Page 19: Information On Energy Labelling
Technical information Information on energy labelling Information sheet, in compliance with Commission Delegated Regulation (EU) No. 392/2012 Asko Model designation TDC112CS Max. drying capacity 7 kg Energy efficiency class Annual energy consumption (AE 504 (kWh/year) Energy consumption Auto normal dry with full load (E... -
Page 20: Technical Data
Technical information Technical data Height: 845 mm Width: 595 mm Depth: 585 mm Weight (net): 44 kg Cylinder volume: 112 l Max. drying capacity: 7 kg Speed: 50-55 rpm Rated power: See type plate. Drum material: Stainless steel Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel. -
Page 21: Service
Service Before contacting the service division See the Troubleshooting and Care and cleaning chapters to see whether you can rectify the problem. If you need to contact the service division, make sure that you know the model designation, type designation and serial number. -
Page 22: Installation
Installation Positioning the tumble dryer left corner of the back of the machine. The tumble dryer can be free-standing or in a stack. Remember that the tumble dryer How to assemble the stack: produces heat and should therefore not be 1. -
Page 23: Adjusting The Feet
Installation Adjusting the feet 4. Attach the plastic cups for fi xing the tumble dryer’s front feet to the washing machine’s Screw the feet in or out so that the tumble dryer top cover. This is essential, as only when the is steady and balanced on the fl... -
Page 24: Condensed Water
Installation Condensed water The machine is supplied as shown in Option 1 (inset). This means that the condensed water is pumped into the condensed water container, which must be removed and emptied by hand. Option 2 allows you to remove the small short hose from the nipple. -
Page 25: Electrical Installation
Installation Electrical installation If the machine is delivered from the factory with a plug attached it can be connected to an earthed wall socket. Otherwise, a permanent connection using a multipolar circuit breaker must be made by a qualifi ed professional. Connection on delivery •... -
Page 26: Door Hanging
Door hanging 1. Hinge pins (top and bottom) 4. Locking hook 2. Cover plate 5. Hinges (left + right side) 3. Plastic plugs (on the upper and lower edges) 6. Plinth... -
Page 27: Follow These Instructions
Door hanging You can choose whether the door is hung on the right or the left. NOTE! Follow these instructions Be careful not to damage the appliance with the 1. Remove the plinth. screwdriver. 2. Remove the hinge, two screws. 6. -
Page 28: Quick Guide
End appears on the display when the program is fi nished. Clean the lint fi lter after each load. Turn off the main power switch and close the door. We reserve the right to make changes. Gorenje, Partizanska 12, 3320 Velenje, Slovenija www.asko.com TD70.C SPK en (06-19) PROFESSIONAL TDC112CS...
