Ingrasys D3010E User Manual

Hide thumbs Also See for D3010E:
Table of Contents

Advertisement

Quick Links

Download this manual

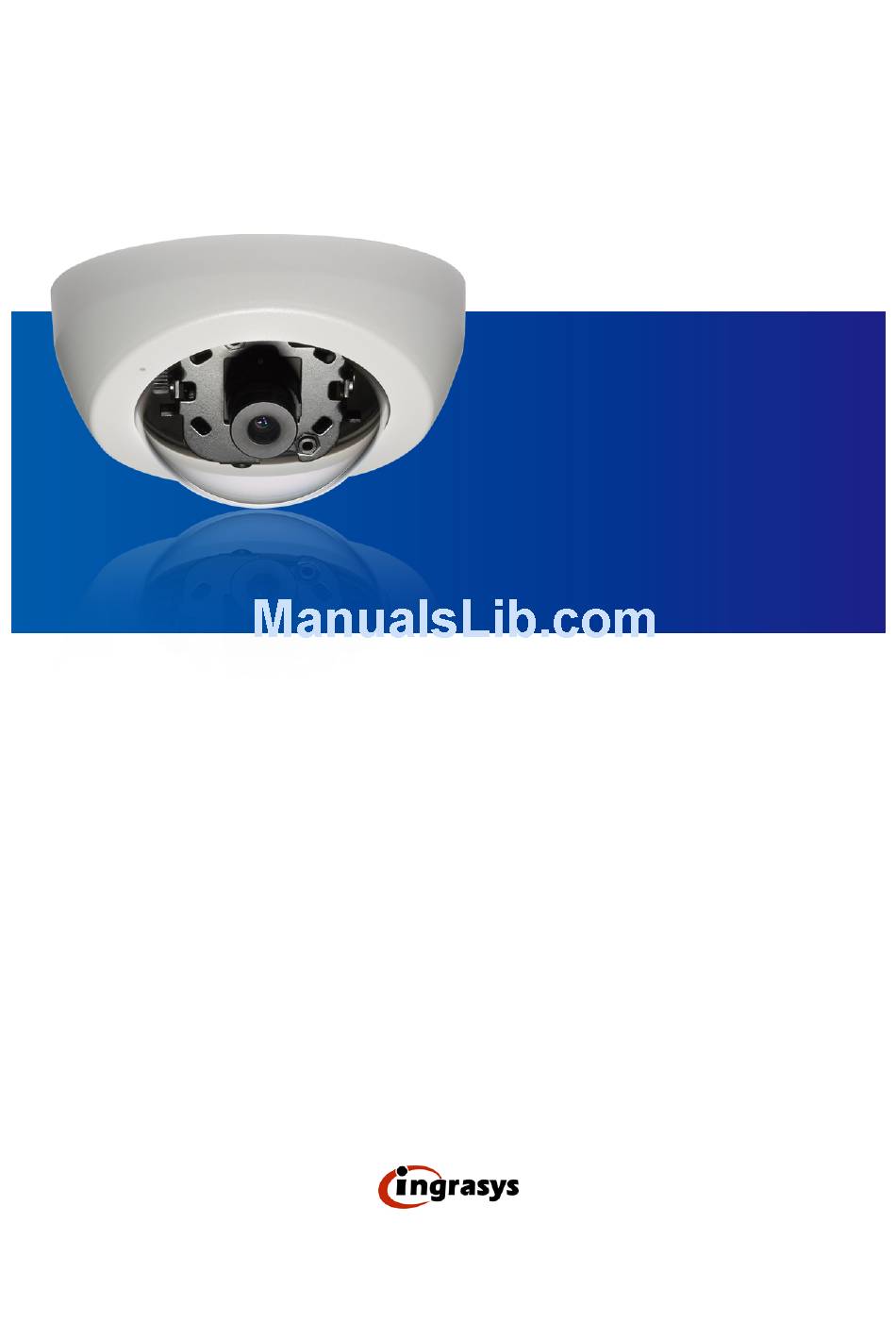

D3010E
User's Manual
Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D3010E and is the answer not in the manual?

Questions and answers

Related Manuals for Ingrasys D3010E

Summary of Contents for Ingrasys D3010E

  • Page 1 D3010E User’s Manual Version 1.0...

  • Page 2: Table Of Contents

    Table of Contents Important Notices – Read Before Use ................2   Overview ......................... 2   Package Contents ......................3   Installation ........................4     Hardware Installation ............................... 4   Software Installation ................................ 5   Discover IP Cameras ................................ 5  ...

  • Page 3: Important Notices - Read Before Use

    Overview The D3010E is the compact size dome camera measuring only 90mm in diameter. This ultra mini dome camera is built with PoE function design. With 3 steps setup makes installation easier and faster. Beside, the D3010E supports various focal length to implement in different environment.

  • Page 4: Package Contents

    Package Contents...

  • Page 5: Installation

    Installation Hardware Installation Physical Description & Connection Mounting the Camera...

  • Page 6: Software Installation

    Tuning the Camera Software Installation Discover IP Cameras Discovery Tool is a utility provided for not only searching and displaying the available IP cameras information in a network but also managing the multiple networking settings such as static IP address assignment. After completing the hardware installation, run ingrasysDiscovery.exe to search for the IP camera installed.

  • Page 7: Assigning Ip Address To The Device

    Assigning IP Address to the device The steps of applying this search tool are described as below. 1. Launch IPCAM Discovery Tool (ingrasysDiscovery.exe) 2. Assign IP address The selection is based on a single or multiple camera devices. [Set IP] This is applied to one specific camera selected from the Device List.
  • Page 8 [Auto Set IP] This is applied to a group of specific cameras selected from the Device List. Step1: Select specific cameras Step 2: Input Account / Password The default account information is Admin/Admin. If the values have been re-set, please enter the set values.

  • Page 9: Discovering Devices In Windows Network

    Discovering devices in Windows Network If the IP camera is installed in a network with DHCP and UPnP services, after obtaining an IP address from DHCP server, it can then be discovered in “Windows Network” of a client PC, see figure below. The reason for ...

  • Page 10: Activex Add-On Installation

    ActiveX add-on Installation It is recommended to use Internet Explorer 8 or later as the primary browser to access the IP cameras website. The first-time access to the camera webpage will be prompted to install the ActiveX. To allow the installation, click “Install”...
  • Page 11 <Example> Internet Explorer 9: Internet Options  Security  Custom level Ensure the “Download signed ActiveX controls” setting is either “Enable” or “Prompt” selected.

  • Page 12: Accessing The Camera

    With the correct installation and IP settings, the camera device can be approached via network. There are three ways to view the live video from the camera, 1. Internet Explorer Launch IE browser and input the IP address of the camera or Click on “Browse” button on the selected IP camera address from Ingrasys Discovery Tool.
  • Page 13 NOTE: Ingrasys IP cameras also support the other web browsers for viewing the live video such as Firefox, Google Chrome or Safari. 2. RTSP Player The live video of the camera can be played with RTSP players, such as VLC or QuickTime.

  • Page 14: The Live View Page

    The Live view page The following illustration shows the front page of Ingrasys IP camera website. Quick Index Video Stream Operations Live Window Live Video Window Quick Functional Buttons...
  • Page 15 Snapshot: Press the button to capture an image photo Record: Press the button to start recording. Press again to stop it. Record Path: set up a file path that video clips and snapshots can be stored. Full screen: Press the button to enter the full screen mode. Press ESC key to return. Manual trigger: Press the button as triggering an event.

  • Page 16: Video & Audio

    Video & Audio This section describes how to configure the video streaming of the device and the related camera image  configurations. Users with Administrator or Operator authority (see System User Management) are able to do these configurations. Click on “Setup” of Quick Index to enter the Video & Audio page shown as below. There are 4 sub-settings under “Video &...
  • Page 17 Camera Setting Image Setting Brightness: the luminance of image view. Default value is 8; adjustable from 0 to 16. Contrast: the ratio of luminance of white to black. Default value is 8; adjustable from 0 to 16. Saturation: colorfulness of a color related to its own brightness. Default value is 8, adjustable from 0 to 16.
  • Page 18 Nightmode Enhancement With this function enabled, the better night vision will be obtained. However, the number of FPS may drop depends on the actual environmental illuminations. Switch Time The value reflects the delay time for both ways of day and night switch. Level The Day/Night mode switch is based on the sensed environment luminance.
  • Page 19 Video Setting Video Stream This tab provides detailed stream configurations. These settings can affect resolution ratio, video size, quality. The maximum transmission performance can be expected under the condition of full network bandwidth. The camera supports up to 3 video streams. Each stream can be configured with following items.
  • Page 20 Resolution Ratio: 16:9 or 1.3M mode is selectable. The image ratio of Stream1 to Stream 3 will change at the same time based on a pre-defined table if user changes the ratio mode. Video Format: H.264, MPEG4 and MJPEG are available for the selection. The demand of bandwidth and storage requirement differs from the selection of video format.
  • Page 21 Enable ROI: Once the ROI function enabled, relative ROI area could be setup under the “ROI” page. Frame Rate: It represents the number of frames that are displayed per second. The higher the frame rate is the better/smoother the video stream can be obtained. However, it would be the tradeoffs for the higher network bandwidth and storage requirement.
  • Page 22 Privacy Mask Privacy Mask can block out the specific areas from view. The blocked areas will not be seen in both live view and recorded video clips and the total of 8 profiles can be created to the list. To create Privacy Mask, simply input Privacy Mask Name and click “Add New” button and then apply it to complete the addition.
  • Page 23 Audio Setting Check the “Enable Audio” checkbox to enable the video streaming with audio. The audio encoding supports G.711 ulaw and AAC. For Audio Input Setting, the input source can only be Internal Microphone.

  • Page 24: Network Configuration

    Network Configuration The IP Camera acts as one of the network devices. It allows user to configure the network functionalities based on applications. This section will describe the network configurations. There are 5 subdirectories in “Network”:  Network Type  Network Connectivity ...
  • Page 25 IPv6 In IPv6 setting, Camera IP can be configured as “obtain IPv6 address automatically” or “Static IP”. Obtain IPv6 address automatically: As default setting, camera will be automatically given an IPv6 IP address in an IPv6 network with DHCPv6 server and RA on router. Use Static IP: Camera may also be manually assigned with a static IP address.
  • Page 26 Network Connectivity This page provides the connectivity configuration, so that IP camera can be accessed without necessarily providing the numerical IP address. Enable UPnP Service: with UPnP enabled, IP camera device can be easily discovered in Windows Network (My Network Places). See “Discover devices in Windows Network” in previous section. Enable DDNS Service: By registering this sort of service, camera can be assigned and accessed over Internet with a hostname instead of IP address.
  • Page 27 Access Port This page provides the ports configuration for requesting the services from the camera device. These services include Web Page access, HTTP and RTSP streaming services. HTTP port / HTTPS port: By default, the HTTP and HTTPs ports are set to 80 and 443 respectively. They can also be assigned to another port number between 1025 and 65535.
  • Page 28 Access IP Filter This setting also provides a basic security by filtering the accesses from other hosts. Enable this function and choose “Allow / Deny” of the listed IP addresses. Up to 15 IP address can be added in the list for IPv4 and IPv6.

  • Page 29: Recording

    Recording This section provides the recording configuration on the camera. Unlike the recording function (Quick Functional Button) on the live view page, video can also be recorded to the storage attached to the local network storage (Samba) according to a time based schedule. There are 4 subdirectories in the “Recording”...
  • Page 30 Src. (Source): The video source selected to be recorded Dest. (Destination): The stored path for the recording file Remove: Click to delete this recording plan. Add / Edit Recording Plan Plan Name: Identifier of the recording plan Video Source: The selection of the video source to be recorded. Options: Stream1 / Stream 2 / Stream 3. Maximum File Size: This option defines the maximum file size of each video clip.
  • Page 31 SD Storage This page shows the SD card information when it is attached to the IP camera. Normally, inserting the micro SD card will be done before entering this page and obtain the card information as below. However, if it is the other way around, click SD storage tab to refresh it. SD Card Status: ...
  • Page 32 SD File List This page provides the search of records. The SD storage may contain both “triggered-by-schedule” recordings and “triggered-by-events” snapshot / video. There are search conditions used to narrow down the search results. The latest 10 Records The most recent 10 records are listed in this table. Each record name is a link to view this video or image. Following the “Record Name”, each record is listed with its “Trigger Type”...
  • Page 33 Searching the Records The SD storage would keep massive records after the “recording plan” and/or “event handling” (see Event Management) has been launched. The search criteria are provided to look for particular records in the SD card. Example: Trigger Type – Schedule Recording There are 3 categories of search criteria: 1.
  • Page 34 Samba This page allows user to configure the file storage via Samba. To begin with it, click Enable Samba and then input the related information. NOTE: Samba can only support mounting a shared folder located in the root directory. For example, to mount a folder called “Shared”...

  • Page 35: Event Management

    Event Management Event management describes the handling of events with the corresponding actions. A common case can be exampled is storing a captured image to a local storage (Actions), when there is a Motion Event (Trigger Condition). This portion gives the configurations of Triggers (what to detect?) and Actions (“what to send”...
  • Page 36 Server Name: Identifier of the event server Server Type Email: Send the media file via email when an event is triggered.  Mail Server Address: Enter a host name or IP address of the email server.  User Name: Enter the user name of the email account. ...
  • Page 37 Motion Configuration There are three MD (Motion Detection) areas can be enabled. Each MD can be individually enabled/disabled, defined the covering range and trigger sensitivity. To enable and verified the MD, follow the steps provided below. 1. Check the box to enable the motion area 2.
  • Page 38 Audio Detection Checked the box of Enable Audio Detection, users may enable audio detection function to detect the monitoring area whether any abnormal sound over the threshold existed. This could be an event source to trigger event notification and alarms. DI/DO Setting The DI/DO setting provides the function of Digital I/O’s trigger condition configuration and current status information.
  • Page 39 Event List List a summary of configured events. That is the selection of trigger condition(s) and the corresponding actions, as well as the scheduling. To begin with it, click on “Add New” button to extend for the detailed configurations. Event Name: Enter an event name, e.g. Motion Detection, to identify this configured event. Select All: 24 hrs/ 7days (Mon-Sun) continuous recording Scheduled Pattern: User-defined time frame Triggered by: This describes the selection of trigger conditions which include:...

  • Page 40: Examples Of Event Handling

     Digital Input: Enable the system to detect the DI (Digital Input) status as a trigger condition. For more details about the DI setting, go to DI/DO Setting.  Manual Trigger: Enable the system to detect the user input action (press the alarm button, on the live view page).
  • Page 41 Step 2: Configure Media Type  On the same web page, configure the Media Type. For the following example, the system is configured to capture 1 picture before (pre-alarm) the event and 2 pictures for the event and after (post-alarm). For video clip, pre-alarm and post-alarm could be configured for event video record.
  • Page 42 - Event of manual triggering - Click the check box to enable this event. Give a name of this event setting; e.g. MTrigger. This is an identity of event handling. Choose “Select All” for 24 hrs/ 7days (Mon-Sun), as this event is required to be triggered anytime. Select “Manual Trigger”...

  • Page 43: System Options

    System Options System Options provide users to obtain and configure the system settings of the IP camera system. It contains the page of System Information, Date and Time, User Management, Maintenance and Log Service. The details about each subcategory will be described as below. System Information The page gives the general information of the IP camera system.
  • Page 44 Date and Time This section describes the date/time adjustment for the IP camera system. The ways to adjust the IP camera’s date/time can be Synchronize with NTP Server, Synchronize with PC or Set Manually. Current Date & Time Display current system date/time of the IP camera. The date format can be changed from the drop-down list under Configure Date &...
  • Page 45 User Management By default, the access to the camera is not user authenticated. For security, the IP camera should be restricted only authenticated accounts to access. It is able to enable/disable user accounts, as well as to manage the added users in this page. Initially, there is a default account, Admin in the “User List”.
  • Page 46 NOTE: The backup file can be applied to other Ingrasys IP cameras, so users won’t need to configure each device. It is recommended to switch the IP setting to DHCP mode before exporting the backup file.

  • Page 47: Connectors & Led

    Connectors & LED Connectors Schematic diagram of Digital I/O...

  • Page 48: Led Indicators

    LED Indicators Bicolor LED indicator for Power & System Status: Power On / System Reboot Steady ON with Amber LED Initial Process Ready 3 Flashing then ON with Green LED Normal Operation Steady ON with Green LED Firmware Upgrade Flashing per second with Red LED Internal (Hardware) Failure Steady ON with...

  • Page 49: Troubleshooting

    Troubleshooting Check firmware version Firmware version may imply the functionalities’ updates or availability in the camera system. Therefore, in the first step of troubleshooting and then reporting, it helps to locate the found issues. Newer version firmware may have these issues corrected. The version code can be found in Setup ->...
  • Page 50 Figure 1 Figure 2 Figure 3...

  • Page 51: Recover Device Settings

    Recover device settings In some cases, camera system does not respond to any operation. A certain recovering processes would help to get the unit back to initial status, so that it can resume operable / configurable. This will be the operations on the “Reset Button”.

  • Page 52: Technical Specifications

    Technical Specifications *Design and specifications are subject to change without notice. Model No.  D3010E‐F2.8 / D3010E‐F3.6 / D3010E‐F6  Types of camera  Description  1.3MP Dome IP Camera  Processor  ARM based 32‐Bit RISC Processor  Flash  16MB  System Information  RAM  128MB  Real Time Clock  Yes  Image Sensor  1/4” 1.3MP progressive CMOS sensor  Maximum Resolution  1280 x 1024  Lens type  Board mount, Fixed IRIS  f=2.8mm (D3010E‐F2.8) Focal Length  f=3.6mm (D3010E‐F3.6)  f=6mm (D3010E‐F6)  F1.8 (f=3.6mm/6mm) Camera  Aperture  F2.0 (f=2.8mm)  2.8mm: H=64.7°, V=52.5°, D=82.1°...
  • Page 53 Multicast, ARP Memory Card  Micro SD/ Micro SDHC Card up to 32 GB  Local Storage  Store Category  Stores snapshots and video clips  Motion detection, Manual Trigger, External alarm, Network Fail,  Event Triggers  Periodically Trigger, Audio Detection.  Event Management  File upload via FTP, SMTP and SAMBA and Micro SD Card;  Event Actions  Notification via FTP, email and external output activation;   Video and audio recording to Micro SD Card or SAMBA.  Network Connector  RJ‐45   Power Input  PoE (IEEE 802.3af class 3)  Power Consumption  5W max  I/O Connectors   & Indicators  Alarm Port   Terminal block x1 In / x1 Out.  Reset   Reset button on board  Memory Card  Micro SD/SDHC card slot  Weight  Net: 160g (0.354 lb)  Dimensions (W x L)   3.54” x 1.93” /Φ90 mm x 49  mm  Operating temperature  0°C ~ 40°C (32°F~104°F)  Storage Temperature   ‐10°C ~ 50°C (14°F~122°F)   General  Operating Humidity  20% ~ 80% RH  Certifications ...
