Summary of Contents for Ingrasys G2334H
-

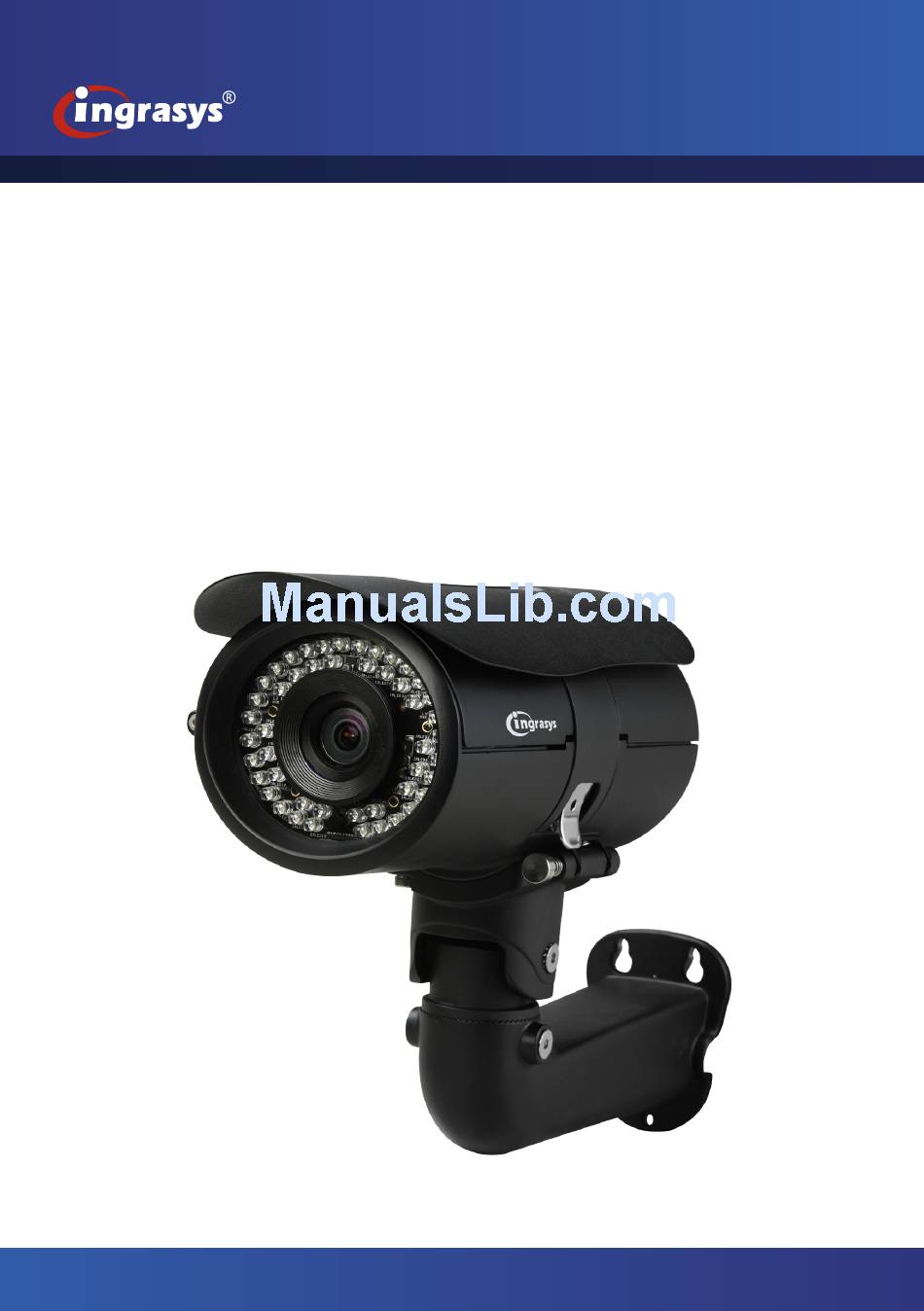

Page 1: Quick Installation Guide
G2334H/E Quick Installation Guide Ver: v1.00 Ingrasys Technology Inc. -
Page 3: Package Contents
G2334H/E Quick Installation Guide v1.00 Package Contents Cable Management Bracket G2334H/E Sunshield & Screws Pack Waterproof Connector for Product CD Alignment Sticker / Desiccant Bag RJ45 Ethernet Enclosure Quick Installation Guide Warranty Card VIP Card (Optional) Power Adapter (Optional) www.ingrasys.com... -
Page 4: Physical Description
Digi In Digi In RJ45 Cable 485+ 485- AGND Line Out AGND Mic In Focus Assist Button TV Out Connector System LED I/O Terminal Block DC12V Power Terminal AC24V Power Terminal Micro SD/SDHC Card Slot Reset Button Ingrasys Technology Inc. -
Page 5: Hardware Installation
G2334H/E Quick Installation Guide v1.00 Hardware Installation 1. Attach the sunshield with two supplied screws. 2. Lock the housing by burglarproof screw. 3. Attach the alignment sticker to the wall and drill three holes. 4. Fix Wall bracket holder on the wall. - Page 6 3. Hang the wall mount bracket on the plate and fix it 4. Adjust the angle of wall mount bracket to aim with the supplied screws. at shooting area. Vertical Tilt Adjustment Horizontal Pan Ingrasys Technology Inc.
- Page 7 G2334H/E Quick Installation Guide v1.00 Cabling Assembly – Waterproof Connector Assembling Steps 1. Disassemble the components of waterproof connector into parts (A)~ (E) as show below. (A) Sealing Nut (B) Seal (C) Claw (D) Pin (E) Sealing Nut ※ Recommended to use CAT-5 Cable (Φ6.2 ) for DC12V, AC24V or I.O function.
- Page 8 Cabling Assembly – Waterproof Connector 3. Push the seal (B) in to the claw (C) and insert the pin (D) into the empty holes on the seal (B) to avoid moisture. 4. Secure the sealing nut(E) tightly. Ingrasys Technology Inc.
- Page 9 G2334H/E Quick Installation Guide v1.00 Cabling Assembly – RJ45 Cable Connector Components of the Waterproof Connector (A) Sealing Nut (B) Seal (C) Screw Nut (D) Housing (E) Gasket Assembling Steps 1. Attach the gasket to the front of the housing.
- Page 10 4. Connect the Ethernet cable into the RJ45 cable. 6. Insert the housing into the screw nut. 7. Screw the sealing nut tightly. RJ45 Cable Dimension 1 3 / 1 6 " - 2 8 U N Ingrasys Technology Inc.
- Page 11 G2334H/E Quick Installation Guide v1.00 Connections 1. Identify the type of network device. 2. If the network device supports PoE (Power over Ethernet) function, simply connect the camera to it via Ethernet cable 3. If not, connect the network device (via Ethernet cable) to AC or DC adapter are required.
- Page 12 System LED Zoom controller (T Step 4 : Get the Best Focus Value ● When camera gets precise focus, the LED will become Green flashing. ● Remain the camera's pointing direction until the LED becomes steady Green. Ingrasys Technology Inc.
- Page 13 G2334H/E Quick Installation Guide v1.00 How to install Desiccant Bag to IP Camera (only for G2334E) Use the double tape to attach the desiccant bag on the housing which marked in circle. www.ingrasys.com...
-
Page 14: Assigning Ip Address
Assigning IP address 1. Launch Ingrasys Discovery Tool (IngrasysDiscovery.exe). The tool will start searching for cameras and then displaying them on the Device List after being found. 2. Check the checkbox to select a camera device from the list. 3. The IP Camera may be assigned with a valid IP address via DHCP server. It can be also manually given a static IP address. -
Page 15: Accessing The Camera
Accessing the camera 1. Launch IE browser and input the IP address of the camera, or click on “Browse” button on Ingrasys Discovery Tool. The web page with video will then be shown as below. 2. The live video of the camera can be played with a RTSP player, such as VLC or QuickTime. The network URL is rtsp://Camera IP/stream1. - Page 16 Ingrasys Technology Inc.
