Page 1: Quick Installation Guide

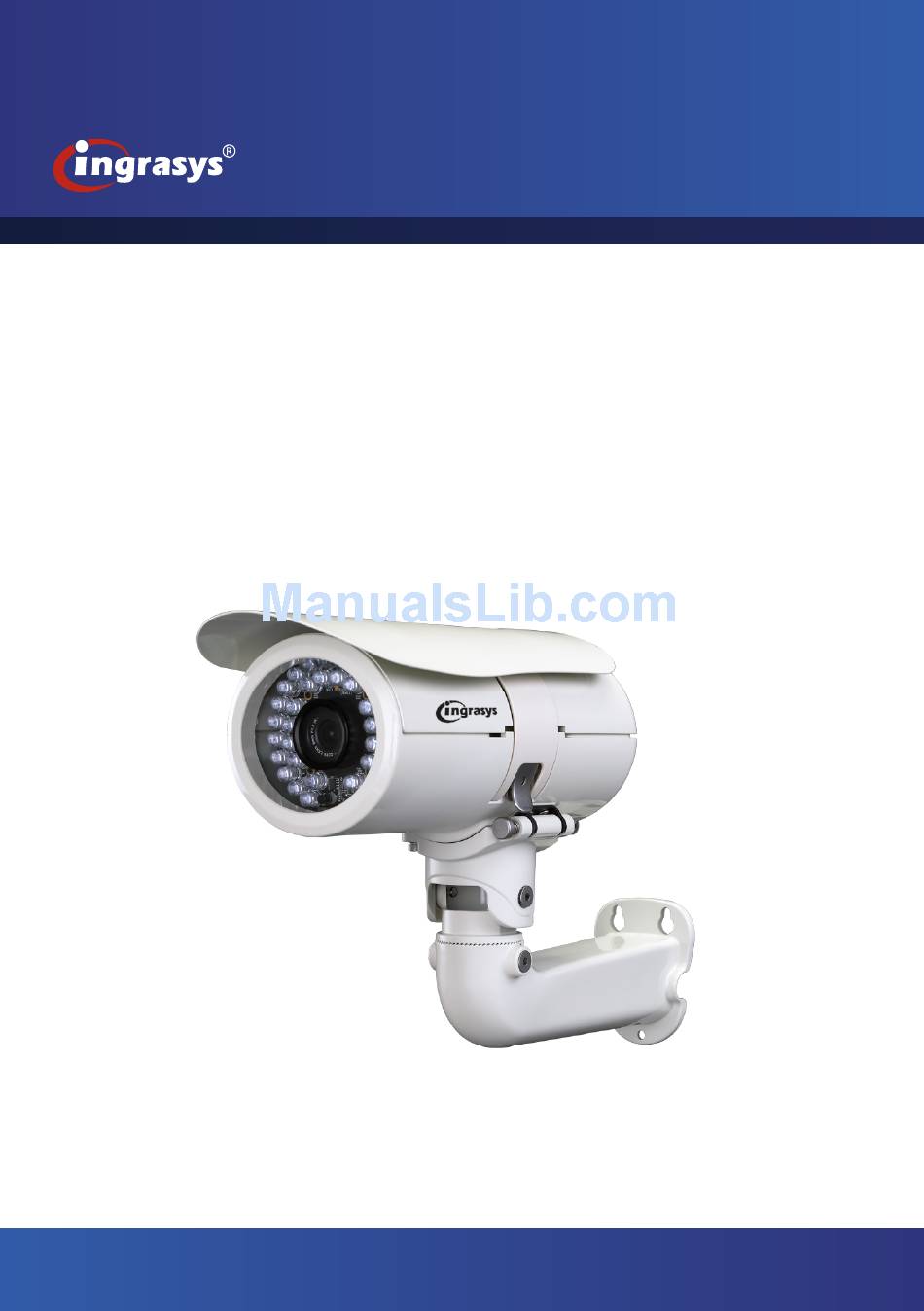

Quick Installation Guide G2214H Ver: v1.00... -
Page 2: Package Contents
G2214H Quick Installation Guide v1.00 Package Contents G2214H Wall Mount Bracket Sunshield Power Adapter (Optional) Quick Installation Guide Product CD Warranty Card Hardware Pack Alignment Sticker VIP Card (Optional) Ingrasys Technology Inc. - Page 3 G2214H Quick Installation Guide v1.00 Physical Description & Connection Connectors AC Power DC Power Connections Connect the camera to a network switch / hub with an Ethernet cable. Connect the attached 12V DC power jack to the DC power cable, and connect the adapter to a power outlet, , or connect a 24V AC power jack to AC input 1 and 2.
- Page 4 G2214H Quick Installation Guide v1.00 Installing Sunshield and O-ring Step 1. Install Sunshield by two screws. Step 2. Lock the housing by burglarproof screw. Step 3. Draw the cable through the O-ring Ingrasys Technology Inc.
- Page 5 G2214H Quick Installation Guide v1.00 Mounting Camera Step 1. Alignment Sticker on the wall and Step 2. Wall bracket holder on the wall drill holes Step 3. Install U-Shaped retainer Step 4. Press the screw on the bracket to combine Step 5.
- Page 6 G2214H Quick Installation Guide v1.00 Assigning IP address Launch Ingrasys Discovery Tool (IngrasysDiscovery.exe). The tool will start searching and then displaying the cameras on the Device List after they are found. Check the box to select a camera device from the list.
-
Page 7: Accessing The Camera
Launch IE browser and input the IP address of the camera, or click on “Browse” button on Ingrasys Discovery Tool. The web page with video will then be presented as below. The live video of the camera can be played with a RTSP player, such as VLC or QuickTime. The network URL is IP/stream1. - Page 8 Open the housing. (Make sure the burglarproof screw has been taken away) The G2214H series cameras are bundled with a vari-focal lens. Adjust the Zoom range, T ↔ W for a proper view angle and adjust the focus controller in the range of N ↔ ∞ shown on the lens.
