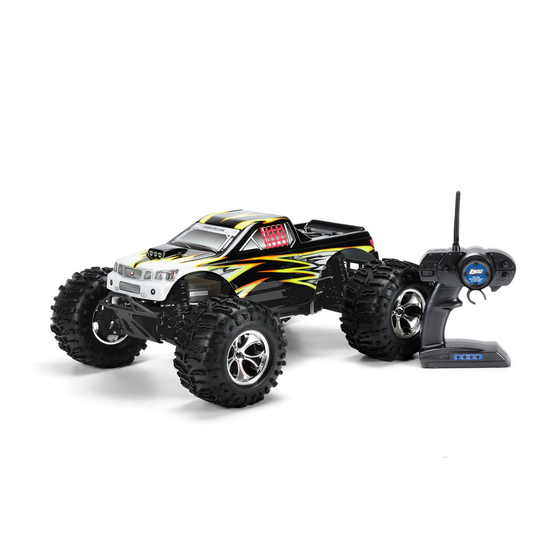

Team Losi Sport Aftershock Getting Started

GETTING STARTED

NOTE:

Antenna Tube

Find the antenna tube in the plastic bag with the Operations

guide . Thread the black antenna wire attached to the receiver

through the mounting boss (fig. 1A) on the right side of the

radio box and through the antenna tube. Push the antenna

tube (fig. 1B) into the mounting boss on the side of the radio

box.

Before you start running your Aftershock, read your engine break-in and operating

instructions. If you run your Aftershock without following proper break-in procedure,

you may damage or fail to get maximum performance from your engine, and void the

warranty.

5 cell Receiver Pack

To install a rechargeable battery pack, turn the chassis over and

using the included 1/16" Allen wrench, remove the four screws

(fig. 3A) securing the battery mount. Install the battery pack

(fig. 3B) with the plug and wires going through the grommet hole

(fig. 3C) in the chassis. Re-install the battery mount and the four

screws that secure it. Plug the battery lead (fig. 3D) into the wire

harness.

Radio Batteries

Install the 8 AA-size alkaline batteries in the trans-

mitter making sure the positive (+) and (-) negative

ends are oriented correctly. Use only quality alkaline

or rechargeable NiMH (nickel-metal hydride) AA size

cells.

5 cell RX Pack

Page 1

Table of Contents

Need help?

Do you have a question about the Sport Aftershock and is the answer not in the manual?

Page 1 GETTING STARTED GETTING STARTED Before you start running your Aftershock, read your engine break-in and operating NOTE: instructions. If you run your Aftershock without following proper break-in procedure, you may damage or fail to get maximum performance from your engine, and void the warranty.
Page 2 Operations Check Steering Throttle Throttle/Brake Turn on the transmitter and check for proper voltage (fig. 4A). Linkage Slide the switch on the side of the radio box to the "ON" position. With the front tires off of the ground (fig. 4B), turn the steering wheel on the transmitter from left to right.
Page 3 Start your Engine Attach the glow plug ignitor (not included)(fig. 6A) to the glow plug and if metered make sure the needle is in the green or good condition. Pull the start cord (no more than 4 or 5 inches) firmly(fig 6B.). The engine should start. If the engine does not turn over, it is probably flooded.
Page 4 We have included a Spin- Start backplate for the engine, which will allow you to use a common electric drill Remove or the handheld Team Losi Spin-Start (LOSB5100, sold separately). To change the backplate 4 screws follow these steps: 1.
