King Canada KCG-4200G Instruction Manual

4200w gasoline generator with wheel kit
Hide thumbs

Advertisement

Table of Contents

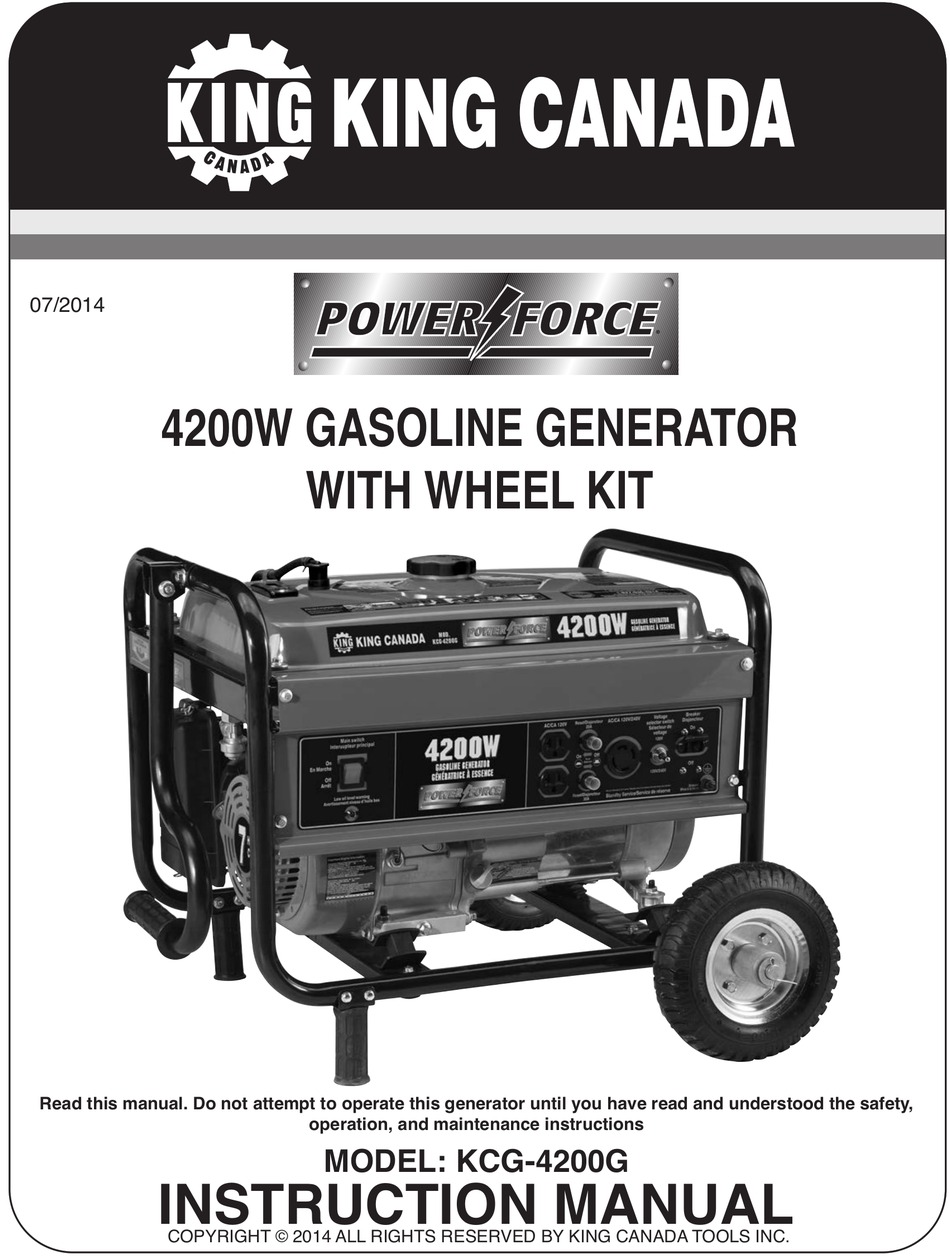

07/2014
4200W GASOLINE GENERATOR
WITh WhEEL KIT
Read this manual. Do not attempt to operate this generator until you have read and understood the safety,
operation, and maintenance instructions
INSTRUCTION MANUAL
MODEL: KCG-4200G
COPYRIGHT © 2014 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

Advertisement

Table of Contents
loading

Related Manuals for King Canada KCG-4200G

Summary of Contents for King Canada KCG-4200G

  • Page 1 WITh WhEEL KIT Read this manual. Do not attempt to operate this generator until you have read and understood the safety, operation, and maintenance instructions INSTRUCTION MANUAL MODEL: KCG-4200G COPYRIGHT © 2014 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.

  • Page 2: Warranty And Service Information

    REPLACEMENT PARTS Replacement parts for this generator are available at our authorized KING CANADA generator service centers across canada. For serv- icing, call the above toll free number to get servicing instructions and be sure to have your proof of purchase if you are claiming warranty work.

  • Page 3: Safety Precautions

    BASIC & SPECIFIC SAFETY PRECAUTIONS BE CAREFUL! DO NOT USE KEEP FLAMMABLE DO NOT USE IN DO NOT CONNECT TO IN YOUR hOUSE WET CONDITIONS hOUSEhOLD CIRCUIT MATERIALS AWAY WhEN REFUELING; STOP ENGINE! NO SMOKING! DO NOT SPILL GASOLINE! BASIC SAFETY INFORMATION ing the engine or muffler while they are still hot.

  • Page 4: Specific Safety Precautions

    SPECIFIC SAFETY PRECAUTIONS OPERATION OF GENERATOR IN RAIN, WET, ICY, OR FLOODED RISK OF BREAThING - INhALATION hAZARD CONDITIONS. Operate generator in clean, dry, well ventilated area. Never operate unit Water is an excellent conductor of electricity! Water which comes in con- in enclosed areas such as garages, basements, storage, sheds, or in tact with electrically charged components can transmit electricity to the any location occupied by humans or animals.
  • Page 5 11. 30 Amp Reset. Resets the AC 120/240V twist lock outlet. 12. Oil gauge dipstick. Check the oil level using this oil gauge dipstick. 13. Frame supports. MODEL KCG-4200G Peak Wattage (starting) 4200W Running Wattage 3500W AC current (120V/240V) 26.6 Amp/13.3 Amp...

  • Page 6: Pre-Start Check

    ASSEMBLY & PRE-START ChECK WARNING! To prevent permanent damage to generator or any appliances, you MUST check oil level, fuel level, air cleaner filter and unplug any load from the generator before starting. ASSEMBLY Remove all the contents from the carton and proceed to the following assembly steps; Pivot handle Install the pivot handle (A) Fig.1A to the left side of the frame using 2 hex.

  • Page 7: Starting Procedures

    PRE-START ChECK & STARTING PROCEDURES PRE-START ChECK AIR CLEANER FILTERS The air cleaner filters should be checked before every start-up and after prolonged storage, the following steps should be done when checking air cleaner filters; 1) Snap the top and bottom clips (A) Fig.3 backwards and remove the air cleaner cover (B). 2) Remove the air cleaner filters (C &...

  • Page 8: Electrical Connections

    Overloading the generator will cause power fluctuations and can damage equipment and appliances. King Canada will not be responsible for equipment damaged as a result of voltage surges, improper operation or improper installation of the generator.

  • Page 9: Wattage Calculations

    WATTAGE CALCULATIONS WATTAGE CALCULATIONS DETERMINING WATTAGE REqUIREMENTS Note: Volts X Amps = Watts IMPORTANT! Never exceed the rated capacity of your generator. Seri- Example: 120V X 10 Amps = 1200 Watts ous damage to the generator or appliance could result from an over- load.

  • Page 10: Maintenance And Storage

    MAINTENANCE & STORAGE MAINTAINING YOUR GENERATOR Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 100 hours or 6 months after. To replace engine oil; 1) Loosen the oil gauge dipstick (A) Fig.8.

  • Page 11: Troubleshooting

    1. Electrical short in connected item. 1. Disconnect shorted load. down when loads are connected 2. Overloaded. 2. Reduce load. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
