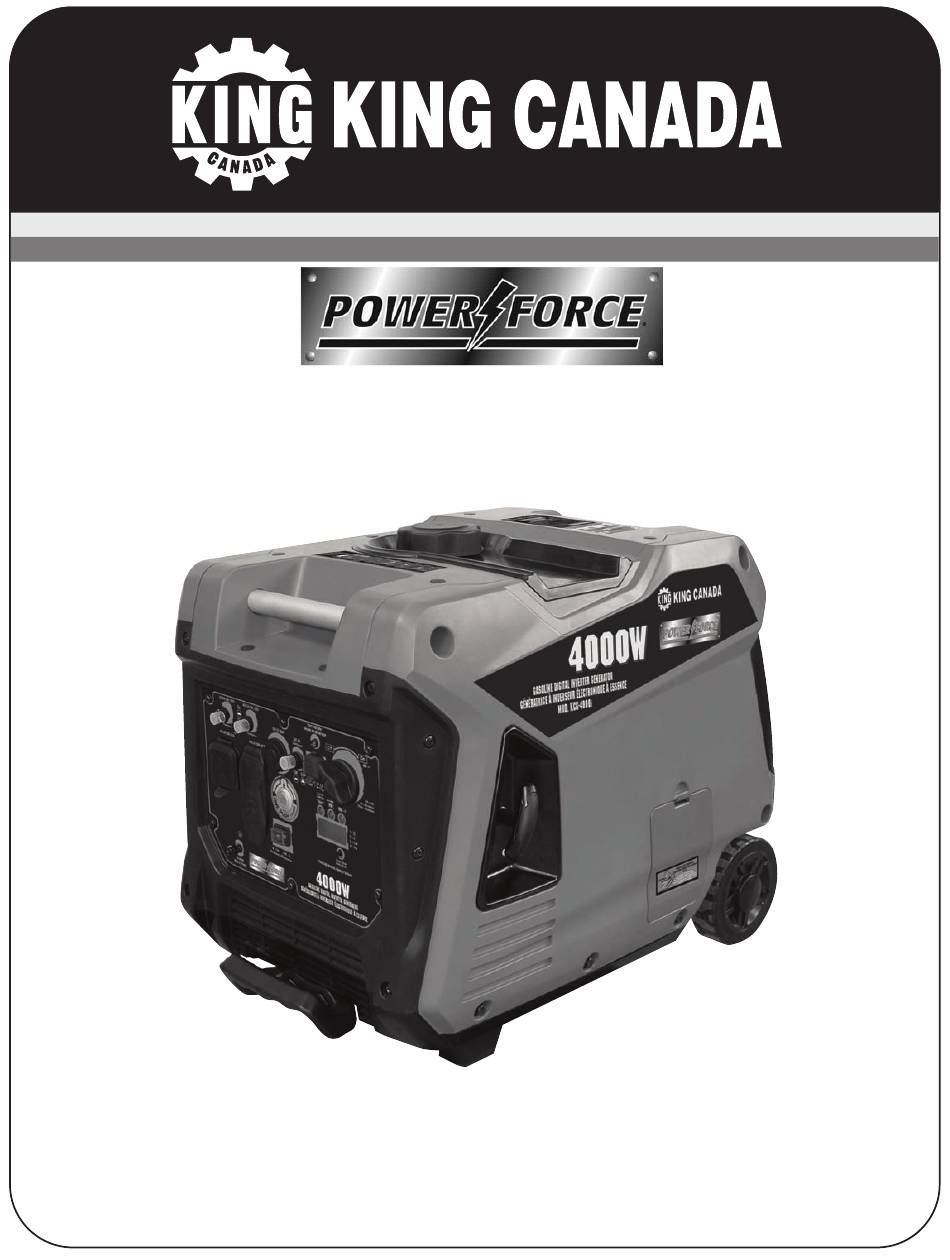

- Page 1 INvERTER GENERATOR 04/2017 Read this manual. Do not attempt to operate this generator until you have read and understood the safety, operation, and maintenance instructions INSTRUCTION MANUAL MODEL: KCG-4000i COPYRIGHT © 2017 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty And Service Information
LIMITED TOOL WARRANTY KING CANADA makes every effort to ensure that this product meets high quality and durability standards. KING CANADA warrants to the original retail consumer a 1-year limited warranty as of the date the product was purchased at retail and that each product is free from defects in materials. - Page 3 BASIC & SPECIFIC SAFETY PRECAUTIONS BE CAREFUL! KEEP FLAMMABLE DO NOT USE DO NOT USE IN DO NOT CONNECT TO IN YOUR HOUSE MATERIALS AWAY WET CONDITIONS HOUSEHOLD CIRCUIT WHEN REFUELING: STOP ENGINE! NO SMOKING! DO NOT SPILL GASOLINE! BASIC SAFETY INFORMATION EXHAUST FUMES ARE DANGEROUS FUEL •Never operate the engine in a closed area or it may cause...
-
Page 4: Specific Safety Precautions
SPECIFIC SAFETY PRECAUTIONS OPERATION OF GENERATOR IN RAIN, WET, ICY, OR FLOODED RISK OF BREATHING - INHALATION HAZARD CONDITIONS. Operate generator in clean, dry, well ventilated area. Never operate unit Water is an excellent conductor of electricity! Water which comes in in enclosed areas such as garages, basements, storage, sheds, or in contact with electrically charged components can transmit electricity to any location occupied by humans or animals. - Page 5 GETTING TO KNOW YOUR DIGITAL INvERTER GENERATOR 1. Retractable handle. For portability. is too low. If the indicator light is ON, check oil level and fill to 2. Fuel cap. Make sure the fuel cap is always screwed on tightly. Use recommended level with SAE 10W-30 engine oil.
-
Page 6: Pre-Start Check
PRE-START CHECK ASSEMBLY Your Digital Inverter Generator comes completely assembled, please proceed to the pre- start check before attempting to start the engine. PRE-START CHECK WARNING! To prevent permanent damage to generator or any appliances, you MUST check oil level, fuel level, air cleaner filter and unplug any load from the generator before starting. -
Page 7: Starting Procedures
STARTING & STOPPING PROCEDURES STARTING PROCEDURES GROUNDING WARNING! BEFORE STARTING, YOUR GENERATOR MUST BE GROUNDED! Before operating make sure to ground the generator. A ground terminal (A) Fig.4 identified by the ground symbol can be found on the front control panel of the generator, attach a metal spike to a wire, attach the wire to the ground terminal and ground the metal spike into the earth. -
Page 8: Connections & Control Panel
Plug voltage sensitive appliances such as TV's, VCR's, microwaves, ovens, computers, and cordless telephones. Overloading the generator will cause power fluctuations and can damage equipment and appliances. King Canada will not be responsible for equipment damaged as a result of voltage surges, improper operation or improper installation of the generator. - Page 9 CONTROL PANEL & WATTAGE CALCULATIONS CONTROL PANEL continued... • INDICATOR LIGHTS -(A, B, C) FIG.8. The Low Oil Warning light (A) will turn on and the engine will not start if the engine oil level is too low. Add oil if this warning light turns on. The Power light (C) will remain on during normal operation.
-
Page 10: Maintenance
MAINTENANCE Engine Oil Replacement Engine oil should be replaced after the first 20 hours of operation or after the first month of use, it should be replaced every 50 hours or 6 months after. To replace engine oil; 1) Open front access panel, pull out the rubber plug (A) Fig.9 and move it out of the way. 2) Loosen and remove the oil drain bolt (B) if needed tilt the generator forward and drain the oil from the engine. -
Page 11: Storage & Troubleshooting
1. Electrical short in connected item. 1. Disconnect shorted load. down when loads are connected. 2. Overloaded. 2. Reduce load. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list.
